how to automatically update GUI status



  • Problem:

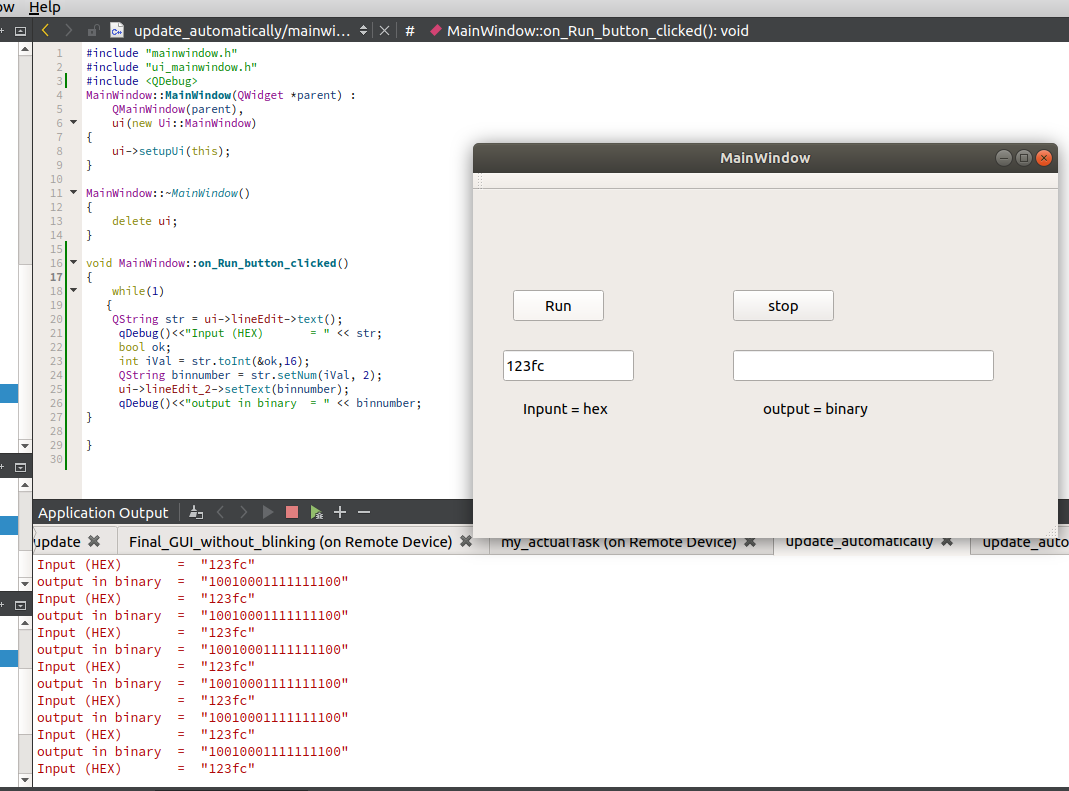

    When I execute the following code without a while(1) loop it works correctly but it needs push Run button for the update.
    When I execute with a while(1) loop it stuck with the current input, not gets ready for the next input. The output of current input displays only in the terminal, not on GUI.

    my target to achieve:
    whenever I will enter input, it should update output without push the run button.
    How I can insert stop pushbutton?

    // program
    void MainWindow::on_Run_button_clicked()
    {
    // while(1)
    // {
    QString str = ui->lineEdit->text();
    qDebug()<<"Input (HEX) = " << str;
    bool ok;
    int iVal = str.toInt(&ok,16);
    QString binnumber = str.setNum(iVal, 2);
    ui->lineEdit_2->setText(binnumber);
    qDebug()<<"output in binary = " << binnumber;
    }
    //}



  • Moderators

    @Mijaz
    here's one way you can do it, using the signals @jsulm pointed you to

    MainWindow::MainWindow(QWidget *parent) :
        QMainWindow(parent),
        ui(new Ui::MainWindow)
    {
        ui->setupUi(this);
        connect(ui->lineEdit, &QLineEdit::textEdited, this, [=]()->void{
            QString str = ui->lineEdit->text();
            qDebug()<<"Input (HEX) = " << str;
            bool ok;
            int iVal = str.toInt(&ok,16);
            QString binnumber = str.setNum(iVal, 2);
            if(ok)
                ui->lineEdit_2->setText(binnumber);
            else
                ui->lineEdit_2->setText("Not a number");
            qDebug()<<"output in binary = " << binnumber;
        });
    }


    replace textEdited with editingFinished if you want to run this lambda(function) only when the user presses enter/return or the line edit looses focus


  • Lifetime Qt Champion

    @Mijaz

    while(1)


    is an endless loop! Why do you need an endless loop? How often do you actually need to iterate?
    "whenever I will enter input" see:



  • @jsulm
    Yes, I need an endless loop.
    Because I have to introduce this characteristic into a reactive jammer GUI.


  • Lifetime Qt Champion


  • Lifetime Qt Champion

    @Mijaz said in how to automatically update GUI status:

    Yes, I need an endless loop.

    No, you don't. See my other post.



  • @jsulm
    Ones it entered to while(1) loop it does not take any input. How I can make it ready for the next input?


  • Lifetime Qt Champion

    @Mijaz Did you read my previous post?
    I gave you two signals. You can use editingFinished signal and connect a slot to it where you execute the code you posted but without loop.

    Do you actually know that an endless loop will never end? You're basically blocking your application forever with such a loop and it is simply not needed at all...


  • Moderators

    @Mijaz
    here's one way you can do it, using the signals @jsulm pointed you to

    MainWindow::MainWindow(QWidget *parent) :
        QMainWindow(parent),
        ui(new Ui::MainWindow)
    {
        ui->setupUi(this);
        connect(ui->lineEdit, &QLineEdit::textEdited, this, [=]()->void{
            QString str = ui->lineEdit->text();
            qDebug()<<"Input (HEX) = " << str;
            bool ok;
            int iVal = str.toInt(&ok,16);
            QString binnumber = str.setNum(iVal, 2);
            if(ok)
                ui->lineEdit_2->setText(binnumber);
            else
                ui->lineEdit_2->setText("Not a number");
            qDebug()<<"output in binary = " << binnumber;
        });
    }


    replace textEdited with editingFinished if you want to run this lambda(function) only when the user presses enter/return or the line edit looses focus



  • @J-Hilk
    Thank you very much. It works great.
    But Run and Stop button not functioned. How we can make this function dependent on the Run and Stop. When I push Run it automatically starts to convert the input to output and when press Stop it should not accept any input further.



  • @J-Hilk
    This program correctly on Desktop. When I try to deply to my SDR Board then following error occures:
    1).
    /usr/local/Qt-4.8.7-arm/include/QtGui/qlineedit.h:196: error: ‘void QLineEdit::textEdited(const QString&)’ is protected
    void textEdited(const QString &);
    ^

    2).
    /home/ijaz/Qt_applications/update_automatically/mainwindow.cpp:11: error: within this context
    connect(ui->lineEdit, &QLineEdit::textEdited, this, =->void
    ^

    3).
    /home/ijaz/Qt_applications/update_automatically/mainwindow.cpp:23: warning: lambda expressions only available with -std=c++11 or -std=gnu++11 [enabled by default]
    });
    ^
    4).
    /home/ijaz/Qt_applications/update_automatically/mainwindow.cpp:23: error: no matching function for call to ‘MainWindow::connect(QLineEdit*&, void (QLineEdit::)(const QString&), MainWindow const, MainWindow::MainWindow(QWidget*)::__lambda0)’
    });
    ^


  • Lifetime Qt Champion

    @Mijaz said in how to automatically update GUI status:

    Qt-4.8.7-arm

    Is there a reason why you use Qt4?
    Also your compiler for the device does not support C++11.


  • Moderators

    @Mijaz
    my example uses a lambda in the connect, that is only possible in Qt5 and newer. Not in QT 4

    But you should be able to move it in its own class function and connect it the old fashioned way



  • @J-Hilk
    I have changed this code to the old version and it works fine. There are two cases I want to execute, cases are follows.

    case 1: Working correctly.

    MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
    {
    ui->setupUi(this);
    connect(ui->lineEdit_input, SIGNAL(textEdited(QString)), this, SLOT(myFunction()));

    }

    void MainWindow::myFunction()
    {
    QString str = ui->lineEdit_input->text();
    qDebug()<<"Input (HEX) = " << str;
    ui->lineEdit_1->setText(str);
    bool ok1;
    qint64 iVal = str.toLongLong(&ok1,16);
    ui->lineEdit_2->setText(QString::number(iVal));
    QString binnumber = str.setNum(iVal, 2);
    ui->lineEdit_3->setText(binnumber);
    qDebug()<<"Convert to Int = " << QString::number(iVal);
    qDebug()<<"Convert to Binary = " << binnumber;
    qDebug()<<"size of string binnumber = " << binnumber.size();
    }

    case 2: Not working correctly,

    MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
    {
    ui->setupUi(this);
    connect(ui->lineEdit_input, SIGNAL(textEdited(QString)), this, SLOT(myFunction()));
    QProcess process;
    process.start("sudo devmem2 0x41210000");
    process.waitForFinished(-1); // will wait forever until finished
    QString stdout = process.readAllStandardOutput();
    qDebug()<<"Input (HEX) = " << stdout;
    QChar data[8] = { stdout[98], stdout[99], stdout[100], stdout[101], stdout[102], stdout[103], stdout[104],stdout[105]};
    QString str1(data, 8);
    qDebug()<<"Input (HEX) = " << str1;

    }

    void MainWindow::myFunction()
    {
    QString str = ui->lineEdit_input->setText(str1);
    qDebug()<<"Input (HEX) = " << str;
    ui->lineEdit_1->setText(str);
    bool ok1;
    qint64 iVal = str.toLongLong(&ok1,16);
    ui->lineEdit_2->setText(QString::number(iVal));
    QString binnumber = str.setNum(iVal, 2);
    ui->lineEdit_3->setText(binnumber);
    qDebug()<<"Convert to Int = " << QString::number(iVal);
    qDebug()<<"Convert to Binary = " << binnumber;
    qDebug()<<"size of string binnumber = " << binnumber.size();
    }

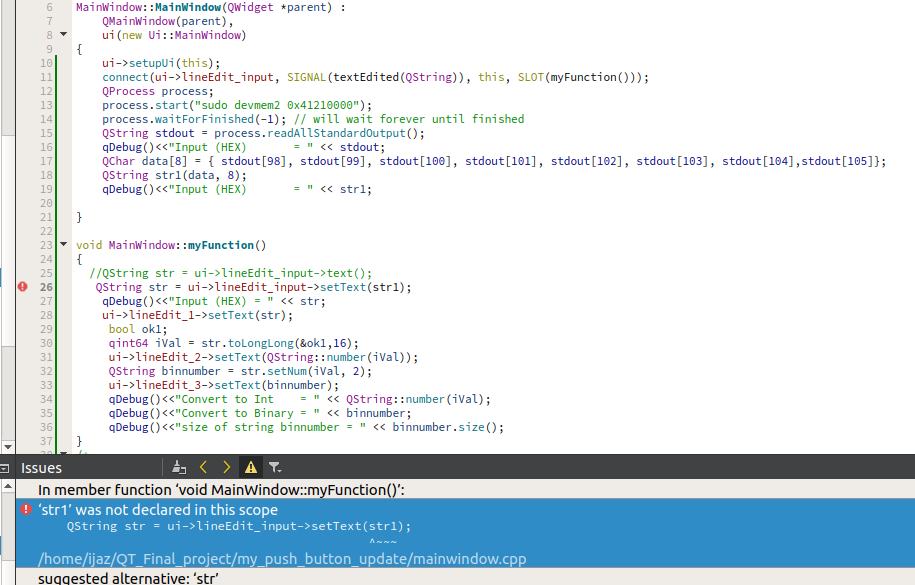

    "QString str1" is unkown "void MainWindow::myFunction()"


  • Lifetime Qt Champion

    @Mijaz said in how to automatically update GUI status:

    str1

    Where is it defined?
    The compiler actually tells you that it does not exist at that location...



  • @jsulm

    I am using Qt4 because the errors occurred while cross-compilation of Qt5 to my Board.


  • Moderators

    @Mijaz yes of course, str1 is a local variable inside your constructor function. myFunction()` has no knowledge of it.

    also, setText is a void function, it has no return value


  • Lifetime Qt Champion

    @Mijaz Keep in mind that Qt4 is reached its end of life already and is not supported anymore.



  • @jsulm
    QString str1 is defined in MainWindow::MainWindow(QWidget *parent) :


  • Lifetime Qt Champion

    @Mijaz said in how to automatically update GUI status:

    QString str1 is defined in MainWindow::MainWindow(QWidget *parent) :

    as local variable which only exists inside MainWindow::MainWindow(QWidget *parent)...



  • @Mijaz
    now I have defined str1 in mainwindow.h
    /////////////
    public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();
    QString str1;

    ///////////////////////
    MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
    {
    ui->setupUi(this);
    connect(ui->lineEdit_input, SIGNAL(textEdited(QString)), this, SLOT(myFunction()));
    QProcess process;
    process.start("sudo devmem2 0x41210000");
    process.waitForFinished(-1); // will wait forever until finished
    QString stdout = process.readAllStandardOutput();
    qDebug()<<"Input (HEX) = " << stdout;
    QChar data[8] = { stdout[98], stdout[99], stdout[100], stdout[101], stdout[102], stdout[103], stdout[104],stdout[105]};
    QString str11(data, 8);
    qDebug()<<"local string = " << str11;
    bool ok1;
    str1= str11.toInt(&ok1,16);
    qDebug()<<"Globle string = " << QString::number(str1);

    }

    void MainWindow::myFunction()
    {
    //QString str = ui->lineEdit_input->text();
    QString str = str1;
    qDebug()<<"Input (HEX) = " << str;
    ui->lineEdit_1->setText(str);
    bool ok1;
    qint64 iVal = str.toLongLong(&ok1,16);
    ui->lineEdit_2->setText(QString::number(iVal));
    QString binnumber = str.setNum(iVal, 2);
    ui->lineEdit_3->setText(binnumber);
    qDebug()<<"Convert to Int = " << QString::number(iVal);
    qDebug()<<"Convert to Binary = " << binnumber;
    qDebug()<<"size of string binnumber = " << binnumber.size();
    }
    //////////////

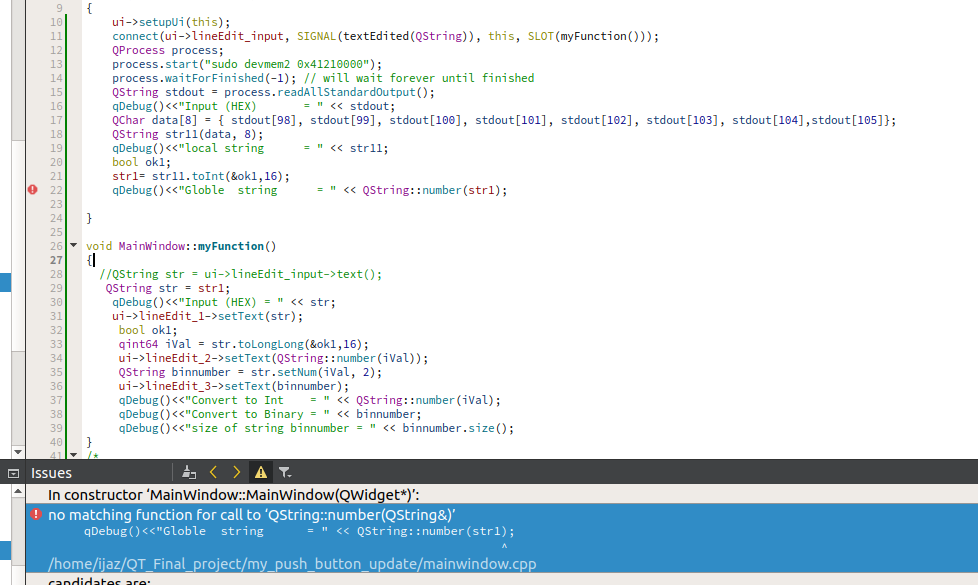

    error now:

    /home/ijaz/QT_Final_project/my_push_button_update/mainwindow.cpp:22: error: no matching function for call to ‘QString::number(QString&)’
    qDebug()<<"Globle string = " << QString::number(str1);
    ^



  • @Mijaz
    So look at the error message. It tells you precisely what is wrong, you don't need to ask. str1 is of type QString, and QString::number() takes a number and converts it to a string. Which you don't have or want....



  • @J-Hilk @JonB @jsulm
    There are basically two different cases:
    Case-1:
    The user will give input in lineEdit_input and other things should update sharply according to the input. This case Working fine, I have attached code for this case.

    Case-2:
    In this case-2 user will not enter value but the value will come from QProcess function. If I will Execute this code without any loop it works fine but if QProcess output got changed then other things did not update according to QProcess.
    Therefore I used a While loop to continually check the QProcess and update the required things. But, when I deploy this to the board and run the application it goes hang. The code for this case is also given.

    Case-1
    #include <QString>
    #include <QProcess>
    MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
    {
    ui->setupUi(this);
    connect(ui->lineEdit_input, SIGNAL(textEdited(QString)), this, SLOT(myFunction()));
    }
    void MainWindow::myFunction()
    {
    QString str1 = ui->lineEdit_input->text();
    qDebug()<<"Input (HEX) = " << str1;
    ui->lineEdit_1->setText(str1);
    bool ok1;
    qint64 iVal = str1.toLongLong(&ok1,16);
    qDebug()<<"Convert to Int = " << QString::number(iVal);
    ui->lineEdit_2->setText(QString::number(iVal));
    QString binnumber = str1.setNum(iVal, 2);
    ui->lineEdit_3->setText(binnumber);
    qDebug()<<"Convert to Binary = " << binnumber;
    qDebug()<<"size of string binnumber = " << binnumber.size();
    }
    Case-2
    #include <QString>
    #include <QProcess>
    QString str1;
    MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
    {
    ui->setupUi(this);
    while (1) {
    QProcess process;
    process.start("sudo devmem2 0x41210000");
    process.waitForFinished(-1); // will wait forever until finished
    QString stdout = process.readAllStandardOutput();
    qDebug()<<"Input (HEX) = " << stdout;
    QChar data[8] = { stdout[98], stdout[99], stdout[100], stdout[101], stdout[102], stdout[103], stdout[104],stdout[105]};
    QString str11(data, 8);
    qDebug()<<"Input (HEX) = " << str11;
    str1= str11;
    qDebug()<<"Globle = " << str1;
    myFunction();
    // for produce delay
    for(int i=0;i<1000000;++i)
    {
    qDebug() << "Print i value" <<i;
    }
    }
    }
    void MainWindow::myFunction()
    {
    ui->lineEdit_input->setText(str1);
    qDebug()<<"Input (HEX) = " << str1;
    ui->lineEdit_1->setText(str1);
    bool ok1;
    qint64 iVal = str1.toLongLong(&ok1,16);
    qDebug()<<"Convert to Int = " << QString::number(iVal);
    ui->lineEdit_2->setText(QString::number(iVal));
    QString binnumber = str1.setNum(iVal, 2);
    ui->lineEdit_3->setText(binnumber);
    qDebug()<<"Convert to Binary = " << binnumber;
    qDebug()<<"size of string binnumber = " << binnumber.size();
    }



  • @jsulm
    I have the Qt-5.9.5 version on my Desktop. I have tried to cross-compile this version at my board. I am facing an error at the ./configuration stage. Do you have any helpful resources for cross-compile?

    I have followed the following websites. I have SDR ADRV9361 board instead of Raspberry.

    https://wiki.qt.io/RaspberryPi2EGLFS
    https://mechatronicsblog.com/cross-compile-and-deploy-qt-5-12-for-raspberry-pi/
    https://forum.qt.io/topic/52546/tuto-build-qt-to-cross-compile-for-arm/2

    the os-version of the board :
    analog@analog:~$ cat /etc/os-release
    NAME="Linaro"
    VERSION="14.04"
    ID=Linaro

    the os-version of the Desktop
    cat /etc/os-release
    NAME="Ubuntu"
    VERSION="18.04.2 LTS (Bionic Beaver)"
    ID=ubuntu
    ID_LIKE=debian
    PRETTY_NAME="Ubuntu 18.04.2 LTS"
    VERSION_ID="18.04"



  • @Mijaz
    But the post you made was to show a compilation error, and I pointed out what the message was and how it related to your code. What you have written since does not acknowledge that and has nothing to do with it. You seem to jump from one question to another without any explanation.



  • @Mijaz
    The code is hard to read because it's not indented and you do not use the forum post tools to display it is code. Please if you paste code at least use the </> icon button in the post's toolbar to mark as code, placing it inside 3 backtick markers.

    I do not claim to understand what you are saying Case-2 is trying to accomplish. But any code you use which has while (1) in MainWindow::MainWindow() is not going to be right. It will block, not allow the main Qt event loop to run, and "hang" the application as you say.

    You really need to move over to signals & slots, that's what is required in Qt program to avoid "hanging". Get rid of your for loop "to produce delay", it's quite the wrong way to do it (use a QTimer if you need a delay).



  • @Mijaz said in how to automatically update GUI status:

    I have the Qt-5.9.5 version on my Desktop. I have tried to cross-compile this version at my board. I am facing an error at the ./configuration stage. Do you have any helpful resources for cross-compile?
    I have followed the following websites. I have SDR ADRV9361 board instead of Raspberry.

    Please do some favors to the community:

    1. Stop posting to a topic already marked as solved!
    2. Stop posting to a topic already marked as solved, with an issue completely unrelated to the original topic

    Working this way is only in your benefit, I'd rather say kinda selfish if you want, since I doubt somebody looking for help regarding cross-compilation will look at a topic titled "how to automatically update GUI status", right?



  • @Pablo-J-Rogina
    Ok sure I will aske every question as a new question.


Log in to reply
