Select whole row in QTableWidget when radio button is checked



  • Hi,

    I have a QTableWidget and the rows contain a column with a QRadioButton. When I check the radio button in a row which is not selected, I'd like to select this row automatically. How can I achieve this?

    Thanks.



  • @Christian-Ehrlicher
    Thanks for the suggestion. Still I consider a custom delegate an overkill for such simple functionality, as my table is fairly simple and it will not contain more than a dozen rows.

    @anil_arise
    Thank you for the code. I will try that too.

    In the meantime, I found a solution. The problem and the confusion was that when a radio button (or checkbox) is checked, two toggled signals are emitted -one for the radio button actually clicked and one for the previously checked radio button which changes to unchecked, as the buttons are set to autoExclusive. So, I worked with the model indexes and got the result I wanted (note that in the end I opted for a QCheckBox):

      void ServiceDialog::setActiveModel()
    {
        for (auto row = 0; row < ui->myTable->rowCount(); row++) {
            QCheckBox *box = qobject_cast<QCheckBox*>(ui->myTable->cellWidget(row,5));
            if (box && box->isChecked()) {
                    ui->myTable->setCurrentIndex(ui->myTable->model()->index(row,0));
                    ui->myTable->selectRow(ui->myTable->currentIndex().row());
                    theStringIwant = ui->myTable->item(ui->myTable->currentIndex().row(),0)->text();
                    break;
            }
        }
        ...
    }


  • Qt Champions 2019



  • @jsulm ,
    Thanks for the prompt reply. That's my intention but I can't figure it out. Since the rows are created dynamically, I'm creating the radio buttons in a slot, after the user clicks a button. In that slot, I'm using this connection after creating the radio button

    connect(myRadioButton,&QRadioButton::toggled,this,&MyDialog::myOtherSlot);


    So, when the code runs in myOtherSlot, I can't find a reference point for calling QTableView::selectRow. The current row, current index, etc, still point to the already selected row and not to the row in which the radio button was clicked.

    Apparently I'm missing sth obvious, so bare with me :).



  • @panosk you can use itemClicked signal

    connect(ui->tableWidget,SIGNAL(itemClicked(QTableWidgetItem*)),this,SLOT(sl_ItemCLicked(QTableWidgetItem*)));

    void sl_ItemCLicked(QTableWidgetItem *item)
    {
    ui->tableWidget->selectRow(item->row());
    }



  • @anil_arise
    Hm, it seems it's not so obvious. When I click on the radio button, the click seems totally disconnected from the view --it's not passed to the table cell. I just checked your suggestion and it doesn't work when I click on the radio button, but it works if I click on a cell that doesn't have a widget.



  • @panosk said in Select whole row in QTableWidget when radio button is checked:

    So, when the code runs in myOtherSlot, I can't find a reference point for calling QTableView::selectRow.

    When I click on the radio button, the click seems totally disconnected from the view --it's not passed to the table cell.

    Then can you not find where the radio button is in the table, if that's what's necessary to locate the row? (How have you put the radiobutton in --- setCellWidget()? I wish you said....)


  • Lifetime Qt Champion

    Hi

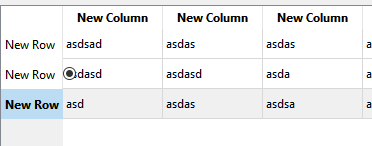

    It does work fine for me. It selects the row.
    However, the RadioButton steals focus so
    it will be drawn grey which is as expected when using setCellWidget.

    alt text



  • @mrjj
    Thank you for spending the time to check this. I also get the behavior I see in your screenshot, but still it's not what I want. I need the selection to actually change to the correct index. I'm checking with simple qDebugs to see where the index is actually placed and it's not in the cell where the radio button is clicked. The signal itemClicked is not emitted when I toggle the radio button. The index only changes when I click on any other cell except the one with the radio button.



  • OK, now I'm completely confused with QRadioButton. It seems impossible to find out which radio button is actually checked so I can work on that row. Here is some code:

    This is a slot where I create the items and connect the toggled signal of each radio button to another slot.

    void ServiceDialog::addModel()
    {
       ...

        QRadioButton *rButton = new QRadioButton(ui->myTable);
        ui->myTable->setCellWidget(ui->myTable->rowCount()-1,5,rButton);

    //if this is the first item in the table, we want it to be enabled.
        if (ui->myTable->rowCount() == 1) {
            ui->myTable->selectRow(0);
            rButton->setChecked(true);
        }
    //We need to know when a radio button is clicked and act on that row
        connect(rButton,&QRadioButton::toggled,this,&ServiceDialog::setActiveModel);

    }

    void ServiceDialog::setActiveModel()
    {
    //Ugly, but it shows the confused state of the radio buttons
        for (auto row=0; row < ui->myTable->rowCount(); row++) {
            QRadioButton *button = qobject_cast<QRadioButton*>(ui->myTable->cellWidget(row,5));
            if (button) {
                if (button->isChecked()) {
    // Surprise! Here, the previously checked button is actually checked!! but in the
    // table it appears unchecked!!,
    // so it's impossible to find out which radio button is actually checked
    // and work on that row

                }
            }
        }


  • Qt Champions 2019

    Don't work with cell widgets but use a proper QStyledItemDelegate



  • @panosk try this sample example .

    // in UI class

    ui->tableWidget->setRowCount(10);
    ui->tableWidget->setColumnCount(2);
    for (int row=0;row<4;row++)
    {
    QTableWidgetItem *newItem1 = new QTableWidgetItem("123"+QString::number(row));
    CustomRadioButton *rbutton = new CustomRadioButton(row);
    connect(rbutton,SIGNAL(sendBtn_id(int,bool)),SLOT(sl_clicked(int,bool)));
    ui->tableWidget->setCellWidget(row,0,rbutton);
    ui->tableWidget->setItem(row, 1, newItem1);
    }

    void sl_clicked(int index,bool ischecked)
    {
    if(index !=-1)
    {
    if(ischecked)
    ui->tableWidget->selectRow(index);
    else
    ui->tableWidget->clearSelection();
    }
    }

    // custom radio button class
    class CustomRadioButton:public QRadioButton
    {
    Q_OBJECT
    public:
    int btn_id;
    CustomRadioButton(int id = 0) {
    btn_id = id;
    setText("Rbutton "+QString::number(id+1));
    connect(this,SIGNAL(clicked(bool)),SLOT(sl_clicked(bool )));
    }
    signals:
    void sendBtn_id(int id,bool checked);

    public slots:
    void sl_clicked(bool ischecked)
    {
    emit sendBtn_id(btn_id,ischecked);
    }

    };



  • @Christian-Ehrlicher
    Thanks for the suggestion. Still I consider a custom delegate an overkill for such simple functionality, as my table is fairly simple and it will not contain more than a dozen rows.

    @anil_arise
    Thank you for the code. I will try that too.

    In the meantime, I found a solution. The problem and the confusion was that when a radio button (or checkbox) is checked, two toggled signals are emitted -one for the radio button actually clicked and one for the previously checked radio button which changes to unchecked, as the buttons are set to autoExclusive. So, I worked with the model indexes and got the result I wanted (note that in the end I opted for a QCheckBox):

      void ServiceDialog::setActiveModel()
    {
        for (auto row = 0; row < ui->myTable->rowCount(); row++) {
            QCheckBox *box = qobject_cast<QCheckBox*>(ui->myTable->cellWidget(row,5));
            if (box && box->isChecked()) {
                    ui->myTable->setCurrentIndex(ui->myTable->model()->index(row,0));
                    ui->myTable->selectRow(ui->myTable->currentIndex().row());
                    theStringIwant = ui->myTable->item(ui->myTable->currentIndex().row(),0)->text();
                    break;
            }
        }
        ...
    }
