Displaying data in hex format

Scheduled Pinned Locked Moved Solved General and Desktop
7 Posts 3 Posters 5.5k Views 2 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • A Offline
    A Offline
    admkrk
    wrote on 15 Sept 2019, 00:58 last edited by
    #1

    I have seen similar questions asked many times, but they usually referred to reading or writing files. My ultimate goal is to basically create an assembler IDE for programming EEPROMs. I have done something similar to all the parts except creating a hex viewer/editor. In general, I have difficulty dealing text, or I should say picking formats to use.

    For my tests I am using a .hex file created in Atmel Studio, but I assume a .ith file from NASM will be the same. No matter what I try, it seems I cam only get the ASCII value to print.

    My latest attempt:

    void MainWindow::openHexFile(QString file)
    {
        QFile f(file);
        char fileData;
        QByteArray data;
        if(!f.open(QIODevice::ReadOnly))
        {
            return;
        }

        while(!f.atEnd())
        {
            f.read(&fileData, sizeof (char));
            data.append(fileData).toHex();
        }
        ui->hexEdit->insertPlainText(data);
    }


    Produces the ASCII just fine:

    :1000000014C01BC01AC019C018C017C016C026C023
    :1000100014C013C012C011C010C00FC00EC00DC05C
    :100020000CC00BC00AC009C008C011241FBECFE518
    :10003000D1E0DEBFCDBF09D026C0E2CF12B883E346
    :1000400089B98AB188698AB90895F89480E886BD2B
    :1000500016BC7894F3DFB89AC098FFCF1F920F9226
    :100060000FB60F9211248F938CB1813619F082361E
    :1000700019F003C0C09A01C0C0988F910F900FBEB5
    :0A0080000F901F901895F894FFCF21
    :00000001FF


    That is not hex though. I am sure it is something very simple that I am missing, but...

    Any help would be appreciated, thanks.

    1 Reply Last reply
    0
    • C Offline
      C Offline
      Christian Ehrlicher
      Lifetime Qt Champion
      wrote on 15 Sept 2019, 06:39 last edited by
      #2

      @admkrk said in Displaying data in hex format:

      data.append(fileData).toHex();

      What do you think happens here? Take a look at the documentation: https://doc.qt.io/qt-5/qbytearray.html#toHex

      Qt Online Installer direct download: https://download.qt.io/official_releases/online_installers/
      Visit the Qt Academy at https://academy.qt.io/catalog

      1 Reply Last reply
      1
      • A Offline
        A Offline
        admkrk
        wrote on 15 Sept 2019, 15:43 last edited by
        #3

        OK, I am getting confused on the formats. What I was calling ASCII is the character. What I expected to happen is I would get the hex representation of it. In other words I expected to get something like:
        3A31303030...
        instead of:
        :1000...

        It looks like I am completely not understanding how I should go about this.

        1 Reply Last reply
        0
        • C Offline
          C Offline
          Christian Ehrlicher
          Lifetime Qt Champion
          wrote on 15 Sept 2019, 16:35 last edited by
          #4

          You did not took a look at the documentation I pointed you to - toHex() returns a new QByteArray, it does not modify the current object: "Returns a hex encoded copy of the byte array. "

          Qt Online Installer direct download: https://download.qt.io/official_releases/online_installers/
          Visit the Qt Academy at https://academy.qt.io/catalog

          1 Reply Last reply
          2
          • M Offline
            M Offline
            mpergand
            wrote on 15 Sept 2019, 17:11 last edited by mpergand
            #5

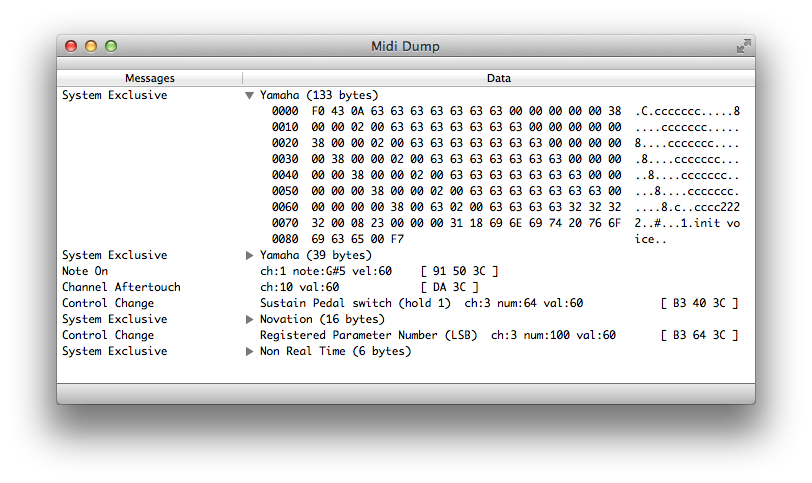

            It seems that what you want to do is some sort of HEX DUMP :

            Here my code:

            if(data[0] EQ (char)0xF0)
                           {
                           int add=0;      // address of the line
                           int rows=data.length()/16;  // number of lines
                           if(data.length()%16) rows++;

                           for(int i=0; i<rows; i++)
                               {
                               VariantList dump;

                               dump<<"";   //
                               QByteArray line=data.mid(16*i,16);
                               QString hex,ascii=" ";

                               // 16 data by line
                               for(int b=0;b<line.length();b++)
                                   {
                                   uint8_t c=uint8_t(line.at(b));
                                   hex+=QString::asprintf("%02X ", c); // hex

                                   if( (c<32) OR (c>=127) ) c='.';
                                   ascii+=QString::asprintf("%c", c);  // ascii
                                   }

                               while(hex.size()<48) hex.append(' ');
                               dump<<QString::asprintf("%04X  ", add)+hex+ascii;  // address
                               item->addChildWithData(dump);
                               add+=16;
                               }
                           }
                       }


            As you can see i'm using asprintf to convert the data into the different formats. Very handy.

            1 Reply Last reply
            1
            • A Offline
              A Offline
              admkrk
              wrote on 15 Sept 2019, 23:41 last edited by
              #6

              @christian-ehrlicher said in Displaying data in hex format:

              You did not took a look at the documentation I pointed you to - toHex() returns a new QByteArray, it does not modify the current object: "Returns a hex encoded copy of the byte array. "

              I did look, but missed the part about a copy.

              @mpergand said in Displaying data in hex format:

              It seems that what you want to do is some sort of HEX DUMP :

              Yes, that is pretty much what I am looking do.

              Thank you both, if I can ever get a good nights sleep I should be able to figure something out.

              1 Reply Last reply
              1
              • A Offline
                A Offline
                admkrk
                wrote on 20 Sept 2019, 21:53 last edited by
                #7

                Amazing how some rest can clear your head. I discovered I needed to switch to reading a binary file and between the rest and looking at it from a different angle, it just came out right. I still have a long way to go, but at least the basic part is working now.

                void MainWindow::openHexFile(QString file)
                {
                    QFile f(file);
                    QByteArray data;
                    if(!f.open(QIODevice::ReadOnly))
                    {
                        qDebug() << "Error opening file.";
                        return;
                    }

                    while(!f.atEnd())
                    {
                        data = f.readLine().toHex();

                        for(int i = 0; i < data.size(); i++)
                        {
                            QChar temp = data.at(i);
                            ui->hexEdit->insertPlainText(temp);
                            if(i % 2)
                                ui->hexEdit->insertPlainText(" ");
                        }
                    }
                }


                Thanks again guys.
