Pdf paper size problem between win computers?!



  • Hi,
    I am developing program under windows. I create pdf output of some values on A4 page. But the size of the pdf file is different unfortunatelly! I did not understand anything!
    On one computer pdf is ok but on the other comuter page is cutted as attached!

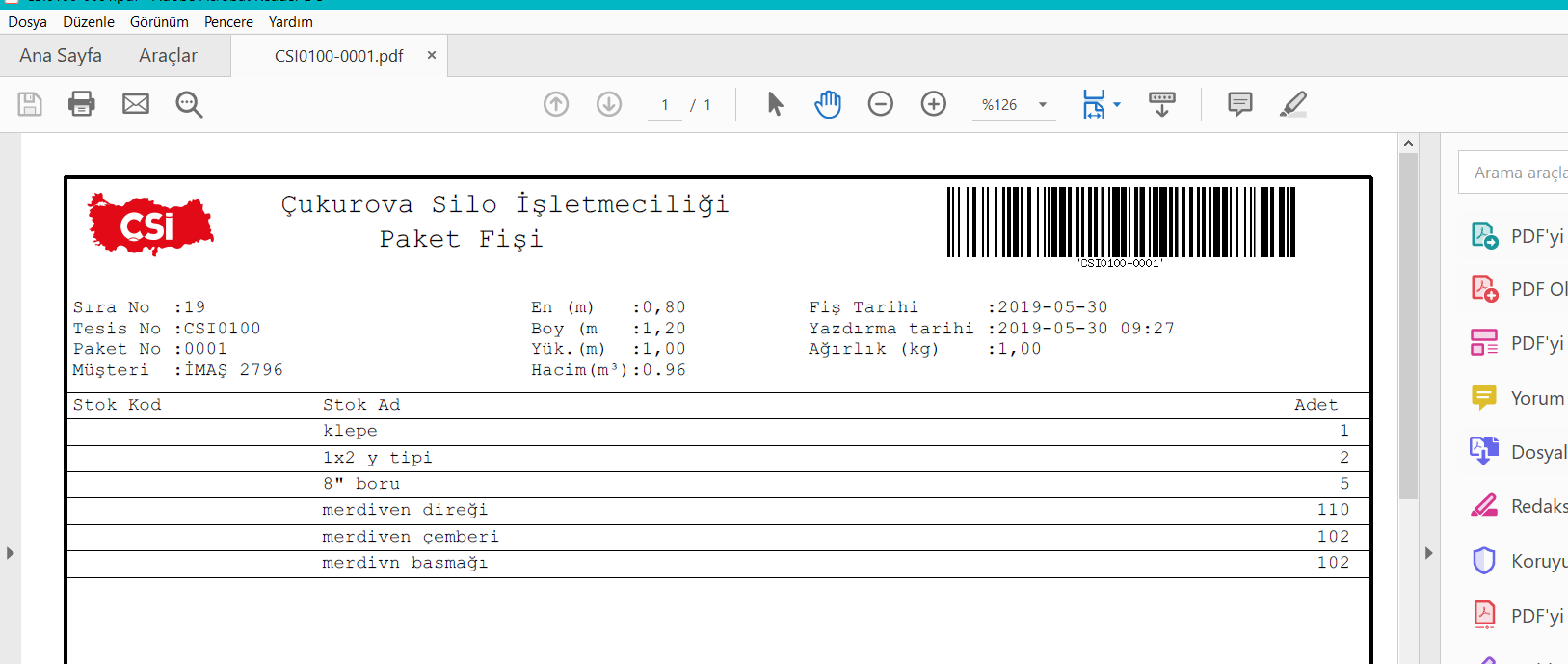

    Normal page view:

    Cutted pageview on some win machines:

    Where am I worng?!...
    Regards,
    Mucip:)


  • Lifetime Qt Champion

    Hi,

    Are you using any special fonts ?
    How are you generating the table ?
    What is the size difference ?
    What are you using to print the PDF ?



  • Hi @SGaist ,
    Well, complete pdf generator code is below,

    void PaketGiris::on_actionPDF_Yap_triggered()
    {

         //PDFYap...




        QProcess process;

        connect(&process, &QProcess::errorOccurred, [=](QProcess::ProcessError error)
        {
            //qDebug() << "error enum val = " << error << endl;

            QMessageBox::critical(this, "Hata!", "Barkod oluşturulamadı!");
        });





        QString hedef = QDir::tempPath() + "/barkod.png";


        process.start("zint.exe", QStringList() << "-o" << hedef << "-d" << "'" + ui->comboTesis->currentText() + "-" + baglanti::sifirEkle(ui->lEPaketNo->text().toInt(),4)+"'");
        process.waitForFinished();



        QPixmap  *logoCsi;
        logoCsi = new QPixmap;
        logoCsi->load(":/resimler/csi.png");

        QPixmap  *barkod;
        barkod = new QPixmap;
        barkod->load(hedef);

        //Pdf yapılıyor...
        QPrinter *printer;
        printer = new QPrinter;
        printer->setPaperSize(QSize(210, 297), QPrinter::Millimeter);

        QPainter *painter;
        painter = new QPainter;




        QString pdfDosyaYol = QDir::tempPath() + "/" + ui->comboTesis->currentText() + "-" + baglanti::sifirEkle(ui->lEPaketNo->text().toInt(),4) + ".pdf";

        QFile takas(pdfDosyaYol);

        if (takas.open(QIODevice::WriteOnly)){
            printer->setOutputFormat(QPrinter::PdfFormat);
            printer->setPaperSize(QPrinter::A4);
            printer->setOutputFileName(pdfDosyaYol);
            //fileName2=fileName;
        } else{
            QMessageBox::critical(this, "Hata",
                "Önce Pdf dosyayı kapatmalısınız!", QMessageBox::Ok);
            return;
        }

        takas.close();
        /*

        QFontMetrics fm = fontMetrics();
        int lh = fm.lineSpacing() * 2;
        int currentHeight = lh * 5;
        */

        painter->begin(printer);

        QPen *pen;
        pen = new QPen;
        pen->setWidth(2);
        painter->setPen(*pen);



        QFont font( "Courier" ); //Arial
        font.setPointSize( 6 );
        font.setWeight( QFont::Normal );
        font.setItalic(false);
        font.setLetterSpacing(QFont::PercentageSpacing, 100);
        painter->setFont(font);

        //Önce dış çerçeveyi çizelim
        QRect rect(15, 15, 940,1350);
        painter->drawRect(rect);

        //Logo geliyor
        painter->drawPixmap(QRect(25, 22, 100, 55), *logoCsi);

        // Barkod geliyor
        painter->drawPixmap(QRect(650, 22, 250, 60), *barkod);


        //Ana başlık
        font.setPointSize(12);
        painter->setFont(font);
        painter->drawText(170,40,"Çukurova Silo İşletmeciliği");
        painter->drawText(240,65,"Paket Fişi");
        //Üst bilgiler
        font.setPointSize(8);
        painter->setFont(font);

        painter->drawText(20,100, 470, 15, Qt::AlignLeft, "Sıra No  :" + ui->lESiraNo->text());
        painter->drawText(20,115, 470, 15, Qt::AlignLeft, "Tesis No :" + ui->comboTesis->currentText());
        painter->drawText(20,130, 470, 15, Qt::AlignLeft, "Paket No :" + baglanti::sifirEkle(ui->lEPaketNo->text().toInt(),4));
        painter->drawText(20,145, 470, 15, Qt::AlignLeft, "Müşteri  :" + musteriBul(ui->comboTesis->currentText()));


        painter->drawText(350,100, 470, 15, Qt::AlignLeft, "En (m)   :" + ui->spinEn->text());
        painter->drawText(350,115, 470, 15, Qt::AlignLeft, "Boy (m   :" + ui->spinBoy->text());
        painter->drawText(350,130, 470, 15, Qt::AlignLeft, "Yük.(m)  :" + ui->spinYukseklik->text());
        painter->drawText(350,145, 470, 15, Qt::AlignLeft, "Hacim(m³):" + ui->lEHacim->text());


        painter->drawText(550,100, 470, 15, Qt::AlignLeft, "Fiş Tarihi      :" + ui->datePaketleme->dateTime().toString("yyyy-MM-dd"));
        painter->drawText(550,115, 470, 15, Qt::AlignLeft, "Yazdırma tarihi :" + QDateTime::currentDateTime().toString("yyyy-MM-dd HH:mm"));
        painter->drawText(550,130, 470, 15, Qt::AlignLeft, "Ağırlık (kg)    :" + ui->spinYukseklik->text());




        painter->drawText(20,170, 470, 15, Qt::AlignLeft, "Stok Kod" );
        painter->drawText(200,170, 470, 15, Qt::AlignLeft, "Stok Ad" );
        painter->drawText(900,170, 100, 15, Qt::AlignLeft, "Adet" );







        pen->setWidth(1);
        painter->setPen(*pen);

        int satir = 170, satir2 = 189;

        for(int i=0;i<(modelDetay->rowCount() + 2);i++)
        {
            painter->drawText(20,satir2, 470, 15, Qt::AlignLeft, modelDetay->data(modelDetay->index(i, 0), Qt::DisplayRole).toString());
            painter->drawText(200,satir2, 680, 15, Qt::AlignLeft, modelDetay->data(modelDetay->index(i, 1), Qt::DisplayRole).toString());
            painter->drawText(840,satir2, 100, 15, Qt::AlignRight, modelDetay->data(modelDetay->index(i, 2), Qt::DisplayRole).toString());

            painter->drawLine(QPoint(15, satir),QPoint(955, satir));

            satir = satir +19;
            satir2 = satir2 +19;
        }


        if(ui->plainAciklama->toPlainText().length()!=0)
            painter->drawText(25,satir, 1000, 200, Qt::AlignJustify, "Açıklama :" + ui->plainAciklama->toPlainText());



        painter->end();

        delete logoCsi;
        delete barkod;
        delete painter;
        delete printer;

        baglanti::dosyaAc(pdfDosyaYol);


    }


    Regards,
    Mucip:)



  • Dear @SGaist ,
    Same compiled code but working on different machines. And I did not use any special font...

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    Hi
    If you compare them at the same zoom level, are font same size etc ?



  • Hi @mrjj ,
    Everything is the completely same. And same compiled exe program is working from shared location...

    Very strange!...

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    Hi
    Ok so at same zoom level, the texts start at same positions and generally look the same size?
    The page itself is just smaller or what is the actual difference?

    Your code does fine. i see nothing alarming.
    Just as a note, there is really no need to new the QPainter. it only makes it
    possible to forget to delete it.



  • The pages are not "exactly the same". For example, compare where the column containing En (m) :0,80 starts/ends relative to the word Isletmeciligi at the top. Or the heights of the bar code. And other things on the pages.

    Do the multiple machines have the same default printer? I can't recall, but the preview may be affected by what the default/current printer is....

    The obvious first question is are these different PCs really both outputting A4 size? Or, are they both at the same zoom level (it's difficult to see because you've chopped it off, but it looks to me that the top one is at 126% while the bottom one is at 100%...). Is the difference only in the "PDF preview", or is it really there if you print it out?

    You might want to try with a simpler content, e.g. nothing but the page rectangle outline so that you can see where you are starting out from....



  • Hi @JonB,
    It's really strange situation! Every machine run the code from same shared folder location.

    I guess it should be relevant about default printer but I set the pdf size to A4... And A4 size must be same on every printer...

    Really strange!... :(

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    @Mucip
    Hi
    I would try to dump page size on the "wrong" pc and see if you really get A4.
    Also, did you compare the resulting PDF files in something like
    http://winmerge.org/?lang=en
    to see if you can spot anything ?



  • Hi @JonB,
    I realized, it makes same problem on the computers which is connected local printer. But the computers which use use shared network printer has no problem?!...

    I'm still searching...

    Regards,
    Mucip:)



  • @Mucip
    Like I said, in some shape or form I think whatever the default/current printer is may have an effect on the output PDF (you could check by comparing as per @mrjj's suggestion) or it may have an effect on the preview only (yes, A4 should be A4 everywhere), but if it thinks your printer cannot print A4 correctly that may affect preview? As I also said, you might check what it actually prints if it's only the preview which shows differently?



  • @mrjj ,
    It's really diffiult to understand differnce unfortunately... :(

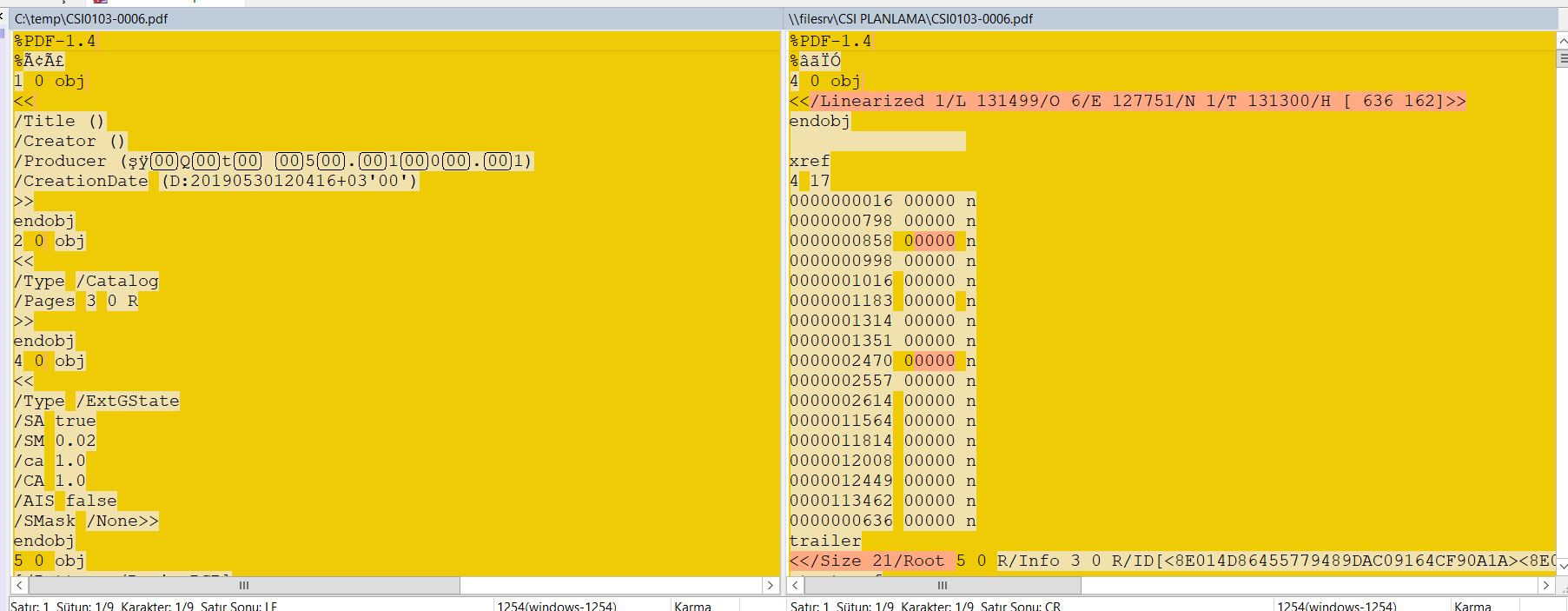

    0_1559211635504_A4 Error.JPG

    Regards,
    Mucip:)



  • @JonB ,
    Not only the prewiev! print outes real page is also cutted!... :(

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    @Mucip
    Look for page size tag. I know postscript is a bit hard to read. :)



  • @mrjj ,
    Page size tag?...

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    @Mucip
    well a postscript tag.
    Should look something like
    << /PageSize [842 595] >> setpagedevice



  • @mrjj ,
    There isn't like PageSize or setpagedevice unfortunatelly.

    Regards,
    Mucip:)


  • Lifetime Qt Champion

    @Mucip
    Ok. worth a shot.
    Im not sure what goes wrong. maybe its not really A4.


  • Lifetime Qt Champion

    Check your system defaults for print paper size, maybe you have something like US set somewhere rather than A4.
