[SOLVED] qgraphicsview/scene: qt executable under Win7 works unexpected way

Scheduled Pinned Locked Moved General and Desktop
1 Posts 1 Posters 872 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • A Offline
    A Offline
    andruxa
    wrote on 23 Jul 2013, 14:19 last edited by
    #1

    Hi all!

    When I start on my computer (WinXP x32 with Qt 5.1/QtCreator 2.7.2) the binary with appropriate dll's, I see those pictures:
    !http://s3.hostingkartinok.com/uploads/images/2013/07/14707e3f9683b44cbefa7414af9bb3e7.png(Splash centered: all is OK)!
    !http://s4.hostingkartinok.com/uploads/images/2013/07/0c6417b149f51ca26431e24275dd64c0.png(Score board in corner: all is OK)!

    But when I start the same on the Win7 x64 I see no splash, no score board...
    !http://s2.hostingkartinok.com/uploads/images/2013/07/b644ca4c0dca1b9bf90d639fd942bbee.png(No splash: it's bad)!

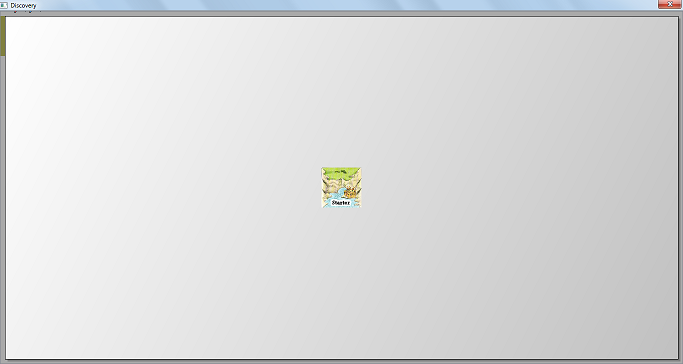

    !http://s3.hostingkartinok.com/uploads/images/2013/07/d2d774de37948b2070c57ac8342be8f1.png(Items have gone out: it's bad)!

    For information: android build works as expected.

    The actual code in methods of QGraphicsView inherited class:
    @void MainWidget::drawBackground(QPainter *painter, const QRectF& rect) {
    scene->setSceneRect(20, 20, geometry().width() - 20, geometry().height() - 20);
    QRectF scene_rect = scene->sceneRect();

    if (splash) {
        splash->setPos(scene_rect.left() + scene_rect.width()/2 - splash->pixmap().width()/2,
                       scene_rect.top() + scene_rect.height()/2 - splash->pixmap().height()/2);
        return;
    } else
        setCacheMode(CacheBackground);

    QRectF right_shadow(scene_rect.right(), scene_rect.top() + 5, 5, scene_rect.height());
    QRectF bottom_shadow(scene_rect.left() + 5, scene_rect.bottom(), scene_rect.width(), 5);

    if (right_shadow.intersects(rect) || right_shadow.contains(rect))
        painter->fillRect(right_shadow, Qt::darkGray);

    if (bottom_shadow.intersects(rect) || bottom_shadow.contains(rect))
        painter->fillRect(bottom_shadow, Qt::darkGray);

    QLinearGradient gradient(scene_rect.topLeft(), scene_rect.bottomRight());
    gradient.setColorAt(0, Qt::white);
    gradient.setColorAt(1, Qt::lightGray);
    painter->fillRect(scene_rect, gradient);
    painter->setBrush(Qt::NoBrush);
    painter->drawRect(scene_rect);


    }@

    @void MainWidget::createGameScene() {
    scene->addItem(score = new QGraphicsPixmapItem(QPixmap(":/images/DiscoveryScore.jpg")));
    score->setPos(scene->sceneRect().left(), scene->sceneRect().top());
    scene->addItem(redMeeple = new QGraphicsPixmapItem(QPixmap(":/images/DiscoveryRedMeeple.png")));
    redMeeple->setPos(scene->sceneRect().left() + 5,
    scene->sceneRect().top() + score->boundingRect().height() - redMeeple->boundingRect().height());
    scene->addItem(blueMeeple = new QGraphicsPixmapItem(QPixmap(":/images/DiscoveryBlueMeeple.png")));
    blueMeeple->setPos(scene->sceneRect().left() + 35,
    scene->sceneRect().top() + score->boundingRect().height() - blueMeeple->boundingRect().height());

    TileItem * starter = new TileItem(this);
    starter->setTileNumber(0, true);
    starter->setI(84); starter->setJ(84); starter->setPut();
    starter->setFlag(QGraphicsItem::ItemIsMovable, false);
    starter->setPos(scene->sceneRect().left() + scene->sceneRect().width()/2 - starter->pixmap().width()/2,
                    scene->sceneRect().top() + scene->sceneRect().height()/2 - starter->pixmap().height()/2);
    scene->addItem(starter);
    tilesMap[84][84] = starter;

    for (qint8 i = 1; i < 84; ++i)
        restTiles << i;

    TileItem * first_tile = new TileItem(this);
    first_tile->setTileNumber(qrand() % 83 + 1);
    first_tile->setPos(score->boundingRect().width() + scene->sceneRect().left() - first_tile->boundingRect().width(),
                       score->boundingRect().height() + scene->sceneRect().top());
    scene->addItem(first_tile);


    }@

    Maybe I'm incorrect in usage of QGraphicsView/QGraphicsScene? But why it works on XP and android? I've also tried Win7x32... the same behavior (inappropriate), as the Win7x64. But on two different real android devices, emulator and winxp works fine. What can be the matter??

    Thanks in advance, Andrey

    SOLUTION
    Have found the solution. In deployment Windows documentation is nothing about need of adding imageformats/ folder in package. JPEG pictures were the problem without adding imageformats (png are ok).
