Delegate editor shows double text while editing

Scheduled Pinned Locked Moved General and Desktop
4 Posts 1 Posters 2.8k Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • P Offline
    P Offline
    pitonyak
    wrote on 25 Mar 2013, 23:29 last edited by
    #1

    I have a table view, and I created my own QStyledItemDelegate.

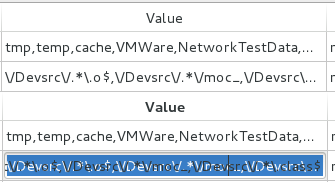

    When I double click in a field that creates a text edit field, two sets of text are shown; the original and the new text that you are editing. The top portion of this image is how the Table looks before I double click in the cell to edit it. The bottom example shows the strange display.

    !http://www.pitonyak.org/QT_Bad_Delegate.png(Double Text)!

    Note that this used to work, and now it has this strange behavior. Sadly, I don't use this particular dialog often, so i am uncertain when it began. It may have been introduced with QT 5.0, and it may be related to my move from Fedora 17 to Fedora 18.

    This is how I define my delegate

    @class LinkBackFilterDelegate : public QStyledItemDelegate
    {
    Q_OBJECT
    public:
    explicit LinkBackFilterDelegate(QObject *parent = 0);

    /*! \brief Returns the widget used to edit the item specified by index for editing.

    • \param [in, out] parent Used to control how the editor widget appears.
    • \param [in] option Used to control how the editor widget appears.
    • \param [in] index Indicates which column is of interest.
    • \return Widget used to edit the specified data (so the editor is specific to the column).
      */
      QWidget *createEditor(QWidget *parent, const QStyleOptionViewItem &option,
      const QModelIndex &index) const;
    /*! \brief Set the data into the editor for the location based on the mode.
     *  The data is obtained from the model.
     */
    void setEditorData(QWidget *editor, const QModelIndex &index) const;
    void setModelData(QWidget *editor, QAbstractItemModel *model,
                      const QModelIndex &index) const;

    void updateEditorGeometry(QWidget *editor,
        const QStyleOptionViewItem &option, const QModelIndex &index) const;


    signals:

    public slots:

    };
    @

    This is how I created my QLineEdit that causes the problem

    @QWidget *LinkBackFilterDelegate::createEditor(QWidget parent, const QStyleOptionViewItem &,
    const QModelIndex &index) const
    {
    QVariant qvar = index.model()->data(index, Qt::EditRole);
    if (qvar.type() == QVariant::StringList)
    {
    return new QComboBox(parent);
    }
    else if (qvar.type() == QVariant::Bool)
    {
    QCheckBox
    checkBox = new QCheckBox(parent);
    checkBox->setTristate(false);
    return checkBox;
    }
    return new QLineEdit(parent);
    }@

    Any thoughts?

    1 Reply Last reply
    0
    • P Offline
      P Offline
      pitonyak
      wrote on 25 Mar 2013, 23:48 last edited by
      #2

      Side note, I originally used QItemDelegate, and have gone back to it since I was not styling anything!.

      1 Reply Last reply
      0
      • P Offline
        P Offline
        pitonyak
        wrote on 26 Mar 2013, 00:32 last edited by
        #3

        One final comment. I am able to avoid the problem using something like this, but it just feels wrong.

        @void LinkBackFilterDelegate::paint(QPainter * painter, const QStyleOptionViewItem & option, const QModelIndex & index) const
        {
        // This feels wrong, I should not need to do this, but, it works.
        // If I do not do this, then the underlying text box shows through to the
        // Editing text box.
        if ((current_state & (QStyle::State_Active | QStyle::State_HasFocus | QStyle::State_Selected)) == QStyle::State_Selected) {
        QItemDelegate::drawBackground( painter, option, index );
        } else {
        QItemDelegate::paint( painter, option, index );
        }
        }@

        1 Reply Last reply
        0
        • P Offline
          P Offline
          pitonyak
          wrote on 26 Mar 2013, 19:57 last edited by
          #4

          No ideas? Well, here is the solution I finally settled on (since relying on the state will fail in some rare situations.... well, not that rare).

          @ //widget = new QLineEdit(parent);
          // Returns an expanding line editor.
          QWidget* widget = QStyledItemDelegate::createEditor(parent, option, index);

          // If I do not set this to true, then the "view" data shows through the text while editing.
          // Also, the expanding editor grows over existing controls, and you can see those through
          // the edit display as well (distracting).
          widget->setAutoFillBackground(true);
          return widget;@

          1 Reply Last reply
          1
