Custom widget plugin not shown on plugins list (Windows)

Scheduled Pinned Locked Moved Solved General and Desktop
3 Posts 1 Posters 532 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • D Offline
    D Offline
    Dragoon
    wrote on 10 Mar 2023, 09:06 last edited by Dragoon 3 Oct 2023, 11:02
    #1

    Re: Custom widget plugin not shown on plugins list

    I'm having the same issue of the referenced post compiling the same widget/plugin on Windows.

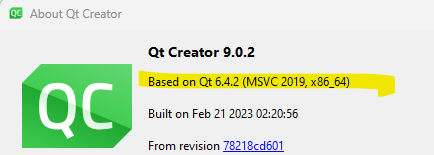

    I tought I learned the lesson and used the same toolchain used to create QtDesigner.... from the about screen I got:


    So I configured the project to use such toolchain:


    The install succesfully deployed widget plugin files here:

    C:\Qt\6.4.2\msvc2019_64\plugins\designer\

    But when I open QtCreator I cannot see any plugin and also the plugin info dialog doesn't show any problem with loaded plugins (but my plugin is not shown in the list).

    bye by[t]e{s}... Mike

    D 1 Reply Last reply 10 Mar 2023, 11:06
    0
    • D Dragoon
      10 Mar 2023, 09:06

      Re: Custom widget plugin not shown on plugins list

      I'm having the same issue of the referenced post compiling the same widget/plugin on Windows.
      I tought I learned the lesson and used the same toolchain used to create QtDesigner.... from the about screen I got:


      So I configured the project to use such toolchain:


      The install succesfully deployed widget plugin files here:

      C:\Qt\6.4.2\msvc2019_64\plugins\designer\

      But when I open QtCreator I cannot see any plugin and also the plugin info dialog doesn't show any problem with loaded plugins (but my plugin is not shown in the list).

      D Offline
      D Offline
      Dragoon
      wrote on 10 Mar 2023, 11:06 last edited by Dragoon 3 Oct 2023, 16:06
      #2

      @Dragoon may this problem depends on this?

      Matching Build Keys
      The Qt Creator that is included in pre-built Qt packages on Windows is built with the Microsoft Visual Studio compiler, whereas the version of Qt shipped for building applications is configured and built to use the MinGW/g++ compiler. Plugins built by using this version of Qt cannot be loaded by Qt Creator because the build-keys do not match. The plugins can only be used in the standalone version of Qt Designer. Choose Help > About Qt Creator to check the Qt version Qt Creator was built with.

      To use Qt Designer plugins that were built for the shipped Qt version, make sure that Qt Creator is built with the same compiler by either recompiling Qt Creator using MinGW or recompiling Qt with Microsoft Visual Studio, depending on which configuration you want to use for your applications.

      From: https://doc.qt.io/qtcreator/adding-plugins.html

      bye by[t]e{s}... Mike

      D 1 Reply Last reply 10 Mar 2023, 12:56
      0
      • D Dragoon
        10 Mar 2023, 11:06

        @Dragoon may this problem depends on this?

        Matching Build Keys
        The Qt Creator that is included in pre-built Qt packages on Windows is built with the Microsoft Visual Studio compiler, whereas the version of Qt shipped for building applications is configured and built to use the MinGW/g++ compiler. Plugins built by using this version of Qt cannot be loaded by Qt Creator because the build-keys do not match. The plugins can only be used in the standalone version of Qt Designer. Choose Help > About Qt Creator to check the Qt version Qt Creator was built with.

        To use Qt Designer plugins that were built for the shipped Qt version, make sure that Qt Creator is built with the same compiler by either recompiling Qt Creator using MinGW or recompiling Qt with Microsoft Visual Studio, depending on which configuration you want to use for your applications.

        From: https://doc.qt.io/qtcreator/adding-plugins.html

        D Offline
        D Offline
        Dragoon
        wrote on 10 Mar 2023, 12:56 last edited by Dragoon 3 Oct 2023, 16:08
        #3

        @Dragoon yes... it was... using a precompiled QtCreator binary found here the plugin works.

        Nope it was not... the problem was the path of plugins directory. As QtCreator config file states the folder in which it search for plugins is the plugins\bin\designer subfolder of the QtCreator tool directory i.e. (in standard Windows installs):

        C:\Qt\Tools\QtCreator\bin\plugins\designer


        And not (as make install script like to think):

        C:\Qt\<release>\<toolchain>\plugins\designer


        BTW on Windows the plugin must be compiled as Release otherwise QtCreator will not load it but you will have an explanation on the:

        Tools->Form Editor->About Qt Designer Plugins


        dialog.

        bye by[t]e{s}... Mike

        1 Reply Last reply
        2
        • D Dragoon has marked this topic as solved on 10 Mar 2023, 13:40
