Widget breaking at runtime

benjysugi

Hi,

I've got a widget that I'm trying to display in a DockWidget but it's breaking at runtime but looks fine in the editor

The widget:

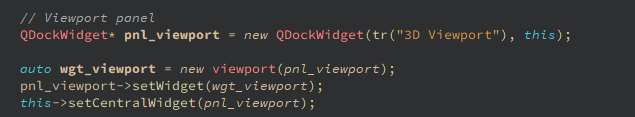

The way I'm displaying it:

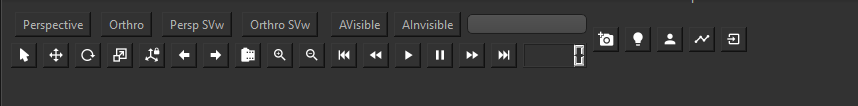

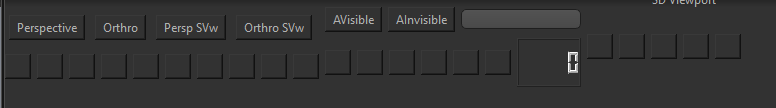

How it looks at runtime:

I'm very new to Qt as a whole so I might be doing this completely wrong.

Thanks in advance

ChrisW67

If the other buttons look "normal" and got that way because you applied a style sheet then it seems entirely likely that either:

that stylesheet has not been applied to this widget, or
the stylesshet has been applied but the selectors do not match this widget's buttons.

SGaist

Hi and welcome to devnet,

Why are you putting your custom widget in a QDockWidget to then put it as central widget ?
I would remove that intermediate QDockWidget since it does not provide any benefit the way you use it.

benjysugi

@SGaist How would I go about doing that while still retaining the title bar like the rest of the dock widgets?

SGaist

Ok, it's a look you want for your application.

Then let's start debugging:

does your widget show properly if you just show it alone ? i.e. you create it in your main.cpp ?
does it show properly if you just put it in a QDockWidget ?

benjysugi

@SGaist

It doesn't work properly if I show it alone

SGaist

So it's not related to your use of QDockWidget.

It seems that all the images are missing.

What is their paths ?

benjysugi

@SGaist I've fixed the image problem, but it's still broken

SGaist

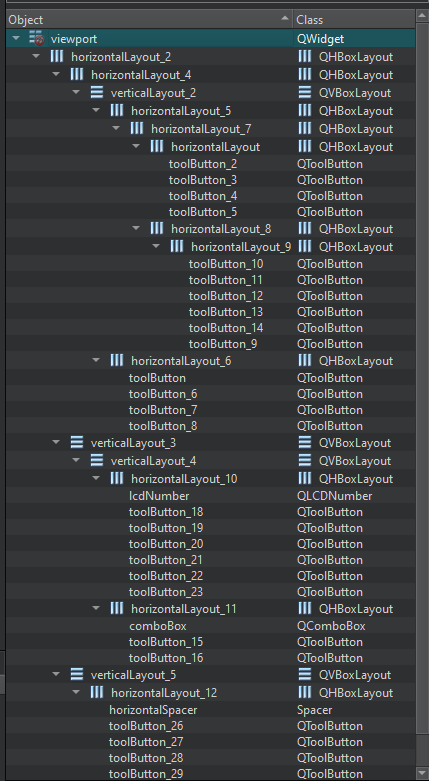

Are you using layouts properly ?

benjysugi

@SGaist I'm not sure, should I send the .ui file or something?
I'm also not sure why it looks like classic theme instead of how it looks in the designer

SGaist

Which version of Qt are you using ?
On which platform ?

You can post the .ui file content here. Don't forget to use coding tags.

benjysugi

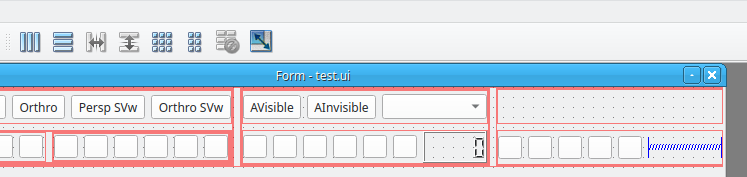

@SGaist Qt 6.4.0 on Windows currently

<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>viewport</class>
 <widget class="QWidget" name="viewport">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>800</width>
    <height>600</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>Form</string>
  </property>
  <property name="styleSheet">
   <string notr="true"/>
  </property>
  <widget class="QWidget" name="horizontalLayoutWidget_2">
   <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
     <width>802</width>
     <height>80</height>
    </rect>
   </property>
   <layout class="QHBoxLayout" name="horizontalLayout_2">
    <item>
     <layout class="QHBoxLayout" name="horizontalLayout_4">
      <item>
       <layout class="QVBoxLayout" name="verticalLayout_2">
        <item>
         <layout class="QHBoxLayout" name="horizontalLayout_6">
          <item>
           <widget class="QToolButton" name="toolButton_6">
            <property name="text">
             <string>Perspective</string>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton">
            <property name="text">
             <string>Orthro</string>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_7">
            <property name="text">
             <string>Persp SVw</string>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_8">
            <property name="text">
             <string>Orthro SVw</string>
            </property>
           </widget>
          </item>
         </layout>
        </item>
        <item>
         <layout class="QHBoxLayout" name="horizontalLayout_5">
          <item>
           <layout class="QHBoxLayout" name="horizontalLayout_7">
            <item>
             <layout class="QHBoxLayout" name="horizontalLayout">
              <item>
               <widget class="QToolButton" name="toolButton_5">
                <property name="text">
                 <string>...</string>
                </property>
                <property name="icon">
                 <iconset resource="ats_styles.qrc">
                  <normaloff>:/images/cursor-default (1).png</normaloff>:/images/cursor-default (1).png</iconset>
                </property>
               </widget>
              </item>
              <item>
               <widget class="QToolButton" name="toolButton_4">
                <property name="text">
                 <string>...</string>
                </property>
                <property name="icon">
                 <iconset resource="ats_styles.qrc">
                  <normaloff>:/images/cursor-move.png</normaloff>:/images/cursor-move.png</iconset>
                </property>
               </widget>
              </item>
              <item>
               <widget class="QToolButton" name="toolButton_2">
                <property name="text">
                 <string>...</string>
                </property>
                <property name="icon">
                 <iconset resource="ats_styles.qrc">
                  <normaloff>:/images/reload.png</normaloff>:/images/reload.png</iconset>
                </property>
               </widget>
              </item>
              <item>
               <widget class="QToolButton" name="toolButton_3">
                <property name="text">
                 <string>...</string>
                </property>
                <property name="icon">
                 <iconset resource="ats_styles.qrc">
                  <normaloff>:/images/resize (1).png</normaloff>:/images/resize (1).png</iconset>
                </property>
               </widget>
              </item>
             </layout>
            </item>
            <item>
             <layout class="QHBoxLayout" name="horizontalLayout_8">
              <item>
               <layout class="QHBoxLayout" name="horizontalLayout_9">
                <item>
                 <widget class="QToolButton" name="toolButton_12">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/axis-arrow-lock.png</normaloff>:/images/axis-arrow-lock.png</iconset>
                  </property>
                 </widget>
                </item>
                <item>
                 <widget class="QToolButton" name="toolButton_14">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/arrow-left-bold.png</normaloff>:/images/arrow-left-bold.png</iconset>
                  </property>
                 </widget>
                </item>
                <item>
                 <widget class="QToolButton" name="toolButton_13">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/arrow-right-bold.png</normaloff>:/images/arrow-right-bold.png</iconset>
                  </property>
                 </widget>
                </item>
                <item>
                 <widget class="QToolButton" name="toolButton_10">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/film.png</normaloff>:/images/film.png</iconset>
                  </property>
                 </widget>
                </item>
                <item>
                 <widget class="QToolButton" name="toolButton_11">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/magnify-plus-outline.png</normaloff>:/images/magnify-plus-outline.png</iconset>
                  </property>
                 </widget>
                </item>
                <item>
                 <widget class="QToolButton" name="toolButton_9">
                  <property name="text">
                   <string>...</string>
                  </property>
                  <property name="icon">
                   <iconset resource="ats_styles.qrc">
                    <normaloff>:/images/magnify-minus-outline.png</normaloff>:/images/magnify-minus-outline.png</iconset>
                  </property>
                 </widget>
                </item>
               </layout>
              </item>
             </layout>
            </item>
           </layout>
          </item>
         </layout>
        </item>
       </layout>
      </item>
     </layout>
    </item>
    <item>
     <layout class="QVBoxLayout" name="verticalLayout_3">
      <item>
       <layout class="QVBoxLayout" name="verticalLayout_4">
        <item>
         <layout class="QHBoxLayout" name="horizontalLayout_11">
          <item>
           <widget class="QToolButton" name="toolButton_15">
            <property name="text">
             <string>AVisible</string>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_16">
            <property name="text">
             <string>AInvisible</string>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QComboBox" name="comboBox"/>
          </item>
         </layout>
        </item>
        <item>
         <layout class="QHBoxLayout" name="horizontalLayout_10">
          <item>
           <widget class="QToolButton" name="toolButton_18">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/skip-backward.png</normaloff>:/images/skip-backward.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_19">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/rewind.png</normaloff>:/images/rewind.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_20">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/play.png</normaloff>:/images/play.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_21">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/pause.png</normaloff>:/images/pause.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_22">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/fast-forward.png</normaloff>:/images/fast-forward.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QToolButton" name="toolButton_23">
            <property name="text">
             <string>...</string>
            </property>
            <property name="icon">
             <iconset resource="ats_styles.qrc">
              <normaloff>:/images/skip-forward.png</normaloff>:/images/skip-forward.png</iconset>
            </property>
           </widget>
          </item>
          <item>
           <widget class="QLCDNumber" name="lcdNumber"/>
          </item>
         </layout>
        </item>
       </layout>
      </item>
     </layout>
    </item>
    <item>
     <layout class="QVBoxLayout" name="verticalLayout_5">
      <item>
       <layout class="QHBoxLayout" name="horizontalLayout_13"/>
      </item>
      <item>
       <layout class="QHBoxLayout" name="horizontalLayout_12">
        <item>
         <widget class="QToolButton" name="toolButton_26">
          <property name="text">
           <string>...</string>
          </property>
          <property name="icon">
           <iconset resource="ats_styles.qrc">
            <normaloff>:/images/camera-plus.png</normaloff>:/images/camera-plus.png</iconset>
          </property>
         </widget>
        </item>
        <item>
         <widget class="QToolButton" name="toolButton_30">
          <property name="text">
           <string>...</string>
          </property>
          <property name="icon">
           <iconset resource="ats_styles.qrc">
            <normaloff>:/images/lightbulb.png</normaloff>:/images/lightbulb.png</iconset>
          </property>
         </widget>
        </item>
        <item>
         <widget class="QToolButton" name="toolButton_29">
          <property name="text">
           <string>...</string>
          </property>
          <property name="icon">
           <iconset resource="ats_styles.qrc">
            <normaloff>:/images/account.png</normaloff>:/images/account.png</iconset>
          </property>
         </widget>
        </item>
        <item>
         <widget class="QToolButton" name="toolButton_28">
          <property name="text">
           <string>...</string>
          </property>
          <property name="icon">
           <iconset resource="ats_styles.qrc">
            <normaloff>:/images/chart-timeline-variant.png</normaloff>:/images/chart-timeline-variant.png</iconset>
          </property>
         </widget>
        </item>
        <item>
         <widget class="QToolButton" name="toolButton_27">
          <property name="text">
           <string>...</string>
          </property>
          <property name="icon">
           <iconset resource="ats_styles.qrc">
            <normaloff>:/images/import.png</normaloff>:/images/import.png</iconset>
          </property>
         </widget>
        </item>
        <item>
         <spacer name="horizontalSpacer">
          <property name="orientation">
           <enum>Qt::Horizontal</enum>
          </property>
          <property name="sizeHint" stdset="0">
           <size>
            <width>40</width>
            <height>20</height>
           </size>
          </property>
         </spacer>
        </item>
       </layout>
      </item>
     </layout>
    </item>
   </layout>
  </widget>
 </widget>
 <resources>
  <include location="ats_styles.qrc"/>
 </resources>
 <connections/>
</ui>

I can also provide the stylesheet if that helps

ChrisW67

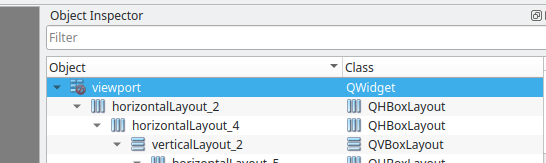

@benjysugi Your top level widget in that UI file does not have a layout. See the red symbol on the viewport item.

Assuming that you also want the groups of buttons to line up horizontally I would suggest a grid layout. The current collection of nested horizontal and vertical layouts can be simplified, rearranged within the grid, and alignment improved.

benjysugi

@ChrisW67 How do I do that?

ChrisW67

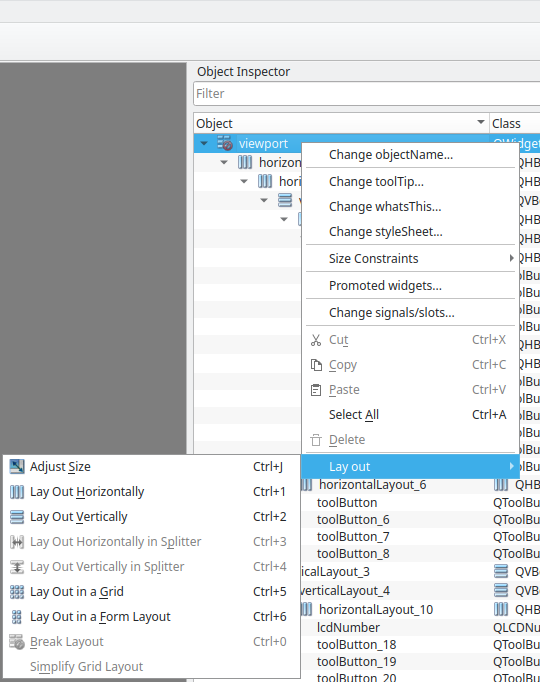

Use one of the tool buttons here:

or select a layout from the right-click context menu:

benjysugi

This post is deleted!

benjysugi

@ChrisW67 I've fixed the positioning. It still has the issue of it looking like classic theme though

ChrisW67

@benjysugi I do not see what part of "looking like classic theme" is an issue. The icons are what you set, the widgets are as you and the layout place them, and the fonts are as set.

benjysugi

@ChrisW67 I don't know why it's doing that when everything else in the application looks nomal. I don't think it's an issue with the stylesheet either. I'm not talking about the icons, but rather the buttons

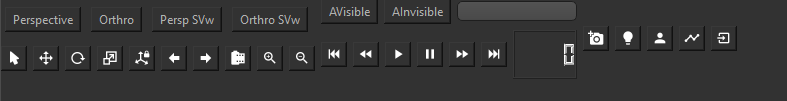

For example, this is what other buttons look like but the widget isn't reflecting that

ChrisW67

If the other buttons look "normal" and got that way because you applied a style sheet then it seems entirely likely that either:

that stylesheet has not been applied to this widget, or
the stylesshet has been applied but the selectors do not match this widget's buttons.

benjysugi

@ChrisW67 said in Widget breaking at runtime:

If the other buttons look "normal" and got that way because you applied a style sheet then it seems entirely likely that either:

that stylesheet has not been applied to this widget, or

the stylesshet has been applied but the selectors do not match this widget's buttons.

Thanks, that fixed it
