Loop not working with model



  • Hello again!

    In an app I have a tableWidget what is filled with items. It looks like thistable view.JPG
    To be able to translate all the items and other reasons ,i want to replace this by a QAbstractTableModel.
    I have searched all the examples and took one which fitted best for my purpose but all I try the output is always only one column.![alt text](model_view.JPG image url)
    I can do 9 columns but they are filled all the same. What can I do?```
    mymodel.h

    #ifndef MYMODEL_H
    #define MYMODEL_H


    #include <QAbstractTableModel>


    const int COLS= 6;
    const int ROWS= 9;
    class MyModel : public QAbstractTableModel
    {
     Q_OBJECT
    public:
    MyModel(QObject *parent = 0 );
     void populateData(const QList<QString> &contactNames);
     int rowCount(const QModelIndex &parent = QModelIndex())const;
     int columnCount(const QModelIndex &parent = QModelIndex())const  ;
        QVariant data( const QModelIndex &index, int role = Qt::DisplayRole)const ;

    private:
     QList<QString> tm_contact_name;

      QList<QString> contactNames;
     QString m_gridData[ROWS][COLS];  //holds text entered into QTableView

    signals:
        void editCompleted( QString &);
    };
    #endif // MyModel_H



    mymodel.cpp

    // mymodel.cpp
    #include <QMainwindow>

    #include "mymodel.h"
    #include <QAbstractTableModel>
    #include <QStringList>
    #include <QString>
    #include <QList>

    MyModel::MyModel(QObject *parent) : QAbstractTableModel (parent)
    {

    }


    // Create a method to populate the model with data:
    void MyModel::populateData(const QList<QString> &contactNames)
    {
        tm_contact_name.clear();
        tm_contact_name = contactNames;

        return;
    }

    int MyModel::rowCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
       return tm_contact_name.length();
        //return 6;
    }

    int MyModel::columnCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
        return 1;

        //return 3;
    }

    QVariant MyModel::data(const QModelIndex &index, int role)const
    {
        int row = index.row();
        int col = index.column();

        // generate a log message when this method gets called


        switch(role){
        case Qt::DisplayRole:
    { if (!index.isValid() || role != Qt::DisplayRole) {
                return QVariant();
            }
     for (col=1;col<9; col++)

         // if (col=1 && col<9)
                {
              // if (row=0 && row<6  )
        for (row=0; row<6 ; row++)
                {
                   return tm_contact_name[row];//[index.row()];

                }

    }

    }
            break;


        case Qt::CheckStateRole:

            if (row == 0 && col == 0) //add a checkbox to cell(0,0)
                {
                return Qt::Checked;
                  }
            else
                  {
             return Qt::Unchecked;
                 }
        }
        return QVariant();
    }



    Part of mainwindow.cpp


  • Lifetime Qt Champion

    So where do you set your model data / from where do you call populateData()? I would guess the vector is filled wrong. Add a debug output there or make a breakpoint and take a look at the content of the variable.



  • @Leopold below virtual function of the model class when you are overriding provides the data for the index with different roles

    QVariant MyModel::data(const QModelIndex &index, int role)const


    In current implementation you are using for loop in data member function which is not correct..

    (in spite of for loop which is having return statement )



  • Thank you both,
    i will have a look to it this evening.


  • Moderators

    @Leopold said in Loop not working with model:

    for (row=0; row<6 ; row++)


    What is this for?

    tm_contact_name.length()

    That doesn't even make any sense. What is .length() on a QList<>?



  • @kshegunov
    the amount of entries in the list, in my case its 54.
    I want 9 columns with 6 rows like the example.
    When I uncommand the for loops and if loops I get the column with all the entries from QlistQString.
    When I set columnCount to 9 I get 9 columns all with the same entries.

    ![alt text](column1.JPG image url)```
    case Qt::DisplayRole:
    { if (!index.isValid() || role != Qt::DisplayRole) {
    return QVariant();
    }

    //for (row=0; row<6 ; row++)
    // if (col=1 && col<9)
    // {
    // if (row=0 && row<6 )
    // for (col=1;col<9; col++)

         //   {
               return tm_contact_name[row];//[index.row()];
                //row++:
         //   }
      // col++;


    //}

    }
    break;


  • Moderators

    @Leopold said in Loop not working with model:

    When I uncommand the for loops and if loops I get the column with all the entries from QlistQString.
    When I set columnCount to 9 I get 9 columns all with the same entries.

    Of course you do, because you don't handle both the row and the column that was passed to you. You take the row'th element from the list (why the row I don't even know). How are you supposed to have 9 columns from a list to begin with?



  • Excuse me, I do not understand what you want to say.
    If I have a construct like this for loops I can usually fill a table with. Item 1 to 6 in column 1, if item> 6 take column 2, now Item 7to 12, now increase columns and so on.



  • @Leopold
    From your commented lines you say you uncomment:

    // if (col=1 && col<9)


    The above will always be true, and assigns col to 1.

    // if (row=0 && row<6 )


    The above will always be true, and assigns row to 0.

    If you actually want help with this: remove all your commented-out lines, they are just confusing. Show the exact lines which you are actually using, and what incorrect behaviour is observed.



  • @JonB
    this is my actual code:

    // mymodel.cpp
    #include <QMainwindow>

    #include "mymodel.h"
    #include <QAbstractTableModel>
    #include <QStringList>
    #include <QString>
    #include <QList>

    MyModel::MyModel(QObject *parent) : QAbstractTableModel (parent)
    {

    }


    // Create a method to populate the model with data:
    void MyModel::populateData(const QList<QString> &contactNames)
    {
              tm_contact_name.clear();
              tm_contact_name = contactNames;

        return;
    }

    int MyModel::rowCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
       return tm_contact_name.length();
        //return 6;
    }

    int MyModel::columnCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
        return 1;

        //return 3;
    }

    QVariant MyModel::data(const QModelIndex &index, int role)const

    {
        int row = index.row();
        int col = index.column();

       switch(role)

       {
        case Qt::DisplayRole:
        { if (!index.isValid() || role != Qt::DisplayRole)
           {
                return QVariant();
           }

           for (int row =0; row <6; row++)
               {
               for (int col= 1; col < 9; col++)

            return tm_contact_name[index.row()];

                }

    	}
            break;


    	{
    	case Qt::CheckStateRole:

            if (row == 0 && col == 0) //add a checkbox to cell(0,0)
                {
                return Qt::Checked;
                }
            else
                 {
             return Qt::Unchecked;
                 }
        }
        return QVariant();
       }

    }

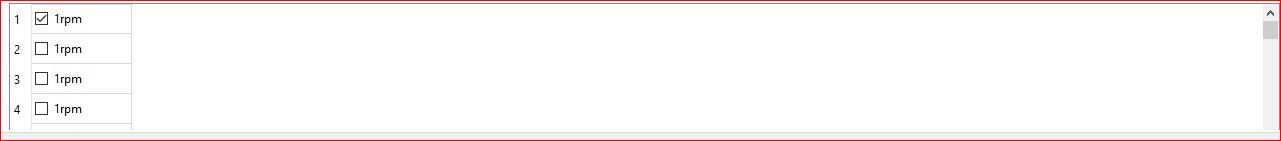

    This is what I get:![alt text](column1.JPG image url)



  • Sorry, I couldn`t continue writing. You see I have drawn the slider downwards.
    The complete QListQString is in one column, I want it divided into 9 columns and 6 rows like the example in my first thread.



  • @Leopold
    I think you are saying:

    • You have a QStringList
    • You want to treat it as representing rows and columns, with each row containing 9 columns
    • You want to know what element is at (index.row(), index.column())

    [That's what you say. But your code also has columnCount() return 1;. Why do you put that in code if you say you want 9 columns?]

    So simple math is

    int offset = index.row() * 9 + index.column();
    return tm_contact_name[offset];    // or tm_contact_name.at(offset) if it is a `QStringList`


    ?
    No loops. Just basic arithmetic.


  • Lifetime Qt Champion

    Hi
    Also

    int MyModel::columnCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
        return 1;

        //return 3;
    }


    tells it to use one col so that should be fixed.

    and this too

    int MyModel::rowCount(const QModelIndex &parent)const
     {

        Q_UNUSED(parent);
       return tm_contact_name.length();
        //return 6;
    }


    should also return the wanted number of rows. tm_contact_name.length(); will return ALL strings you have
    but that is not the number of rows.

    Then the view will ask you
    give me data for
    0,0
    0,1
    0,2
    etc.
    for all cols, for all rows.
    So data function must return one "data" for each combination of row and col. ( as nagesh explained)
    So we cant use a for loop as we give the data one by one so to speak.
    Since you have all the names in one big list, you must calculate an offset as JonB shows
    to return the right col data since your internal list is not ordered as you want it to be displayed.


  • Moderators

    @Leopold I was specifically confused because

    for (int row =0; row <6; row++)
               {
               for (int col= 1; col < 9; col++)


    has no place in data(). There you return one item - the one that corresponds to the row and column - you don't fill anything. And I continue not to understand what the loops have to do with it.



  • JonB' s mathematics and his solution with offset was not the right way.But I guess offset is the way.
    This is his solution:new column.JPG
    I tried the two loops again and I tried a switch case but not corect too:
    ![alt text](table.JPG image url)
    now it starts in every new column with the next row!
    Here is the code:```
    // mymodel.cpp
    #include <QMainwindow>

    #include "mymodel.h"
    #include <QAbstractTableModel>
    #include <QStringList>
    #include <QString>
    #include <QList>

    MyModel::MyModel(QObject *parent) : QAbstractTableModel (parent)
    {

    }

    // Create a method to populate the model with data:
    void MyModel::populateData(const QList<QString> &contactNames)
    {
    tm_contact_name.clear();
    tm_contact_name = contactNames;

    return;


    }

    int MyModel::rowCount(const QModelIndex &parent)const
    {

    Q_UNUSED(parent);


    // return tm_contact_name.length();
    return 6;
    }

    int MyModel::columnCount(const QModelIndex &parent)const
    {

    Q_UNUSED(parent);
    return 9;

    //return 9;


    }

    QVariant MyModel::data(const QModelIndex &index, int role)const

    {
    int row = index.row();
    int col = index.column();
    int offset;

    switch(role)

    {
    case Qt::DisplayRole:
    { if (!index.isValid() || role != Qt::DisplayRole)
    {
    return QVariant();
    }
    { for ( col=0; col < 9; col++)
    {switch(col)
    case 0:
    index.row()<6;
    offset = index.row() + index.column();
    break;
    case 1:
    index.row()>6<12;
    offset = index.row() + index.column();
    break;
    case 2:
    index.row()>12<19;
    offset = index.row() + index.column();
    break;
    }

    }

    }

       return  tm_contact_name.at(offset);


        break;


    {
    case Qt::CheckStateRole:

        if (row == 0 && col == 0) //add a checkbox to cell(0,0)
            {
            return Qt::Checked;
            }
        else
             {
         return Qt::Unchecked;
             }
    }
    return QVariant();


    }

    }



  • @Leopold said in Loop not working with model:

    JonB' s mathematics and his solution with offset was not the right way.But I guess offset is the way.

    Fascinating, because I believe it is from what you said:

    I want 9 columns with 6 rows like the example.

    Mind you, the example you show does not have 9 columns, nor does it have 6 rows (try counting them), and you have given different values for the number of columns in your various posts & code.

    This is his solution:

    My solution does not produce one column. It has nothing to do with how many columns your table has, that is down to you.

    At no point do I see where you have actually stated how your items in one QStringList are supposed to map to your desired rows/columns. Maybe if you did that people would understand.

    I try again on your:

    Item 1 to 6 in column 1, if item> 6 take column 2, now Item 7to 12, now increase columns and so on.

    So if that means the items are laid out in the list such that you get all rows in column #0 first, then all rows in column #1, you obviously need to use your own math knowledge to alter my suggested

    int offset = index.row() * 9 + index.column();


    to

    int offset = index.column() * 6 +  index.row();


    Did you try that, instead of saying mine "was not the right way"?

    I tried the two loops again

    As people have said many times, there is no loop to be put inside your data() method. You ignore these comments and persist with loops, without understanding.

    Your new switch statement is pointless, as in every case you set offset = index.row() + index.column();.

    index.row()<6;
    index.row()>6<12;
    index.row()>12<19;


    All these statements do nothing. If there is meant to be an if there, it is not present. Your apparent conception of how to check for a range does not correspond to how C++ works. The result your code comes up with for setting offset is quite wrong in all cases.

    Sorry, but to get anywhere with Qt or any other toolkit you need to concentrate on the basics of programming in general and C++ in particular.



  • @JonB
    Sorry if I offended you .

    @JonB said in Loop not working with model:

    Sorry, but to get anywhere with Qt or any other toolkit you need to concentrate on the basics of programming in general and C++ in particular.

    I am working on that. :-)

    But good news : this was the solution!
    Thank you.



  • @Leopold
    If I understand your string list layout correctly, try the

    int offset = index.column() * 6 +  index.row();


    Even better, to allow for a different number of rows from the 6 your rowCount() currently returns you could write:

    int offset = index.column() * rowCount() +  index.row();


    You showed my solution as only "producing" one column in the table, but the number of rows/columns in the table is determined by the return values of rowCount()/columnCount(), not whatever you do in the data() method.

    It is still the case that data(const QModelIndex &index, int role=Qt::DisplayRole)'s job is to return the item in the list corresponding to (index.row(), index.column()). This should involve some multiplication and addition of the row/column to reach the right offset element in the list. There should be no loop involved.



  • @JonB
    like I said already, it is working perfect now.
    Now I have to fight how I can attach a hint to the different items. The callenge is that I will have different QListStrings with different hints.
    If other people have the same problem with model, here is the code:```
    // mymodel.cpp
    #include <QMainwindow>

    #include "mymodel.h"
    #include <QAbstractTableModel>
    #include <QStringList>
    #include <QString>
    #include <QList>

    MyModel::MyModel(QObject *parent) : QAbstractTableModel (parent)
    {

    }

    // Create a method to populate the model with data:
    void MyModel::populateData(const QList<QString> &contactNames)
    {
    tm_contact_name.clear();
    tm_contact_name = contactNames;

    return;


    }

    int MyModel::rowCount(const QModelIndex &parent)const
    {

    Q_UNUSED(parent);


    // return tm_contact_name.length();
    return 6;
    }

    int MyModel::columnCount(const QModelIndex &parent)const
    {

    Q_UNUSED(parent);
    return 9;

    //return 9;


    }

    QVariant MyModel::data(const QModelIndex &index, int role)const

    {
    int row = index.row();
    int col = index.column();
    int offset;

    switch(role)

    {
    case Qt::DisplayRole:
    { if (!index.isValid() || role != Qt::DisplayRole)
    {
    return QVariant();
    }

      int offset = index.column() * 6 +  index.row();

       return  tm_contact_name.at(offset);
        break;
    }
    case Qt::CheckStateRole:
    {
        if (row == 0 && col == 0) //add a checkbox to cell(0,0)
            {
            return Qt::Checked;
            }
        else
             {
         return Qt::Unchecked;
             }
    }
    return QVariant();


    }

    }

    and here the output:
    ![alt text](![tableviewworking.JPG](https://ddgobkiprc33d.cloudfront.net/317aa69f-226f-4271-badc-88bc206eceee.JPG) image url)


  • @Leopold
    This looks much better! No loops, just a multiply & divide :) I trust you understand how that calculation maps correctly to the desired elements in the list :)

    Now I have to fight how I can attach a hint to the different items. The challenge is that I will have different QListStrings with different hints.

    Maybe (I'm picking simplest for you, not necessarily what I would do): for each individual QStringList --- which you effectively set via your populateData(const QList<QString> &contactNames) --- have another QStringList of the "hints" (say tm_contact_tooltip) with the same number of elements in the same order. Therefore for a given calculated offset (from colum & row) the same offset applies to the hint list as to the data list.

    Then in your data() method you will see from https://doc.qt.io/qt-5/qabstractitemmodel.html#data and https://doc.qt.io/qt-5/qt.html#ItemDataRole-enum that if the int role parameter to data() equals Qt::ToolTipRole (instead of Qt::DisplayRole) --- which Qt will call your data() method when it wants to return "The data displayed in the item's tooltip." --- you should return tm_contact_tooltip.at(offset).


Log in to reply
