Qt emit signal after widget is closed

Scheduled Pinned Locked Moved Solved General and Desktop
22 Posts 5 Posters 4.0k Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • P Offline
    P Offline
    pmanc
    wrote on last edited by
    #1

    Hi,
    I have a child QDialog, when a button is pressed from it a socket is opened from QtConcurrent, and if there's an error an alert dialog is shown. But if the user closes the child QDialog to return to the main window the signal cannot be received by the child QDialog slot. I tried to broadcast the signal to parentWidget, but the program crashes, because this->parentWidget() doesn't exist anymore.
    I also tried to emit the QMainWindow ad QWidget from the signal to use in QDIalog, but the program crashes too.
    I use this code to emit the signal and connect it to the slot

    connect(this, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));

     connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error),[=](QAbstractSocket::SocketError err){
            emit errorTcpSignal("Error while changing game settings \n" + QVariant::fromValue(err).toString());
        });


    Is there a way to solve this issue? Thank you very much.

    jsulmJ 1 Reply Last reply
    0
    • P pmanc

      Hi,
      I have a child QDialog, when a button is pressed from it a socket is opened from QtConcurrent, and if there's an error an alert dialog is shown. But if the user closes the child QDialog to return to the main window the signal cannot be received by the child QDialog slot. I tried to broadcast the signal to parentWidget, but the program crashes, because this->parentWidget() doesn't exist anymore.
      I also tried to emit the QMainWindow ad QWidget from the signal to use in QDIalog, but the program crashes too.
      I use this code to emit the signal and connect it to the slot

      connect(this, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));

       connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error),[=](QAbstractSocket::SocketError err){
              emit errorTcpSignal("Error while changing game settings \n" + QVariant::fromValue(err).toString());
          });


      Is there a way to solve this issue? Thank you very much.

      jsulmJ Offline
      jsulmJ Offline
      jsulm
      Lifetime Qt Champion
      wrote on last edited by
      #2

      @pmanc Do you mean you show the error dialog from the child dialog? Your description is not clear and you did not provide much code.

      https://forum.qt.io/topic/113070/qt-code-of-conduct

      P 1 Reply Last reply
      1
      • jsulmJ jsulm

        @pmanc Do you mean you show the error dialog from the child dialog? Your description is not clear and you did not provide much code.

        P Offline
        P Offline
        pmanc
        wrote on last edited by
        #3

        Hi, I'll try to be more clear.
        I have a QMainWindow. From this, I open a QDialog. From the QDialog i press a QPushButton. When I press the button this occurs:

        QtConcurrent::run([=](QString ip) {
                QTcpSocket t;
                connect(this, SIGNAL(errorTcpSignal(QString)), this->parent(), SLOT(displayTcpError(QString)),Qt::QueuedConnection);
                connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error),[=](QAbstractSocket::SocketError err){
                    emit errorTcpSignal("Error while changing game settings \n" + QVariant::fromValue(err).toString());
                });
                t.connectToHost(ip,8888);
                t.waitForConnected();
                if(t.state() == QAbstractSocket::ConnectedState)
                {
                    t.write(s.toUtf8());
                    t.waitForBytesWritten();
                }
                t.close();

            },Settings::ipPc);


        In the QMainWindow I have this slot:


        void MainWindow::displayTcpError(QString e)
        {
            GenericErrorDialog d("Error","An error occurred.\n"
                                         "\nThe complete error is:\n" + QVariant::fromValue(e).toString());
            d.exec();
        }


        GenericErrorDialog is a QDialog.
        The problem is:
        if there's an error with the socket the GenericErrorDialog appears if the user does not close the QDialog, but if the user closes the QDialog (without waiting for the socket to return the error) to return to QMainWindow, the error box is not shown.
        Thank you very much.

        jsulmJ 1 Reply Last reply
        0
        • P pmanc

          Hi, I'll try to be more clear.
          I have a QMainWindow. From this, I open a QDialog. From the QDialog i press a QPushButton. When I press the button this occurs:

          QtConcurrent::run([=](QString ip) {
                  QTcpSocket t;
                  connect(this, SIGNAL(errorTcpSignal(QString)), this->parent(), SLOT(displayTcpError(QString)),Qt::QueuedConnection);
                  connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error),[=](QAbstractSocket::SocketError err){
                      emit errorTcpSignal("Error while changing game settings \n" + QVariant::fromValue(err).toString());
                  });
                  t.connectToHost(ip,8888);
                  t.waitForConnected();
                  if(t.state() == QAbstractSocket::ConnectedState)
                  {
                      t.write(s.toUtf8());
                      t.waitForBytesWritten();
                  }
                  t.close();

              },Settings::ipPc);


          In the QMainWindow I have this slot:


          void MainWindow::displayTcpError(QString e)
          {
              GenericErrorDialog d("Error","An error occurred.\n"
                                           "\nThe complete error is:\n" + QVariant::fromValue(e).toString());
              d.exec();
          }


          GenericErrorDialog is a QDialog.
          The problem is:
          if there's an error with the socket the GenericErrorDialog appears if the user does not close the QDialog, but if the user closes the QDialog (without waiting for the socket to return the error) to return to QMainWindow, the error box is not shown.
          Thank you very much.

          jsulmJ Offline
          jsulmJ Offline
          jsulm
          Lifetime Qt Champion
          wrote on last edited by
          #4

          @pmanc said in Qt emit signal after widget is closed:

          connect(this, SIGNAL(errorTcpSignal(QString)), this->parent(), SLOT(displayTcpError(QString)),Qt::QueuedConnection);

          This should be other way around: the caller should connect the signals/slots. So, your dialog should have an error signal which you connect in MainWindow to displayTcpError. Children should not know anything about parents and especially they should not know implementation details of their parents (like displayTcpError()).

          https://forum.qt.io/topic/113070/qt-code-of-conduct

          1 Reply Last reply
          2
          • P Offline
            P Offline
            pmanc
            wrote on last edited by
            #5

            Thank you very much, you are right.
            The only problem is that :

            AdvancedDialog ad = new AdvancedDialog(this);
            connect(ad, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));
            ad->exec();
            ad->deleteLater();


            The deleteLater will make the program crash, if not included I'll have a memory leak.
            Anyway, I declared

            AdvancedDialog  ad


            in the header and in the QMainWindow constructor

            connect(&ad, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));


            This works, but is there a better way to do it?
            Cheers.

            jsulmJ 1 Reply Last reply
            0
            • P pmanc

              Thank you very much, you are right.
              The only problem is that :

              AdvancedDialog ad = new AdvancedDialog(this);
              connect(ad, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));
              ad->exec();
              ad->deleteLater();


              The deleteLater will make the program crash, if not included I'll have a memory leak.
              Anyway, I declared

              AdvancedDialog  ad


              in the header and in the QMainWindow constructor

              connect(&ad, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));


              This works, but is there a better way to do it?
              Cheers.

              jsulmJ Offline
              jsulmJ Offline
              jsulm
              Lifetime Qt Champion
              wrote on last edited by
              #6

              @pmanc said in Qt emit signal after widget is closed:

              The deleteLater will make the program crash

              Did you analyse the crash? What happens? What are you doing in the destructor?

              https://forum.qt.io/topic/113070/qt-code-of-conduct

              1 Reply Last reply
              0
              • P Offline
                P Offline
                pmanc
                wrote on last edited by pmanc
                #7

                In the destuctor of AdvancedDialog there's only

                delete ui;


                The error is:

                Exception triggered
                the inferior stopped because it triggered an exception.
                Stopped in thread 18 by: Exception at 0x7fff5b5fd49 code 0xc0000005
                read access violation at 0xffffffffffffff  flags=0x0 (first chance)


                The debugger is stuck at

                AdvancedDialog::errorTcpSignal


                Thanks!

                Edit: I think the problem is that errorTcpSignal is declared in the header of AdvancedDialog, so when AdvancedDialog is deleted the signal cannot be emitted.

                1 Reply Last reply
                0
                • Christian EhrlicherC Offline
                  Christian EhrlicherC Offline
                  Christian Ehrlicher
                  Lifetime Qt Champion
                  wrote on last edited by
                  #8

                  We need to see the backtrace.

                  Qt Online Installer direct download: https://download.qt.io/official_releases/online_installers/
                  Visit the Qt Academy at https://academy.qt.io/catalog

                  1 Reply Last reply
                  1
                  • P Offline
                    P Offline
                    pmanc
                    wrote on last edited by
                    #9

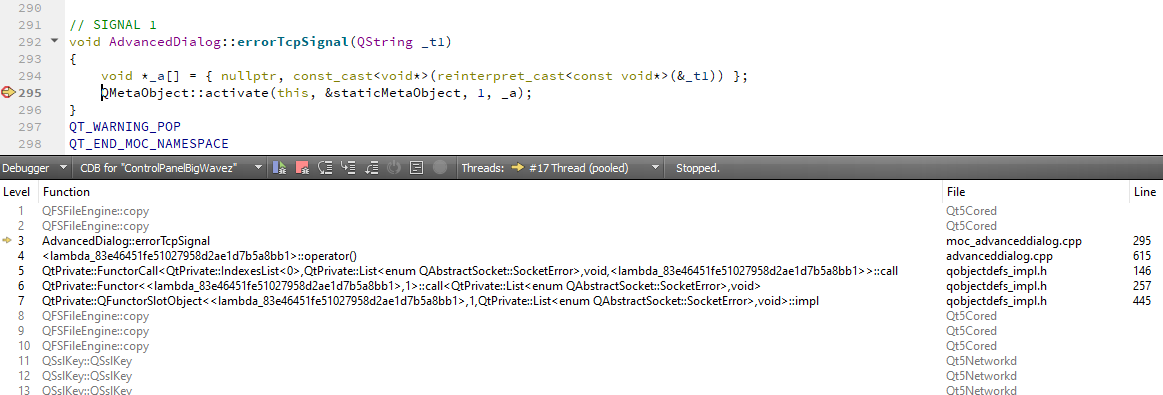

                    I hope this is good


                    Thanks!

                    jsulmJ 1 Reply Last reply
                    0
                    • P pmanc

                      I hope this is good


                      Thanks!

                      jsulmJ Offline
                      jsulmJ Offline
                      jsulm
                      Lifetime Qt Champion
                      wrote on last edited by
                      #10

                      @pmanc Looks like the signal is still emitted. Can you try to disconnect manually before calling deleteLater() to see whether it still crashes?

                      https://forum.qt.io/topic/113070/qt-code-of-conduct

                      P 1 Reply Last reply
                      0
                      • jsulmJ jsulm

                        @pmanc Looks like the signal is still emitted. Can you try to disconnect manually before calling deleteLater() to see whether it still crashes?

                        P Offline
                        P Offline
                        pmanc
                        wrote on last edited by
                        #11

                        @jsulm I added

                        disconnect(ad, nullptr, nullptr, nullptr);


                        before deleteLater, but still crashes, plus at live 295 I have a semantic error:

                        moc_advanceddialog.cpp:295:5: error: no matching function for call to 'activate'
                        qobjectdefs.h:397:17: note: candidate function not viable: no known conversion from 'AdvancedDialog *' to 'QObject *' for 1st argument
                        qobjectdefs.h:398:17: note: candidate function not viable: no known conversion from 'AdvancedDialog *' to 'QObject *' for 1st argument
                        qobjectdefs.h:396:17: note: candidate function not viable: requires 3 arguments, but 4 were provided

                        J.HilkJ 1 Reply Last reply
                        0
                        • P pmanc

                          @jsulm I added

                          disconnect(ad, nullptr, nullptr, nullptr);


                          before deleteLater, but still crashes, plus at live 295 I have a semantic error:

                          moc_advanceddialog.cpp:295:5: error: no matching function for call to 'activate'
                          qobjectdefs.h:397:17: note: candidate function not viable: no known conversion from 'AdvancedDialog *' to 'QObject *' for 1st argument
                          qobjectdefs.h:398:17: note: candidate function not viable: no known conversion from 'AdvancedDialog *' to 'QObject *' for 1st argument
                          qobjectdefs.h:396:17: note: candidate function not viable: requires 3 arguments, but 4 were provided

                          J.HilkJ Offline
                          J.HilkJ Offline
                          J.Hilk
                          Moderators
                          wrote on last edited by
                          #12

                          @pmanc QObject::Connect returns a QMetaObject::Connection you're supposed to store that and call disconnect on that object


                          Be aware of the Qt Code of Conduct, when posting : https://forum.qt.io/topic/113070/qt-code-of-conduct


                          Q: What's that?
                          A: It's blue light.
                          Q: What does it do?
                          A: It turns blue.

                          P 1 Reply Last reply
                          0
                          • J.HilkJ J.Hilk

                            @pmanc QObject::Connect returns a QMetaObject::Connection you're supposed to store that and call disconnect on that object

                            P Offline
                            P Offline
                            pmanc
                            wrote on last edited by pmanc
                            #13

                            @J-Hilk
                            Sorry, i didn't know.
                            Now I have

                            AdvancedDialog *ad = new AdvancedDialog(this);
                            QMetaObject::Connection c = connect(ad, SIGNAL(errorTcpSignal(QString)), this, SLOT(displayTcpError(QString)));
                            ad->exec();
                            disconnect(c);
                            ad->deleteLater();


                            But still crashes, this SIGNAL is emitted.

                            1 Reply Last reply
                            0
                            • B Offline
                              B Offline
                              Bonnie
                              wrote on last edited by Bonnie
                              #14

                              disconnect won't stop the signal emitting, just stop calling the slot.
                              I think you should disconnect the other connection, from that SocketError.
                              That connection doesn't have a receiver context, so the lambda will be called even after this is destroyed.
                              How about add this as the receiver context:

                              connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error), this, [=](QAbstractSocket::SocketError err){
                                          emit errorTcpSignal(...);
                                      });

                              P 1 Reply Last reply
                              1
                              • B Bonnie

                                disconnect won't stop the signal emitting, just stop calling the slot.
                                I think you should disconnect the other connection, from that SocketError.
                                That connection doesn't have a receiver context, so the lambda will be called even after this is destroyed.
                                How about add this as the receiver context:

                                connect(&t, QOverload<QAbstractSocket::SocketError>::of(&QAbstractSocket::error), this, [=](QAbstractSocket::SocketError err){
                                            emit errorTcpSignal(...);
                                        });

                                P Offline
                                P Offline
                                pmanc
                                wrote on last edited by
                                #15

                                @Bonnie
                                Thank you very much for your reply.
                                The problem is that I want the signal to be emitted when I close the QDialog too.
                                I have MainWindow with the slot for the error, and the QDialog that emits the signal.
                                The core of the problem is that I want to receive the signal from QDialog 's QtConcurrent thread also after QDialog has been closed.

                                1 Reply Last reply
                                0
                                • B Offline
                                  B Offline
                                  Bonnie
                                  wrote on last edited by Bonnie
                                  #16

                                  From your screen capture, the errorTcpSignal is a member from AdvancedDialog, right?
                                  Where do you emit it then? I'm not quite understanding your code since I don't know what is this in those connections.
                                  If you want the dialog to emit the signal, then you can't delete it.

                                  P 1 Reply Last reply
                                  0
                                  • B Bonnie

                                    From your screen capture, the errorTcpSignal is a member from AdvancedDialog, right?
                                    Where do you emit it then? I'm not quite understanding your code since I don't know what is this in those connections.
                                    If you want the dialog to emit the signal, then you can't delete it.

                                    P Offline
                                    P Offline
                                    pmanc
                                    wrote on last edited by
                                    #17

                                    @Bonnie
                                    Yes, errorTcpSignal is a member from AdvancedDialog.
                                    I emit it from a QtConcurrent thread in AdvancedDialog when an AdvancedDialog 's button is pressed.
                                    If I don't delete it everything works, but I'll have a memory leak.

                                    B 1 Reply Last reply
                                    0
                                    • P pmanc

                                      @Bonnie
                                      Yes, errorTcpSignal is a member from AdvancedDialog.
                                      I emit it from a QtConcurrent thread in AdvancedDialog when an AdvancedDialog 's button is pressed.
                                      If I don't delete it everything works, but I'll have a memory leak.

                                      B Offline
                                      B Offline
                                      Bonnie
                                      wrote on last edited by Bonnie
                                      #18

                                      @pmanc said in Qt emit signal after widget is closed:

                                      If I don't delete it everything works, but I'll have a memory leak.

                                      No, you won't.
                                      It have a parent widget (in your code when you new it), so it will be deleted after the parent is destoyed.
                                      But I still don't think it is a right design since you want to delete the dialog but also need it to send signals.
                                      Though I don't fully understand your logic, I think you should handle the QtConcurrent related code in your QMainWindow.

                                      P 1 Reply Last reply
                                      0
                                      • B Bonnie

                                        @pmanc said in Qt emit signal after widget is closed:

                                        If I don't delete it everything works, but I'll have a memory leak.

                                        No, you won't.
                                        It have a parent widget (in your code when you new it), so it will be deleted after the parent is destoyed.
                                        But I still don't think it is a right design since you want to delete the dialog but also need it to send signals.
                                        Though I don't fully understand your logic, I think you should handle the QtConcurrent related code in your QMainWindow.

                                        P Offline
                                        P Offline
                                        pmanc
                                        wrote on last edited by
                                        #19

                                        @Bonnie
                                        I see. But every time I open a new AdvancedDialog I see my memory use to grow in the task manager.
                                        Should I initialize AdvancedDialog once in the MainWindow constructor and show / hide it when I need?

                                        By the way, great community, everyone!

                                        jsulmJ B 2 Replies Last reply
                                        0
                                        • P pmanc

                                          @Bonnie
                                          I see. But every time I open a new AdvancedDialog I see my memory use to grow in the task manager.
                                          Should I initialize AdvancedDialog once in the MainWindow constructor and show / hide it when I need?

                                          By the way, great community, everyone!

                                          jsulmJ Offline
                                          jsulmJ Offline
                                          jsulm
                                          Lifetime Qt Champion
                                          wrote on last edited by
                                          #20

                                          @pmanc said in Qt emit signal after widget is closed:

                                          But every time I open a new AdvancedDialog

                                          If you need this dialog often then don't delete it and don't recreate it each time you need it. Create it once.

                                          https://forum.qt.io/topic/113070/qt-code-of-conduct

                                          1 Reply Last reply
                                          3

                                          • Login

                                          • Login or register to search.
                                          • First post
                                            Last post
                                          0
                                          • Categories
                                          • Recent
                                          • Tags
                                          • Popular
                                          • Users
                                          • Groups
                                          • Search
                                          • Get Qt Extensions
                                          • Unsolved
