Advice in creating mobile app

Jasur

Hello all

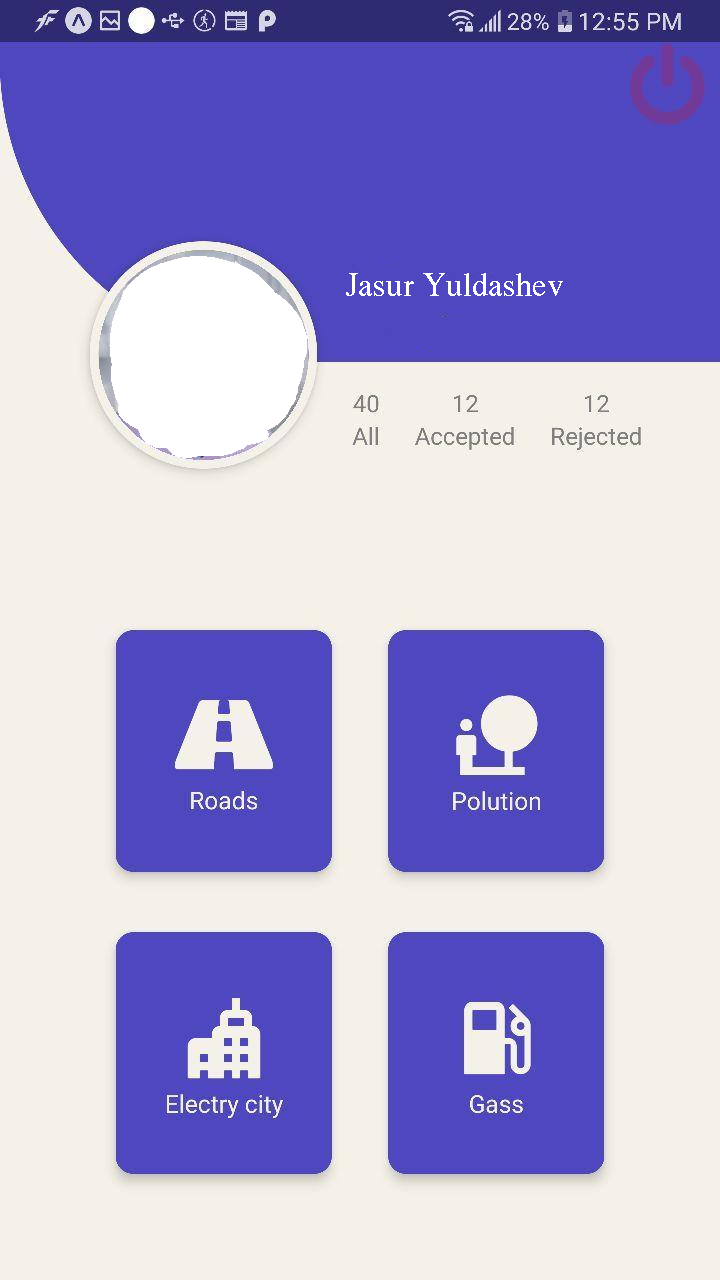

I need to create mobile app like below. The main idea of the app is take photo of the problem and send it to the database. Depends on the problem you select category(Roads, Polution, Electricity, Gass) ,take photo of the problem,then give comment to this problem and send to the database. The data will be send in JSON format.
My questions is:
1)How to create such design in qml, what tools in qml to use to create such design?
2)What books do you advice to learn qml?

Regards,
Jasur

SGaist

Hi,

You can go through the QML Book.

Jasur

Thank you very useful book, but i have one question, how make such positioning for this 4 buttons in qml?

Regards,
Jasur

mrjj

@Jasur said in Advice in creating mobile app:

Thank you very useful book, but i have one question, how make such positioning for this 4 buttons in qml?

Try with a
https://doc.qt.io/qt-5/qml-qtquick-layouts-gridlayout.html
That should look like that and keep them like that if window is resized.

Jasur

@mrjj My design differs from original, the screenshot was taken from TAB device
1)How to put spacing between toolbar and gridlayout?
2)There is a big gap between the left and right borders of the application to the buttons, how to make autoresize the gridlayout?
And i create separate file ButtonsContainer.qml for Button widget.
below my code for main.qml

import QtQuick 2.12
import QtQuick.Window 2.12
import QtQuick.Controls.Material 2.12
import QtQuick.Controls.Universal 2.12
import QtQuick.Controls 2.12
import QtQuick.Layouts 1.12
import Qt.labs.settings 1.0
import QtQuick.Dialogs 1.2
import QtQuick.Controls.Styles 1.4
ApplicationWindow {
    id: appWindowId
    visible: true
    width: 360
    height: 520
    title: qsTr("Smart City")

    color: "beige"

    Flickable{
        width: parent.width
        height: parent.height
        contentHeight: gridLayoutID.implicitHeight
        GridLayout
        {
            id: gridLayoutID
            columns: 2
            anchors.centerIn: parent
            columnSpacing: 25
            ButtonsContainer{
                id: buttonGass
                Layout.fillWidth: true
                Layout.fillHeight: true
                buttonText: "Gas"

            }
            ButtonsContainer{
                id: buttonPolution
                Layout.fillWidth: true
                Layout.fillHeight: true
                buttonText: "Road"
            }
            ButtonsContainer{
                id: buttonElect
                Layout.fillWidth: true
                Layout.fillHeight: true
                buttonText: "Polution"
            }
            ButtonsContainer{
                id: buttonRoad
                Layout.fillWidth: true
                Layout.fillHeight: true
                buttonText: "Electrycity"
            }
        }
    }

    header: ToolBar{
        Material.foreground: "white"
        RowLayout {
            anchors.fill: parent

            ToolButton {
                //text: qsTr("‹")
                icon.source:  "icons/icons/gallery/20x20/drawer.png"
                onClicked: drawerId.open()
            }
            Label {
                id: titleLabel
                text: "Smart City"
                font.pixelSize: 20
                elide: Label.ElideRight
                horizontalAlignment: Qt.AlignHCenter
                verticalAlignment: Qt.AlignVCenter
                Layout.fillWidth: true
            }
        }
    }

    Drawer{
        id: drawerId

        width: Math.min(appWindowId.width, appWindowId.height)/3*2
        height: parent.height

        ListView{
            id: listViewId

            focus: true
            currentIndex: -1
            anchors.fill: parent

            delegate: ItemDelegate {
                width: parent.width
                text: model.text
                highlighted: ListView.isCurrentItem
                onClicked: {
                    //listViewId.currentIndex =index
                    //drawerId.close()
                    model.triggered()
                }
            }

            model: ListModel {
                ListElement {
                    text: qsTr("Open...")
                    triggered: function(){ fileOpenDialog.open(); }
                }
                ListElement {
                    text: qsTr("About...")
                    triggered: function(){ aboutDialog.open(); }
                }
            }
        }
    }
}

ButtonsContainer.qml

import QtQuick 2.12
import QtQuick.Controls 2.12
import QtQuick.Layouts 1.12
import QtQuick.Controls.Styles 1.4
import QtQuick.Controls.Material 2.12
import Qt.labs.settings 1.0
Button  {
    id: buttonId
    property alias buttonText: textId.text
    Text {
        id: textId
        text: qsTr("textName")
        //Material.foreground: "white"
        color: "white"
        anchors.centerIn: parent
    }

    background: Rectangle {
        color: "#41cd52"
        implicitWidth: 150
        implicitHeight: 150
        border.color: control.down ? "#17a81a" : "#21be2b"
        border.width: 1
        radius: 14
    }
}

Regards,
Jasur

Padlock

You could stick your grid layout to an absolute position (x, y, height), or you just place something on top of it. The gaps are caused by your columnSpacing.

Jasur

@Padlock thank you for advice, i will trry it, and i have one more question. Is it possible to make design in FIGMA than connect with QML?

Regards,
Jasur

Markkyboy

@Jasur said in Advice in creating mobile app:

FIGMA

https://www.youtube.com/watch?v=I3MVJx6cCO0

With regard to the spacing of buttons to header, you could simply add an integer to your Flickable, as follows;

    Flickable{
        width: parent.width
        height: parent.height
        contentHeight: gridLayoutID.implicitHeight + 200

Jasur

@Markkyboy said in Advice in creating mobile app:

https://www.youtube.com/watch?v=I3MVJx6cCO0

to use Qt Design Studio's Bridge i need buy commercial version of it. is there any other option to use this Bridge with FIGMA?

@Markkyboy said in Advice in creating mobile app:

With regard to the spacing of buttons to header, you could simply add an integer to your Flickable, as follows;

Thank for this, it works for me.

Regards,
Jasur
