Simple big-looped program break down



  • Hello,

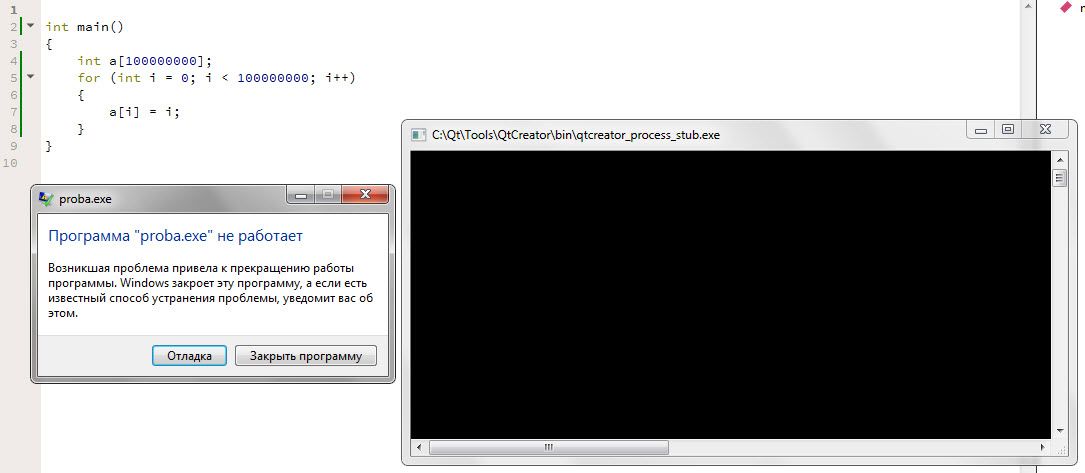

    I encountered with a strangle error that occurs when I run loop with big maximum-value iterator in loop:

    int main()
    {
        int a[100000000];
        for (int i = 0; i < 100000000; i++)
        {
            a[i] = i;
        }
    }


    If I set max i = 100000 (or something) it works. What is the problem?
    int array of size 100000000 should weigh 4*100000000 bytes = 400 MegaBytes
    I use Windows 7 x64, MSVC 2017 x64, 8 Gb RAM (3GB is free now).
    The program doesn't work neither in Release nor in Debug mode.
    Could that occur beacause I have two RAM-card each of 4 Gygabytes?



  • @Please_Help_me_D said in Simple big-looped program break down:

    int a[100000000];

    That is allocated on the stack. How big is the stack size, could this 400MB be exceeding that? If you are Windows/MSVC there are compilation arguments which can affect that, I think.

    Meanwhile, put static at the start of that line, or move it above the int main(). Does it work OK now?

    P.S.

    Could that occur beacause I have two RAM-card each of 4 Gygabytes?

    No fear, my friend, there is no problem with your 2 x 4GB RAM ! :D



  • @Please_Help_me_D said in Simple big-looped program break down:

    int a[100000000];

    That is allocated on the stack. How big is the stack size, could this 400MB be exceeding that? If you are Windows/MSVC there are compilation arguments which can affect that, I think.

    Meanwhile, put static at the start of that line, or move it above the int main(). Does it work OK now?

    P.S.

    Could that occur beacause I have two RAM-card each of 4 Gygabytes?

    No fear, my friend, there is no problem with your 2 x 4GB RAM ! :D



  • @JonB works like that:

    int main()
    {
        static int a[100000000];
        for (int i = 0; i < 100000000; i++)
        {
            a[i] = i;
        }
    }


    Ahaha that is good because last night I watched many videos on C++ and I the situations with two RAM-cards seemed to me real but fortunately I was mistaken :)

    That is allocated on the stack. How big is the stack size, could this 400MB be exceeding that?

    I'm just exploring now the C++ and learn the features but I think that if I declare a variable of size(N) then I keep in mind that my loop should not go beyond this size(N).

    Maybe I should use pointers instead in such cases?



  • @Please_Help_me_D
    I'm not sure what to say. Yes you must bear size/number of items in mind when iterating, no pointers won't help you and will make it even easier to exceed bounds. Neither of these has anything to do with the issue in your original code. In practice you won't be declaring any objects with as many items or overall size anywhere near your example. And your program is C, when you use C++ you'll have the chance to use structures with bounds checking.



  • @JonB Thank you for answer,
    Actually the pointer allows to MSVC 2017 not to throw an error but the programmer should be attentif while using loops. That works:

    int main()
    {
        int *pa = new int [100000000];
        for (int i = 0; i < 100000000; i++)
        {
            pa[i] = i;
            cout << pa[i] << endl;
        }
    }


    Also there is QVector that @mrjj offered to me (in other topic) that throws an error if you exceed the boundary of vector:

    int main()
    {
        QVector<int> a(100000000);
        a[99999999] = 1;
         a[100000000] = 1; // The program runs and the error appears... That is good!
    }



  • @Please_Help_me_D
    It's not the fact that you are using a pointer that makes the first example work. In both cases, the new and the QVector<int> a(100000000) (which internally will use new) means that the memory is allocated on the heap. Effectively, that means it is only limited by available memory.

    (Or, static int[100000000] goes into a special area.)

    Your original int a[100000000] inside a function means that it was a local variable allocated on the stack. And that is "small" and limited in size. Your array exceeded its size, and led to crash when you write a value into it.

    If you want to understand this you need to read about the distinction between stack and heap, e.g. maybe https://stackoverflow.com/questions/79923/what-and-where-are-the-stack-and-heap.


  • Lifetime Qt Champion

    Hi,

    To add to @JonB, you have a limit on 32bit systems. You can't get more than 2Gb of your RAM. This does not apply on 64bit systems.



  • @JonB I read about the memory segmentation on heap and stack. I understand the basics I hope.
    So I have some doubt about the following: here are three ways to declare an array:

    int a[3];
    int *pa = new int [3];
    QVector<int> a(3);


    Are all of them stored on heap?
    I just made an experiment to see which way is the fastest to fill an array:

        int *pa = new int [100000000];
        clock_t start_time =  clock(); // start time
        for (int i = 0; i < 100000000; i++)
        {
            pa[i] = i;
        }
        clock_t end_time = clock(); // end time
        clock_t d_time = end_time - start_time; // delta time
        cout << d_time << endl;


    Delta time is in range from 0.25 to 1 second (usually less then 1 sec).

        QVector<int> a(100000000);
        clock_t start_time =  clock(); // start time
        for (int i = 0; i < 100000000; i++)
        {
            a[i] = i;
        }
        clock_t end_time = clock(); // end time
        clock_t d_time = end_time - start_time; // delta time
        cout << d_time << endl;


    Delta time is in range from 8 to 11 second.
    I think there should be an explanation to the fact that QVector is so slow compared to pointer-array (standart C++ array).
    @SGaist yes)) and that is why I use x64 compilator :)


  • Lifetime Qt Champion

    @Please_Help_me_D said in Simple big-looped program break down:

    Are all of them stored on heap?
    int a[3];

    No, thats a one dimensional table of three ints on the stack

    int *pa = new int [3];

    Yes

    QVector<int> a(3);

    No, that's a QVector of three elements on the stack however the three elements will be stored on the heap.



  • @SGaist Oh thank you!
    one thing I can't find in Internet.
    If the variable is local (accessible inside the specific function, let's say the variable int a[3]) does that mean that after the fuction is finished that local variable will be deleted and the memory will be freed?
    And also if I transfer the variable (not a pointer but something like int a[3]) from one function to another then the variable is copied and it takes more space in my RAM (about twice more space)?


  • Lifetime Qt Champion

    If it's an array of objects, yes, everything is destroyed. If it's an array of pointer, it's your duty to first cleanup.

    As for passing stuff around, it will depend on how you pass them around (by value, reference, const reference, pointer).

    If passing by value, it's indeed a copy that is done.



  • @SGaist thank you! I just made some experiments
    Step by step I see the things you explain :)



  • @Please_Help_me_D
    For arrays: in the C family of languages, and most "general" programming languages, arrays are passed by reference, not by value.

    This if you declare a simple int fred and pass to a function func(int param), the value in fred is copied into param (and changing it inside the function has no effect on the caller's fred).

    OTOH, if you declare an array int fred[3] and pass to a function func(int *param) the array is passed by reference/pointer, i.e. C passes the address of the start of the array (and changing values at *param or param[2] does change what is in the fred array back in the caller). The obvious reason is that arrays can be large, so you don't want to have to copy them unless you have to.

    So in your example, when you pass your array (int[3]) to another function it does not "take twice the space in RAM". The only thing that takes more space is the pointer to the array in the receiving function, which is a fixed 4 or 8 bytes (32-/64-bit) regardless of whether the array itself occupies 400MB of RAM.

    Meanwhile, going back to your timings. I am surprised if the time to fill your QVector is as large as 10 seconds. I don't do C++ so I can't check. I was going to suggest trying a.resize() or a.reserve() before the loop, but I think the constructor has already done that. One possibility is that (I believe) QVector will do bounds checking each time on your a[i], which the pure C++ example above it will not do, and that will cost some. Instead of indexing by i, try using https://doc.qt.io/qt-5/qvector.html#begin etc. to do the fill via iterators and see if that is quicker? The other possibility is that QVector data is implicitly shared (https://doc.qt.io/qt-5/implicit-sharing.html). The Qt experts here may be able to indicate whether by changing its content in a loop there is an overhead in dealing with the shared storage area, I don't know.


  • Moderators

    @Please_Help_me_D

    I did some test on my own, because its an interesting topic:

    #include <iostream>
    #include <QVector>
    #include <vector>
    #include <numeric>
    #include <QElapsedTimer>
    int main(int argc, char *argv[])
    {
        QApplication a(argc, argv);

        QElapsedTimer et;
        qint64 t1, t2, t3, t4;

        int *pa = new int [100000000];
        et.start();
        for (int i = 0; i < 100000000; i++) {
            pa[i] = i;
        }
        t1 = et.elapsed();

        QVector<int> qva(100000000);
        et.restart();
        for (int i = 0; i < 100000000; i++) {
            qva[i] = i;
        }

        t2 = et.restart();

        std::iota(qva.begin(), qva.end(), 0);

        t3 = et.restart();

        int j(0);
        for( int & i : qva){
            i = j++;
        }

        t4 = et.elapsed();

        qDebug() << "Times:";
        qDebug() << t1 << t2 << t3 << t4;
    }


    The results are:
    Debug build: 456 3889 224 214
    Release build: 0 86 58 45

    And that's to be expected- Vector is a complex class and therefore lot of debug information /checks, stuff that will slow it down.

    I'm however surprised, that in release the good old C loop is so fast. Maybe the compiler optimizes a lot and the loop is not executed at all 🤔

    In release, all methods are pretty close, and the iterator methods , not surprisingly, a good but faster than the access method



  • @J-Hilk said in Simple big-looped program break down:

    Maybe the compiler optimizes a lot and the loop is not executed at all 🤔

    If he had been filling the elements with a constant value that would have been possible. But because he/you is filling with changing i each time, I can't see any optimization of that is possible, it will have to loop! You could look at the disassembly... :)


  • Moderators

    @JonB I did, even with only level 1 optimization, the loop is removed 🤷‍♂️

    smart things these compilers 😉



  • @J-Hilk
    Noooooo!!!

    xor eax, eax
    ret


    Those two lines just load eax with 0 (quicker than literal "load with 0") and return it as result --- it's an implicit return 0 at the end of main()!

    Believe me, somewhere there above it is the code for the loop :) Otherwise, if the compiler has really decided there are no side-effects because pa is never referenced so it will go on strike and do nothing, put a return pa[10] or something after your loop.


  • Moderators

    @JonB actually, when I change the compiler to MSVC, the loop will never be removed, even with O3
    🤨 Windows, am I right!?




  • @J-Hilk
    Yep, that's more like it, good old MSVC! As I said, retry gcc with return pa[10] after the loop and then see?


  • Moderators

    @JonB said in Simple big-looped program break down:

    return pa[10]

    you're right by returning pa[10] from main, the release timings look much more like I would have expected:

    211 84 52 52



  • @JonB I'm trying to understand how to adjust QVectror::iterator to assign values to an array. I did the following:

        QVector<int> a = {10, 20, 30, 40, 50};
        QVector<int>::iterator it = a.begin();

        clock_t start_time =  clock();
        while (it != a.end())
        {
            cout << *it << endl;
            it++;
        }


    but that just showed me what is the iterator. How to modify the code to fill an empty QVector with numbers?



  • @Please_Help_me_D said in Simple big-looped program break down:

        int i = 0;
        while (it != a.end())
        {
            *it = i++;
            it++;
        }




  • @JonB So the execution time for the code:

        QVector<int> a(100000000);
        QVector<int>::iterator it = a.begin();
        int i = 0;

        clock_t start_time =  clock(); // начальное время
        while (it != a.end())
        {
            *it = i++;
            it++;
        }
        clock_t end_time = clock(); // конечное время
        clock_t d_time = end_time - start_time;
        cout << d_time << endl;


    is 8-9 seconds
    By the way, the same operation in Matlab with single (float) precision accuracy takes 0.3 seconds. That means that Matlab loops not so slow as I thought:

    // Matlab code
    a = single(zeros(100000000,1)); // preallocate the memory
    tic // start time
    for n = 1:100000000
        a(n) = single(n); // assign avlue to each position
    end
    toc // end time


  • Moderators

    @Please_Help_me_D
    If anything, than you should take away from my test, that there's a difference between release and debug builds in c++

    build and run your test in release, it will drop way below 1 sec



  • @Please_Help_me_D
    Please do as @J-Hilk has said before, if you're compiling or running for debug there will be a vast difference from release/optimized

    Also separately, verify what the MATLAB does in your code with

    for n = 1:100000001



  • @J-Hilk sorry I forgot that!

        int *pa = new int [100000000];
        clock_t start_time =  clock();
        for (int i = 0; i < 100000000; i++)
        {
            pa[i] = i;
        }
        clock_t end_time = clock();
        clock_t d_time = end_time - start_time;
        cout << d_time << endl;


    is 0.14 second

        QVector<int> a(100000000);

        clock_t start_time =  clock();
        for (int i = 0; i < 100000000; i++)
        {
            a[i] = i;
        }
        clock_t end_time = clock();
        clock_t d_time = end_time - start_time;
        cout << d_time << endl;


    is also about 0.14 second

        QVector<int> a(100000000);
        QVector<int>::iterator it = a.begin(); /
        int i = 0;

        clock_t start_time =  clock();
        while (it != a.end())
        {
            *it = i++;
            it++;
        }
        clock_t end_time = clock();
        clock_t d_time = end_time - start_time;
        cout << d_time << endl;


    is also about 0.14 second
    So Matlab loops is about twice slower :)
    Thank you very much! It's good to know such difference in perfomance in Debug and Release mode



  • @JonB Matlab automatically increases the vector size by 1. But if I dont preallocate the size of the vector and with each iteration the vector size increases then it takes way much time. Here I do the iteration without preallocation and variable "a" is created when first iteration is performed:

    // Matlab code
    tic
    for n = 1:100000000
           a(n) = single(n);
    end
    toc


    35 seconds to preform



  • @Please_Help_me_D
    For presumably similar slowness with QVector, try creating it empty with just QVector<int> a and use a.append(i) in the loop. I anticipate some slowness compared to pre-sizing, but (hopefully) not as bad as it could be:

    This operation is relatively fast, because QVector typically allocates more memory than necessary, so it can grow without reallocating the entire vector each time.



  • @JonB very interesting result as for me:

         QVector<int> a;

         clock_t start_time =  clock();
         for (int i = 0; i < 100000000; i++)
         {
             a.append(i);
         }
         clock_t end_time = clock();
         clock_t d_time = end_time - start_time;
         cout << d_time << endl;


    in Debug mode it takes 5.5-6 seconds
    in Release mode it takes 0.7 second (while in Matlab as I previously said it takes 35 seconds)
    So QVectror is really fast even if it works with <appending mode>
    Thank you for this example!


  • Lifetime Qt Champion

    @Please_Help_me_D said in Simple big-looped program break down:

    So QVectror is really fast even if it works with <appending mode>

    As far as I know QVector allocates more memory as currently is need and on resizing it allocates again more than "current_size + 1".



  • @jsulm yes it does.
    I tested how much my program weigh with Windows Task Manager for different number of loops (say n) and two mode of QVector (normal and <append>). Here is the result (Debug mode):

        QVector<int> a(100000000);

        clock_t start_time =  clock();
        for (int i = 0; i < 100000000; i++)
        {
            a[i] = i;
        }
        clock_t end_time = clock();
        clock_t d_time = end_time - start_time;
        cout << d_time << endl;


    n = 100000000 -> 392464 kilobytes
    n = 100000000/2 -> 196780 kilobytes
    n = 100000000/4 -> 98936 kilobytes
    n = 100000000/8 -> 50008 kilobytes
    !_____________________________!

         QVector<int> a;

         clock_t start_time =  clock();
         for (int i = 0; i < 100000000; i++)
         {
             a.append(i);
         }
         clock_t end_time = clock();
         clock_t d_time = end_time - start_time;
         cout << d_time << endl;


    n = 100000000 -> 527456 kilobytes
    n = 100000000/2 -> 264804 kilobytes
    n = 100000000/4 -> 133468 kilobytes
    n = 100000000/8 -> 67804 kilobytes

    If I use simple C++ array insead of QVector then for n = 100000000 -> 391780 kilobytes (almost the same as simple QVector).

    So the conclusion I see is that QVector in <append> mode weighs 1.35 times simple QVector or C++ array


  • Moderators

    @Please_Help_me_D said in Simple big-looped program break down:

    So the conclusion I see is that QVector in <append> mode weighs 1.35 times simple QVector or C++ array

    IIRC, than its 1.5, same as std::vector



  • @jsulm said in Simple big-looped program break down:

    @Please_Help_me_D said in Simple big-looped program break down:

    So QVectror is really fast even if it works with <appending mode>

    As far as I know QVector allocates more memory as currently is need and on resizing it allocates again more than "current_size + 1".

    Which is why I originally quoted from https://doc.qt.io/qt-5/qvector.html#append:

    This operation is relatively fast, because QVector typically allocates more memory than necessary, so it can grow without reallocating the entire vector each time.

    As for the exact timing: if, say, it re-allocates by powers of 2, I make that something log2(100000000) == 27 reallocations? :)


  • Moderators

    @JonB said in Simple big-looped program break down:

    As for the exact timing: if, say, it re-allocates by powers of 2, I make that something log2(100000000) == 27 reallocations?

    It doesn't. If memory serves me it has a special progression for the first 128 elements or so, and after that it doubles its size on each realloc.



  • @kshegunov
    When I wrote this for a realloc() replacement/interface many years ago, I did it by increasing powers of 2 :-) Either way, the point is it's order log2(n)-ish,


  • Moderators

    You do know I'm old, so you mustn't trust me too much. I wouldn't do it by increasing powers of two anyway, more like a percent of the current size, otherwise you're overshooting the needed capacity most of the time.



  • @kshegunov
    You wrote:

    and after that it [Qt] doubles its size on each realloc.

    I wrote

    I did it by increasing powers of 2

    Doesn't "doubling" mean "the next power of 2"? That's what I was trying to convey.

    2^n < x < 2^(n +1)
    =>
    2^(n + 1) < 2*x < 2^(n + 2)


    Right?


  • Moderators

    @JonB said in Simple big-looped program break down:

    Doesn't "doubling" mean "the next power of 2"?

    Yeah. I'm not at the top of my game, so you can probably safely ignore me.


Log in to reply
