QML mapCircle with data from database



  • Hello All
    I have coordinates in the database, and i want to bind this coordinates with the mapcircle in qml. How could i realize this and how to backlight circle if i double-click on coordinate in QTableView?

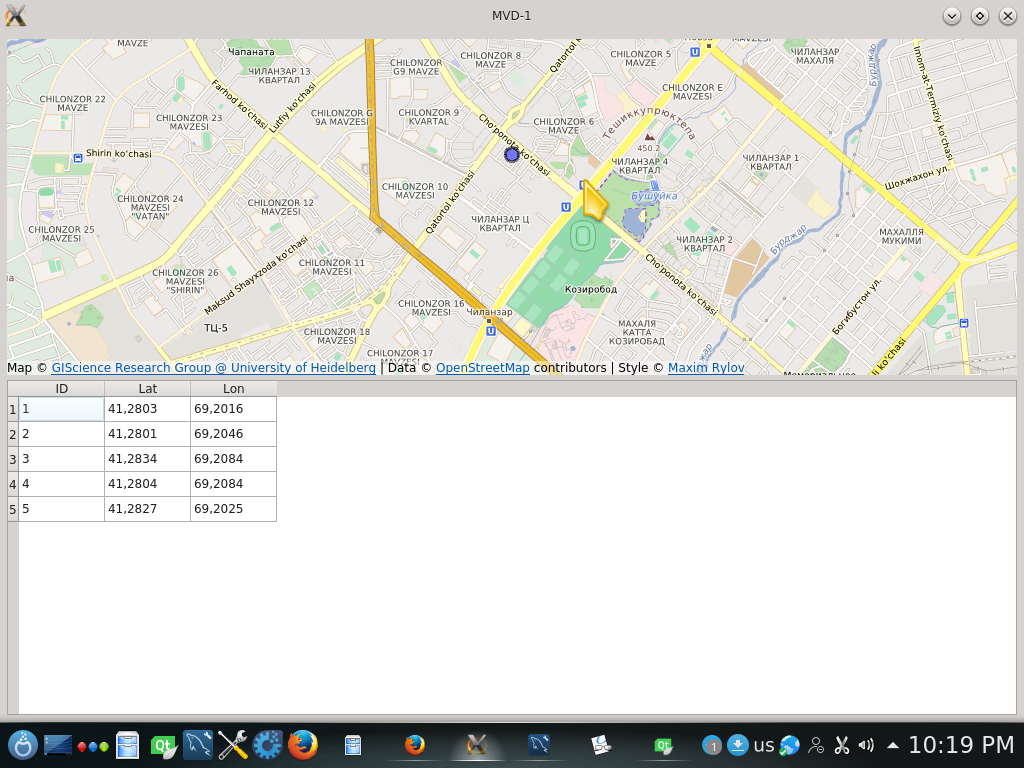

    In screenshot i read coordinates from database to QTableView.
    Regards
    Jasur


  • Lifetime Qt Champion

    Hi,

    You might be interested by this wiki article about QML and QSqlTableModel.



  • Hello
    But i didn't understand yet, how to bind with MapCircle.

    Regards
    Jasur


  • Lifetime Qt Champion

    You would need to use the Map addMapItem method to add a new MapCircle if not already existing when clicking on the table view.



  • Hello SGaist
    Thank you for links. I could do what i wanted. Below how i done it.
    import QtQuick 2.9
    import QtQuick.Window 2.3
    import QtLocation 5.9
    import QtPositioning 5.8

    Map {
    id: myMap

    Plugin {
        id: mapPlugin
        name: "osm"
    }


    anchors.fill: parent
    plugin: mapPlugin
    center: QtPositioning.coordinate(41.2816234,69.206447)
    zoomLevel: 14

    MapItemView {
        model: sqlModel
        delegate: MapCircle{
            id: circles
            center {
                latitude: Lat;
                longitude: Lon;

            }
            radius: 50.0
            color: 'yellow'
            border.width: 3
            opacity: 0.5
            Component.onCompleted: {
                console.count("Loaded a MapCircle")
                myMap.addMapItem(circles);
            }
        }
    }


    }

    About my second question. How to highlight(backlight) circle , when i select a row from the qtableview and this should work vice versa?

    Regards,
    Jasur


  • Lifetime Qt Champion

    I'd check with the ItemSelectionModel type.



  • Hello SGaist

    In the below code i could not bind the ItemSelectionModel with the qtableview. What I am doing wrong, i could not highlight row in qtableview when click on circle?
    ItemSelectionModel {
    id: ism
    model: sqlModel

            }
            MouseArea {
                anchors.fill: parent
                onClicked: {
                    parent.border.color="blue"
                    ism.select(sqlModel.index(index,index), ItemSelectionModel.Select | ItemSelectionModel.Current)
                    console.log(ism.hasSelection)
                }


            }


    Regards,
    Jasur
