Simple DSL Parser with Qt

[dridk2]

I m trying to parse a simple sql like statement using Qt only. Bison, Yacc or boost::spirit are really cumbersome for my simple task.
My parser should be able to parse the following things :

SELECT chr, pos FROM variants
SELECT chr, pos FROM variants WHERE chr=3
SELECT chr, pos FROM variants WHERE chr=3 REGION exonic
SELECT chr, pos FROM variants REGION exonic

What I want :

VqlParser parser;
parser.parse("SELECT chr FROM variant WHERE chr>3 AND chr<5 REGION exonic")

parser.fields() // QStringList("chr")
parser.table() // QString("variant")
parser.condition() // QString("chr > 3 AND chr < 5")
parser.region() // QString("exonic")

Any idea ? With regexp or something else ?

[SGaist]

Hi,

If it's only for these 4 possible strings then QRegularExpression is likely enough to solve this.

[dridk2]

@SGaist Do I have to create 4 regular expressions ?
I didn't success to create one regexp which capture each group.

[SGaist]

No you don't.

What expression are you using ?

[dridk2]

@SGaist This one : https://regex101.com/r/Lpupin/2

 SELECT(.+)FROM (\w)+ WHERE (.+) REGION (\w+)

As you can see, I can parse the full query but not the other.

[SGaist]

You are missing the handling of optional elements and some white spaces:

SELECT(.+)\s+FROM\s+(\w+)(\s+WHERE\s+(.+))?(\s+REGION\s+(\w+))?

[dridk2]

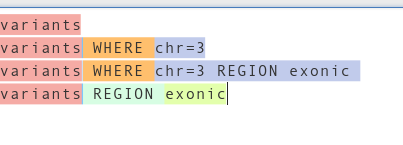

Unfortunally, the query cannot make difference between the "where clause" and the "region clause" as you see in purple.

[kshegunov]

A simple adjustment should do:
https://regex101.com/r/emTTdh/1

[dridk2]

Thanks !
I put my own code if you want to check

#include <boost/spirit.hpp>
#include <string>
#include <typeinfo>

namespace VQL
{

template <typename Iterator>
auto parse(Iterator begin, Iterator end, bool &success)
{
    using namespace boost::spirit::x3;

    using x3::lexeme;
    using x3::alpha;
    using x3::phrase_parse;
    using x3::ascii::space;
    using x3::_attr;


    vector<std::string> select;
    std::string from;
    std::string where;
    std::string region;

    auto toSelect = [&](auto & ctx) {select = _attr(ctx);};
    auto toFrom   = [&](auto & ctx) {from   = _attr(ctx);};
    auto toWhere  = [&](auto & ctx) {where  = _attr(ctx);};
    auto toRegion = [&](auto & ctx) {region = _attr(ctx);};


    auto keywords = x3::lit("SELECT") |
            x3::lit("FROM")   |
            x3::lit("WHERE")  |
            x3::lit("REGION");

    auto word     = *(x3::alnum - keywords);
    auto cond     = *(x3::char_ - keywords);


    success = phrase_parse(begin, end,
                           "SELECT" >>
                           (word % ",")[toSelect] >>
                           ("FROM"  >> word[toFrom]) >>
                           -("WHERE" >> x3::lexeme[cond][toWhere]) >>
                           -("REGION" >> word[toRegion])
                           ,
                           space
                           );

    return std::make_tuple(select,from,where,region);


}



}


int main(int argc, char **argv)
{
    std::string query = "SELECT chr,   pos,chrom FROM variants WHERE chr=3 AND chr=4 REGION exonic";
    bool success = false;

    auto results = VQL::parse(query.begin(), query.end(), success);

    if (success)
    {

        for (auto& field : std::get<0>(results))
            std::cout<<"fields "<<field<<"\n";

        std::cout<<"from "<< std::get<1>(results)<<std::endl;
        std::cout<<"where "<< std::get<2>(results)<<std::endl;
        std::cout<<"region "<< std::get<3>(results)<<std::endl;
        std::cout<<std::flush;

    }
}

[kshegunov]

I don't touch that. I'd rather spend half a day writing my own LL(1) parser by hand than mess with Spirit ...
