Android 16kb page size and plugins

Scheduled Pinned Locked Moved Solved Mobile and Embedded
11 Posts 3 Posters 222 Views 2 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • mrdebugM Offline
    mrdebugM Offline
    mrdebug
    wrote last edited by mrdebug
    #1

    Hi. Qt6.9.3 is already android 16kb page size compatible. There is a problem with ffmpeg used by libplugins_multimedia_ffmpegmediaplugin_arm64-v8a.so. The ffmpeg library included in Qt IS NOT 16kb page size compatible.
    I've tryied to compile ffmpeg using ffmpeg-android-maker that produces ffmpeg 16kb page size compatible but, if I replace ffmpeg in /opt/Qt/6.9.3/android_arm64_v8a/lib/ folder, the Qt plugin goes to crash.
    How can I upgrade the already built ffmpeg library of Qt6 for Android?

    Need programmers to hire?
    www.labcsp.com
    www.denisgottardello.it
    GMT+1
    Skype: mrdebug

    1 Reply Last reply
    0
    • mrdebugM Offline
      mrdebugM Offline
      mrdebug
      wrote last edited by mrdebug
      #2

      In order to upload to google play an app based on Qt6.9.3, the ffmpeg library must be replaced because it is not 16kb aligned.

      To build ffmpeg for Android 16 kb follow the steps below.

      git clone https://github.com/Javernaut/ffmpeg-android-maker.git
export ANDROID_SDK_HOME=/opt/Android/android-sdk-linux/
export ANDROID_NDK_HOME=/opt/Android/android-sdk-linux/ndk/27.2.12479018

      edit the file scripts/parse-arguments.sh
      change the value SOURCE_VALUE=7.1.1

      edit the file scripts/ffmpeg/build.sh
      at the row ./configure \

      ./configure \
  --enable-jni \
  --enable-mediacodec \

      Now all is ready to build

      ./ffmpeg-android-maker.sh -abis=arm64-v8a

      replace the ffmpeg library in /opt/Qt/6.9.3/android_arm64_v8a/lib/

      In order to have an app 16kb aligned put in the .pro file the rows

      android {
    QMAKE_LFLAGS += -Wl,-z,max-page-size=16384 -Wl,-z,common-page-size=16384
}

      If OpenSSL is required the problem is the same so

      git clone https://github.com/openssl/openssl.git
git checkout openssl-3.6

export ANDROID_NDK=/opt/Android/android-sdk-linux/ndk/21.3.6528147/
export API=35
export ARCH=arm64-v8a
export PATH=/opt/Android/android-sdk-linux/ndk/21.3.6528147/toolchains/llvm/prebuilt/linux-x86_64/bin/:$PATH

./Configure android-arm64

make -j 8

      and replace the library in /opt/Android/android-sdk-linux/android_openssl/ssl_3/arm64-v8a/

      In order to verify if the app and all its libraries is 16kb aligned

      git clone https://github.com/hotbrainstech/verify-16k-page-align.git
./verify-16k-page-align.sh QtApp.apk

      Need programmers to hire?
      www.labcsp.com
      www.denisgottardello.it
      GMT+1
      Skype: mrdebug

      1 Reply Last reply
      1
      • mrdebugM mrdebug has marked this topic as solved
      • SGaistS SGaist referenced this topic
      • C Offline
        C Offline
        Cagnulein
        wrote last edited by
        #3

        @mrdebug beside the ffmpeg and openssl, should we need to build qt from scratch if we want 16k support ? or the qt 6.10 android binary are already ok? because i still see this with qt 6.10

        Thanks

        1 Reply Last reply
        0
        • mrdebugM Offline
          mrdebugM Offline
          mrdebug
          wrote last edited by
          #4

          Hi, I haven't tried Qt6.10 but I think its libraries are already 16kb aligned.
          If you want to know witch libraries are not aligned (after having build the app) try

          git clone https://github.com/hotbrainstech/verify-16k-page-align.git
./verify-16k-page-align.sh QtApp.apk

          If the not aligned library is the app library, try to put in your .pro file

          android {
    QMAKE_LFLAGS += -Wl,-z,max-page-size=16384 -Wl,-z,common-page-size=16384
}

          Need programmers to hire?
          www.labcsp.com
          www.denisgottardello.it
          GMT+1
          Skype: mrdebug

          1 Reply Last reply
          0
          • C Offline
            C Offline
            Cagnulein
            wrote last edited by
            #5

            thanks @mrdebug

            this is interesting

            ./verify-16k-page-align.sh /mnt/c/Work/qdomyos-zwift-qt6-android/build-android/android-build/build/outputs/apk/debug/android-build-debug.apk

Recursively analyzing /mnt/c/Work/qdomyos-zwift-qt6-android/build-android/android-build/build/outputs/apk/debug/android-build-debug.apk

=== ELF alignment ===
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_multimedia_ffmpegmediaplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_native_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_Qt_labs_platform_labsplatformplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtWebView_qtwebviewquickplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qsvg_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Svg_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Multimedia_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Universal_qtquickcontrols2universalstyleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Material_qtquickcontrols2materialstyleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Quick_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Dialogs_qtquickdialogsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Shapes_qmlshapesplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_tls_qcertonlybackend_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qtga_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_preview_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_debugger_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_styles_qandroidstyle_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_profiler_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_texttospeech_qttexttospeech_android_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickDialogs2Utils_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2BasicStyleImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Universal_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_webview_qtwebview_android_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_position_qtposition_positionpoll_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2FluentWinUI3StyleImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_Qt_labs_settings_qmlsettingsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_geoservices_qtgeoservices_osm_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Effects_effectsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QmlModels_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickTemplates2_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_inspector_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_FluentWinUI3_impl_qtquickcontrols2fluentwinui3styleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Network_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Concurrent_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qwebp_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Basic_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Basic_qtquickcontrols2basicstyleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Location_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qgif_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6MultimediaWidgets_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtLocation_declarative_locationplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qico_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_geoservices_qtgeoservices_itemsoverlay_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libavcodec.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Charts_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Imagine_impl_qtquickcontrols2imaginestyleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_tls_qopensslbackend_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickDialogs2_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6FFmpegStub-crypto_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2ImagineStyleImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6OpenGLWidgets_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Qml_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6LabsPlatform_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Fusion_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_networkinformation_qandroidnetworkinformation_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6WebViewQuick_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6WebSockets_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_iconengines_qsvgicon_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Window_quickwindowplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_position_qtposition_nmea_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Sql_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_messages_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Universal_impl_qtquickcontrols2universalstyleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6SerialPort_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6VirtualKeyboard_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6WebView_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQml_qmlplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libavutil.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libswscale.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_position_qtposition_android_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Material_impl_qtquickcontrols2materialstyleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6LabsQmlModels_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_qtquickcontrols2plugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Positioning_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtPositioning_positioningquickplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_server_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qicns_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Fusion_qtquickcontrols2fusionstyleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_tcp_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Bluetooth_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Material_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_quick3dprofiler_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Impl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2FusionStyleImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Layouts_qquicklayoutsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_platforms_qtforandroid_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qwbmp_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libc++_shared.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Dialogs_quickimpl_qtquickdialogs2quickimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6PositioningQuick_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6LabsFolderListModel_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickDialogs2QuickImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_qtquick2plugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6FFmpegStub-ssl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QmlMeta_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libssl_1_1.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Imagine_qtquickcontrols2imaginestyleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_Qt_labs_qmlmodels_labsmodelsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Quick3DUtils_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6LabsSettings_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Gui_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_sqldrivers_qsqlite_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6LabsAnimation_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Fusion_impl_qtquickcontrols2fusionstyleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickLayouts_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6ChartsQml_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6NetworkAuth_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libavformat.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickEffects_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_quickprofiler_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_FluentWinUI3_qtquickcontrols2fluentwinui3styleplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_texttospeech_qtexttospeech_mock_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_local_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6MultimediaQuick_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6TextToSpeech_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_Basic_impl_qtquickcontrols2basicstyleimplplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Widgets_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Templates_qtquicktemplates2plugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtMultimedia_quickmultimediaplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickShapes_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQuick_Controls_impl_qtquickcontrols2implplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libswresample.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2MaterialStyleImpl_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qtiff_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2Imagine_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6OpenGL_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_imageformats_qjpeg_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_Qt_labs_animation_labsanimationplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_multimedia_androidmediaplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQml_Models_modelsplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtQml_WorkerScript_workerscriptplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Core_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_platforminputcontexts_qtvirtualkeyboardplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_QtCharts_qtchartsqml2plugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QmlWorkerScript_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libplugins_qmltooling_qmldbg_nativedebugger_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6HttpServer_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqdomyos-zwift_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libcrypto_1_1.so: UNALIGNED (2**12)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6Xml_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libqml_Qt_labs_folderlistmodel_qmlfolderlistmodelplugin_arm64-v8a.so: ALIGNED (2**14)
/tmp/android-build-debug_out_Elwpq/lib/arm64-v8a/libQt6QuickControls2UniversalStyleImpl_arm64-v8a.so: ALIGNED (2**14)

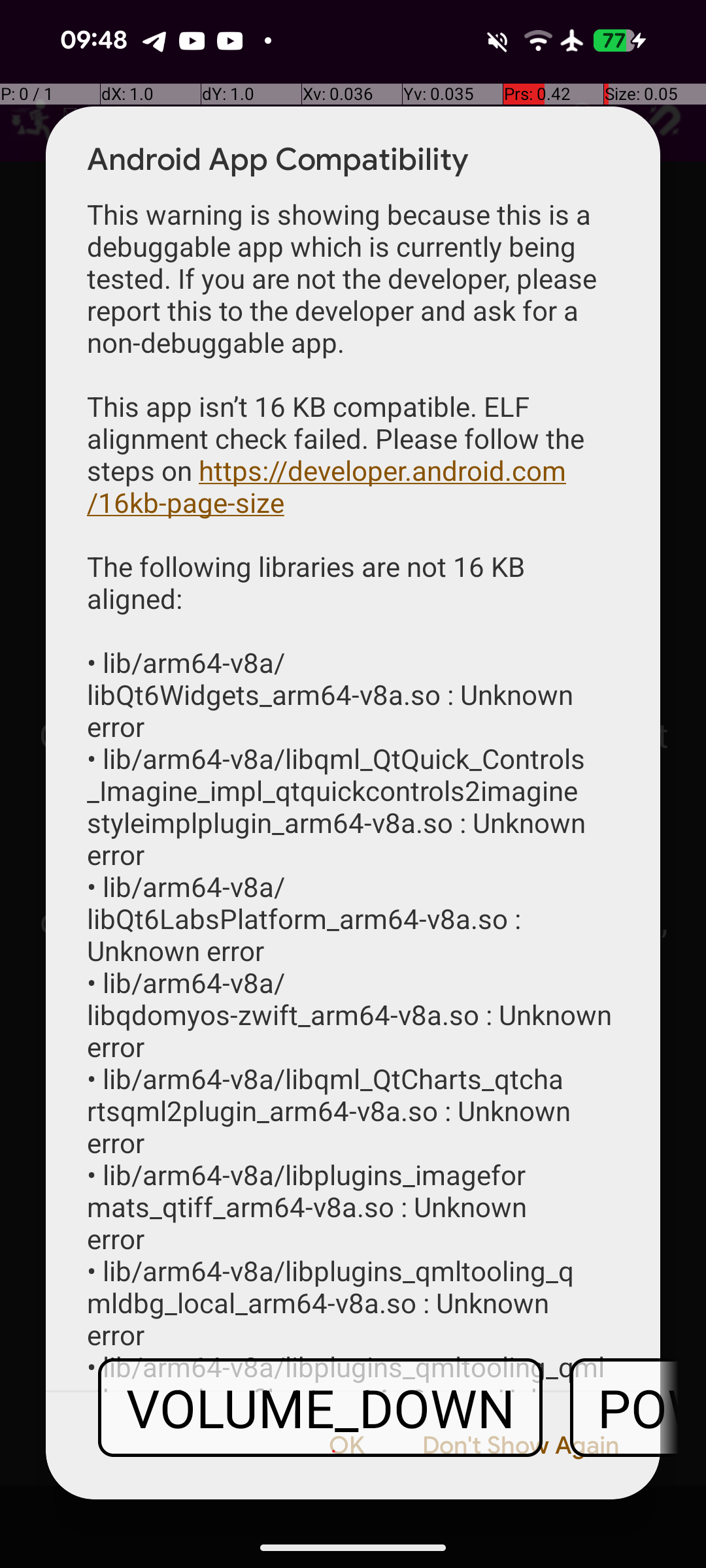

            why android instead gives me an unknown error? I was expecting errors on FFMPEG and OPENSSL. Did you see something similar?
            Thanks

            1 Reply Last reply
            0
            • mrdebugM Offline
              mrdebugM Offline
              mrdebug
              wrote last edited by
              #6

              Maybe Android gives a generic error. You should follow the steps above to compile and replace ffmpeg and openssl.

              Need programmers to hire?
              www.labcsp.com
              www.denisgottardello.it
              GMT+1
              Skype: mrdebug

              1 Reply Last reply
              0
              • C Offline
                C Offline
                Cagnulein
                wrote last edited by
                #7

                thanks I will give it a go and I will report back!

                1 Reply Last reply
                0
                • C Offline
                  C Offline
                  Cagnulein
                  wrote last edited by
                  #8

                  @mrdebug you were right! ffmpeg and openssl built with your steps and the warning went away! thanks

                  1 Reply Last reply
                  0
                  • F Offline
                    F Offline
                    Fariz
                    wrote last edited by Fariz
                    #9

                    Hi! I built the .so files as described above and replaced them in the Qt/6.9.3/android_arm64_v8a/lib/ folder. After building the app at runtime, I get the following error:

                    17:47:45.666 QtLoader                 E  Can't find '/data/app/~~0Hoq1vessYBuQ_ByWKgI2w==/com.qt.app-TwTMdJ0LzrpZCKZzVDmK7A==/lib/arm64/libQt6FFmpegStub-crypto_arm64-v8a.so'
17:47:45.666 QtLoader                 E  Loading Qt native libraries failed

                    The app crashes immediately after launch. Has anyone encountered this problem?

                    1 Reply Last reply
                    0
                    • mrdebugM Offline
                      mrdebugM Offline
                      mrdebug
                      wrote last edited by
                      #10

                      Have you choose the right ffmpeg version?

                      Need programmers to hire?
                      www.labcsp.com
                      www.denisgottardello.it
                      GMT+1
                      Skype: mrdebug

                      1 Reply Last reply
                      0
                      • F Offline
                        F Offline
                        Fariz
                        wrote last edited by
                        #11

                        @mrdebug Yes, I changed SOURCE_VALUE=7.1.1 as indicated above, ffmpeg-7.1.1 was downloaded

                        1 Reply Last reply
                        0

                        • Login
                        • Login or register to search.
                        • First post
                          Last post
                        0
                        • Categories
                        • Recent
                        • Tags
                        • Popular
                        • Users
                        • Groups
                        • Search
                        • Get Qt Extensions
                        • Unsolved
