QTabWidget - unable to load multiple documents in multiple tabs

[blossomsg]

Hello All,

I am loading multiple pdf files and it should open in multiple tabs - but instead the tab gets created but the files does not load

Seeking for some suggestions and inputs for the tool.

tool gif for reference - let me know if you are unable to see the gif from the link

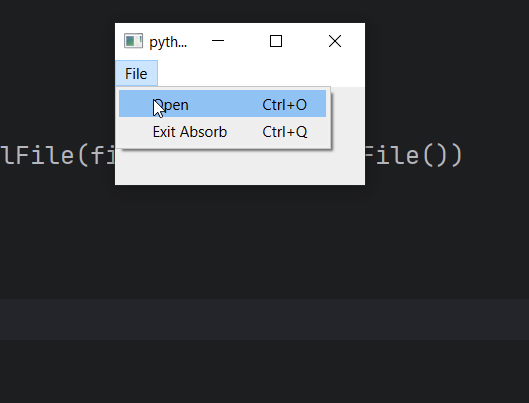

just for reference uploading images as well

reference - https://doc.qt.io/qtforpython-6/examples/example_pdfwidgets_pdfviewer.html

import os
import sys

from PySide6.QtCore import QUrl, Qt, QStandardPaths, Signal, Slot, QSettings
from PySide6.QtGui import QAction
from PySide6.QtWidgets import QTabWidget, QWidget, QMainWindow, QApplication, QVBoxLayout, QPushButton, QSizePolicy, \
    QFileDialog

from PySide6.QtPdf import QPdfDocument
from PySide6.QtPdfWidgets import QPdfView


class PdfViewWid(QPdfView):
    def __init__(self, pdf_document: QPdfDocument, parent=None) -> None:
        super().__init__()

        self.setPageMode(self.PageMode.MultiPage)
        self.setDocument(pdf_document)


class PdfDialogWid(QFileDialog):
    def __init__(self, parent=None) -> None:
        super().__init__()

        self.settings = QSettings("Test", "Test_Settings")

        self.setNameFilter("Adobe PDF Files (*.pdf)")
        self.setViewMode(QFileDialog.ViewMode.Detail)
        self.setAcceptMode(self.AcceptMode.AcceptOpen)


class Imp(QMainWindow):
    def __init__(self):
        super().__init__(parent=None)

        self.open_action = QAction("Open")
        self.open_action.setShortcut("Ctrl+O")
        self.quit_action = QAction("Exit")
        self.quit_action.setShortcut("Ctrl+Q")
        self.quit_action.triggered.connect(self.close)

        self.file_menu = self.menuBar().addMenu("File")
        self.file_menu.addAction(self.open_action)
        self.file_menu.addAction(self.quit_action)

        self.tab = QTabWidget()
        self.tab.setTabShape(self.tab.TabShape.Triangular)
        self.tab.setTabsClosable(True)
        self.tab.setMovable(True)
        self.tab.setDocumentMode(True)

        self.dialog = PdfDialogWid()
        self.open_action.triggered.connect(self.launch_browser)

        self.setCentralWidget(self.tab)

    def launch_browser(self):
        documents_path = QStandardPaths.writableLocation(
            QStandardPaths.StandardLocation.DocumentsLocation
        )
        default_path = self.dialog.settings.value(
            "dialog_last_directory", documents_path
        )
        file_path, _ = QFileDialog.getOpenFileName(
            self, "Open PDF File", str(default_path), "PDF Files (*.pdf)"
        )
        print(file_path)
        if file_path:
            self.create_tab(file_path)
            self.dialog.settings.setValue(
                "dialog_last_directory", os.path.dirname(file_path)
            )

    def create_tab(self, file_path) -> None:
        pdf_document = QPdfDocument()
        pdf_view = PdfViewWid(pdf_document)
        wid = QWidget()
        self.tab.addTab(wid, "New Tab")
        vlayout = QVBoxLayout(wid)
        vlayout.addWidget(pdf_view)
        wid.setLayout(vlayout)
        pdf_document.load(QUrl.fromLocalFile(file_path).toLocalFile())


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = Imp()
    window.show()
    sys.exit(app.exec())

[blossomsg]

Hello @JonB ,
thanks for the status command, i actually got to know the issue from there, you were correct it was not tab, in the earlier tests it worked fine without tabs and then after adding tab it failed and so i got confused. But thanks for the suggestion.

test link

below is the refactored code, and a rough code

import os
import sys

from PySide6.QtCore import QUrl, Qt, QStandardPaths, Signal, Slot, QSettings
from PySide6.QtGui import QAction
from PySide6.QtPdf import QPdfDocument
from PySide6.QtPdfWidgets import QPdfView
from PySide6.QtWidgets import QTabWidget, QWidget, QMainWindow, QApplication, QVBoxLayout, QPushButton, QSizePolicy, \
    QFileDialog


class PdfDialogWid(QFileDialog):
    def __init__(self, parent=None) -> None:
        super().__init__()

        self.settings = QSettings("Test", "Test_Settings")

        self.setNameFilter("Adobe PDF Files (*.pdf)")
        self.setViewMode(QFileDialog.ViewMode.Detail)
        self.setAcceptMode(self.AcceptMode.AcceptOpen)


class Imp(QMainWindow):
    def __init__(self):
        super().__init__(parent=None)

        self.open_action = QAction("Open")
        self.open_action.setShortcut("Ctrl+O")
        self.quit_action = QAction("Exit Absorb")
        self.quit_action.setShortcut("Ctrl+Q")
        self.quit_action.triggered.connect(self.close)

        self.file_menu = self.menuBar().addMenu("File")
        self.file_menu.addAction(self.open_action)
        self.file_menu.addAction(self.quit_action)

        self.dialog = PdfDialogWid()

        self.tab = QTabWidget()
        self.tab.setTabsClosable(True)
        self.tab.setMovable(True)
        self.tab.setDocumentMode(True)

        self.setCentralWidget(self.tab)

        self.open_action.triggered.connect(self.load)
        self.tab.tabCloseRequested.connect(self.remove_tab)

    def load(self):
        documents_path = QStandardPaths.writableLocation(
            QStandardPaths.StandardLocation.DocumentsLocation
        )
        default_path = self.dialog.settings.value(
            "dialog_last_directory", documents_path
        )
        file_path, _ = QFileDialog.getOpenFileName(
            self, "Open PDF File", str(default_path), "PDF Files (*.pdf)"
        )
        if file_path:
            wid = QWidget()
            pdf_view = QPdfView()
            pdf_doc = QPdfDocument(pdf_view)
            pdf_view.setDocument(pdf_doc)
            pdf_view.setPageMode(pdf_view.PageMode.MultiPage)
            pdf_doc.load(QUrl.fromLocalFile(file_path).toLocalFile())
            self.tab.addTab(wid, "Trial")
            vl = QVBoxLayout(wid)
            vl.addWidget(pdf_view)
            wid.setLayout(vl)
            print(pdf_doc.status())

    def remove_tab(self, index: int) -> None:
        self.tab.removeTab(index)


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = Imp()
    window.show()
    sys.exit(app.exec())

[JonB]

@blossomsg
I don't see what this should have to do with tabs, those are just created on every call to create_tab(). You would get empty tabs if either the PDF document can't be parsed properly or can't be rendered. So have you tried loading the PDF files and showing them in QPdfView quite outside or using any tabs? Then you would know where the problem might lie.

Attach slot to QPdfDocument::statusChanged(QPdfDocument::Status status) and verify it goes through states till QPdfDocument::Status::Ready. Then we know whether there is an issue in reading the PDF or displaying it.

[blossomsg]

okay noted, I'll give it a try and revert, Thanks @JonB

[Pl45m4]

@blossomsg

Next you could try a standard QPdfView instead of your PdfViewWid subclass.
Does it show your documents?

[blossomsg]

Hello @JonB ,
thanks for the status command, i actually got to know the issue from there, you were correct it was not tab, in the earlier tests it worked fine without tabs and then after adding tab it failed and so i got confused. But thanks for the suggestion.

test link

below is the refactored code, and a rough code

import os
import sys

from PySide6.QtCore import QUrl, Qt, QStandardPaths, Signal, Slot, QSettings
from PySide6.QtGui import QAction
from PySide6.QtPdf import QPdfDocument
from PySide6.QtPdfWidgets import QPdfView
from PySide6.QtWidgets import QTabWidget, QWidget, QMainWindow, QApplication, QVBoxLayout, QPushButton, QSizePolicy, \
    QFileDialog


class PdfDialogWid(QFileDialog):
    def __init__(self, parent=None) -> None:
        super().__init__()

        self.settings = QSettings("Test", "Test_Settings")

        self.setNameFilter("Adobe PDF Files (*.pdf)")
        self.setViewMode(QFileDialog.ViewMode.Detail)
        self.setAcceptMode(self.AcceptMode.AcceptOpen)


class Imp(QMainWindow):
    def __init__(self):
        super().__init__(parent=None)

        self.open_action = QAction("Open")
        self.open_action.setShortcut("Ctrl+O")
        self.quit_action = QAction("Exit Absorb")
        self.quit_action.setShortcut("Ctrl+Q")
        self.quit_action.triggered.connect(self.close)

        self.file_menu = self.menuBar().addMenu("File")
        self.file_menu.addAction(self.open_action)
        self.file_menu.addAction(self.quit_action)

        self.dialog = PdfDialogWid()

        self.tab = QTabWidget()
        self.tab.setTabsClosable(True)
        self.tab.setMovable(True)
        self.tab.setDocumentMode(True)

        self.setCentralWidget(self.tab)

        self.open_action.triggered.connect(self.load)
        self.tab.tabCloseRequested.connect(self.remove_tab)

    def load(self):
        documents_path = QStandardPaths.writableLocation(
            QStandardPaths.StandardLocation.DocumentsLocation
        )
        default_path = self.dialog.settings.value(
            "dialog_last_directory", documents_path
        )
        file_path, _ = QFileDialog.getOpenFileName(
            self, "Open PDF File", str(default_path), "PDF Files (*.pdf)"
        )
        if file_path:
            wid = QWidget()
            pdf_view = QPdfView()
            pdf_doc = QPdfDocument(pdf_view)
            pdf_view.setDocument(pdf_doc)
            pdf_view.setPageMode(pdf_view.PageMode.MultiPage)
            pdf_doc.load(QUrl.fromLocalFile(file_path).toLocalFile())
            self.tab.addTab(wid, "Trial")
            vl = QVBoxLayout(wid)
            vl.addWidget(pdf_view)
            wid.setLayout(vl)
            print(pdf_doc.status())

    def remove_tab(self, index: int) -> None:
        self.tab.removeTab(index)


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = Imp()
    window.show()
    sys.exit(app.exec())

[blossomsg]

@Pl45m4 said in QTabWidget - unable to load multiple documents in multiple tabs:

Next you could try a standard QPdfView instead of your PdfViewWid subclass.

Hey @Pl45m4 ,
thanks for jumping in,
you mean there is a direct module of QPdfView ? instead of from PySide6.QtPdfWidgets import QPdfView
is there a document page?
the one that i am referring is pdfview

[blossomsg]

and guys a silly question, how can i change the title/subject of the topic? so that it is not misleading

[jsulm]

@blossomsg said in QTabWidget - unable to load multiple documents in multiple tabs:

is there a document page?

Just search for QPdfView.
https://doc.qt.io/qt-6/qpdfview.html

[JonB]

@blossomsg said in QTabWidget - unable to load multiple documents in multiple tabs:

you mean there is a direct module of QPdfView ? instead of from PySide6.QtPdfWidgets import QPdfView

No, he meant try using just the base QPdfView rather than your class PdfViewWid(QPdfView) subclass. In case that made a difference, which I don't think it will in this case. Especially since you say you got it working anyway :)

[blossomsg]

Thank You all for the reverts, will close the ticket for now 😃

[Pl45m4]

@JonB said in QTabWidget - unable to load multiple documents in multiple tabs:

In case that made a difference

In case @blossomsg forgot to implement some function which is needed for QPdfView or so...
Like Q[...]Model derived class without implementing setData

Good that it works now
