PathView elements displacement is not equal

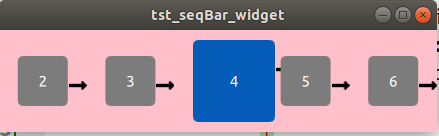

  • I am trying to draw a button with certain width and height on PathView. As CurrentItem starts from center, center button is highlighted s4.png .
    Problem I am facing is, to fix spacing between each element to size of that arrow so that output look like after a chain of numbers in incremental order.

    Thanks in advance.

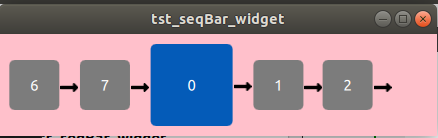

  • using PathPercent I am able to achieve it like this but looping appearance does not present i.e after 2, 3 should appear and 6 should be followed by an arrow.

    I also notice that on pathItemCount increase or decrease, this again vary with displacement of elements.




  • Or is there any other way, I can achieve this using widget/qml component?
