Drawing in QT



  • Hi All,

    I'm trying to understand how to draw in QT. I have a graph which looks like this:


    I need to draw this in qt and control slope of the trapezoid with a QSlider.

    It will be really helpful if someone can show me this with a simple example.

    Thanks in advance


  • Lifetime Qt Champion

    Hi
    Which part do you need help with ?
    You can use QPainter and
    https://doc.qt.io/qt-5/qtwidgets-painting-painterpaths-example.html
    for the trapezoid

    If i read here
    https://stackoverflow.com/questions/59373961/draw-and-control-rectangle-in-qt

    It seems you want the slider to adjust the 2 top points to be the same value according to a slider.

    You can do this by updating the points for the path and call update()


  • Lifetime Qt Champion

    Hi

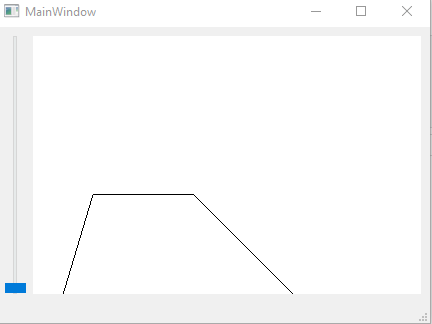

    very basic example. I draw on pixmap and show in label.
    Its just to show as a concept. A custom control might be better.

    alt text

    void MainWindow::on_verticalSlider_valueChanged(int value)
    {

        int h = ui->label->height();
        int w = ui->label->width();

        QPixmap pix(w, h);
        QPainter paint(&pix);
        pix.fill( Qt::white );
        paint.setPen(QColor(0, 0, 0, 255));

        QPainterPath polygonPath;
        polygonPath.moveTo(30.0, h);
        int topy =  h - 100 - value;
        polygonPath.lineTo(60.0, topy);
        polygonPath.lineTo(160.0, topy );
        polygonPath.lineTo(260.0, h);
        polygonPath.closeSubpath();

        paint.drawPath(polygonPath);

        ui->label->setPixmap(pix);
    }


    test project
    https://www.dropbox.com/s/cctwcsadkhq5x2m/trapezoidTest.zip?dl=0



  • @mrjj Thanks a lot. That's exact info i need to start. I really appreciate your input.



  • @mrjj

    I need to show the Polygon path while the MainWindow is constructed with a default value and then it should change if I drag a Slider.
    In the example, the figure is constructed under on_verticalSlider_valueChanged slot itself , so I wont see anything until I move the Slider.

    If I move the polygon painting part under the MainWindow constructor, plot does not look right:

    //this gives totally wrong figure
    MainWindow::MainWindow(QWidget *parent)
        : QMainWindow(parent)
        , ui(new Ui::MainWindow)
    {
        ui->setupUi(this);

        int h = ui->label->height();
        int w = ui->label->width();
        QPixmap pix(w, h);
        QPainter paint(&pix);
        pix.fill( Qt::white );
        paint.setPen(QColor(0, 0, 0, 255));


        polygonPath.moveTo(30.0, h);
        int topy =  h - 100 ;
        polygonPath.lineTo(60.0, topy);
        polygonPath.lineTo(160.0, topy );
        polygonPath.lineTo(260.0, h);
        polygonPath.closeSubpath();
        paint.drawPath(polygonPath);

        ui->label->setPixmap(pix);
    }


    basically i need to have a default figure with int topy = h - 100 then if I change Slider int topy = h - 100 - value. What's the best way to implement this?


  • Lifetime Qt Champion

    @viniltc

    Hi
    In the constructor, nothing has the right sizes yet.

    So just overwrite showEvent function and call the
    on_verticalSlider_valueChanged( 100);

    to have it show up with a value from start.



  • @mrjj

    How do I overwrite showEvent function, should I call showEvent in the constructor?
    I tried this:

    MainWindow::MainWindow(QWidget *parent)
        : QMainWindow(parent)
        , ui(new Ui::MainWindow)
    {
        ui->setupUi(this);

        QWidget::showEvent(parent);

        on_verticalSlider_valueChanged(100);

    }


    this gives error:

    mainwindow.cpp:11:24: error: cannot initialize a parameter of type 'QShowEvent *' with an lvalue of type 'QWidget *'
    qwidget.h:646:40: note: passing argument to parameter 'event' here


  • Lifetime Qt Champion

    @viniltc said in Drawing in QT:

    How do I overwrite showEvent function

    Like any other:

    void MainWindow::showEvent(QShowEvent *event)
    {
        QWidget::showEvent(event);
    }


    https://www.programiz.com/cpp-programming/function-overriding


  • Lifetime Qt Champion

    @viniltc
    Hi
    No, overwrite means to add that function to your class so
    its called instead of the base class.

    void MainWindow:showEvent(QShowEvent *event)
    {
    QMainWindow::showEvent(event); // call base  so we dont fux things up
    on_verticalSlider_valueChanged(100);
    }
