QPolygon as QPushButton



  • Hi,

    I am trying to create a pushbutton that is shaped like a polygon.
    It's shape can vary per pushbutton, but I can't manage to get 1 push button working.
    I would love to hear feedback on how to make it work/improve.
    I added a pushbutton to my mainwindow.ui and upgraded it to a QPolygonPushButton instead of just a regular QPushButton.

    This is my code:

    qpolygonpushbutton.cpp:


    #include "qpolygonpushbutton.h"

    QPolygonPushButton::QPolygonPushButton(QVector<QPoint> qv_points)
    {
        this->polygon << qv_points;
    }

    void QPolygonPushButton::paintEvent(QPaintEvent *e)
    {
        QPainter painter(this);
        painter.setViewport(e->rect());
        painter.setPen(QPen(Qt::black, 1, Qt::SolidLine, Qt::RoundCap, Qt::RoundJoin));
        painter.drawPolygon(this->polygon);
    }


    qmainwindow.cpp:

    #include "mainwindow.h"
    #include "ui_mainwindow.h"

    MainWindow::MainWindow(QWidget *parent)
        : QMainWindow(parent)
        , ui(new Ui::MainWindow)
    {
        ui->setupUi(this);
        qv_point = {QPoint(10,20), QPoint(20,30), QPoint(50,30)};
        ui->pushButton = new QPolygonPushButton(qv_point);
    }

    MainWindow::~MainWindow()
    {
        delete ui;
    }


  • Lifetime Qt Champion

    Hi
    And what is currently the issue with the code ?

    You do know that you paint a polygon on the surface of
    the button. the button is not a polygon as such and will respond to clicks
    for its client area regardless of the poly shape.

    Is the goal that the button be shaped like the polygon ( also hit test) then you should look into
    https://doc.qt.io/qt-5/qwidget.html#setMask-1

    do notice this can be heavy is the poly is complex.

    sample of a round button
    https://stackoverflow.com/questions/31144234/how-to-use-mask-with-transparency-on-qwidget/34790542#34790542


  • Lifetime Qt Champion

    Hi
    And what is currently the issue with the code ?

    You do know that you paint a polygon on the surface of
    the button. the button is not a polygon as such and will respond to clicks
    for its client area regardless of the poly shape.

    Is the goal that the button be shaped like the polygon ( also hit test) then you should look into
    https://doc.qt.io/qt-5/qwidget.html#setMask-1

    do notice this can be heavy is the poly is complex.

    sample of a round button
    https://stackoverflow.com/questions/31144234/how-to-use-mask-with-transparency-on-qwidget/34790542#34790542



  • Hi
    I currently have this:

    #include "button.h"
    #include <QPainter>

    Button::Button(QWidget *parent) : QPushButton(parent)
    {
        setMouseTracking(true);
        setMask(QPolygon(this->polygon));
    }


    It seems to work if the polygon is hardcoded into the button.h file or button.cpp, but I would like to give a polygon to it when I create a new polygon pushbutton.

    So the MainWindow should look something like this:

    #include "mainwindow.h"
    #include "ui_mainwindow.h"
    #include <QPushButton>

    MainWindow::MainWindow(QWidget *parent)
        : QMainWindow(parent)
        , ui(new Ui::MainWindow)
    {
        qv_point = {QPoint(10,20), QPoint(20,30), QPoint(50,30)};
        QPolygon poly = qv_point;
        Button *pushbutton = new Button(poly);
        ui->setupUi(this);
        pushbutton->update();
    }

    MainWindow::~MainWindow()
    {
        delete ui;
    }


    Do you have any idea's on how to do that?


  • Lifetime Qt Champion

    Hi
    Just change your Button constructor to accept one.

    Button::Button(QWidget *parent, QPolygon poly) : QPushButton(parent), MyPoly(poly) {
    .....

    and then you can just do it as you want

    Button *pushbutton = new Button(this, somepoly);



  • @mrjj

    Hi

    thank you so much. I almost got it working.

    update:
    It draws the polygon in the mainwindow, but it doesn't have the functionalities that a button has. How can I add these functionalities such as it being pressable?

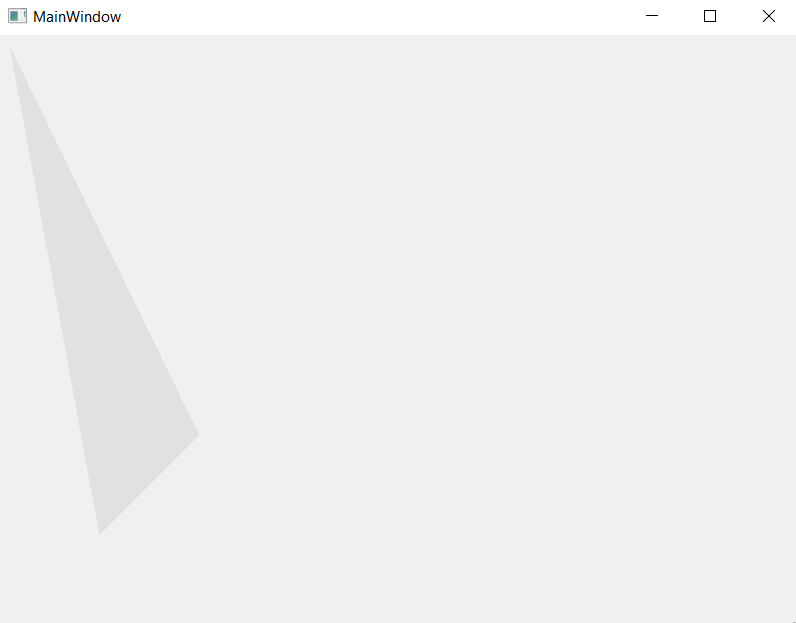

    This is what it currently looks like, but it's not clickable:

    Schermopname (197).png


  • Lifetime Qt Champion

    @hobbyProgrammer

    Hi
    But it should still have those features?
    Its still a QPushButton yes ?

    Button::Button(QWidget *parent) : QPushButton(parent) <<< base class is a button

    so it should still give the same signals as normally unless you
    also overrode the mousePressEvent and didnt show in this code.

    So i think its still clickable but just dont show any press effect since its custom drawn now. ( i guess)



  • @hobbyProgrammer

    Try to connect to your PolygonButton and print some debug output to console with QDebug inside your slot function. It should work, as @mrjj already said, because you are subclassing QPushButton, which is a QAbstractButton subclass. So your PolygonButtonshould have all non-private functions, signals, events etc as a regular QPushButton

    You could add some graphic effects with stylesheet (change color on click or mouseDown and so on)

    @mrjj For my interest: You suggested to use setMask... It doen't change the boundings of the object, right? (Just the painted area?!) The button still keeps its bounding rectangle?!


  • Lifetime Qt Champion

    @Pl45m4
    Hi
    Docs says
    "Masked widgets receive mouse events only on their visible portions."
    so it should affect the hit testing like seen in
    https://doc.qt.io/qt-5/qtwidgets-widgets-shapedclock-example.html#



  • @mrjj

    Just picked this project up again, but I still didn't manage to get it working.

    I have two classes (MainWindow & Button). This is what I tried:

    button.cpp:

    #include "button.h"

    Button::Button( QPolygon poly,QWidget *parent) : QPushButton(parent), QPolygon(poly)
    {
        setMouseTracking(true);
        setMask(QPolygon(poly));
    }



    mainwindow.cpp:

    #include "mainwindow.h"
    #include "ui_mainwindow.h"
    #include <QPushButton>
    #include <QDebug>

    MainWindow::MainWindow(QWidget *parent)
        : QMainWindow(parent)
        , ui(new Ui::MainWindow)
    {
        QVector<QPoint> qv_point = {QPoint(100,100), QPoint(200,100), QPoint(200, 200)};
        QPolygon polygon = qv_point;
        Button *pushbutton = new Button(polygon, this);
        ui->setupUi(this);
        pushbutton->update();
        pushbutton->setGeometry(0,0,202, 502);

        connect(pushbutton, &QPushButton::clicked, this, &MainWindow::pushbutton_clicked);
        //pushbutton->setStyle()
    }

    MainWindow::~MainWindow()
    {
        delete ui;
    }

    void MainWindow::pushbutton_clicked()
    {
        qDebug() << "clicked";
    }




    It does not print "clicked".


  • Lifetime Qt Champion

    Hi
    It must be something in your button class.
    Like overriding mousePress and not call
    base class.

    If i use your code + QpushButton. it works.

     QVector<QPoint> qv_point = {QPoint(100, 100), QPoint(200, 100), QPoint(200, 200)};
        QPolygon polygon = qv_point;
        QPushButton *pushbutton = new QPushButton(this);
        pushbutton->setGeometry(0, 0, 202, 502);
        pushbutton->setMouseTracking(true);
        pushbutton->setMask(QPolygon(qv_point));

        connect(pushbutton, &QPushButton::clicked, this, &MainWindow::pushbutton_clicked);
    }

    void MainWindow::pushbutton_clicked()
    {
        qDebug() << "test";
    }


    alt text



  • @mrjj said in QPolygon as QPushButton:

    QVector<QPoint> qv_point = {QPoint(100, 100), QPoint(200, 100), QPoint(200, 200)};
    QPolygon polygon = qv_point;
    QPushButton *pushbutton = new QPushButton(this);
    pushbutton->setGeometry(0, 0, 202, 502);
    pushbutton->setMouseTracking(true);
    pushbutton->setMask(QPolygon(qv_point));

    connect(pushbutton, &QPushButton::clicked, this, &MainWindow::pushbutton_clicked);


    }

    void MainWindow::pushbutton_clicked()
    {
    qDebug() << "test";
    }

    Alright, then there must be something wrong with the Button class. Thank you so much for your help.
    I'll post the solution here if I got it to work with the Button class.


  • Lifetime Qt Champion

    @hobbyProgrammer
    Ok. it should work with custom class too.
    I would guess on you have a custom mousePress or mouseMove or similar
    and forgot to call base class. Else im not sure what could be wrong.



  • This post is deleted!


  • It works! This is the solution...

    #include "mainwindow.h"
    #include "ui_mainwindow.h"
    #include <QPushButton>
    #include <QDebug>

    MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
    {
    QVector<QPoint> qv_point = {QPoint(100, 100), QPoint(200, 100), QPoint(200, 200)};
    QPolygon polygon = qv_point;
    Button *pushbutton = new Button(polygon, this);

    connect(pushbutton, &Button::clicked, this, &MainWindow::pushbutton_clicked);


    }

    MainWindow::~MainWindow()
    {
    delete ui;
    }
    void MainWindow::pushbutton_clicked()
    {
    qDebug() << "test";
    }

    #include "button.h"

    Button::Button( QPolygon poly,QWidget *parent) : QPushButton(parent), QPolygon(poly)
    {
    setGeometry(0,0,200,500);
    setMouseTracking(true);
    setMask(QPolygon(poly));
    }
