Qimagereader and cliprect example



  • I am developing an image viewer to load and show high-resolution image. I am planning to use Qimagereader and cliprect function.
    Anybody please help me to know how to map the region of interest coordinate maping to high resolution image.
    That means how can i use cliprect function ?


  • Lifetime Qt Champion

    Hi
    I have not seem any examples so i made you one.


    #include <QImageReader>
    #include <QDebug>

    MainWindow::MainWindow(QWidget *parent) :
        QMainWindow(parent),
        ui(new Ui::MainWindow)
    {
        ui->setupUi(this);

        QImageReader reader("e:/test.jpg");
        reader.setClipRect(QRect(100, 100, 100, 100));
        QImage img;
        if ( reader.canRead()) {
            img = reader.read();
            ui->label->setPixmap(QPixmap::fromImage(img)); // test show it
        } else
            qDebug() << "cannot read image";


    that will load and draw 100,100, to 200,200 from the test image

    alt text

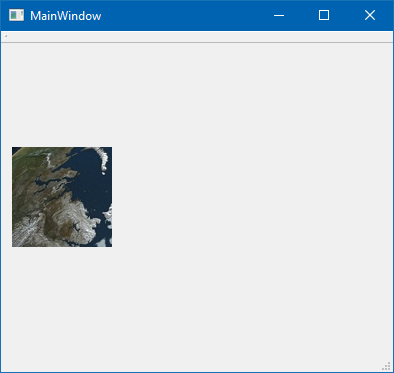

    and result is
    alt text

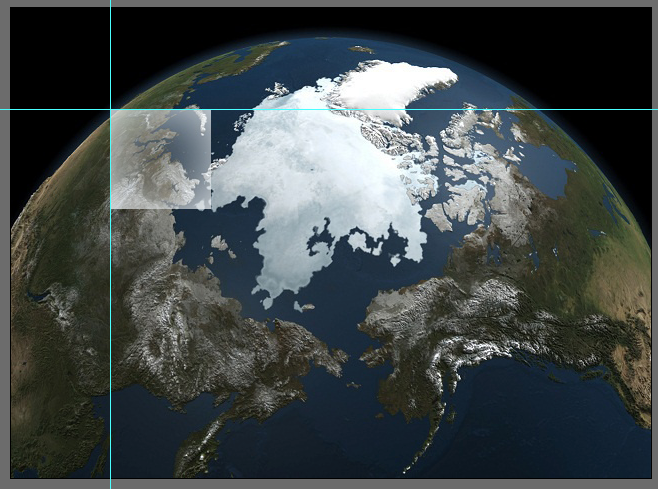

    and seems to check out in photoshop
    alt text

    I didnt have any real satelite images to test with.



  • @mrjj Thank you.

    I am looking for one more example. i e i am having a scaled image of an actual high resoultion image and that showing it in the application first.And i select a portion of the scaled image as region of interset via a rectangle draw and then i collect the region interest coorinates. Now i want to load that region of interest area from the actual high resolution image to the another widget of the application. So my question is how can i map the coordinates from the scaled image to actual high resolution image. ?


  • Lifetime Qt Champion

    @BinuJanardhanan You ask exact same question in another thread!
    Please do not duplicate your questions!



  • @jsulm sorry for that.
    I put that question as a reply to the answer , i thought so he can easly identify my doubt. that why..


  • Lifetime Qt Champion

    Hi
    . So my question is how can i map the coordinates from the scaled image to actual high resolution image. ?

    well, you have to calculate the other way of what you did to make it "scaled".



  • @mrjj thanks.
