Issue aligning text to the right inside of column

Scheduled Pinned Locked Moved Solved QML and Qt Quick
4 Posts 3 Posters 512 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • K Offline
    K Offline
    klopp
    wrote on last edited by klopp
    #1

    I am having issues aligning my text to the right, with multiple text items laid out vertically in a column. I would like to align the "values"columns ( 75, 75, 8.9) to the right, and the units columns(gal, gal, gal/hr) to the left. Each of the pairs of columns would ideally be aligned centered underneath each gauge. I have used "horizontalAlignment: Text.AlignRight" and AlignLeft and notice no change to the text alignment. help please?

    I am using Qt version 5.1.1

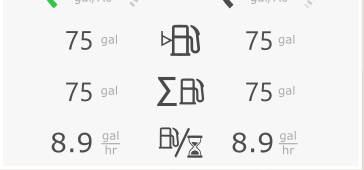

    for a reference image of what i am attempting

    import QtQuick 2.1
    import QtQuick.Controls 1.0

    import "Style.js" as Style

     Rectangle {
        id: tileContent
        height: 183
        width: 256
        color: "#e9e9e9"

             Row {
                  id: rowgauges
                  spacing: 46
                  x: 27
                  y: 5

                  Image {
                      id: phgauge1
                      fillMode: Image.PreserveAspectFit
                      source: "/images/fuelconsumptiongauge.png"
                  }

                  Item {
                      id: spacerItem6
                      width: 45
                  }

                  Image {
                      id: phgauge2
                      fillMode: Image.PreserveAspectFit
                      source: "/images/defconsumptiongauge.png"
                  }
         }

         Column {
             id: column1
             spacing: 10
             anchors.topMargin: 5
             anchors.top: rowgauges.bottom
             anchors.right: column2.left

             Text {
                 id: text11
                 text: qsTr("75")
                 Component.onCompleted: {Style.styleTileConsVals(text11);}
             }

             Text {
                 id: text21
                 text: qsTr("75")
                 Component.onCompleted: {Style.styleTileConsVals(text21);}
             }

             Text {
                 id: text31
                 text: qsTr("8.9")
                 Component.onCompleted: {Style.styleTileConsVals(text31);}
             }
         }

         Column {
              id: column2
             spacing: 22
             anchors.top: rowgauges.bottom
             anchors.topMargin: 12
             anchors.horizontalCenter: rowgauges.left
             anchors.horizontalCenterOffset: 45

             Text {
                 id: text12
                 text: qsTr("gal")
                 Component.onCompleted: {Style.styleTileConsUnits(text12);}
             }

             Text {
                 id: text22
                 text: qsTr("gal")
                 Component.onCompleted: {Style.styleTileConsUnits(text22);}
             }

             Text {
                 id: text32
                 text: qsTr("gal")
                 Component.onCompleted: {Style.styleTileConsUnits(text32);}
             }
         }

         Column {
             id:column3
             anchors.horizontalCenter: tileContent.horizontalCenter
             y: 80
             spacing: 15


             Image {
                 id: icon1
                 fillMode: Image.PreserveAspectFit
                 source: "/images/icon_fuelLvlValue.png"
             }

             Image {
                 id: icon2
                 fillMode: Image.PreserveAspectFit
                 source: "/images/icon_FuelCons.png"
             }

             Image {
                 id: icon3
                 fillMode: Image.PreserveAspectFit
                 source: "/images/icon_ConsPerHr.png"
             }
         }

         Column {
             id: column4
             spacing: 10
             anchors.top: rowgauges.bottom
             anchors.topMargin: 5
             anchors.right: column5.left

             Text {
                 id: text13
                 text: qsTr("75")
                 horizontalAlignment: Text.AlignRight
                 Component.onCompleted: {Style.styleTileConsVals(text13);}
              }

             Text {
                 id: text23
                 text: qsTr("75")
                 horizontalAlignment: Text.AlignRight
                 Component.onCompleted: {Style.styleTileConsVals(text23);}
             }

             Text {
                 id: text33
                 text: qsTr("8.9")
                 horizontalAlignment: Text.AlignRight
                 Component.onCompleted: {Style.styleTileConsVals(text33);}
             }
         }

         Column {
             id: column5
             spacing: 22
             anchors.top: rowgauges.bottom
             anchors.topMargin: 12
             anchors.horizontalCenter: rowgauges.right
             anchors.horizontalCenterOffset: -30

             Text {
                 id: text14
                 text: qsTr("gal")
                 horizontalAlignment: Text.AlignLeft
                 Component.onCompleted: {Style.styleTileConsUnits(text14);}
             }

             Text {
                 id: text24
                 text: qsTr("gal")
                 horizontalAlignment: Text.AlignLeft
                 Component.onCompleted: {Style.styleTileConsUnits(text24);}
             }

             Text {
                 id: text34
                 text: qsTr("gal")
                 horizontalAlignment: Text.AlignLeft
                 Component.onCompleted: {Style.styleTileConsUnits(text34);}
             }
         }
     }

    JonBJ 1 Reply Last reply
    -1
    • Shrinidhi UpadhyayaS Offline
      Shrinidhi UpadhyayaS Offline
      Shrinidhi Upadhyaya
      wrote on last edited by
      #2

      Hi @klopp , here is the sample code:-

       Rectangle {
                          id: tileContent
                          height: 200
                          width: 200
                          color: "#e9e9e9"

                          Row {
                              id: headerRow

                              height: 50
                              width: parent.width

                              Rectangle {
                                  height: parent.height
                                  width: parent.width / 3
                                  color: "red"

                                  Text {
                                      text: "Header 1"
                                      anchors.centerIn: parent
                                  }
                              }

                              Rectangle {
                                  height: parent.height
                                  width: parent.width / 3
                                  color: "green"

                                  Text {
                                      text: "Header 2"
                                      anchors.centerIn: parent
                                  }
                              }

                              Rectangle {
                                  height: parent.height
                                  width: parent.width / 3
                                  color: "blue"

                                  Text {
                                      text: "Header 3"
                                      anchors.centerIn: parent
                                  }
                              }
                          }


                          Row {
                              width: parent.width
                              height: parent.height - headerRow.height
                              anchors.top: headerRow.bottom

                              Row {
                                  width: parent.width / 3
                                  height: parent.height

                                  Column {
                                      height: parent.height
                                      width: parent.width / 2

                                      Text {
                                          text: "75"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }

                                      Text {
                                          text: "75"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }

                                      Text {
                                          text: "8.9"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }
                                  }

                                  Column {
                                      height: parent.height
                                      width: parent.width / 2

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }
                                  }

                              }

                              Column {
                                  width: parent.width / 3
                                  height: parent.height

                                  Rectangle {
                                      width: parent.width
                                      height: parent.height / 3
                                      color: "transparent"
                                      border.color: "orange"

                                      Text {
                                          text: "Image 1"
                                          anchors.centerIn: parent
                                      }
                                  }

                                  Rectangle {
                                      width: parent.width
                                      height: parent.height / 3
                                      color: "transparent"
                                      border.color: "orange"

                                      Text {
                                          text: "Image 2"
                                          anchors.centerIn: parent
                                      }
                                  }

                                  Rectangle {
                                      width: parent.width
                                      height: parent.height / 3
                                      color: "transparent"
                                      border.color: "orange"

                                      Text {
                                          text: "Image 3"
                                          anchors.centerIn: parent
                                      }
                                  }
                              }

                              Row {
                                  width: parent.width / 3
                                  height: parent.height

                                  Column {
                                      height: parent.height
                                      width: parent.width / 2

                                      Text {
                                          text: "75"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }

                                      Text {
                                          text: "75"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }

                                      Text {
                                          text: "8.9"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignRight
                                          verticalAlignment: Text.AlignVCenter
                                      }
                                  }

                                  Column {
                                      height: parent.height
                                      width: parent.width / 2

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }

                                      Text {
                                          text: "gal"
                                          color: "grey"
                                          width: parent.width
                                          height: parent.height / 3
                                          horizontalAlignment : Text.AlignLeft
                                          verticalAlignment: Text.AlignVCenter
                                          padding: 5
                                      }
                                  }
                              }
                          }
                      }



      Note:- This is how the UI of my sample code will look like, you need to put your images and values.

      I would suggest you to use Layouts, if you are developing a re-sizable UI or a Interface.
      For more details you can have a look at the documentation[https://doc.qt.io/qt-5/qtquicklayouts-index.html]

      Shrinidhi Upadhyaya.
      Upvote the answer(s) that helped you to solve the issue.

      K 1 Reply Last reply
      3

      • K klopp

        I am having issues aligning my text to the right, with multiple text items laid out vertically in a column. I would like to align the "values"columns ( 75, 75, 8.9) to the right, and the units columns(gal, gal, gal/hr) to the left. Each of the pairs of columns would ideally be aligned centered underneath each gauge. I have used "horizontalAlignment: Text.AlignRight" and AlignLeft and notice no change to the text alignment. help please?

        I am using Qt version 5.1.1
        for a reference image of what i am attempting

        import QtQuick 2.1
        import QtQuick.Controls 1.0

        import "Style.js" as Style

         Rectangle {
            id: tileContent
            height: 183
            width: 256
            color: "#e9e9e9"

                 Row {
                      id: rowgauges
                      spacing: 46
                      x: 27
                      y: 5

                      Image {
                          id: phgauge1
                          fillMode: Image.PreserveAspectFit
                          source: "/images/fuelconsumptiongauge.png"
                      }

                      Item {
                          id: spacerItem6
                          width: 45
                      }

                      Image {
                          id: phgauge2
                          fillMode: Image.PreserveAspectFit
                          source: "/images/defconsumptiongauge.png"
                      }
             }

             Column {
                 id: column1
                 spacing: 10
                 anchors.topMargin: 5
                 anchors.top: rowgauges.bottom
                 anchors.right: column2.left

                 Text {
                     id: text11
                     text: qsTr("75")
                     Component.onCompleted: {Style.styleTileConsVals(text11);}
                 }

                 Text {
                     id: text21
                     text: qsTr("75")
                     Component.onCompleted: {Style.styleTileConsVals(text21);}
                 }

                 Text {
                     id: text31
                     text: qsTr("8.9")
                     Component.onCompleted: {Style.styleTileConsVals(text31);}
                 }
             }

             Column {
                  id: column2
                 spacing: 22
                 anchors.top: rowgauges.bottom
                 anchors.topMargin: 12
                 anchors.horizontalCenter: rowgauges.left
                 anchors.horizontalCenterOffset: 45

                 Text {
                     id: text12
                     text: qsTr("gal")
                     Component.onCompleted: {Style.styleTileConsUnits(text12);}
                 }

                 Text {
                     id: text22
                     text: qsTr("gal")
                     Component.onCompleted: {Style.styleTileConsUnits(text22);}
                 }

                 Text {
                     id: text32
                     text: qsTr("gal")
                     Component.onCompleted: {Style.styleTileConsUnits(text32);}
                 }
             }

             Column {
                 id:column3
                 anchors.horizontalCenter: tileContent.horizontalCenter
                 y: 80
                 spacing: 15


                 Image {
                     id: icon1
                     fillMode: Image.PreserveAspectFit
                     source: "/images/icon_fuelLvlValue.png"
                 }

                 Image {
                     id: icon2
                     fillMode: Image.PreserveAspectFit
                     source: "/images/icon_FuelCons.png"
                 }

                 Image {
                     id: icon3
                     fillMode: Image.PreserveAspectFit
                     source: "/images/icon_ConsPerHr.png"
                 }
             }

             Column {
                 id: column4
                 spacing: 10
                 anchors.top: rowgauges.bottom
                 anchors.topMargin: 5
                 anchors.right: column5.left

                 Text {
                     id: text13
                     text: qsTr("75")
                     horizontalAlignment: Text.AlignRight
                     Component.onCompleted: {Style.styleTileConsVals(text13);}
                  }

                 Text {
                     id: text23
                     text: qsTr("75")
                     horizontalAlignment: Text.AlignRight
                     Component.onCompleted: {Style.styleTileConsVals(text23);}
                 }

                 Text {
                     id: text33
                     text: qsTr("8.9")
                     horizontalAlignment: Text.AlignRight
                     Component.onCompleted: {Style.styleTileConsVals(text33);}
                 }
             }

             Column {
                 id: column5
                 spacing: 22
                 anchors.top: rowgauges.bottom
                 anchors.topMargin: 12
                 anchors.horizontalCenter: rowgauges.right
                 anchors.horizontalCenterOffset: -30

                 Text {
                     id: text14
                     text: qsTr("gal")
                     horizontalAlignment: Text.AlignLeft
                     Component.onCompleted: {Style.styleTileConsUnits(text14);}
                 }

                 Text {
                     id: text24
                     text: qsTr("gal")
                     horizontalAlignment: Text.AlignLeft
                     Component.onCompleted: {Style.styleTileConsUnits(text24);}
                 }

                 Text {
                     id: text34
                     text: qsTr("gal")
                     horizontalAlignment: Text.AlignLeft
                     Component.onCompleted: {Style.styleTileConsUnits(text34);}
                 }
             }
         }

        JonBJ Offline
        JonBJ Offline
        JonB
        wrote on last edited by JonB
        #3

        @klopp
        Dear Juergen Klopp, I wish you & Liverpool all the best in the June Champions League Final. I didn't realise you were a Qt programmer in your spare time, please concentrate on the match!

        1 Reply Last reply
        1
        • Shrinidhi UpadhyayaS Shrinidhi Upadhyaya

          Hi @klopp , here is the sample code:-

           Rectangle {
                              id: tileContent
                              height: 200
                              width: 200
                              color: "#e9e9e9"

                              Row {
                                  id: headerRow

                                  height: 50
                                  width: parent.width

                                  Rectangle {
                                      height: parent.height
                                      width: parent.width / 3
                                      color: "red"

                                      Text {
                                          text: "Header 1"
                                          anchors.centerIn: parent
                                      }
                                  }

                                  Rectangle {
                                      height: parent.height
                                      width: parent.width / 3
                                      color: "green"

                                      Text {
                                          text: "Header 2"
                                          anchors.centerIn: parent
                                      }
                                  }

                                  Rectangle {
                                      height: parent.height
                                      width: parent.width / 3
                                      color: "blue"

                                      Text {
                                          text: "Header 3"
                                          anchors.centerIn: parent
                                      }
                                  }
                              }


                              Row {
                                  width: parent.width
                                  height: parent.height - headerRow.height
                                  anchors.top: headerRow.bottom

                                  Row {
                                      width: parent.width / 3
                                      height: parent.height

                                      Column {
                                          height: parent.height
                                          width: parent.width / 2

                                          Text {
                                              text: "75"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }

                                          Text {
                                              text: "75"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }

                                          Text {
                                              text: "8.9"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }
                                      }

                                      Column {
                                          height: parent.height
                                          width: parent.width / 2

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }
                                      }

                                  }

                                  Column {
                                      width: parent.width / 3
                                      height: parent.height

                                      Rectangle {
                                          width: parent.width
                                          height: parent.height / 3
                                          color: "transparent"
                                          border.color: "orange"

                                          Text {
                                              text: "Image 1"
                                              anchors.centerIn: parent
                                          }
                                      }

                                      Rectangle {
                                          width: parent.width
                                          height: parent.height / 3
                                          color: "transparent"
                                          border.color: "orange"

                                          Text {
                                              text: "Image 2"
                                              anchors.centerIn: parent
                                          }
                                      }

                                      Rectangle {
                                          width: parent.width
                                          height: parent.height / 3
                                          color: "transparent"
                                          border.color: "orange"

                                          Text {
                                              text: "Image 3"
                                              anchors.centerIn: parent
                                          }
                                      }
                                  }

                                  Row {
                                      width: parent.width / 3
                                      height: parent.height

                                      Column {
                                          height: parent.height
                                          width: parent.width / 2

                                          Text {
                                              text: "75"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }

                                          Text {
                                              text: "75"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }

                                          Text {
                                              text: "8.9"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignRight
                                              verticalAlignment: Text.AlignVCenter
                                          }
                                      }

                                      Column {
                                          height: parent.height
                                          width: parent.width / 2

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }

                                          Text {
                                              text: "gal"
                                              color: "grey"
                                              width: parent.width
                                              height: parent.height / 3
                                              horizontalAlignment : Text.AlignLeft
                                              verticalAlignment: Text.AlignVCenter
                                              padding: 5
                                          }
                                      }
                                  }
                              }
                          }



          Note:- This is how the UI of my sample code will look like, you need to put your images and values.

          I would suggest you to use Layouts, if you are developing a re-sizable UI or a Interface.
          For more details you can have a look at the documentation[https://doc.qt.io/qt-5/qtquicklayouts-index.html]

          K Offline
          K Offline
          klopp
          wrote on last edited by
          #4

          @shrinidhi-upadhyaya

          this really worked well. Thank you so much!

          1 Reply Last reply
          1
