ListView as a radio button with radius on the border

Scheduled Pinned Locked Moved Solved QML and Qt Quick
12 Posts 3 Posters 1.9k Views 2 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • D Offline
    D Offline
    DavidM29
    wrote on last edited by DavidM29
    #1

    Hello,

    I'm trying to make some kind of radio button using a list view and the current item to define the choice.

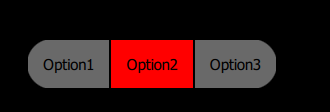

    The idea was to have an horizontal bar with this look :
    Here the Option 2 is selected.

    It works as I would like except for one point... The Radius on the side.
    I don't know how to clip the delegate and Highlight in the parent item.
    Does anybody know how to achieve this ?

    Here is my component :

    Rectangle {
        width: 200
        height: 50

        property var choix : [] //Set data here to have the list of options

        id: out
        color: "dimgrey"
        radius: height/2

        ListView{
            id : list
            anchors.fill: parent
            model: choix
            clip: true
            orientation: ListView.Horizontal
            delegate: radioDelegate
            highlight: highlightComponent
            highlightFollowsCurrentItem: false
            interactive: false
            onCurrentIndexChanged: {
                console.log("Changed : " + currentIndex)
            }
        }

        Component {
            id: highlightComponent

            Rectangle{
                anchors.fill: list.currentItem
                color: "red"
                clip : true
                anchors.centerIn: list.currentItem
                y: list.currentItem.y
                x: list.currentItem.x
            }
        }


        Component{
            id: radioDelegate

            Rectangle{
                id: inner
                color: "transparent"
                height: parent.height
                width: out.width/choix.length
                border.color: "black"
                clip: true
                border.width: 1

                Text {
                    id: text
                    text: choix[index]
                    anchors.centerIn: parent
                    font.pixelSize: 15
                }

                MouseArea{
                    anchors.fill: parent
                    onClicked: list.currentIndex = index
                }
            }
        }
    }



    I call it with the following lines :

            RadioList{
                anchors.centerIn: parent
                width: 250
                height: 50
                choix: ["Option1","Option2","Option3"]
            }

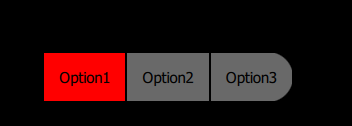

    Here is the result I do have when I select an item located on the side :
    I want the left and right side to keep the radius when selected.

    1 Reply Last reply
    0
    • Shrinidhi UpadhyayaS Offline
      Shrinidhi UpadhyayaS Offline
      Shrinidhi Upadhyaya
      wrote on last edited by
      #2

      Hi @DavidM29 , you can acheive that using Opacity mask.

      Here is the sample code:-

       Rectangle {
          id: masking

          height: buttonGridLayout.height
          width: buttonGridLayout.width
          radius: 50
          visible: false
      }

      OpacityMask {
          height: buttonGridLayout.height
          width: buttonGridLayout.width
          source: buttonGridLayout
          maskSource: masking
      }

      RowLayout {
          id: buttonGridLayout
          anchors.fill: parent
          spacing: 0
          opacity: 0

          Repeater {
              model: 3

              Rectangle {
                  id: rootRect

                  Layout.fillHeight: true
                  Layout.fillWidth: true
                  color: activeFocus ? "black" : "red"

                  Text {
                      text: index
                      anchors.centerIn: parent
                      color: "yellow"
                  }

                  MouseArea {
                      anchors.fill: parent
                      onClicked: {
                          rootRect.forceActiveFocus()
                      }
                  }
              }
          }
      }


      Shrinidhi Upadhyaya.
      Upvote the answer(s) that helped you to solve the issue.

      D 1 Reply Last reply
      0
      • Shrinidhi UpadhyayaS Shrinidhi Upadhyaya

        Hi @DavidM29 , you can acheive that using Opacity mask.

        Here is the sample code:-

         Rectangle {
            id: masking

            height: buttonGridLayout.height
            width: buttonGridLayout.width
            radius: 50
            visible: false
        }

        OpacityMask {
            height: buttonGridLayout.height
            width: buttonGridLayout.width
            source: buttonGridLayout
            maskSource: masking
        }

        RowLayout {
            id: buttonGridLayout
            anchors.fill: parent
            spacing: 0
            opacity: 0

            Repeater {
                model: 3

                Rectangle {
                    id: rootRect

                    Layout.fillHeight: true
                    Layout.fillWidth: true
                    color: activeFocus ? "black" : "red"

                    Text {
                        text: index
                        anchors.centerIn: parent
                        color: "yellow"
                    }

                    MouseArea {
                        anchors.fill: parent
                        onClicked: {
                            rootRect.forceActiveFocus()
                        }
                    }
                }
            }
        }

        D Offline
        D Offline
        DavidM29
        wrote on last edited by
        #3

        Hi @Shrinidhi-Upadhyaya
        You should think that I'm annoying but unfortunatly I do have a limitation on the target device that makes any mask not working. I tried to use it to create a round gauge a few weeks ago and the device can't handle this kind masking. For some reasons it use a specific software that is bugged with my target device.

        Do you have any other ideas ?

        J.HilkJ 1 Reply Last reply
        0
        • D DavidM29

          Hi @Shrinidhi-Upadhyaya
          You should think that I'm annoying but unfortunatly I do have a limitation on the target device that makes any mask not working. I tried to use it to create a round gauge a few weeks ago and the device can't handle this kind masking. For some reasons it use a specific software that is bugged with my target device.

          Do you have any other ideas ?

          J.HilkJ Offline
          J.HilkJ Offline
          J.Hilk
          Moderators
          wrote on last edited by
          #4

          @DavidM29 than I would suggest remove the highlight part all together, and change your delegate with this:

          Rectangle{
                      id: inner
                      color: list.currentIndex == index ? "red" :"transparent"
                      ....
          }


          I think index is an automatic assigned property.


          Be aware of the Qt Code of Conduct, when posting : https://forum.qt.io/topic/113070/qt-code-of-conduct


          Q: What's that?
          A: It's blue light.
          Q: What does it do?
          A: It turns blue.

          D 1 Reply Last reply
          0
          • Shrinidhi UpadhyayaS Offline
            Shrinidhi UpadhyayaS Offline
            Shrinidhi Upadhyaya
            wrote on last edited by
            #5

            Hi @DavidM29 , ohhh that's bad. Are there only 3 buttons or is it dynamic?

            Shrinidhi Upadhyaya.
            Upvote the answer(s) that helped you to solve the issue.

            1 Reply Last reply
            0
            • J.HilkJ J.Hilk

              @DavidM29 than I would suggest remove the highlight part all together, and change your delegate with this:

              Rectangle{
                          id: inner
                          color: list.currentIndex == index ? "red" :"transparent"
                          ....
              }


              I think index is an automatic assigned property.

              D Offline
              D Offline
              DavidM29
              wrote on last edited by DavidM29
              #6

              @J.Hilk
              The issue is that the delegate is a Rectangle with no radius. The Radius in on the Rectangle that contains the ListView. If I do like you suggest the problem will be the same I believe.

              What I did is that :
              I do have a Rectangle with radius like that :
              In that rectangle I put the ListView made of transparent rectangle without radius.
              Which means that if I put a color on that it will result in the same behaviour.

              @Shrinidhi-Upadhyaya
              It is Dynamic it will be between 2 to 4 buttons I think.

              J.HilkJ 1 Reply Last reply
              0
              • D DavidM29

                @J.Hilk
                The issue is that the delegate is a Rectangle with no radius. The Radius in on the Rectangle that contains the ListView. If I do like you suggest the problem will be the same I believe.

                What I did is that :
                I do have a Rectangle with radius like that :
                In that rectangle I put the ListView made of transparent rectangle without radius.
                Which means that if I put a color on that it will result in the same behaviour.

                @Shrinidhi-Upadhyaya
                It is Dynamic it will be between 2 to 4 buttons I think.

                J.HilkJ Offline
                J.HilkJ Offline
                J.Hilk
                Moderators
                wrote on last edited by J.Hilk
                #7

                @DavidM29 oh in that case,
                inside the "FrameRectangle" set the clip property to true. That is more resource heavy but will do the trick


                Be aware of the Qt Code of Conduct, when posting : https://forum.qt.io/topic/113070/qt-code-of-conduct


                Q: What's that?
                A: It's blue light.
                Q: What does it do?
                A: It turns blue.

                D 1 Reply Last reply
                0
                • J.HilkJ J.Hilk

                  @DavidM29 oh in that case,
                  inside the "FrameRectangle" set the clip property to true. That is more resource heavy but will do the trick

                  D Offline
                  D Offline
                  DavidM29
                  wrote on last edited by DavidM29
                  #8

                  @J.Hilk
                  It seems to be the same even with the

                  clip:true


                  It set that property to that rectangle :

                  But I still have the same result.

                  Here is my complete component :

                  import QtQuick 2.0

                  Rectangle {
                      width: 200
                      height: 50

                      property var choix : []

                      id: out
                      color: "dimgrey"
                      radius: height/2
                      clip: true

                      ListView{
                          id : list
                          anchors.fill: parent
                          model: choix
                          orientation: ListView.Horizontal
                          delegate: radioDelegate
                          highlight: highlightComponent
                          highlightFollowsCurrentItem: false
                          interactive: false
                      }

                      Component {
                          id: highlightComponent

                          Rectangle{
                              anchors.fill: list.currentItem
                              color: "red"
                              anchors.centerIn: list.currentItem
                              y: list.currentItem.y
                              x: list.currentItem.x
                          }
                      }


                      Component{
                          id: radioDelegate

                          Rectangle{
                              property bool selected : false

                              id: inner
                              color: "transparent"
                              height: parent.height
                              width: out.width/choix.length
                              border.color: "black"
                              border.width: 1

                              Text {
                                  id: text
                                  text: choix[index]
                                  anchors.centerIn: parent
                                  font.pixelSize: 15
                              }

                              MouseArea{
                                  anchors.fill: parent
                                  onClicked: list.currentIndex = index
                              }
                          }
                      }
                  }


                  J.HilkJ 1 Reply Last reply
                  0
                  • Shrinidhi UpadhyayaS Offline
                    Shrinidhi UpadhyayaS Offline
                    Shrinidhi Upadhyaya
                    wrote on last edited by Shrinidhi Upadhyaya
                    #9

                    Hi @DavidM29 ,

                    here is the sample code,try to run it and tell me whether it works fine or not and then we can go for optimization part.

                      RowLayout {
                            id: buttonGridLayout
                            anchors.fill: parent
                            spacing: 5

                            Repeater {
                                id: buttonRepeater
                                model: 4

                                Item {
                                    id: rootRect
                                    Layout.fillHeight: true
                                    Layout.fillWidth: true

                                    Item {
                                        id: option1
                                        anchors.fill: parent
                                        visible: index === 0
                                        z: visible ? 1 : 0

                                        MouseArea {
                                            anchors.fill: parent
                                            onClicked: {
                                                option1.forceActiveFocus()
                                            }
                                        }

                                        Rectangle {
                                            id: rect1
                                            height: parent.height
                                            width: parent.width
                                            color: option1.activeFocus ? "red" : "black"
                                            radius: 50
                                        }

                                        Rectangle {
                                            id: rect2
                                            height: parent.height
                                            width: parent.width - 50
                                            color: option1.activeFocus ? "red" : "black"
                                            anchors.left: parent.left
                                            anchors.leftMargin: 50
                                        }
                                    }

                                    Rectangle {
                                        id: option2
                                        anchors.fill: parent
                                        visible: (index === 0 || index === buttonRepeater.model - 1)?false:true
                                        color: option2.activeFocus?"red":"black"
                                        z: visible?1:0

                                        MouseArea {
                                            anchors.fill: parent
                                            onClicked: {
                                                option2.forceActiveFocus()
                                            }
                                        }
                                    }

                                    Item {
                                        id: option3
                                        anchors.fill: parent
                                        visible: index === buttonRepeater.model - 1
                                        z: visible?1:0

                                        MouseArea {
                                            anchors.fill: parent
                                            onClicked: {
                                                option3.forceActiveFocus()
                                            }
                                        }

                                        Rectangle {
                                            id: rect21
                                            height: parent.height
                                            width: parent.width
                                            color: option3.activeFocus ? "red" : "black"
                                            radius: 50
                                            anchors.right: parent.right
                                        }

                                        Rectangle {
                                            id: rect22
                                            height: parent.height
                                            width: parent.width - 50
                                            color: option3.activeFocus ? "red" : "black"
                                        }
                                    }

                                    Text {
                                        text: index
                                        anchors.centerIn: parent
                                        color: "yellow"
                                        z: 2
                                    }
                                }
                            }
                        }


                    Shrinidhi Upadhyaya.
                    Upvote the answer(s) that helped you to solve the issue.

                    1 Reply Last reply
                    2
                    • D DavidM29

                      @J.Hilk
                      It seems to be the same even with the

                      clip:true


                      It set that property to that rectangle :

                      But I still have the same result.

                      Here is my complete component :

                      import QtQuick 2.0

                      Rectangle {
                          width: 200
                          height: 50

                          property var choix : []

                          id: out
                          color: "dimgrey"
                          radius: height/2
                          clip: true

                          ListView{
                              id : list
                              anchors.fill: parent
                              model: choix
                              orientation: ListView.Horizontal
                              delegate: radioDelegate
                              highlight: highlightComponent
                              highlightFollowsCurrentItem: false
                              interactive: false
                          }

                          Component {
                              id: highlightComponent

                              Rectangle{
                                  anchors.fill: list.currentItem
                                  color: "red"
                                  anchors.centerIn: list.currentItem
                                  y: list.currentItem.y
                                  x: list.currentItem.x
                              }
                          }


                          Component{
                              id: radioDelegate

                              Rectangle{
                                  property bool selected : false

                                  id: inner
                                  color: "transparent"
                                  height: parent.height
                                  width: out.width/choix.length
                                  border.color: "black"
                                  border.width: 1

                                  Text {
                                      id: text
                                      text: choix[index]
                                      anchors.centerIn: parent
                                      font.pixelSize: 15
                                  }

                                  MouseArea{
                                      anchors.fill: parent
                                      onClicked: list.currentIndex = index
                                  }
                              }
                          }
                      }


                      J.HilkJ Offline
                      J.HilkJ Offline
                      J.Hilk
                      Moderators
                      wrote on last edited by J.Hilk
                      #10

                      @DavidM29
                      ok, time to dig in my bag of tricks ;)
                      I present RoundedRectangle.qml

                      import QtQuick 2.11

                      Item {
                          id:root

                          property color color: "lightgrey"
                          onColorChanged: canVas.requestPaint()

                          property int radius: root.height/3
                          onRadiusChanged: canVas.requestPaint()

                          property bool topLeftCorner: true
                          property bool topRightCorner: false
                          property bool bottomRightCorner: true
                          property bool bottomLeftCorner: false

                          onTopLeftCornerChanged: canVas.requestPaint()
                          onTopRightCornerChanged: canVas.requestPaint()
                          onBottomRightCornerChanged: canVas.requestPaint()
                          onBottomLeftCornerChanged: canVas.requestPaint()

                          property color borderColor: "black"
                          onBorderColorChanged: canVas.requestPaint()

                          property int borderWidth: 1

                          Canvas {
                              id:canVas
                              anchors.fill: parent

                              onPaint: {
                                  var context = getContext("2d");
                                  context.reset()
                                  context.beginPath();

                                  //Start position
                                  context.moveTo(0,height / 2)

                                  //topLeftCorner
                                  if(topLeftCorner){
                                      context.lineTo(0,radius)
                                      context.arcTo(0,0,radius, 0, radius);
                                  } else {
                                      context.lineTo(0,0)
                                  }

                                  //topRightCorner
                                  if(topRightCorner){
                                      context.lineTo(width - radius, 0)
                                      context.arcTo(width, 0, width, radius, radius)
                                  } else {
                                      context.lineTo(width, 0)
                                  }

                                  //bottomRightCorner
                                  if(bottomRightCorner) {
                                      context.lineTo(width, height-radius)
                                      context.arcTo(width, height, width - radius, height, radius)
                                  } else {
                                      context.lineTo(width, height)
                                  }

                                  //bottomLeftCorner
                                  if(bottomLeftCorner) {
                                      context.lineTo(radius, height)
                                      context.arcTo(0, height, 0, height - radius, radius)
                                  } else {
                                      context.lineTo(0, height)
                                  }

                                  //Close path
                                  context.lineTo(height / 2)
                                  context.closePath()

                                  //Draw border
                                  context.lineWidth = borderWidth
                                  context.strokeStyle = borderColor
                                  context.stroke()

                                  //Draw background
                                  context.fillStyle = color
                                  context.fill();
                              }
                          }
                      }


                      to be used as:

                      import QtQuick 2.9
                      import QtQuick.Window 2.2

                      Window {
                          visible: true
                          width: 640
                          height: 200
                          title: qsTr("Hello World")

                          Rectangle {
                              id: frame

                              anchors.centerIn: parent
                              height: parent.height*2/3
                              width:  parent.width *2/3

                              radius: height/2

                              color: "lightgrey"


                              ListView{
                                  id: lView

                                  anchors.fill: parent
                                  model: [1,2,3]

                                  orientation: ListView.Horizontal

                                  clip:  true

                                  delegate: RoundedRectangle{
                                      width: lView.width/lView.count
                                      height: lView.height
                                      color: lView.currentIndex == index ? "red" : "transparent"

                                      radius: frame.radius
                                      borderColor: "transparent"
                                      topLeftCorner: index == 0
                                      topRightCorner: index == 2
                                      bottomRightCorner: index ==2
                                      bottomLeftCorner: index == 0

                                      Text {
                                          anchors.centerIn: parent
                                          text: modelData
                                      }

                                      MouseArea{
                                          anchors.fill: parent
                                          onClicked:{
                                              lView.currentIndex = index
                                          }
                                      }
                                  }
                              }
                          }
                      }




                      Be aware of the Qt Code of Conduct, when posting : https://forum.qt.io/topic/113070/qt-code-of-conduct


                      Q: What's that?
                      A: It's blue light.
                      Q: What does it do?
                      A: It turns blue.

                      D 2 Replies Last reply
                      3
                      • J.HilkJ J.Hilk

                        @DavidM29
                        ok, time to dig in my bag of tricks ;)
                        I present RoundedRectangle.qml

                        import QtQuick 2.11

                        Item {
                            id:root

                            property color color: "lightgrey"
                            onColorChanged: canVas.requestPaint()

                            property int radius: root.height/3
                            onRadiusChanged: canVas.requestPaint()

                            property bool topLeftCorner: true
                            property bool topRightCorner: false
                            property bool bottomRightCorner: true
                            property bool bottomLeftCorner: false

                            onTopLeftCornerChanged: canVas.requestPaint()
                            onTopRightCornerChanged: canVas.requestPaint()
                            onBottomRightCornerChanged: canVas.requestPaint()
                            onBottomLeftCornerChanged: canVas.requestPaint()

                            property color borderColor: "black"
                            onBorderColorChanged: canVas.requestPaint()

                            property int borderWidth: 1

                            Canvas {
                                id:canVas
                                anchors.fill: parent

                                onPaint: {
                                    var context = getContext("2d");
                                    context.reset()
                                    context.beginPath();

                                    //Start position
                                    context.moveTo(0,height / 2)

                                    //topLeftCorner
                                    if(topLeftCorner){
                                        context.lineTo(0,radius)
                                        context.arcTo(0,0,radius, 0, radius);
                                    } else {
                                        context.lineTo(0,0)
                                    }

                                    //topRightCorner
                                    if(topRightCorner){
                                        context.lineTo(width - radius, 0)
                                        context.arcTo(width, 0, width, radius, radius)
                                    } else {
                                        context.lineTo(width, 0)
                                    }

                                    //bottomRightCorner
                                    if(bottomRightCorner) {
                                        context.lineTo(width, height-radius)
                                        context.arcTo(width, height, width - radius, height, radius)
                                    } else {
                                        context.lineTo(width, height)
                                    }

                                    //bottomLeftCorner
                                    if(bottomLeftCorner) {
                                        context.lineTo(radius, height)
                                        context.arcTo(0, height, 0, height - radius, radius)
                                    } else {
                                        context.lineTo(0, height)
                                    }

                                    //Close path
                                    context.lineTo(height / 2)
                                    context.closePath()

                                    //Draw border
                                    context.lineWidth = borderWidth
                                    context.strokeStyle = borderColor
                                    context.stroke()

                                    //Draw background
                                    context.fillStyle = color
                                    context.fill();
                                }
                            }
                        }


                        to be used as:

                        import QtQuick 2.9
                        import QtQuick.Window 2.2

                        Window {
                            visible: true
                            width: 640
                            height: 200
                            title: qsTr("Hello World")

                            Rectangle {
                                id: frame

                                anchors.centerIn: parent
                                height: parent.height*2/3
                                width:  parent.width *2/3

                                radius: height/2

                                color: "lightgrey"


                                ListView{
                                    id: lView

                                    anchors.fill: parent
                                    model: [1,2,3]

                                    orientation: ListView.Horizontal

                                    clip:  true

                                    delegate: RoundedRectangle{
                                        width: lView.width/lView.count
                                        height: lView.height
                                        color: lView.currentIndex == index ? "red" : "transparent"

                                        radius: frame.radius
                                        borderColor: "transparent"
                                        topLeftCorner: index == 0
                                        topRightCorner: index == 2
                                        bottomRightCorner: index ==2
                                        bottomLeftCorner: index == 0

                                        Text {
                                            anchors.centerIn: parent
                                            text: modelData
                                        }

                                        MouseArea{
                                            anchors.fill: parent
                                            onClicked:{
                                                lView.currentIndex = index
                                            }
                                        }
                                    }
                                }
                            }
                        }



                        D Offline
                        D Offline
                        DavidM29
                        wrote on last edited by
                        #11

                        @J.Hilk
                        Oh that is perfect !
                        I was trying to make this kind of component whit 2 rectangle on top of each others.
                        I'm trying to implement that and mak sure it works on my target device.

                        1 Reply Last reply
                        0
                        • J.HilkJ J.Hilk

                          @DavidM29
                          ok, time to dig in my bag of tricks ;)
                          I present RoundedRectangle.qml

                          import QtQuick 2.11

                          Item {
                              id:root

                              property color color: "lightgrey"
                              onColorChanged: canVas.requestPaint()

                              property int radius: root.height/3
                              onRadiusChanged: canVas.requestPaint()

                              property bool topLeftCorner: true
                              property bool topRightCorner: false
                              property bool bottomRightCorner: true
                              property bool bottomLeftCorner: false

                              onTopLeftCornerChanged: canVas.requestPaint()
                              onTopRightCornerChanged: canVas.requestPaint()
                              onBottomRightCornerChanged: canVas.requestPaint()
                              onBottomLeftCornerChanged: canVas.requestPaint()

                              property color borderColor: "black"
                              onBorderColorChanged: canVas.requestPaint()

                              property int borderWidth: 1

                              Canvas {
                                  id:canVas
                                  anchors.fill: parent

                                  onPaint: {
                                      var context = getContext("2d");
                                      context.reset()
                                      context.beginPath();

                                      //Start position
                                      context.moveTo(0,height / 2)

                                      //topLeftCorner
                                      if(topLeftCorner){
                                          context.lineTo(0,radius)
                                          context.arcTo(0,0,radius, 0, radius);
                                      } else {
                                          context.lineTo(0,0)
                                      }

                                      //topRightCorner
                                      if(topRightCorner){
                                          context.lineTo(width - radius, 0)
                                          context.arcTo(width, 0, width, radius, radius)
                                      } else {
                                          context.lineTo(width, 0)
                                      }

                                      //bottomRightCorner
                                      if(bottomRightCorner) {
                                          context.lineTo(width, height-radius)
                                          context.arcTo(width, height, width - radius, height, radius)
                                      } else {
                                          context.lineTo(width, height)
                                      }

                                      //bottomLeftCorner
                                      if(bottomLeftCorner) {
                                          context.lineTo(radius, height)
                                          context.arcTo(0, height, 0, height - radius, radius)
                                      } else {
                                          context.lineTo(0, height)
                                      }

                                      //Close path
                                      context.lineTo(height / 2)
                                      context.closePath()

                                      //Draw border
                                      context.lineWidth = borderWidth
                                      context.strokeStyle = borderColor
                                      context.stroke()

                                      //Draw background
                                      context.fillStyle = color
                                      context.fill();
                                  }
                              }
                          }


                          to be used as:

                          import QtQuick 2.9
                          import QtQuick.Window 2.2

                          Window {
                              visible: true
                              width: 640
                              height: 200
                              title: qsTr("Hello World")

                              Rectangle {
                                  id: frame

                                  anchors.centerIn: parent
                                  height: parent.height*2/3
                                  width:  parent.width *2/3

                                  radius: height/2

                                  color: "lightgrey"


                                  ListView{
                                      id: lView

                                      anchors.fill: parent
                                      model: [1,2,3]

                                      orientation: ListView.Horizontal

                                      clip:  true

                                      delegate: RoundedRectangle{
                                          width: lView.width/lView.count
                                          height: lView.height
                                          color: lView.currentIndex == index ? "red" : "transparent"

                                          radius: frame.radius
                                          borderColor: "transparent"
                                          topLeftCorner: index == 0
                                          topRightCorner: index == 2
                                          bottomRightCorner: index ==2
                                          bottomLeftCorner: index == 0

                                          Text {
                                              anchors.centerIn: parent
                                              text: modelData
                                          }

                                          MouseArea{
                                              anchors.fill: parent
                                              onClicked:{
                                                  lView.currentIndex = index
                                              }
                                          }
                                      }
                                  }
                              }
                          }



                          D Offline
                          D Offline
                          DavidM29
                          wrote on last edited by
                          #12

                          @J.Hilk
                          It works like a charm !
                          Thank you very much ! I never used any canvas I will have a look into it it seems to be a good tool.

                          1 Reply Last reply
                          2

                          • Login

                          • Login or register to search.
                          • First post
                            Last post
                          0
                          • Categories
                          • Recent
                          • Tags
                          • Popular
                          • Users
                          • Groups
                          • Search
                          • Get Qt Extensions
                          • Unsolved
