Registering an Instantiable Object Type (Official Example)

Gamma_Sigma

I'm following the official example from here, but either I'm getting something wrong, or there is something missing in the guide.

I'm trying to register a C++ type into QML, to be able to instantiate it in a QML document. I'm following the guide as well as the worked example, but I'm always getting the

QQmlApplicationEngine failed to load component
qrc:/exampleDir/Main.qml:3:1: module "myclass" is not installed

error.

I've created a new, empty Qt Quick project, and added a minimalist C++ class, almost identical to the example, just replacing the identifier Message with MyClass:

#ifndef MYCLASS_H
#define MYCLASS_H

#include <QObject>
#include <qqmlregistration.h>

class MyClass : public QObject
{
	Q_OBJECT
	Q_PROPERTY(QString author READ getAuthor WRITE setAuthor NOTIFY authorChanged)
	QML_ELEMENT

public:
	explicit MyClass(QObject *parent = nullptr);

public slots:
  QString getAuthor(void);
  void    setAuthor(const QString&);

signals:
  void authorChanged(void);

private:
  QString m_author = "Author's Name";
};

#endif // MYCLASS_H

Then, by following the guide, I added this snippet of code in CMakeLists.txt, just after the already existing qt_add_qml_module invokation for the main project:

qt_add_qml_module(myClass
    URI myclass
    VERSION 1.0
    SOURCES
    myclass.cpp myclass.h
)

This is Main.qml:

import QtQuick
import QtQuick.Window
import myclass

Window
{
	width: 640
	height: 480
	visible: true
	title: qsTr("Hello World")

	MyClass
	{}
}

When I try to compile, I'm always getting the module "myClass" is not installed error.

NOTE: if I add these lines to main.cpp:

  const char *packageName = "myclass";
  const char *QMLTypeName = "MyClass";
  const int   majorVerNum = 1;
  const int   minorVerNum = 0;
  qmlRegisterType<MyClass>(packageName, majorVerNum, minorVerNum, QMLTypeName);

The project compiles and works correctly. However, the usage of qmlRegisterType isn't mentioned anywhere in the documentation, which makes me think that it should not be necessary to add the call to qmlRegisterType in main.cpp, because the call to qt_add_qml_module in CMakeLists.txt should take care of everything, together with the QML_ELEMENT macro in the class header file. In fact, after having added the the call to qmlRegisterType in main.cpp, the qt_add_qml_module snippet can be safely removed from CMakeLists.txt.

What am I missing here?

Qt version: 6.5.1
Qt Creator version: 10.0.2
OS: Windows 10
Filesystem:

SGaist

Hi and welcome to devnet,

I haven't done that yet but one thing that is important with QML is the casing. You QML classes should always start with an uppercased letter and I see that you have myClass in your declaration rather than MyClass.

Gamma_Sigma

@SGaist Hello, thank you for your reply.

Later I will start this example from scratch, and I will try to use unique identifiers instead of repeating variations of "MyClass", so that it will be easier to track them, and identify where the case usage might go wrong. If the problem does not disappear, I will post the whole source files, together with the CMakeLists.txt file.

Gamma_Sigma

I gave another unsuccessful try. This time I tried to be even more minimalist than before, to no avail.

This is what I did:

Create a new "Qt Quick Application" project named testIntegration
Select CMake as build system
Select "Desktop Qt 6.5.1 MinGW 64-bit" as kit
Add new C++ class named Message (source files message.cpp and message.h), derived from QObject and adding the Q_OBJECT macro
Adding source files message.h and message.cpp to qt_add_executable in CMakeLists.txt
Add #include <QtQml/qqmlregistration.h> to message.h to be able to use the QML_ELEMENT macro in class Message
Add qt_add_qml_module statement to CMakeLists.txt
Add import statement and instantiate Message class in Main.qml inside Window

Now, two error messages are possible, depending on the case of the URI (lowercase messagingUri or uppercase MessagingUri):

If i add URI messagingUri in qt_add_qml_module (in CMakeLists.txt) and import messagingUri (in Main.qml), i get this error message: "QQmlApplicationEngine failed to load component qrc:/testIntegration/Main.qml:3:1: module "messagingUri" is not installed"
If i add URI MessagingUri in qt_add_qml_module (in CMakeLists.txt) and import MessagingUri (in Main.qml), i get this error message: ":-1: error: ninja: build stopped: subcommand failed."

In both cases, i get the warning message "D:\Qt\6.5.1\mingw_64\lib\cmake\Qt6Qml\Qt6QmlMacros.cmake:794: warning: The messagingModule target is a QML module with target path MessagingUri. It uses an OUTPUT_DIRECTORY of D:/Qt_6/build-testIntegration-Desktop_Qt_6_5_1_MinGW_64_bit-Debug, which should end in the same target path, but doesn't. Tooling such as qmllint may not work correctly. D:/Qt/6.5.1/mingw_64/lib/cmake/Qt6Qml/Qt6QmlMacros.cmake:1840 (_qt_internal_target_enable_qmllint) D:/Qt/6.5.1/mingw_64/lib/cmake/Qt6Qml/Qt6QmlMacros.cmake:625 (qt6_target_qml_sources) D:/Qt/6.5.1/mingw_64/lib/cmake/Qt6Qml/Qt6QmlMacros.cmake:684 (qt6_add_qml_module) CMakeLists.txt:24 (qt_add_qml_module)"

Again, if i add these lines to main.cpp (as well as #include "message.h"):

const char *packageName = "messagingUri";
const char *QMLTypeName = "Message";
const int   majorVerNum = 1;
const int   minorVerNum = 0;
qmlRegisterType<Message>(packageName, majorVerNum, minorVerNum, QMLTypeName);

Everything works perfectly: no error messages, no warnings, no nothing.

At this point, I'm really stumped. The example from Qt documentation never mentions the usage of qmlRegisterType, but it looks like it is inevitable.

Here are the full source files:

***** CMakeLists.txt *****
(mostly auto-generated. I only added the qt_policy command to suppress a warning, the source files for Message class to qt_add_executable, and the full qt_add_qml_module command, copied from the example, only changing the package's name and the URI)

cmake_minimum_required(VERSION 3.16)

project(testIntegration VERSION 0.1 LANGUAGES CXX)

set(CMAKE_CXX_STANDARD_REQUIRED ON)

find_package(Qt6 6.4 REQUIRED COMPONENTS Quick)

qt_standard_project_setup()

qt_policy(SET QTP0001 OLD) # Suppress warning https://doc.qt.io/qt-6/qt-cmake-policy-qtp0001.html

qt_add_executable(apptestIntegration
    main.cpp
    message.h message.cpp
)

qt_add_qml_module(apptestIntegration
    URI testIntegration
    VERSION 1.0
    QML_FILES Main.qml
)

qt_add_qml_module(messagingModule
    URI MessagingUri
    VERSION 1.0
    SOURCES
    message.cpp message.h
)

set_target_properties(apptestIntegration PROPERTIES
    MACOSX_BUNDLE_GUI_IDENTIFIER my.example.com
    MACOSX_BUNDLE_BUNDLE_VERSION ${PROJECT_VERSION}
    MACOSX_BUNDLE_SHORT_VERSION_STRING ${PROJECT_VERSION_MAJOR}.${PROJECT_VERSION_MINOR}
    MACOSX_BUNDLE TRUE
    WIN32_EXECUTABLE TRUE
)

target_link_libraries(apptestIntegration
    PRIVATE Qt6::Quick
)

install(TARGETS apptestIntegration
    BUNDLE DESTINATION .
    LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}
    RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR}
)

***** main.cpp *****
(fully auto-generated. Nothing was added or modified by me here)

#include <QGuiApplication>
#include <QQmlApplicationEngine>

int main(int argc, char *argv[])
{
  QGuiApplication app(argc, argv);

  QQmlApplicationEngine engine;
  const QUrl url(u"qrc:/testIntegration/Main.qml"_qs);
  QObject::connect(&engine, &QQmlApplicationEngine::objectCreationFailed,
    &app, []() { QCoreApplication::exit(-1); },
    Qt::QueuedConnection);
  engine.load(url);

  return app.exec();
}

***** message.h *****

#ifndef MESSAGE_H
#define MESSAGE_H

#include <QObject>
#include <QtQml/qqmlregistration.h>

class Message : public QObject
{
    Q_OBJECT
    QML_ELEMENT

public:
    explicit Message(QObject *parent = nullptr);

signals:
};

#endif // MESSAGE_H

***** message.cpp *****

#include "message.h"

Message::Message(QObject *parent)
    : QObject{parent}
{;}

***** Main.qml *****

import QtQuick
import QtQuick.Window
import messagingUri

Window
{
  width: 640
  height: 480
  visible: true
  title: qsTr("Hello World")

  Message
  {}
}

Gamma_Sigma

I think I have found a workaround to the problem. Unfortunately, I cannot explain much of what I've done, because I am quite confused myself about how Qt manages resources through the Resource System, and the recent policy modification makes things even worse.

Start by creating a new Qt Quick project with Qt Creator's wizard, selecting CMake as the build system; I called mine testIntegration. Qt Creator's wizard will auto-generate CMakeLists.txt, main.cpp, and Main.qml for you.

The first problem that needs tackling is the Qt policy QTP0001 is not set warning message. To fix this, either add the qt_policy(SET QTP0001 NEW) command in CMakeLists.txt (before qt_add_executable), or add a RESOURCE_PREFIX argument to the qt_add_qml_module command in CMakeLists.txt. I did both, just to be safe (I used RESOURCE_PREFIX /).

Then add a new C++ class, selecting QObject as base class (use Qt Creator's wizard to save yourself some effort). Call it whatever you like: I called mine MyClass.

Now CMakeLists.txt needs to be edited again. Find the qt_add_qml_module command, and add the source files for your class, by passing the SOURCES myclass.h myclass.cpp argument.

Edit your myclass.h header file, and add #include <qqmlregistration.h>. This inclusion will allow you to use the QML_ELEMENT macro. I put QML_ELEMENT immediately after the Q_OBJECT macro.

I also added a qDebug statement in the constructor of MyClass (qDebug() << "Class instantiated";), to ascertain that the class has actually been instantiated. You will need to #include <QDebug> to use qDebug().

Now edit Main.qml and add this import statement: import testIntegration. You will notice that it is the same identifier as the URI testIntegration argument used in the qt_add_qml_module command in CMakeLists.txt. You can now declare a MyClass object in your QML code. In my case, I simply created an empty MyClass{} inside the main Window.

This way I managed to compile and run the project without issues, getting a nice "Class instantiated" debug message in Application Output.

NOTE: As you can see, no qmlRegisterType was used in main.cpp. However, it looks like Qt / QML / CMake / whatever is (are?) extremely finicky for what concerns the identifiers you use. You can choose whatever URI you like in qt_add_qml_module, but you have to make sure that it is the same both in the QML document and in main.cpp. For example, if in CMakeLists.txt you use the URI MyBeautifulURI argument for qt_add_qml_module, then you'll have to update Main.qml and main.cpp accordingly:

import MyBeautifulURI in Main.qml
const QUrl url(u"qrc:/MyBeautifulURI/Main.qml"_qs); in main.cpp

If you are interested, here are the full source files:

***** CMakeLists.txt *****

cmake_minimum_required(VERSION 3.16)

project(testIntegration VERSION 0.1 LANGUAGES CXX)

set(CMAKE_CXX_STANDARD_REQUIRED ON)

find_package(Qt6 6.4 REQUIRED COMPONENTS Quick)

qt_policy(SET QTP0001 NEW) # Suppress warning https://doc.qt.io/qt-6/qt-cmake-policy-qtp0001.html

qt_standard_project_setup()

qt_add_executable(apptestIntegration
    main.cpp
)

qt_add_qml_module(apptestIntegration
    URI testIntegration
    RESOURCE_PREFIX /
    VERSION 1.0
    QML_FILES Main.qml
    SOURCES myclass.h myclass.cpp
)

set_target_properties(apptestIntegration PROPERTIES
    MACOSX_BUNDLE_GUI_IDENTIFIER my.example.com
    MACOSX_BUNDLE_BUNDLE_VERSION ${PROJECT_VERSION}
    MACOSX_BUNDLE_SHORT_VERSION_STRING ${PROJECT_VERSION_MAJOR}.${PROJECT_VERSION_MINOR}
    MACOSX_BUNDLE TRUE
    WIN32_EXECUTABLE TRUE
)

target_link_libraries(apptestIntegration
    PRIVATE Qt6::Quick
)

install(TARGETS apptestIntegration
    BUNDLE DESTINATION .
    LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}
    RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR}
)

***** main.cpp *****

#include <QGuiApplication>
#include <QQmlApplicationEngine>

int main(int argc, char *argv[])
{
  QGuiApplication app(argc, argv);

  QQmlApplicationEngine engine;
  const QUrl url(u"qrc:/testIntegration/Main.qml"_qs);
  QObject::connect(&engine, &QQmlApplicationEngine::objectCreationFailed,
    &app, []() { QCoreApplication::exit(-1); },
    Qt::QueuedConnection);
  engine.load(url);

  return app.exec();
}

***** Main.qml *****

import QtQuick
import QtQuick.Window
import testIntegration

Window
{
  width: 640
  height: 480
  visible: true
  title: qsTr("Hello World")

  MyClass{}
}

***** myclass.h *****

#ifndef MYCLASS_H
#define MYCLASS_H

#include <QObject>
#include <qqmlregistration.h>

class MyClass : public QObject
{
  Q_OBJECT
  QML_ELEMENT

public:
  explicit MyClass(QObject *parent = nullptr);

signals:
};

#endif // MYCLASS_H

***** myclass.cpp *****

#include <QDebug>
#include "myclass.h"

MyClass::MyClass(QObject *parent)
  : QObject{parent}
{
  qDebug() << "Class instantiated";
}

RangerQT

I know this is an old topic but thank you very much, Gamma Sigma, for summarizing this. I want to use the current practices for adding modules without registration but nothing worked despite following Qt's blogs and documentation. I got a test case to work. Now
I need to figure out how to get C++ Classes that are in subdirectories working.

TonyNguyen147

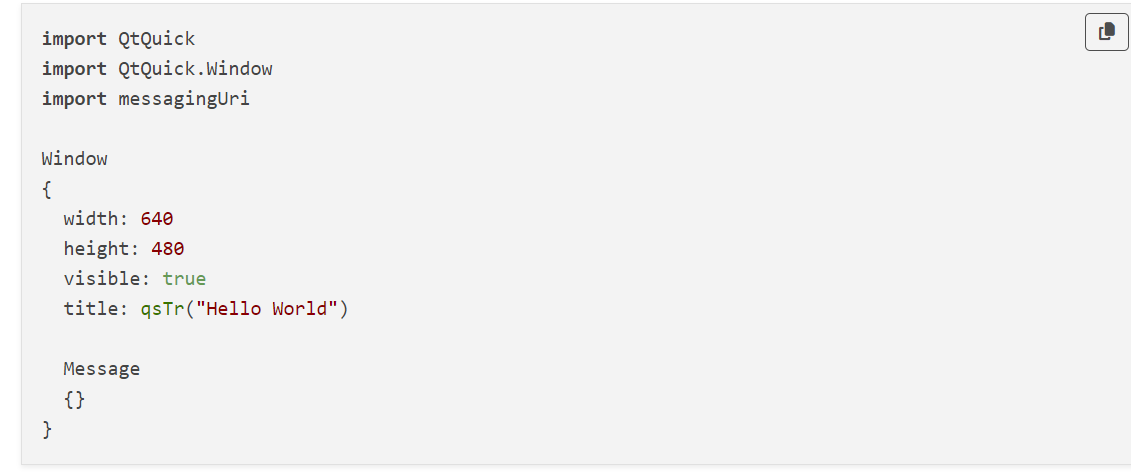

I found this mismatch. Maybe you should try to capitalize the first character exactly the URI in your CMakeLists
