QWidget::windowRole() use as storage for small textual data

JonB

@Please_Help_me_D
So in that case the old or now (you have written this loop on both, haven't you?!) in the focus change is not a descendent of your ads::CDockWidget* dockWidget. I never said it was, you did! Or you check children if whatever it is works that way.

Please_Help_me_D

@JonB yes I have written both old and now
Yes I'm trying to find this widget via old->children();. I need few minuts

Please_Help_me_D

@JonB this code can't find ads::CDockWidget* neither:

void MainWindow::onFocusChanged(QWidget* old, QWidget* now){
    if (old != nullptr){
        ads::CDockWidget* dockWidget = nullptr;
        QObjectList objList = old->children();
        int i = 0;
        while (i < objList.count() && dockWidget == nullptr){
            dockWidget = qobject_cast<ads::CDockWidget*>(objList.at(i));
            i++;
        }
    }

    if (now != nullptr){
        ads::CDockWidget* dockWidget = nullptr;
        QObjectList objList = now->children();
        int i = 0;
        while (i < objList.count() && dockWidget == nullptr){
            dockWidget = qobject_cast<ads::CDockWidget*>(objList.at(i));
            i++;
        }
    }
}

JonB

@Please_Help_me_D
So read up on what a ads::CDockWidget is/how it works. Your assumption in that QWidget::focusChanged(old, now) must lead to widgets either ancestors or descendants of this dock widget. I have no idea whether that is the case. Also your code may need to recurse down through children, no? At least start by finding out what old & now actually are in your focus change.

Please_Help_me_D

@JonB yes possibly I should have done the recursion down to the other children but it alredy becomes too complicated solution for such kind of a task.
Now I'm trying to set property not on CDockWidget but to some parent. I'm trying...

mrjj

Hi
It wont be the DockWidget that has the focus. it will be its widget/children.

I would call dumpObjectTree()
on old and now to see how they are made up.

Please_Help_me_D

@mrjj thank you for advice. Here is the output:

setFocus(Qt::OtherFocusReason);
setFocus(Qt::OtherFocusReason);
ads::CDockWidget::2D Window
    QBoxLayout::
    QAction::
    QScrollArea::dockWidgetScrollArea
        QWidget::qt_scrollarea_viewport
            QVTKOpenGLStereoWidget::
                QVBoxLayout::
                QWindowContainer::
        QWidget::qt_scrollarea_hcontainer
            QScrollBar::
            QBoxLayout::
        QWidget::qt_scrollarea_vcontainer
            QScrollBar::
            QBoxLayout::
setFocus(Qt::OtherFocusReason);
setFocus(Qt::OtherFocusReason);
setFocus(Qt::OtherFocusReason);

So the focus should be on one of those?
By the way this tree is from ads::CDockWidget
Just a moment and I find tree for old
/
and here is tree for now object:

ads::CDockWidgetTab::
    QBoxLayout::
    ads::CElidingLabel::dockWidgetTabLabel
    QPushButton::tabCloseButton

mrjj

hi
yes it should but we don't have to guess.
you can do
QWidget * fw = qApp->focusWidget();
and check out in the debugger (or qDebug its object name) to see what it is.

It should be possible to get hold of the Dock again to get your data back.

Please_Help_me_D

@mrjj QWidget * fw and now widget is the same. See the picture please

Please_Help_me_D

@mrjj now I'm trying to set property to the tabWidgets to wich CDockWidget belongs to:

QVTKOpenGLStereoWidget* MainWindowObjectCreator::createVTK2DWindow(){
    QVTKOpenGLStereoWidget* qvtkOpenGLStereoWidget = new QVTKOpenGLStereoWidget;
    ads::CDockWidget* dockWidget = new ads::CDockWidget("2D Window");
    dockWidget->setWidget(qvtkOpenGLStereoWidget);
    dockManager->addDockWidget(ads::RightDockWidgetArea, dockWidget);
    dockWidget->tabWidget()->setProperty("IsVisualization", 4443);
    //dockWidget->dumpObjectTree();
    return qvtkOpenGLStereoWidget;
}

but each time I manually change the focus the MainWindow::onFocusChanged(QWidget* old, QWidget* now) works twice:
first time now is the old window
second time is the new window
and when the second time this method works then I get the correct value of property:

void MainWindow::onFocusChanged(QWidget* old, QWidget* now){
    QWidget * fw = qApp->focusWidget();
    fw->dumpObjectTree();
    if (now != nullptr){
        now->dumpObjectTree();
        QVariant varia = now->property("IsVisualization");
    }
}

By the way this works only if the focused window is tabbed. Otherwise the focused widget is not a tabWidget(). So idea to set property to the tabWidget() doesn't seem to work

mrjj

@Please_Help_me_D

Ah silly me. of cause now will be the same as qApp->focusWidget(); :)
and it does seem to be the actual DockWidget ! which i didn't expect.

Is it possible you have 2 connects to the onFocusChanged signal ?
Not really sure why it should run twice. I don't recall it normally does that.

Its normally not an issue to loop up the chain to find the top parent.
So not sure why it dont seem to work for you here.

Please_Help_me_D

@mrjj yes, now I also find this looking for parent not working for me strange :)
Just a moment I guess that I'm missing something important...

mrjj

@Please_Help_me_D
Yeah as the dumptree clearly shows its the top as we expect
ads::CDockWidget::2D Window
QBoxLayout::
QAction::
QScrollArea::dockWidgetScrollArea
QWidget::qt_scrollarea_viewport
QVTKOpenGLStereoWidget::
QVBoxLayout::
....

But the test with qApp->focusWidget(); showd now is the Dock so
looking at this code.

f (now != nullptr){
ads::CDockWidget* dockWidget = nullptr;
QObjectList objList = now->children();

Do you only check its children ?
and in that case, the line
dockWidget = qobject_castads::CDockWidget*(objList.at(i));

will always return null as you skip the now ? and only cast children ?

Please_Help_me_D

@mrjj let me clarify one moment.
Earlier wrote an unclear post about what widget which dumptree has.
Also there are two possible ways how ads::CDockWidget is attached to the application:

CDockWidget is tabbed
CDockWidget is float (we can pick and drag it as it is like a new window)

So we have different dumptrees for QWidget* now object on onFocusChanged(QWidget* old, QWidget* now)

Here is dumptree for tabbed CDOckWidget:

ads::CDockWidgetTab::
    QBoxLayout::
    ads::CElidingLabel::dockWidgetTabLabel
    QPushButton::tabCloseButton

And here is for float CDockWidget:

QScrollArea::dockWidgetScrollArea
    QWidget::qt_scrollarea_viewport
        QVTKOpenGLStereoWidget::
            QVBoxLayout::
            QWindowContainer::
    QWidget::qt_scrollarea_hcontainer
        QScrollBar::
        QBoxLayout::
    QWidget::qt_scrollarea_vcontainer
        QScrollBar::
        QBoxLayout::

So we have a deal with two types of top level widgets :)
But I would like to set the property only to a single type widget and if onFocusChanged() look for that object in now widget

mrjj

@Please_Help_me_D
aha. I missed the being tabbed part.
So when tabbed, the Dock becomes a CDockWidgetTab and the Dock is not around any more?

Please_Help_me_D

@mrjj when tabbed the focused widget is CDockWidgetTab (because I do this dumptree on the now widget when certain widget is focused). And I don't know exactly where CDockWidget disappears :)

mrjj

@Please_Help_me_D
Is CDockWidget just a normal QDockWidget ?

alt text

Please_Help_me_D

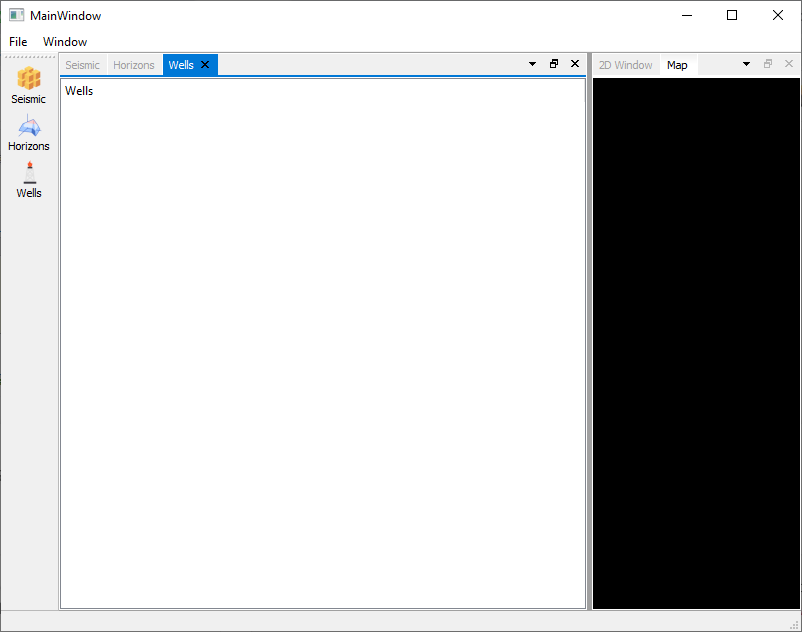

@mrjj here it is

with the code:

void MainWindow::onFocusChanged(QWidget* old, QWidget* now){
    if (now != nullptr){
        now->dumpObjectTree();
    }
}

I started interactively change focused window and the qDebug output shows me that the toplevel widget of dumpObjectTree depends upon where I click: if I click on the QTreeWidget the this widget is on the rop, if on the label then CDockWidgetTab is on the top...

mrjj

@Please_Help_me_D
Hi
I think its a custom setup as it dont look the same for Qt exmaples
alt text

Is CDockWidget your own class ?

Please_Help_me_D

@mrjj it is a standalone library link text
