Solved Need help: Using QVideoWidget as a Background
-

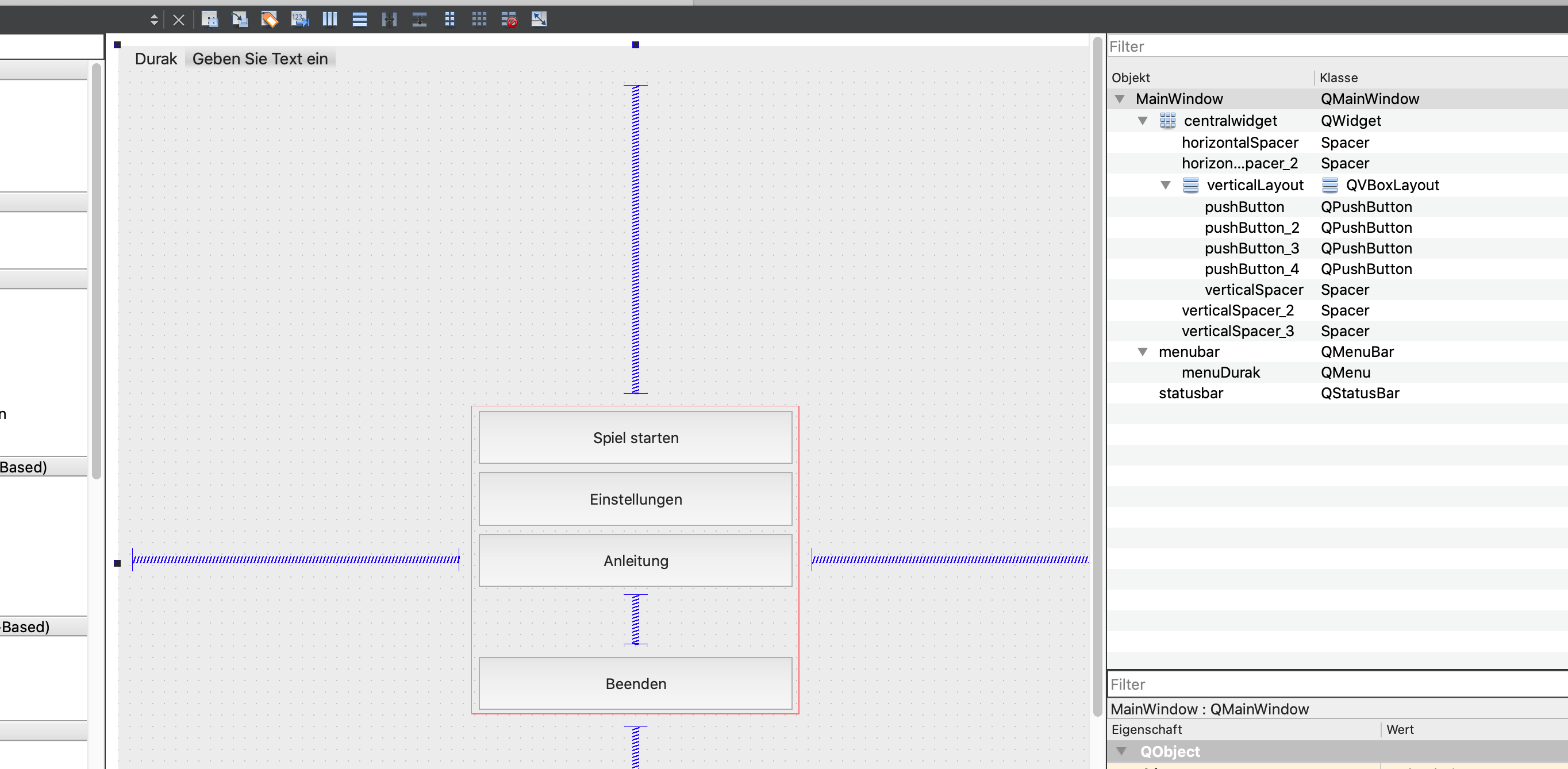

Hello, I am super new to QT. I want to design a menu for a game. In the foreground should be some buttons (like I designed in the UI designer, see picture) and in the background I want a video to be played. If I set the video player as the central widget, my buttons are gone and also I cannot raise them. If I don't set it as central widget, my buttons are there but the video player is in the upper left corner.
This is how I created the video player:
MainWindow::MainWindow(QWidget *parent) : QMainWindow(parent) , ui(new Ui::MainWindow) { ui->setupUi(this); player = new QMediaPlayer(this); vw = new QVideoWidget(this); player->setVideoOutput(vw); this->setCentralWidget(vw);
Is there any way I can put the buttons on top of the video player ? Thanks in advance !!
-
Ok, I've finished testing. I think the best way is using:
ui->gridLayout->addWidget(vw, 0, 0, -1, -1); vw->lower(); //just in case
where
gridLayout
should be thelayoutName
ofcentralWidget
. -
I think you can promote the centralWidget in ui to a QVideoWidget.Tested, not a good idea.
This is the simplest solution I can think of, not tested.
But there're also others. Let me test another...
[UPDATED]
It is very simple to arrange that layout for a normal widget.
But with a QVideoWidget, seems there's some render issue if I put some widgets on it. -
@Bonnie Thanks for your reply. Can you give me short instructions on how I promote it ? Because in the UI designer the video widget does not appear.
-
Ok, I've finished testing. I think the best way is using:
ui->gridLayout->addWidget(vw, 0, 0, -1, -1); vw->lower(); //just in case
where
gridLayout
should be thelayoutName
ofcentralWidget
. -
@Bonnie Alright I tested your suggestion and it works, the video is now displayed on the whole window but the buttons are still behind it (can see parts of them behind the video). When I raise one single button it's still behind the video. Maybe I am still messing things up with the layout ?
the central widget is set to grid layout from the upper menubar. Has it something to do with this maybe ? Can't figure it out.. Thanks for helping !!Also when I remove vw->raise(); the buttons are not behind the video anymore.
-
@veixeros what I wrote is not
raise()
, butlower()
:) -
@Bonnie sorry I meant lower()
-
@veixeros If your code works, you can go without
lower()
.
Though it does not make any different on my machine.
I added that because it should ensure the video widget to behind the buttons.
Not sure why not work on your's. -
@Bonnie Sorry I may have explained it wrong, when I leave out the lower() then the buttons are not there at all. Only the video. When I insert it, the buttons are there but behind the video
-
@veixeros Hmm...In my test I make a simple layout with some buttons and I can see them all.
Would you mind posting the full code of MainWindow (including ui) so I can test with yours?
I just need the layout and player part.
When will the player start playing? -
@Bonnie The player should start immediately when the program is opened
Here is the main window.cpp:
#include "mainwindow.h" #include "ui_mainwindow.h" MainWindow::MainWindow(QWidget *parent) : QMainWindow(parent) , ui(new Ui::MainWindow) { ui->setupUi(this); player = new QMediaPlayer(this); vw = new QVideoWidget(this); player->setVideoOutput(vw); ui->gridLayout->addWidget(vw, 0, 0, -1, -1); vw->lower(); vw->update(); player->setMedia(QUrl::fromLocalFile("/Users/simon/Desktop/Intro.mp4")); player->play(); } MainWindow::~MainWindow() { delete ui; } void MainWindow::on_pushButton_2_clicked() { } void MainWindow::on_pushButton_4_clicked() { }
This is the UI:
<?xml version="1.0" encoding="UTF-8"?> <ui version="4.0"> <class>MainWindow</class> <widget class="QMainWindow" name="MainWindow"> <property name="geometry"> <rect> <x>0</x> <y>0</y> <width>900</width> <height>900</height> </rect> </property> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Expanding"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="windowTitle"> <string>Durak</string> </property> <widget class="QWidget" name="centralwidget"> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Preferred"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="styleSheet"> <string notr="true"/> </property> <layout class="QGridLayout" name="gridLayout"> <item row="1" column="1"> <layout class="QVBoxLayout" name="verticalLayout"> <item> <widget class="QPushButton" name="pushButton_2"> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Expanding"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="text"> <string>Spiel starten</string> </property> </widget> </item> <item> <widget class="QPushButton" name="pushButton_3"> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Expanding"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="text"> <string>Einstellungen</string> </property> </widget> </item> <item> <widget class="QPushButton" name="pushButton"> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Expanding"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="text"> <string>Anleitung</string> </property> </widget> </item> <item> <spacer name="verticalSpacer"> <property name="orientation"> <enum>Qt::Vertical</enum> </property> <property name="sizeHint" stdset="0"> <size> <width>20</width> <height>40</height> </size> </property> </spacer> </item> <item> <widget class="QPushButton" name="pushButton_4"> <property name="sizePolicy"> <sizepolicy hsizetype="Expanding" vsizetype="Expanding"> <horstretch>0</horstretch> <verstretch>0</verstretch> </sizepolicy> </property> <property name="text"> <string>Beenden</string> </property> </widget> </item> </layout> </item> <item row="1" column="0"> <spacer name="horizontalSpacer"> <property name="orientation"> <enum>Qt::Horizontal</enum> </property> <property name="sizeHint" stdset="0"> <size> <width>40</width> <height>20</height> </size> </property> </spacer> </item> <item row="2" column="1"> <spacer name="verticalSpacer_3"> <property name="orientation"> <enum>Qt::Vertical</enum> </property> <property name="sizeHint" stdset="0"> <size> <width>20</width> <height>40</height> </size> </property> </spacer> </item> <item row="0" column="1"> <spacer name="verticalSpacer_2"> <property name="orientation"> <enum>Qt::Vertical</enum> </property> <property name="sizeHint" stdset="0"> <size> <width>20</width> <height>40</height> </size> </property> </spacer> </item> <item row="1" column="2"> <spacer name="horizontalSpacer_2"> <property name="orientation"> <enum>Qt::Horizontal</enum> </property> <property name="sizeHint" stdset="0"> <size> <width>40</width> <height>20</height> </size> </property> </spacer> </item> </layout> </widget> <widget class="QMenuBar" name="menubar"> <property name="geometry"> <rect> <x>0</x> <y>0</y> <width>900</width> <height>22</height> </rect> </property> <widget class="QMenu" name="menuDurak"> <property name="title"> <string>Durak</string> </property> </widget> <addaction name="menuDurak"/> </widget> <widget class="QStatusBar" name="statusbar"/> </widget> <resources/> <connections/> </ui>
And the main window.h
#ifndef MAINWINDOW_H #define MAINWINDOW_H #include <QMainWindow> #include <QMediaPlayer> #include <QVideoWidget> QT_BEGIN_NAMESPACE namespace Ui { class MainWindow; } QT_END_NAMESPACE class MainWindow : public QMainWindow { Q_OBJECT public: MainWindow(QWidget *parent = nullptr); ~MainWindow(); private slots: void on_pushButton_2_clicked(); void on_pushButton_4_clicked(); private: Ui::MainWindow *ui; QMediaPlayer* player; QVideoWidget* vw; }; #endif // MAINWINDOW_H
-
@veixeros Still good in Windows. Maybe something platform related.
What platform are you using?
BTW, it's quite late here. I might look at this next day. -
@Bonnie I'm working on Mac.. Yes of course, I'll let you rest :) Thanks for your effort so far ! Hope to hear from you tomorrow.
-
I've tested with my Mac, and also no behind issue, though there's other issue...
The buttons are totally above the video.
Well, then I have no idea why it acts differently on your machine... :(What's your Qt version?
Can you make a screen capture of what that looks like when "parts of them behind the video"? -
@Bonnie Could you maybe give me your test Projekt so I can run it on my machine ? This would be the easiest way. I am using QT Creator 5.14.2 on newest MacOS
-
@veixeros I've tested with 5.14.2, it does have render issue that cause the buttons invisible (so they are not actually behind the video, they can be clicked while being invisible).
Earlier I tested with 5.12.7 in MacOS, it doesn't have this render issue, the buttons are all visible, but the QVideoWidget has some video size issue when the player is stopped and then start again. -
@Bonnie Oh wow.. didn't expect that :) I'll downgrade then and I'll see.. Thanks a lot for helping !
