Custom EasingCurve



  • Hi,

    While there are workarounds for this problem, I'm just curious on how this works. I was playing around trying to pass a custom easing curve. I can't find any examples online how to implement it. From the looks of it,

    qreal myEasingFunction(qreal progress);

    is the function signature I have to use. However, when I try to set the types and etc, I feel like a dog trying to catch his tail. For the timeline, for setEasingCurve, I'm supposed to pass in QEasingFunction::Custom, which is really a static equation. However, to make it return a custom type is tricky. I'm supposed to pass in the easing function into setCustomType, but the ideas that I tried don't work.

    Thanks


  • Qt Champions 2017

    Hi
    This compiles and runs like expected but its not what u mean ?

    #include <QEasingCurve>
    qreal myEasingFunction(qreal progress) {
    return progress*0.5;
    }

    -- (in button click)
    QEasingCurve c;
    c.setCustomType(myEasingFunction);
    for(qreal t = 0.0; t < 1.0; t += 0.1) {
    qDebug() << ">" << t << " is " << c.valueForProgress(t);
    }



  • @mrjj said in Custom EasingCurve:

    QEasingCurve c;
    c.setCustomType(myEasingFunction);
    for(qreal t = 0.0; t < 1.0; t += 0.1) {
    qDebug() << ">" << t << " is " << c.valueForProgress(t);
    }

    Hi mrjj,

    Thanks for your response. That was something that I tried initially, but I was unable to get it to compile.

    I get this compile-time error:

    C:\Users\chris\Documents\Qt Projects\untitled6\mainwindow.cpp:26: error: C3867: 'MainWindow::myEasingFunction': non-standard syntax; use '&' to create a pointer to member.

    I know, somewhat confusing. But what it is trying to say, is that I need myEasingFunction() instead of myEasingFunction. And even with myEasingFunction(), I still need to pass in a variable. I'm thinking your code sample has no errors, but maybe there is something small that I need to do. Because, myEasingFunction is a pointer to a function and I have seen examples of such implementation.


  • Qt Champions 2017

    @ChrisW

    Hi
    It expects a normal function pointer.
    Not a member function pointer as you tried.
    its not the same as a standalone function pointer (unless static)
    as it requires an object to be activated.

    so
    void myfunc()
    is not the same
    as
    void mainwindow::myfunc()

    in this regards.



  • @mrjj

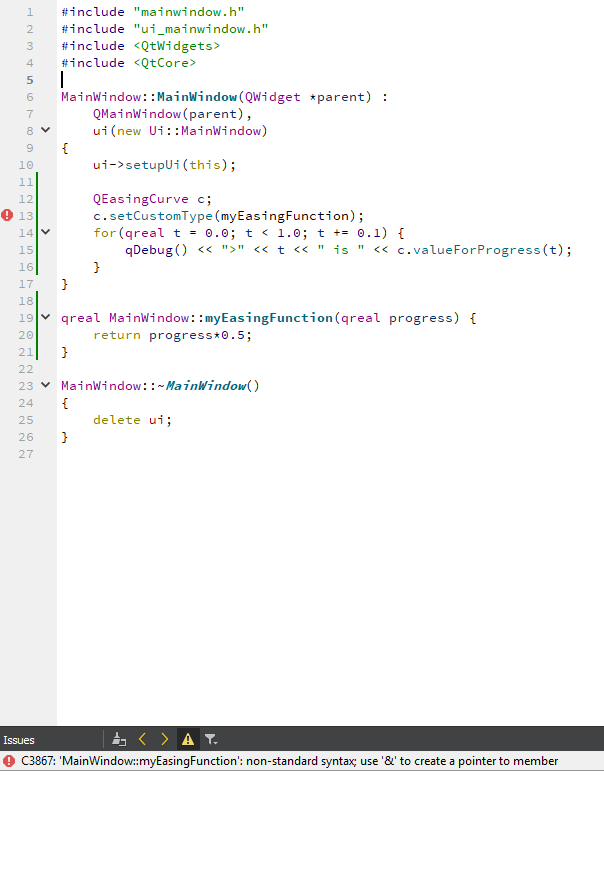

    I'm going to send you a simplified screenshot. Please hold.




  • Qt Champions 2017

    Hi
    yes
    You cannot use a member function.
    It must be free (global) non member function as in my sample.



  • @mrjj

    Okay, reading your comment, I got rid of MainWindow part, but still something else is causing that error.


  • Qt Champions 2017

    @ChrisW

    just put it above like

    qreal myEasingFunction(qreal progress) {
    return progress*0.5;
    }


    ... use it here

    then it should just work.



  • @mrjj

    You're really good. I was just looking at my code and realized that I'm using C++, not C#, so you must have the signature declared beforehand and I came back to the forum with you pointing that out.

    Silly me!

    Thanks Qt Champion and you were a lot of help like always. I'm sure others will find this useful.


  • Qt Champions 2017

    Yep, has to see it before use :)
    Also just as a note
    You can use a member functions, if its declared with static (in the class .h )
    but a normal function is better in my book.
