Why small boxes appearing in the QTableView?

[neetaj]

Hello,

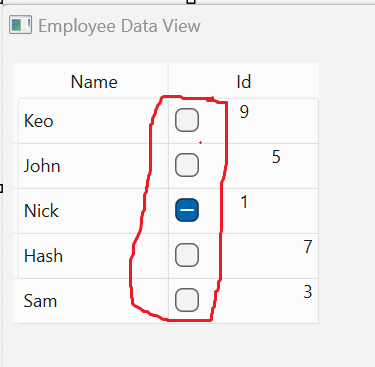

I have written a code where I am using QTableView, below is the code and final output. My query is why small boxes (highlighted in red) are appearing in the 2nd column i.e., the "Id" column. I don't want those boxes in the table view, how shall I remove that? Am I missing any settings for the QTableView?

// EmployeeDetailsView.h

#ifndef EMPLOYEEDETAILSVIEW_H
#define EMPLOYEEDETAILSVIEW_H

#include <QWidget>
#include <QAbstractTableModel>
#include "EmployeeModel.h"

//class EmployeeModel;

QT_BEGIN_NAMESPACE
namespace Ui {
class EmployeeDetailsView;
}
QT_END_NAMESPACE

class EmployeeDetailsView : public QWidget
{
    Q_OBJECT

public:
    EmployeeDetailsView(QWidget *parent = nullptr);
    ~EmployeeDetailsView();

    EmployeeModel* m_EmpModelPtr;

private:
    Ui::EmployeeDetailsView *ui;
};
#endif // EMPLOYEEDETAILSVIEW_H

// EmployeeDetailsView.cpp
#include "EmployeeDetailsView.h"
#include "ui_EmployeeDetailsView.h"

EmployeeDetailsView::EmployeeDetailsView(QWidget *parent)
: QWidget(parent)
, ui(new Ui::EmployeeDetailsView)
{
ui->setupUi(this);
m_EmpModelPtr = new EmployeeModel(this);

ui->m_tableView->setModel(m_EmpModelPtr);

}

EmployeeDetailsView::~EmployeeDetailsView()
{
delete ui;
}

// EmployeeModel.h

#ifndef EMPLOYEEMODEL_H
#define EMPLOYEEMODEL_H

#include <QAbstractTableModel>
#include <QList>
#include <QString>

struct EmpData
{
    QString m_EmpName;
    int m_Id;
};

class EmployeeModel : public QAbstractTableModel
{
    Q_OBJECT
    QList<EmpData> m_EmpList;

public:
    explicit EmployeeModel(QObject *parent = nullptr);

    int rowCount(const QModelIndex &parent = QModelIndex()) const override;
    int columnCount(const QModelIndex &parent = QModelIndex()) const override;
    QVariant data(const QModelIndex &index, int role = Qt::DisplayRole) const override;
    QVariant headerData(int section, Qt::Orientation orientation, int role = Qt::DisplayRole) const override;
};

#endif // EMPLOYEEMODEL_H

// EmployeeModel.cpp

#include "EmployeeModel.h"
#include <QDebug>

EmployeeModel::EmployeeModel(QObject *parent)
: QAbstractTableModel(parent)
{
m_EmpList.append({"Keo", 9});
m_EmpList.append({"John", 5});
m_EmpList.append({"Nick", 1});
m_EmpList.append({"Hash", 7});
m_EmpList.append({"Sam", 3});
}

int EmployeeModel::rowCount(const QModelIndex &) const
{
qDebug() << "total emp count : " << m_EmpList.count();
return m_EmpList.count();
}

int EmployeeModel::columnCount(const QModelIndex &) const
{
return 2; // name , id
}

QVariant EmployeeModel::data(const QModelIndex &index, int role) const
{
qDebug() << "index row : " << index.row() << "\t col : " << index.column();

if(!index.isValid())
    return QVariant();

if(role == Qt::DisplayRole)
    if(index.column() == 0)
        return m_EmpList.at(index.row()).m_EmpName;

    if(index.column() == 1)
    return m_EmpList.at(index.row()).m_Id;

return QVariant();

}

QVariant EmployeeModel::headerData(int section, Qt::Orientation orientation, int role) const
{
qDebug() << "section : " << section << "\t orientation : " << orientation;
if(role == Qt::DisplayRole)
{
if(orientation == Qt::Horizontal)
{
return (section == 0)? "Name" : "Id";
}
/* else
{
return QString::number(section + 1); // Row numbers
}
*/
}
return QVariant();
}

// main.cpp

#include "EmployeeDetailsView.h"

#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    EmployeeDetailsView w;
    w.setWindowTitle("Employee Data View");
    w.show();
    return a.exec();
}

[Christian Ehrlicher]

@neetaj said in Why small boxes appearing in the QTableView?:

if(role == Qt::DisplayRole)
    if(index.column() == 0)
        return m_EmpList.at(index.row()).m_EmpName;
    if(index.column() == 1)
        return m_EmpList.at(index.row()).m_Id;

Because you missed the curly brackets here.

Please format your code properly with the </> - code tags!

[neetaj]

@Christian-Ehrlicher Thank you, Christian, it worked.
