GrabToImage on scaled desktop for Windows

David Boo

GrabToImage works fine on a monitor that has the Display factor size set to 100%, but when I try it on a monitor with the Display factor size set to 150% (which is recommended by Windows) the results of grabToImage are wrong.

Is this a bug ? Is it something I am doing wrong ? Are there any work arounds other then to tell the use to using only 100% for Display scale size.

Thanks in advance for any help.

-David

(I am using Qt 6.7.1 with MSVC 2019 on Windows 11)

Axel Spoerl

Hi David,
Please show the relevant code snipped (using the code formatting tags) and explain, in which way the result is wrong.

David Boo

Sorry for the delay. I was on vacation :) and thank for responding. I created a small git repository that is open, It is a tiny example and can be found here:

git clone git@bitbucket.org:boosalis/getimage.git

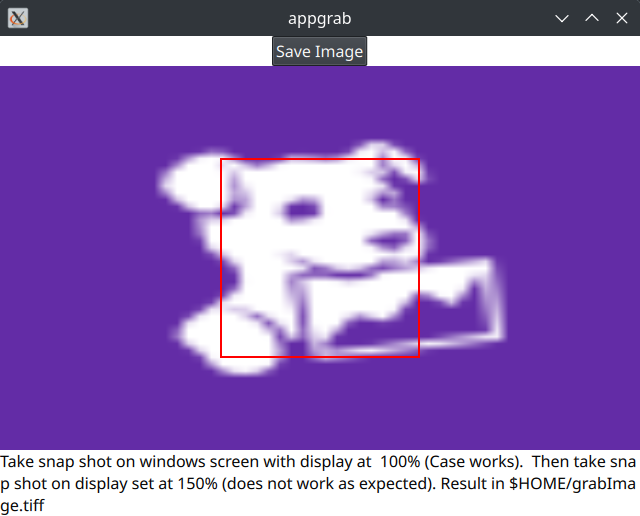

David Boo

 Button {
        id: saveToFileB
        text: "Save Image"
        anchors.top: parent.top
        anchors.horizontalCenter: parent.horizontalCenter
        onPressed:  {
            // yes I know selection area x & y area little offset but
            imageArea.grabToImage(function(result) {
                controller.saveImage(select.x, select.y, select.width, select.height,result.image)

            })
        }
    }
    Item {
        id: workArea
        anchors.top: saveToFileB.bottom
        anchors.left: parent.left
        anchors.right: parent.right
        anchors.bottom: instructionsL.top
        Image {
            id: imageArea
            source: "qrc:/DDOG.svg"
            anchors.fill: parent
        }
        Rectangle {
            id: select
            anchors.centerIn: imageArea
            width: 200
            height:200
            color: "transparent"
            border.width: 2
            border.color: "red"
            z: 2
        }
    }

Q_INVOKABLE void saveImage(int x, int y, int w, int h ,QVariant img) {
        QString tempFileName = QDir::homePath() + "/grabImage.tiff";
        QImage wholeImage = img.value<QImage>();
        QImage selectionOfImage = wholeImage.copy(x,y,w,h);
        selectionOfImage.save(tempFileName);
    }

David Boo

David Boo

Sorry public git interface is:
git clone https://dboosalis@bitbucket.org/boosalis/getimage.git

Axel Spoerl

Hi David,
You have answered the first of my question by posting the relevant code. You still haven’t explained, why you believe the result is wrong. Please don’t post external links. The bitbucket link is broken anyway. Just paste the photo here like you did with the screenshot.

David Boo

Hi Axel, very sorry about that.

The saved Image with Display Settings at 100% is this:

The saved Image when my Windows Desktop is set to 150% is this:

But in both case the region I want to capture (red box above) is correct for both displays

David Boo

@David-Boo

I resolved the issue with this:

function testShot() {
        pdfViewer.grabToImage(function(result) {
            let pd = Screen.devicePixelRatio
            controller.getSelection(selector.x*pd, selector.y*pd,selector.width*pd,selector.height*pd,result.image);
        })
    }

Axel Spoerl

Thanks for sharing! It’s actually a bug, which the workaround clearly demonstrates.
