Speed gauge needle malfunction

Sadok_J

i'm trying to create a speed gauge with a custom needle, and when i try to run the code weird things happen to my needle. It has it's own qml file the code is down below and i called it as a omponent in my speed.qml.

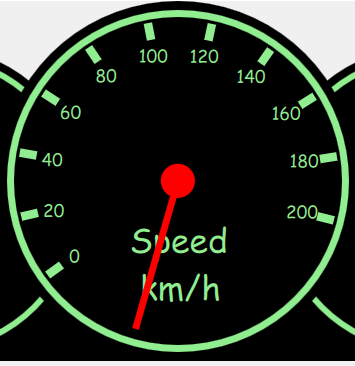

this is how my needle is behaving :

it just keeps going back and forth between those two positions.

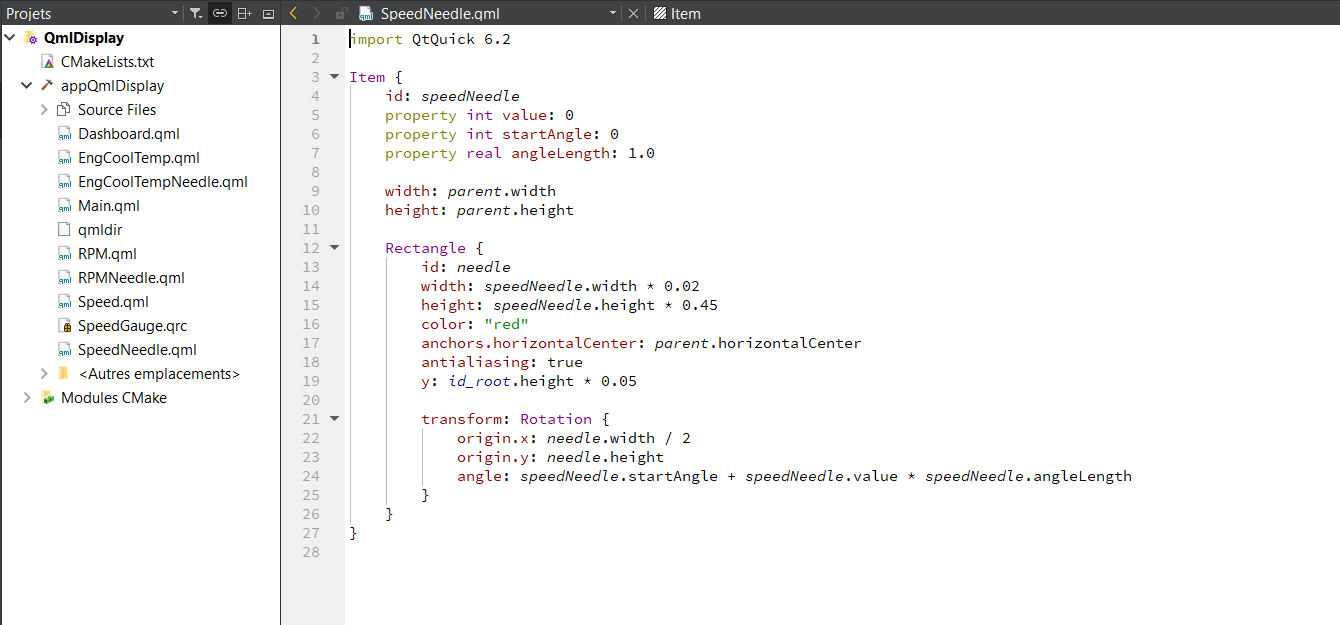

this is the speedNeedle.qml code:

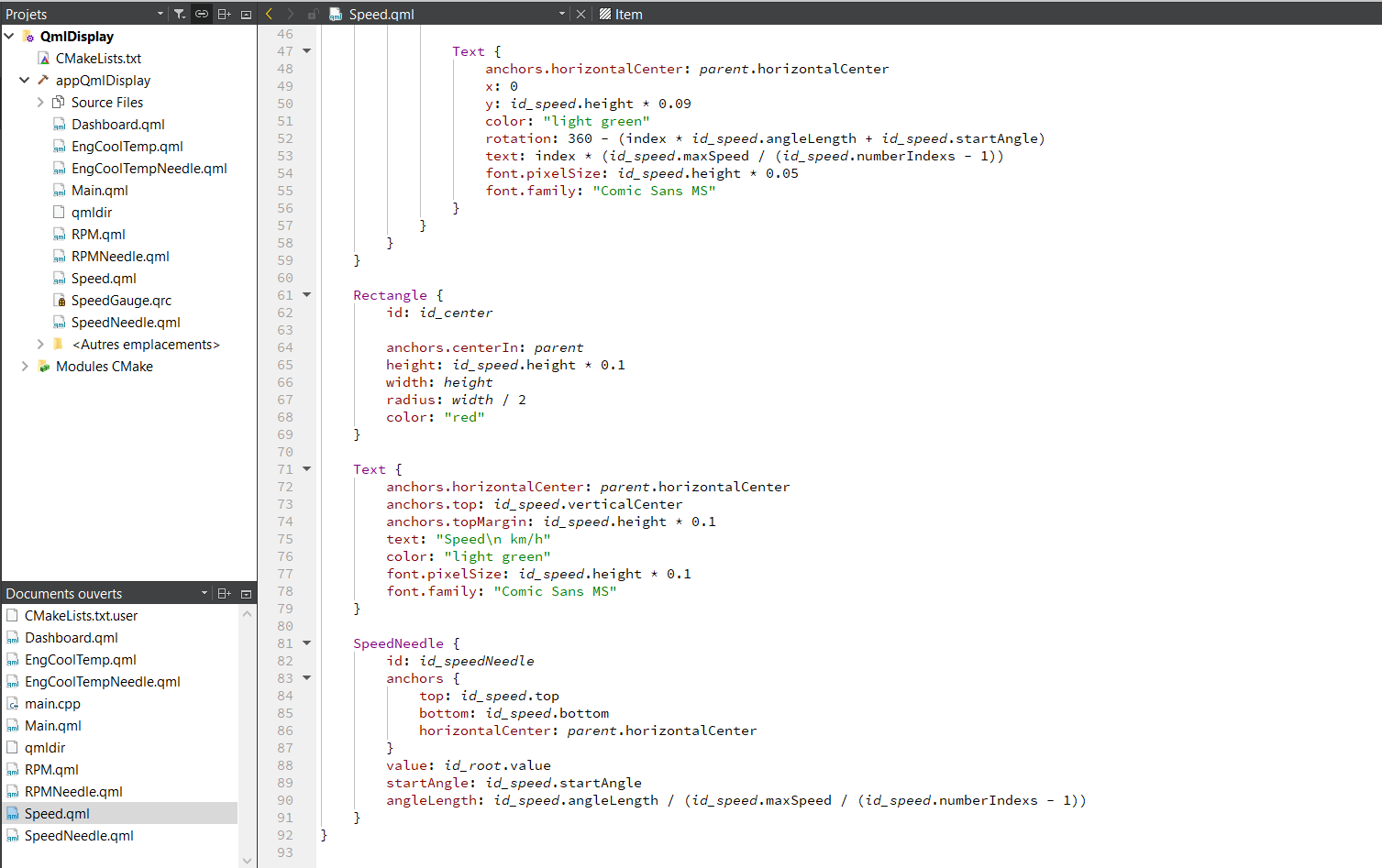

and this is the speed.qml code:

i tried using other code alternatives but it still the same problem. I'm expecting when i run the application my needle stays in one position which is the first value(in this case is 0).
any ideas how to fix it also if you have any suggestion on how to improve my code you are welcome to tell me

Markkyboy

It would be helpful if you cut and pasted your code instead of posting screenshots.

Sadok_J

i tried that but i had this message saying " this draft was flagged as spam by akismet.com" for some reason

Sadok_J

this is the content of the gauges file :
import QtQuick 6.2
import QtQuick.Controls 6.2

Item {
id: id_root
property int value: 0

Rectangle {
    id: id_speed

    property int numberIndexs: 11
    property int startAngle: 234
    property int angleLength: 23
    property int maxSpeed: 200
    anchors.centerIn: parent
    height: Math.min(id_root.width, id_root.height)
    width: height
    radius: width / 2
    color: "black"
    border.color: "light green"
    border.width: id_speed.height * 0.02

    Repeater {
        model: id_speed.numberIndexs

        Item {
            height: id_speed.height / 2
            transform: [
                Rotation {
                    origin.x: 0
                    origin.y: id_speed.height / 2
                    angle: index * id_speed.angleLength + id_speed.startAngle
                }
            ]
            x: id_speed.width / 2

            Rectangle {
                height: id_speed.height * 0.05
                width: height / 2
                color: "light green"
                antialiasing: true
                anchors.horizontalCenter: parent.horizontalCenter
                anchors.top: parent.top
                anchors.topMargin: id_speed.height * 0.03
            }

            Text {
                anchors.horizontalCenter: parent.horizontalCenter
                x: 0
                y: id_speed.height * 0.09
                color: "light green"
                rotation: 360 - (index * id_speed.angleLength + id_speed.startAngle)
                text: index * (id_speed.maxSpeed / (id_speed.numberIndexs - 1))
                font.pixelSize: id_speed.height * 0.05
                font.family: "Comic Sans MS"
            }
        }
    }
}

Rectangle {
    id: id_center

    anchors.centerIn: parent
    height: id_speed.height * 0.1
    width: height
    radius: width / 2
    color: "red"
}

Text {
    anchors.horizontalCenter: parent.horizontalCenter
    anchors.top: id_speed.verticalCenter
    anchors.topMargin: id_speed.height * 0.1
    text: "Speed\n km/h"
    color: "light green"
    font.pixelSize: id_speed.height * 0.1
    font.family: "Comic Sans MS"
}

SpeedNeedle {
    id: id_speedNeedle
    anchors {
        top: id_speed.top
        bottom: id_speed.bottom
        horizontalCenter: parent.horizontalCenter
    }
    value: id_root.value
    startAngle: id_speed.startAngle
    angleLength: id_speed.angleLength / (id_speed.maxSpeed / (id_speed.numberIndexs - 1))
}

}

Sadok_J

and this is the content of needle file :
import QtQuick 6.2

Item {
id: speedNeedle
property int value: 0
property int startAngle: 0
property real angleLength: 1.0

width: parent.width
height: parent.height

Rectangle {
    id: needle
    width: speedNeedle.width * 0.02
    height: speedNeedle.height * 0.45
    color: "red"
    anchors.horizontalCenter: parent.horizontalCenter
    antialiasing: true
    y: id_root.height * 0.05

    transform: Rotation {
        origin.x: needle.width / 2
        origin.y: needle.height
        angle: speedNeedle.startAngle + speedNeedle.value * speedNeedle.angleLength
    }
}

}
