Trying to gamma adjust a QImage

Perdrix

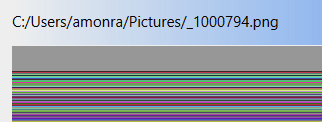

I've got code to apply a gamma adjustment to a QImage that works fine for QImage::Format_RGB32 images, but the code path for handling QImage::Format_RGBX64 doesn't work right giving results like this:

The code is quite short the template class T in this case is ushort and fMultiplier is 1.0:

else        // Must be RGB64
{
	for (int j = 0; j < height; j++)
	{
		QRgba64* pOutPixel = reinterpret_cast<QRgba64*>(pImageData + (j * bytes_per_line));
		if constexpr (std::is_same_v<BitmapClass<T>, CColorBitmapT<T>>)
		{
			// Init iterators
			T* pRed = pInBitmap->GetRedPixel(0, j);
			T* pGreen = pInBitmap->GetGreenPixel(0, j);
			T* pBlue = pInBitmap->GetBluePixel(0, j);

			for (int i = 0; i < width; i++)
			{
				*pOutPixel++ = QRgba64::fromRgba64(gammatrans.getTransformation16(*pRed / fMultiplier),
					gammatrans.getTransformation16(*pGreen / fMultiplier),
					gammatrans.getTransformation16(*pBlue / fMultiplier),
					std::numeric_limits<uint16_t>::max());
				pRed++;
				pGreen++;
				pBlue++;
			}
		}
		if constexpr (std::is_same_v<BitmapClass<T>, CGrayBitmapT<T>>)
		{
			// Init iterators
			T* pGray = pInBitmap->GetGrayPixel(0, j);
			unsigned char value = 0;

			for (int i = 0; i < width; i++)
			{
				value = gammatrans.getTransformation16(*pGray / fMultiplier);
				*pOutPixel++ = qRgba64(value, value, value, std::numeric_limits<uint16_t>::max());
				pGray++;
			}
		}
	}
	bResult = true;
}

Clearly it's not right but so far I've failed to spot the howler!

Can anyone spot my error?

Thank you
David

wrosecrans

You get the input value outside of the loop that iterates width pixels across the scanline. So every output pixel in the scanline has the same input.

@Perdrix said in Trying to gamma adjust a QImage:

T* pRed = pInBitmap->GetRedPixel(0, j);

JonB

@wrosecrans said in Trying to gamma adjust a QImage:

You get the input value outside of the loop that iterates width pixels across the scanline.

But code has pRed++; pGreen++; pBlue++; inside the loop?

Christian Ehrlicher

@JonB said in Trying to gamma adjust a QImage:

But code has pRed++; pGreen++; pBlue++; inside the loop?

Which is very strange - this means that the image data is grouped per color per line:

RRR...RRRGGG...GGGBBB....BBB
RRR...RRRGGG...GGGBBB....BBB
RRR...RRRGGG...GGGBBB....BBB

Which I doubt is the case. I knew that e.g. tiff is storing the single planes as separate images but this arrangement looks weird.

wrosecrans

@JonB said in Trying to gamma adjust a QImage:

But code has pRed++; pGreen++; pBlue++; inside the loop?

Ah, good point. But even that isn't correct, because if T* points to a 16 bit channel value, incrementing it won't increment it by the stride of a pixel. Though I'm not entirely sure what's really happening there because I don't see what type T is in the snippet. There may just not be enough information to properly answer the question because the types are unclear.

@Christian-Ehrlicher said in Trying to gamma adjust a QImage:

Which I doubt is the case. I knew that e.g. tiff is storing the single planes as separate images but this arrangement looks weird.

It's possible for TIFF to be planar, but it's not guaranteed because it's one of those formats with a zillion modes and sub-formats. TIFF can also be a container for something like JPEG, where the YUV data is planar, but by the time you have it decompressed into RGB in a QImage you would normally have it as chunky RGBRGBRGB rather than RRRGGGBBB.

My advice to OP is to step through the code in a debugger and look at exactly what's actually happening with a test input image. It's probably something unexpected.

JonB

@wrosecrans said in Trying to gamma adjust a QImage:

because if T* points to a 16 bit channel value, incrementing it won't increment it by the stride of a pixel. Though I'm not entirely sure what's really happening there because I don't see what type T is in the snippet.

@Perdrix said in Trying to gamma adjust a QImage:

the template class T in this case is ushort

:)

Presumably depends on whatever format QImage::Format_RGBX64 is. https://stackoverflow.com/a/57090489/489865 says

The image is stored using a 64-bit halfword-ordered RGB(x) format (16-16-16-16). This is the same as the Format_RGBX64 [I think he means Format_RGBA64] except alpha must always be 65535. (added in Qt 5.12)

if that helps....

Perdrix

@JonB The input bitmap is my own format which contains (effectively) three vectors of type <T> in this case uint16_t, so incrementing pRed will move to the next uint16_t in the red channel. At least that's the theory!

In practice it turns out there was a problem when converting a 16 bit QImage into the local representation that resulted in the local bitmap being corrupt!

So the code I posted may even be correct!!!

David
