Repeater， Abnormal display

[supper_DM]

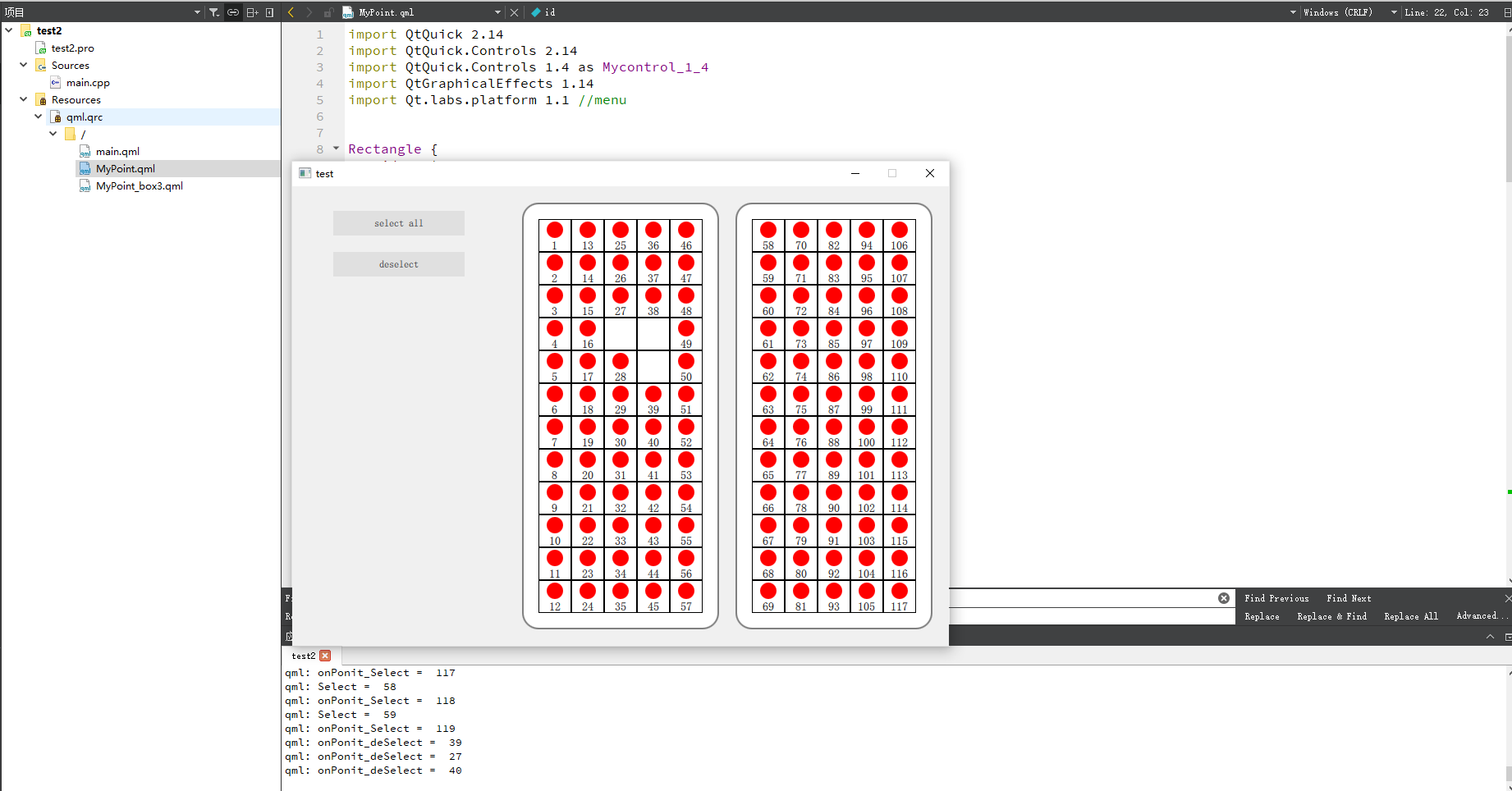

Figure 1：Normal
Figure 2，3，4： Once clicked, an exception occasionally appears

How can I do?

[Markkyboy]

@supper_DM - it'd be helpful to post some of your code so we can see what's going on..

[supper_DM]

description:
Left-clicking on a space will select it
Right-click the selected point and the menu - Delete will appear
Repeat operations and an exception will occur

win10 + QT5.14 MinGW 64bit

//main.qml----------------------------------------------------------
import QtQuick 2.14
import QtQuick.Controls 2.14
import Qt.labs.platform 1.1
import QtQuick.Window 2.14
Window {
    visible: true
    id:rect
    width: 800
    height: 560
    maximumWidth: width
    maximumHeight:height
    minimumWidth: width
    minimumHeight: height

    title: "test"
    color: "#f0f0f0"

    property var point_sequence: new Array//(int)

    Button{
        id:btn_all_select
        x:50
        y:30

        width: 160
        height: 30
        text:qsTr("select all")
        onClicked: {
            var i
            for(i=0; i<60; i++)
            {
                box_0.point_Select(i)
            }
            for(i=0; i<60; i++)
            {
                box_1.point_Select(i)
            }
        }
    }
    Button{
        id:btn_all_deSelect
        x:50
        y:80

        width: 160
        height: 30
        text:qsTr("deselect")
        onClicked: {
            for(var i in point_sequence)
            {
                if(point_sequence[i]<60)
                {
                    box_0.point_deSelect(point_sequence[i])
                }
                else if(point_sequence[i]<120)
                {
                    box_1.point_deSelect(point_sequence[i]-60)
                }
            }
            point_sequence = []
        }
    }


    MyPoint_box3{
        id:box_0
        anchors.top: parent.top
        anchors.right: box_1.left
        anchors.topMargin: 20
        anchors.rightMargin: 20
      //  visible: false
        property var box_no:0
        onSig_point_Select:{
            var abs_no = Number(no + 60 * box_no)
            console.log("onPonit_Select = ", abs_no);
            var len = point_sequence.length
            point_sequence.push(abs_no)
            set_point_index(no, len)
        }
        onSig_point_deSelect: {
            var abs_no = Number(no + 60 * box_no)
            console.log("onPonit_deSelect = ", abs_no);
            for(var i in point_sequence)
            {
                if(abs_no === point_sequence[i])
                {
                    point_sequence.splice(i,1)
                    break;
                }
            }
            reSet_sequence()
        }
    }
    MyPoint_box3{
        id:box_1
        anchors.top: parent.top
        anchors.right: parent.right
        anchors.topMargin: 20
        anchors.rightMargin: 20
       // visible: false
        property var box_no:1
        onSig_point_Select:{
            var abs_no = Number(no + 60 * box_no)
            console.log("onPonit_Select = ", abs_no);
            var len = point_sequence.length
            point_sequence.push(abs_no)
            set_point_index(no, len)
        }
        onSig_point_deSelect: {
            var abs_no = Number(no + 60 * box_no)
            console.log("onPonit_deSelect = ", abs_no);
            for(var i in point_sequence)
            {
                if(abs_no === point_sequence[i])
                {
                    point_sequence.splice(i,1)//delete
                    break;
                }
            }
            reSet_sequence()//reset index
        }
    }

    function reSet_sequence()
    {
        for(var i in point_sequence)
        {
            if(point_sequence[i]<60)
            {
                box_0.set_point_index(point_sequence[i], i)
            }
            else if(point_sequence[i]<120)
            {
                box_1.set_point_index(point_sequence[i]-60, i)
            }
        }
    }
}


//MyPoint_box3.qml---------------------------------------------------
import QtQuick 2.14
import QtQuick.Controls 2.14
import QtCharts 2.14
import QtQuick.Layouts 1.14

Rectangle{
    id:rect_main
    width: 240//40*(5+1)
    height: 520//40*(12+1)
    border.width: 2
    border.color: "gray"
    color: "white"
    radius: 20

    signal sig_point_Select(int no)
    signal sig_point_deSelect(int no)

    Rectangle{
        id:rect_box
        width: 200//40*(5)
        height: 480//40*(12)
        anchors.horizontalCenter: parent.horizontalCenter
        anchors.verticalCenter: parent.verticalCenter

        GridLayout{
            anchors.fill:parent
            rows: 12
            columns: 5
            rowSpacing: 0
            columnSpacing: 0
            flow:GridLayout.TopToBottom
            Repeater{
                id: myRepeater
                model: 60
                MyPoint
                {
                    myPos:index
                    onSig_select: {
                        rect_main.sig_point_Select(myPos)
                    }
                    onSig_deSelect: {
                        rect_main.sig_point_deSelect(myPos)
                    }
                }
            }
        }
    }




    function set_point_index(no, set_index)
    {
     //   pointArray[no].myIndex = set_index
        if(no<60)
        {
            myRepeater.itemAt(no).set_index(set_index)
        }
        else
        {
            console.log("set_point_index--error")
        }
    }


    function point_Select(no)
    {
        if(no<60)
        {
            myRepeater.itemAt(no).point_Select()
        }
        else
        {
            console.log("point_Select--error")
        }
    }
    function point_deSelect(no)
    {
     //   pointArray[no].myIndex = set_index
        if(no<60)
        {
            myRepeater.itemAt(no).point_deSelect()
        }
        else
        {
            console.log("point_deSelect--error")
        }
    }
}



//MyPoint.qml-----------------------------------------------------------
import QtQuick 2.14
import QtQuick.Controls 2.14
import QtQuick.Controls 1.4 as Mycontrol_1_4
import QtGraphicalEffects 1.14
import Qt.labs.platform 1.1 //menu


Rectangle {
    id:rect

    property int myPos: 0
    property int myIndex: 9999

    property bool flag_sel: false
    width: 40
    height: 40

    signal sig_select(int no)
    signal sig_deSelect(int no)
    color: "black"
    Rectangle{
        id:rect_border
        anchors.fill: parent
        anchors.margins: 1
        color: "white"
        Rectangle{
            id:rect_stat_led
            width: 20//parent.width/2
            height: 20//width
            radius: 10//width/2
            anchors.top: parent.top
            anchors.topMargin: 2
            anchors.horizontalCenter: parent.horizontalCenter
            color: "red"
            visible: flag_sel//false
        }
        Text {
            id: text_no
            text: "0"
            anchors.top: rect_stat_led.bottom
            anchors.topMargin: 2
            anchors.horizontalCenter: parent.horizontalCenter

            font.pixelSize: 14
            z:parent.z+1
            visible: flag_sel//rect_stat_led.visible
        }
    }
    MouseArea{
        anchors.fill: rect
        anchors.margins: 5
       // hoverEnabled: true
        acceptedButtons: Qt.LeftButton | Qt.RightButton
        onClicked: {
            focus = true
            if(mouse.button === Qt.LeftButton)
            {
                if(flag_sel)
                {//Selected, skip
                }
                else
                {
                    flag_sel = true
                    sig_select(myPos)
                }
            }
            else if(mouse.button === Qt.RightButton)
            {
                if(flag_sel)
                {
                    menu_right.open()
                }
            }
        }
    }

    Menu { // Right-click menu
        id: menu_right
        MenuItem {
            text: "delete"
            onTriggered:
            {
                flag_sel = false
                myIndex = -1
                sig_deSelect(myPos)
            }
        }
    }


    function set_pos(pos)
    {
        if(myPos !== pos)
        {
             myPos = pos
        }
    }
    function set_index(s_index)
    {
        if(myIndex !== s_index)
        {
            myIndex = s_index
            text_no.text = myIndex+1
        }

    }
    function point_Select()
    {
        if(flag_sel)
        {
        }
        else
        {
            console.log("Select = ", myPos)
            flag_sel = true
            sig_select(myPos)
        }
    }
    function point_deSelect()
    {
        flag_sel = false
        myIndex = -1
    }
}

When an exception occurs, the window is minimized and normal

[Markkyboy]

@supper_DM - without actually trying your code, I notice a potential problem.

Point or ponit?, there is a mixture of the two words, I assume ponit is a typo of point?, I'm not sure if this makes any difference.

I'll paste and play with your code a bit later, I'm at work at the moment ;)

What output, if any, do you get in console by way of errors?

[supper_DM]

@Markkyboy ， I am very sory. The code upload was repeated. I'm going out. I'll upload it in a few days

[Markkyboy]

@supper_DM - no worries, it does seem a little mixed up/repeated.

[supper_DM]

@Markkyboy ，I am comming and reupload the code.

[supper_DM]

@supper_DM
The raspberry PI tests were normal

[Markkyboy]

@supper_DM - I finally got your code to compile with a few adjustments using Row to tidy things up and make it "human readable" for me.

I've compiled it on my SailfishOS phone (Sony Xperia 10 II) but the squares are so small, I need to make it so I can see it properly (my eyesight is not brilliant with small objects).

I'll play later, right now, I've family issues to deal with. I don't see any of the artefacts you first mentioned.....is it fixed now?

[supper_DM]

@Markkyboy
I found a solution,add a code:
QCoreApplication::setAttribute(Qt::AA_UseSoftwareOpenGL);//add
