Grid layout doesn't work well

[ynakane]

Hi!
I want to arrange the rectangles as shown in the figure.

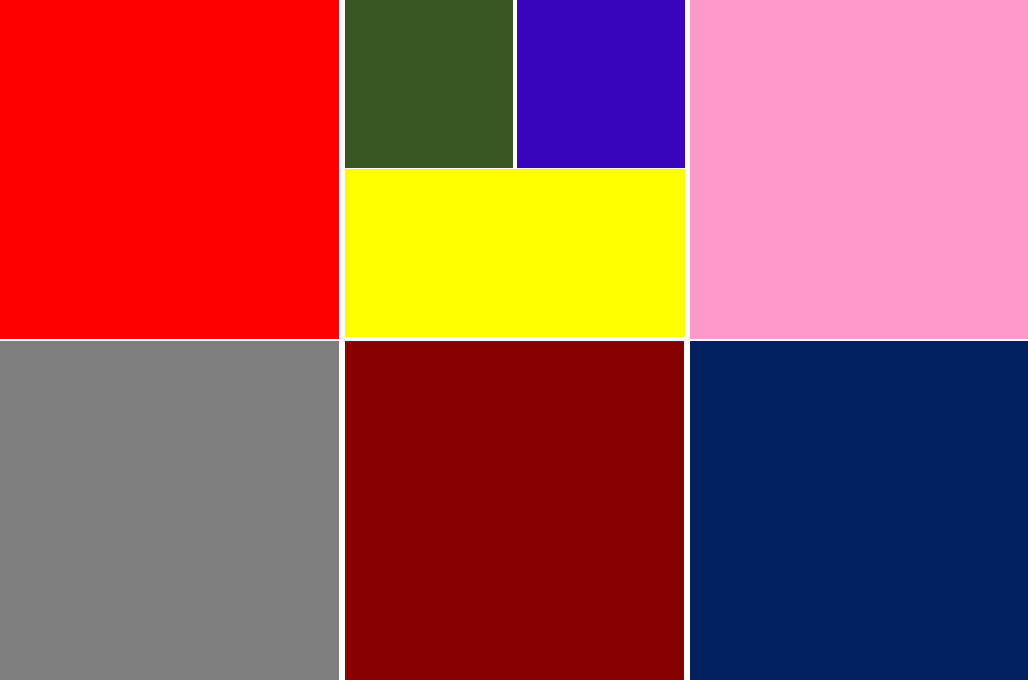

I implemented it using GridLayout, but it looks like the following, and I can't arrange it as I want.

Below is my code.
Does anyone know the cause?
Thank you.

GridLayout{
    id: gird
    anchors.fill: parent

    Rectangle{
        color: "red"
        Layout.fillWidth: true
        Layout.fillHeight: true
        Layout.column: 0
        Layout.row: 0
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "green"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 2
        Layout.row: 0
        Layout.columnSpan: 1
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "blue"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 3
        Layout.row: 0
        Layout.columnSpan: 1
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "yellow"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 2
        Layout.row: 1
        Layout.columnSpan: 2
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "pink"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 4
        Layout.row: 0
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "gray"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 0
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "brown"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 2
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "navy"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 4
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
}

[denishessberger]

Set a preferred height / width.

GridLayout{
    id: gird
    anchors.fill: parent

    Rectangle{
        color: "red"
        Layout.fillWidth: true
        Layout.fillHeight: true
        Layout.preferredWidth: 50
        Layout.preferredHeight: 50
        Layout.column: 0
        Layout.row: 0
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "green"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 2
        Layout.row: 0
        Layout.columnSpan: 1
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "blue"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 3
        Layout.row: 0
        Layout.columnSpan: 1
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "yellow"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 2
        Layout.row: 1
        Layout.columnSpan: 2
        Layout.rowSpan: 1
    }
    Rectangle{
        color: "pink"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.column: 4
        Layout.row: 0
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "gray"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.preferredWidth: 50
        Layout.preferredHeight: 50
        Layout.column: 0
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "brown"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.preferredWidth: 50
        Layout.column: 2
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
    Rectangle{
        color: "navy"
        Layout.fillHeight: true
        Layout.fillWidth: true
        Layout.preferredWidth: 50
        Layout.preferredHeight: 50
        Layout.column: 4
        Layout.row: 2
        Layout.columnSpan: 2
        Layout.rowSpan: 2
    }
}

[Tassos]

Unfortunately I don't know the cause, it is probably GridLayout's bad implementation, but I can suggest a workaround:

import QtQuick
import QtQuick.Window
import QtQuick.Layouts

Window {
  width: 640
  height: 480
  visible: true
  title: qsTr("Hello World")

  component StretchedRect: Rectangle {
    Layout.fillHeight: true
    Layout.fillWidth: true
    Layout.preferredWidth: Layout.columnSpan
    Layout.preferredHeight: Layout.rowSpan
  }

  GridLayout{
    id: gird
    anchors.fill: parent

    rows: 4
    columns: 6

    StretchedRect {
      color: "red"
      Layout.columnSpan: 2
      Layout.rowSpan: 2
    }

    StretchedRect {
      color: "green"
      Layout.columnSpan: 1
      Layout.rowSpan: 1
    }

    StretchedRect {
      color: "blue"
      Layout.columnSpan: 1
      Layout.rowSpan: 1
    }

    StretchedRect {
      color: "pink"
      Layout.columnSpan: 2
      Layout.rowSpan: 2
    }

    StretchedRect {
      color: "yellow"
      Layout.columnSpan: 2
      Layout.rowSpan: 1
    }

    StretchedRect {
      color: "gray"
      Layout.columnSpan: 2
      Layout.rowSpan: 2
    }

    StretchedRect {
      color: "brown"
      Layout.columnSpan: 2
      Layout.rowSpan: 2
    }

    StretchedRect {
      color: "navy"
      Layout.columnSpan: 2
      Layout.rowSpan: 2
    }
  }
}

Let me explain:
Since you want to arrange the rectangles in 6x4 grid.
I put the

    rows: 4
    columns: 6

properties in the GridLayout

That allows to reduce clutter removing all the Layout.column and Layout.row from the Rectangles since their position is implied.
Caution: the order of Rectangles is now significant. I had to place the yellow one bellow the pink one.

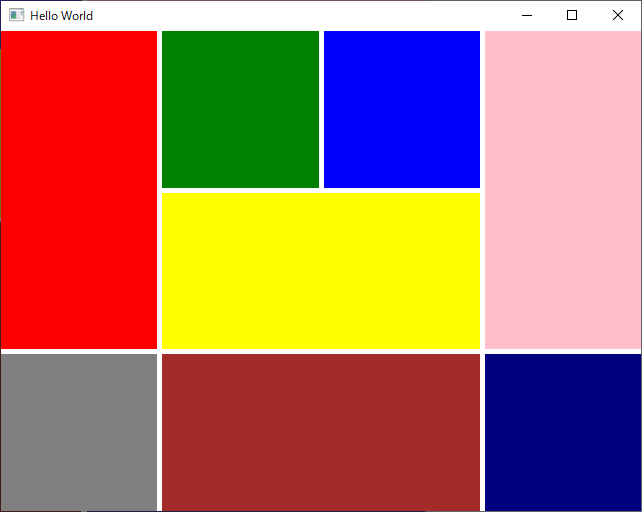

And finally setting the Layout.prefferedWidth and Layout.prefferedHeight for each rectangle to its corresponding columnSpan and rowSpan, forced the GridLayout to arrange them as you wanted.

HTH.

[ynakane]

@denishessberger

Thanks you for answering.
It works very well.
But I can't understand meaning of "50".

[ynakane]

@Tassos
Thanks you for answering.
It is very cool implementation and very helpful.
