  • mzimmersM Offline
    mzimmersM Offline
    mzimmers
    wrote on last edited by
    #1

    Hi all -

    I'm working with a customer's SoC. They have supplied a bunch of test programs, which are built with some combination of python and make that I don't understand (I'm kind of a build fish).

    I'm sure I'll have more questions later, but for now...is there a way to import make-based builds into Qt? As a first step, I'd like Creator to help me browse the project, but eventually, I'd like to use it to cross-build.

    I don't know whether this will help, but here's an excerpt from one of the make files:

    TARGET := hello_world_uart
    COMPILERNAME := gcc
    PROJECT := hello_world_uart_gcc
    CONFIG := bin

    SHELL:=/bin/bash
    #### Setup ####

    TOOLCHAIN ?= arm-none-eabi
    CPU = cortex-m4
    FPU = fpv4-sp-d16

    LINKER_FILE := ./linker_script.ld
    STARTUP_FILE := ./startup_$(COMPILERNAME).c

    #### Required Executables ####
    CC = $(TOOLCHAIN)-gcc
    GCC = $(TOOLCHAIN)-gcc
    ...

    EXECUTABLES = CC LD CP OD AR RD SIZE GCC
    K := $(foreach exec,$(EXECUTABLES),\
            $(if $(shell which $($(exec)) 2>/dev/null),,\
            $(info $(exec) not found on PATH ($($(exec))).)$(exec)))
    $(if $(strip $(value K)),$(info Required Program(s) $(strip $(value K)) not found))

    INCLUDES = -I../../../../..
    INCLUDES+= -I../../../../../utils


    The makefiles for each program are actually split in two -- there's one that's toolchain-independent, then another for each supported toolchain (gcc, iar, keil). This excerpt is from one of the latter.

    Thanks for any guidance...

    mz

    JKSHJ 1 Reply Last reply
    0
    • mzimmersM mzimmers

      Hi all -

      I'm working with a customer's SoC. They have supplied a bunch of test programs, which are built with some combination of python and make that I don't understand (I'm kind of a build fish).

      I'm sure I'll have more questions later, but for now...is there a way to import make-based builds into Qt? As a first step, I'd like Creator to help me browse the project, but eventually, I'd like to use it to cross-build.

      I don't know whether this will help, but here's an excerpt from one of the make files:

      TARGET := hello_world_uart
      COMPILERNAME := gcc
      PROJECT := hello_world_uart_gcc
      CONFIG := bin

      SHELL:=/bin/bash
      #### Setup ####

      TOOLCHAIN ?= arm-none-eabi
      CPU = cortex-m4
      FPU = fpv4-sp-d16

      LINKER_FILE := ./linker_script.ld
      STARTUP_FILE := ./startup_$(COMPILERNAME).c

      #### Required Executables ####
      CC = $(TOOLCHAIN)-gcc
      GCC = $(TOOLCHAIN)-gcc
      ...

      EXECUTABLES = CC LD CP OD AR RD SIZE GCC
      K := $(foreach exec,$(EXECUTABLES),\
              $(if $(shell which $($(exec)) 2>/dev/null),,\
              $(info $(exec) not found on PATH ($($(exec))).)$(exec)))
      $(if $(strip $(value K)),$(info Required Program(s) $(strip $(value K)) not found))

      INCLUDES = -I../../../../..
      INCLUDES+= -I../../../../../utils


      The makefiles for each program are actually split in two -- there's one that's toolchain-independent, then another for each supported toolchain (gcc, iar, keil). This excerpt is from one of the latter.

      Thanks for any guidance...

      mz

      JKSHJ Offline
      JKSHJ Offline
      JKSH
      Moderators
      wrote on last edited by
      #2

      @mzimmers said in convert make project into something I can browse in Creator:

      The makefiles for each program are actually split in two -- there's one that's toolchain-independent, then another for each supported toolchain (gcc, iar, keil)

      This sounds like a custom, complex setup.

      You can call qmake -project in the source directory to create a .pro file which lets you browse the code in Qt Creator, but it is unlikely that you can build the project correctly from Qt Creator without extensive modifications to the .pro file.

      is there a way to import make-based builds into Qt?

      Not that I know of. Normally, people use Makefile generators (qmake, CMake) to produce the Makefiles -- this is going in the opposite direction

      They have supplied a bunch of test programs, which are built with some combination of python and make that I don't understand

      I'd imagine that the easiest way forward is to ask them for step-by-step instructions and build the same way as they do.

      Qt Doc Search for browsers: forum.qt.io/topic/35616/web-browser-extension-for-improved-doc-searches

      1 Reply Last reply
      3
      • mzimmersM Offline
        mzimmersM Offline
        mzimmers
        wrote on last edited by
        #3

        Thanks, JKSH. I took your advice and ran qmake -project; got a big project file (much of which I discarded). I did this at the root of the SDK, so I can look at pretty much any example I want to. I had to add some INCLUDEPATHS, but I can now use Creator as a code browser, which is a big step.

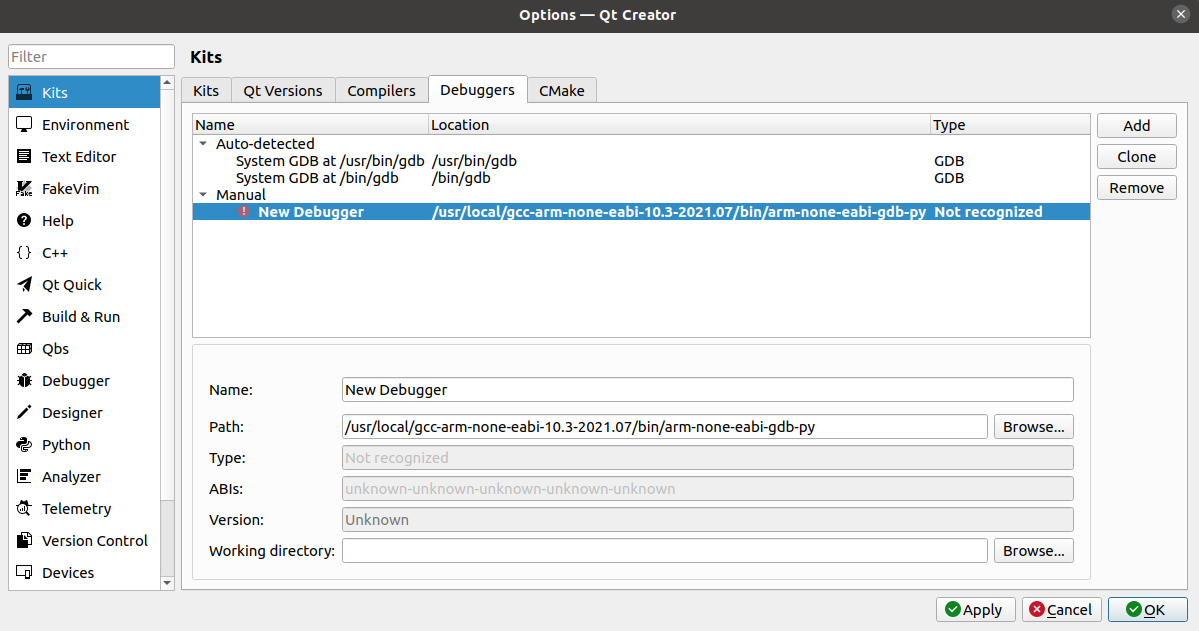

        I'd like to experiment with running builds from Creator as well. I'm trying to set up a kit for my device, but I'm getting hung up on pointing it to a debugger. I'm guessing the file below is the right one, but that's just a guess. Any idea what I need to do here to eliminate the "Not recognized" error? Or, can I somehow create a kit that doesn't include a debugger?
        Thanks...

        JKSHJ 1 Reply Last reply
        0
        • mzimmersM mzimmers

          Thanks, JKSH. I took your advice and ran qmake -project; got a big project file (much of which I discarded). I did this at the root of the SDK, so I can look at pretty much any example I want to. I had to add some INCLUDEPATHS, but I can now use Creator as a code browser, which is a big step.

          I'd like to experiment with running builds from Creator as well. I'm trying to set up a kit for my device, but I'm getting hung up on pointing it to a debugger. I'm guessing the file below is the right one, but that's just a guess. Any idea what I need to do here to eliminate the "Not recognized" error? Or, can I somehow create a kit that doesn't include a debugger?
          Thanks...

          JKSHJ Offline
          JKSHJ Offline
          JKSH
          Moderators
          wrote on last edited by JKSH
          #4

          @mzimmers said in convert make project into something I can browse in Creator:

          I'm guessing the file below is the right one, but that's just a guess. Any idea what I need to do here to eliminate the "Not recognized" error?

          I'm guessing that it's an executable built for ARM CPUs, so it can't run on your host (x86_64) CPU.

          Or, can I somehow create a kit that doesn't include a debugger?

          The debugger is optional. Just set "Debugger" = "None" when you configure your kit.

          Qt Doc Search for browsers: forum.qt.io/topic/35616/web-browser-extension-for-improved-doc-searches

          1 Reply Last reply
          0
          • mzimmersM Offline
            mzimmersM Offline
            mzimmers
            wrote on last edited by mzimmers
            #5

            I imagine you're right about the gdb file being intended for the ARM; thanks.

            I can't select my kit, because I don't have a Qt version selected. I've run into this problem before when trying to configure for bare-metal devices, but I don't remember the solution. I'll experiment and report back.

            EDIT: evidently I never found the solution, as reported in this thread from last year.

            Does anyone have any new information on what constitutes a "fake" Qt installation?

            mzimmersM 1 Reply Last reply
            0
            • mzimmersM mzimmers

              I imagine you're right about the gdb file being intended for the ARM; thanks.

              I can't select my kit, because I don't have a Qt version selected. I've run into this problem before when trying to configure for bare-metal devices, but I don't remember the solution. I'll experiment and report back.

              EDIT: evidently I never found the solution, as reported in this thread from last year.

              Does anyone have any new information on what constitutes a "fake" Qt installation?

              mzimmersM Offline
              mzimmersM Offline
              mzimmers
              wrote on last edited by
              #6

              @mzimmers hi guys - I have to bump this question about the "fake" installation; this is becoming too big an inconvenience to ignore any more.

              Perhaps the user forum isn't the right place for this question; where might be a better place for it?

              Thanks...

              JKSHJ 1 Reply Last reply
              0
              • mzimmersM mzimmers

                @mzimmers hi guys - I have to bump this question about the "fake" installation; this is becoming too big an inconvenience to ignore any more.

                Perhaps the user forum isn't the right place for this question; where might be a better place for it?

                Thanks...

                JKSHJ Offline
                JKSHJ Offline
                JKSH
                Moderators
                wrote on last edited by
                #7

                @mzimmers said in convert make project into something I can browse in Creator:

                @mzimmers hi guys - I have to bump this question about the "fake" installation; this is becoming too big an inconvenience to ignore any more.

                Perhaps the user forum isn't the right place for this question; where might be a better place for it?

                I don't have experience in this area, sorry.

                My next suggestion would be to try the Interest mailing list where Qt engineers hang out. You'll need to subscribe before posting.

                Alternatively, there are other groups online: https://wiki.qt.io/Online_Communities

                Qt Doc Search for browsers: forum.qt.io/topic/35616/web-browser-extension-for-improved-doc-searches

                1 Reply Last reply
                0
