Inconsistent look of QScrollBar on Windows

Scheduled Pinned Locked Moved Solved General and Desktop
2 Posts 1 Posters 447 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • T Offline
    T Offline
    Thinium
    wrote on last edited by Thinium
    #1

    I have a custom scroller which looks fine on Mac, but on Windows it has a strange gray background.

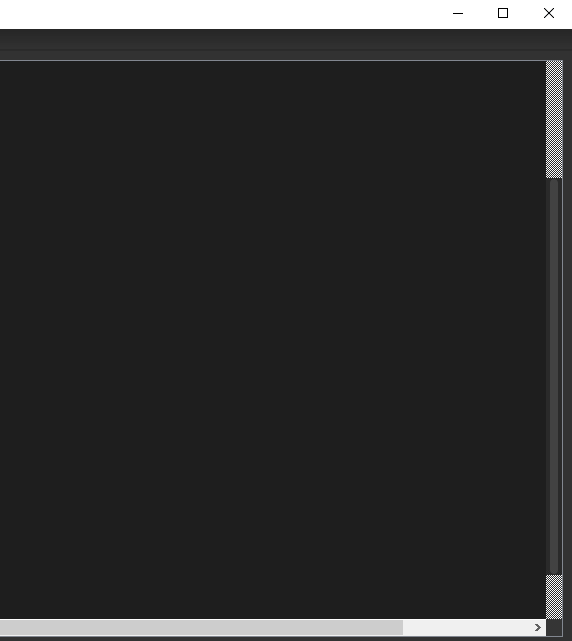

    Here is a photo of the custom vertical scroller. The horizontal scroller is the default scroller, just for comparison:

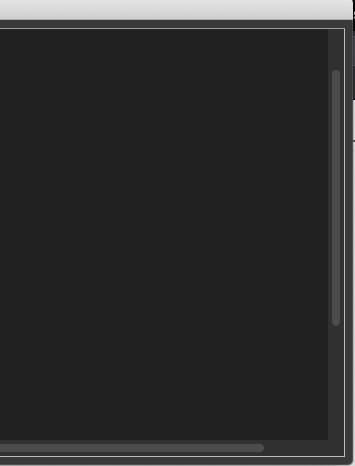

    Here is how it looks on Mac:
    Screen Shot 2020-07-24 at 17.28.13.png
    Here is my code for the custom scroller. Am I missing something in my stylesheet?

    // in the MainWindow:
    setStyleSheet( "QScrollBar:vertical { \
                      background:rgb(42, 42, 42); \
                      border-top-right-radius:2px; \
                      border-bottom-right-radius:2px; \
                      width:16px;\
                      margin:0px;\
                      }\
                      QScrollBar::handle:vertical { \
                      background-color:rgb(66, 66, 66); \
                      border-radius:4px; \
                      min-height:20px; \
                      margin:2px 4px 2px 4px;\
                      }\
                      QScrollBar::handle:vertical:hover, QScrollBar::handle:horizontal:hover{ \
                      background-color:rgb(42, 130, 218);\
                      }\
                      QScrollBar::add-line:vertical{ \
                      background:none;\
                      height:0px;\
                      subcontrol-position:right;\
                      subcontrol-origin:margin;\
                      }\
                      QScrollBar::sub-line:vertical {\
                      background:none;\
                      height:0px;\
                      subcontrol-position:left;\
                      subcontrol-origin:margin;\
                      }\
                      QScrollBar:left-arrow:horizontal, QScrollBar::right-arrow:horizontal {\
                          border: 2px solid grey;\
                          width: 3px;\
                          height: 3px;\
                          background: white;\
                      });

    1 Reply Last reply
    0
    • T Offline
      T Offline
      Thinium
      wrote on last edited by
      #2

      Turns out that I needed to add also the arrow and page definition on Windows. For example:

      QScrollBar:left-arrow:vertical, QScrollBar::right-arrow:vertical {
      border: 2px solid grey;
      width: 3px;
      height: 3px;
      background: white;
      }

      QScrollBar::add-page:vertical, QScrollBar::sub-page:vertical {
      background: none;
      }
      This fixed my original issue, but the arrows aren't visible (which doesn't matter in my case, but it's just weird that they don't show up).

      1 Reply Last reply
      1
