Text delegate updates in value, but Gauge delegate does not update value

[milan]

Hello, in following, text delegate updates in UI, but replacing it with gauge does not update the UI. There is nothing. I have no clue what went wrong.

    GridView {
        width: parent.width; height: parent.height
        cellHeight: 250
        cellWidth: 250
        model: amodel
        delegate: Component {
            id: redSquare
            Rectangle {
                color: "steelblue"
                width: 240
                height: 240
                Text {
                    text: value
                    anchors.centerIn: parent.Center
                    font.pointSize: 50
                }
            }
        }
    }

    GridView {
        width: parent.width; height: parent.height
        cellHeight: 250
        cellWidth: 250
        model: amodel
        delegate: Component {
            id: redSquare
            Gauge {
            value: value
            minimumValue: 0
            maximumValue: 100
            }
        }
    }

The model is QAbstractItemModel.

#include <QAbstractListModel>
#include <QStringList>
#include <QTimer>

class Animal
{
public:
    Animal(const QString &type, const QString &size, const int &value);

    QString type() const;
    QString size() const;
    int value() const;

    QString m_type;
    QString m_size;
    int m_value;
};


class AnimalModel : public QAbstractListModel
{
    Q_OBJECT
public:
    enum AnimalRoles {
        TypeRole = Qt::UserRole + 1,
        SizeRole,
        ValueRole
    };

    explicit AnimalModel(QObject *parent = nullptr);
    void addAnimal(const Animal &animal);
    int rowCount(const QModelIndex & parent = QModelIndex()) const;
    QVariant data(const QModelIndex & index, int role = Qt::DisplayRole) const;
    bool setData(const QModelIndex &index, const QVariant &value, int role = Qt::EditRole);

protected:
    QHash<int, QByteArray> roleNames() const;

private slots:
    void update();

private:
    QList<Animal> m_animals;
    QTimer* m_timer;
};

[milan]

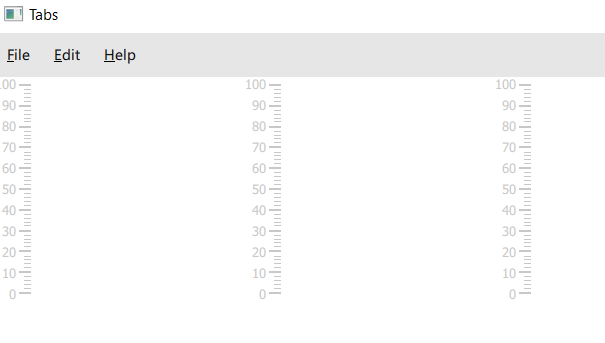

In gauge delegate, I can see only this.

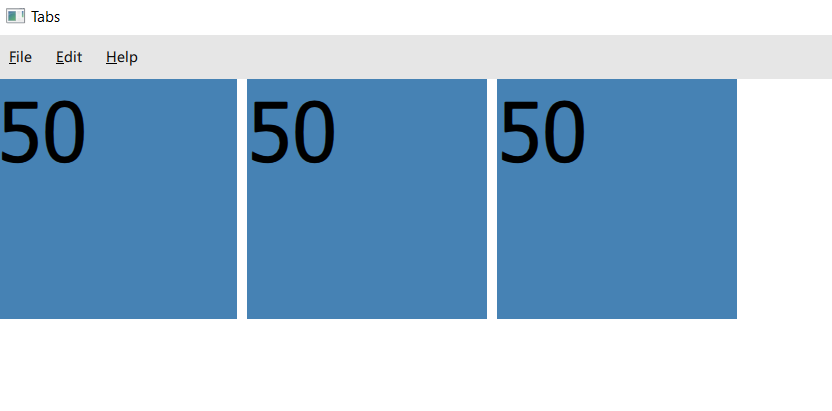

In Text delegates, I can see the changing values

[milan]

Also, I found the progressbar delegate also fails.

[J.Hilk]

Hi,
the problem is here :
@milan said in Text delegate updates in value, but Gauge delegate does not update value:

Gauge {
value: value
minimumValue: 0
maximumValue: 100
}

that Gauge has a property named value.
value: value
now binds the Gauge-Value to itself. You'll have to prepent the Item id.

Gauge {
            value: parent.value //parent is example, no idea where value actually comes from
            minimumValue: 0
            maximumValue: 100
            }
