Any one success to run 3Dstudio sample provide by QT on windows under MSVC2017?

filipdns

Hello, I try all example provide by QT and no one are working, all crash without any error message, could you help me please?

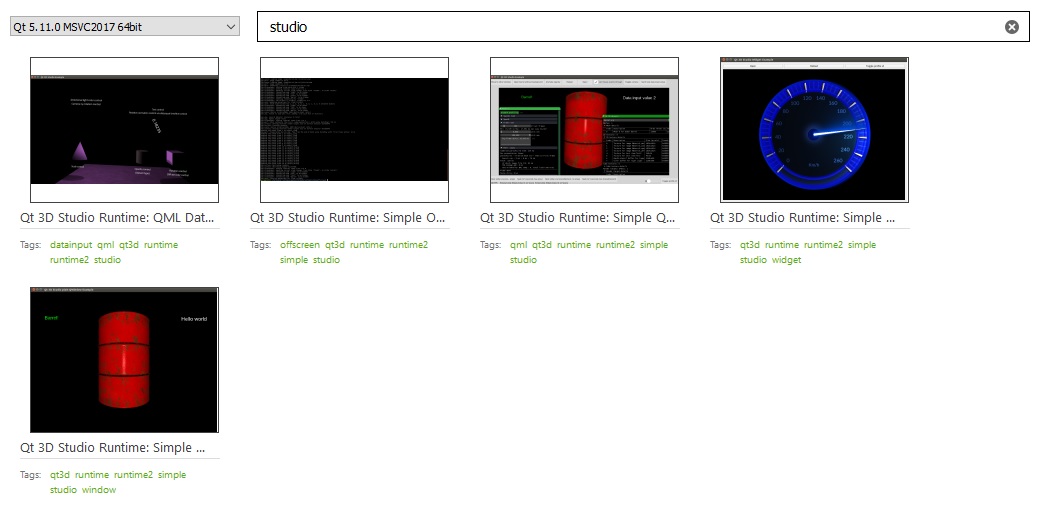

0_1534182194964_Sans titre.jpg

Diracsbracket

@filipdns
Tried to download it, but not available from the Qt Maintenance tool.
Tried to install it from the link provided in the comments section of this post:
http://blog.qt.io/blog/2018/06/26/qt-3d-studio-2-0-released/
but the server can't be accessed right now.
Will try again later, hopefully with more luck.

filipdns

This post is deleted!

filipdns

@Diracsbracket
filipdns d'ici environ 2 heures

Hello,

thank you, I did it but same crash for all project with 3D studio presentation in it...

Diracsbracket

Hi @filipdns
Does this require a commercial Qt license?

I just downloaded and installed 3DStudio 2.0 using the offline installer (it does simply not appear in my Qt Maintenance Tool).

However, I don't see any 3D Studio examples you shown in your picture.
My D:\Qt\qt3dstudio-2.0.0\Tools\Qt3DStudio\examples directory only contains a single example.

Where did you get the above examples? And did you just copied them to Qt Creator's examples directory?

I copied both QtStudio3D and QtStudio3D.2 subfolders from D:\Qt\qt3dstudio-2.0.0\Tools\Qt3DStudio\qml\ to my Qt installation folder under: D:\Qt\5.11.0\msvc2017_64\qml\

Then I tried one of the examples from https://git.qt.io/public-demos/qt3dstudio by loading its .pro file and added D:\Qt\qt3dstudio-2.0.0\Tools\Qt3DStudio\bin\ to the end of the PATH variable in the Run Environment for the build.

However, I get the error:

error: Unknown module(s) in QT: 3dstudioruntime2

What am I missing? I saw in one of your other posts that maybe the Boost library is required?

filipdns

@Diracsbracket I had the same problem before and I revomed all qt and made fresh installation of QT 5.11.0 and 3d studio and 3d studio runtime (not 5.11.1 it's not include 3d studio)

veryqtperson

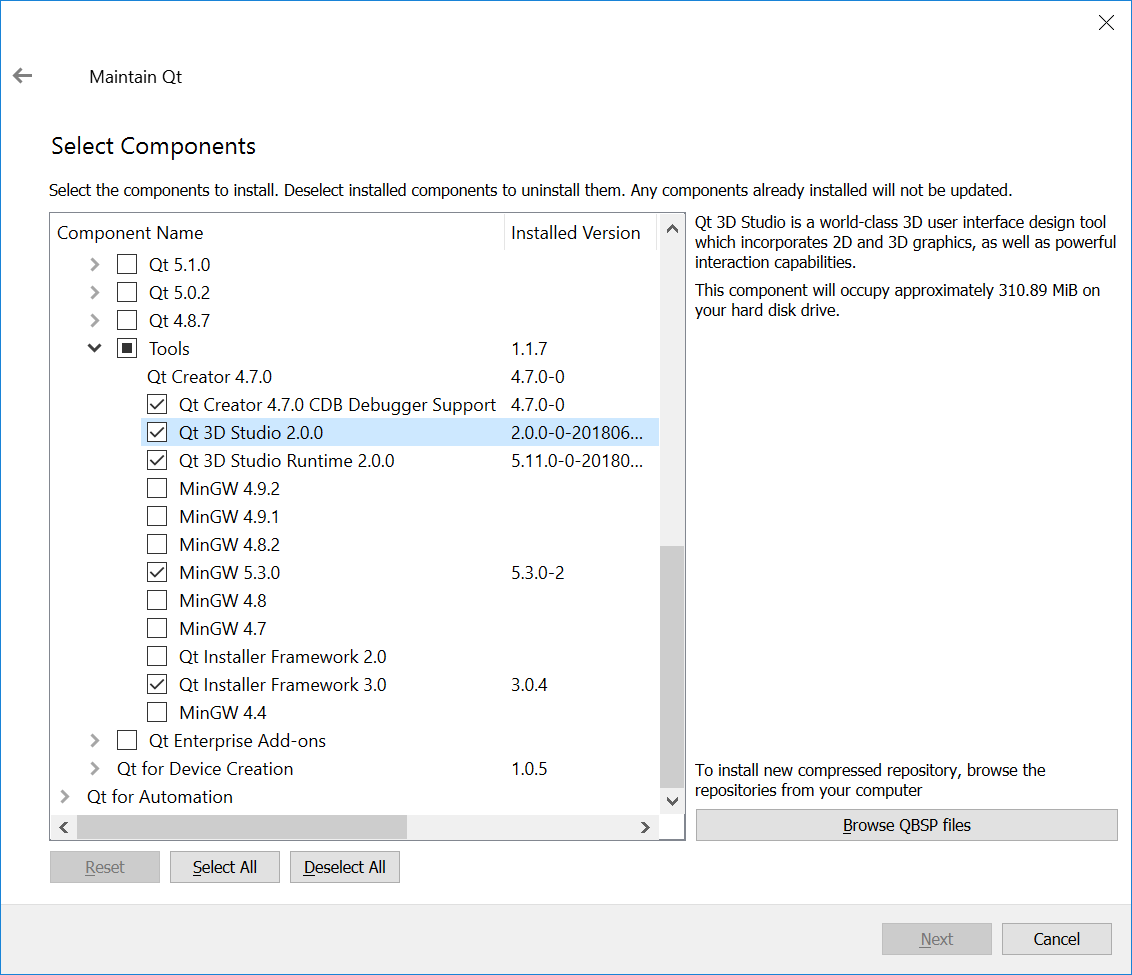

I've just installed it using MaintenanceTool:

Not sure if a commercial license is required for that, the tool is Open Sourced after all (although, its runtime does require a commercial license in some cases).

Regarding the crashes - check the application output, what renderer / OpenGL vendor is used on your machine?

  renderer: ANGLE (Intel(R) HD Graphics 4600 Direct3D11 vs_5_0 ps_5_0)
  vendor: Google Inc.
  version: OpenGL ES 3.0 (ANGLE 2.1.0.8613f4946861)

If it's ANGLE, then documentation says the following:

Non-native implementations, like ANGLE or software implementations like Mesa's llvmpipe may work but are not tested and can fail in unexpected ways

I also do experience such crashes with 3D Studio examples, but as you can see I have ANGLE, so that is expected although a bit unfortunate.

filipdns

@veryqtperson

Hello, yes QT just answers me and say remove angle but I'm with binary installation and I don't know how to do that...

veryqtperson

But does your system have any other OpenGL implementation available at all?

filipdns

@veryqtperson I have GEforce GTX745 with openGL 4.0

Diracsbracket

@filipdns said in Any one success to run 3Dstudio sample provide by QT on windows under MSVC2017?:

made fresh installation of QT 5.11.0

@veryqtperson said in Any one success to run 3Dstudio sample provide by QT on windows under MSVC2017?:

've just installed it using MaintenanceTool:

After uinstalling Qt, I used the latest online installer, which indeed shows the 3D Studio and 3DStudio Runtime entries as installation options under Tools now. These did not show up with my previous installer...

After installing it, the examples seem to work fine on my side as well.

veryqtperson

Try to set QT_OPENGL=desktop. If it helps (examples actually run and don't crash), then most probably you're using Qt Creator 4.7 and it has a related bug.

At least, that was the issue in my case, now 3D Studio examples work on my laptop.

filipdns

@veryqtperson great that solve the issue thank a lot!!!!

Shae

@filipdns how to set this in pro ?

Shae

@Shae I success run it with Qt5.11 and msvc 2017. if you used the wrong kits and qt version ,it can not work . I found the Qt5.12.0 do not have qt3dstudioruntime example.so I changed the version ,and it worked.
