How to change the increment of QAbstractAxis?

Scheduled Pinned Locked Moved Solved General and Desktop
3 Posts 2 Posters 633 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • E Offline
    E Offline
    El3ctroGh0st
    wrote on last edited by
    #1

    Hello,

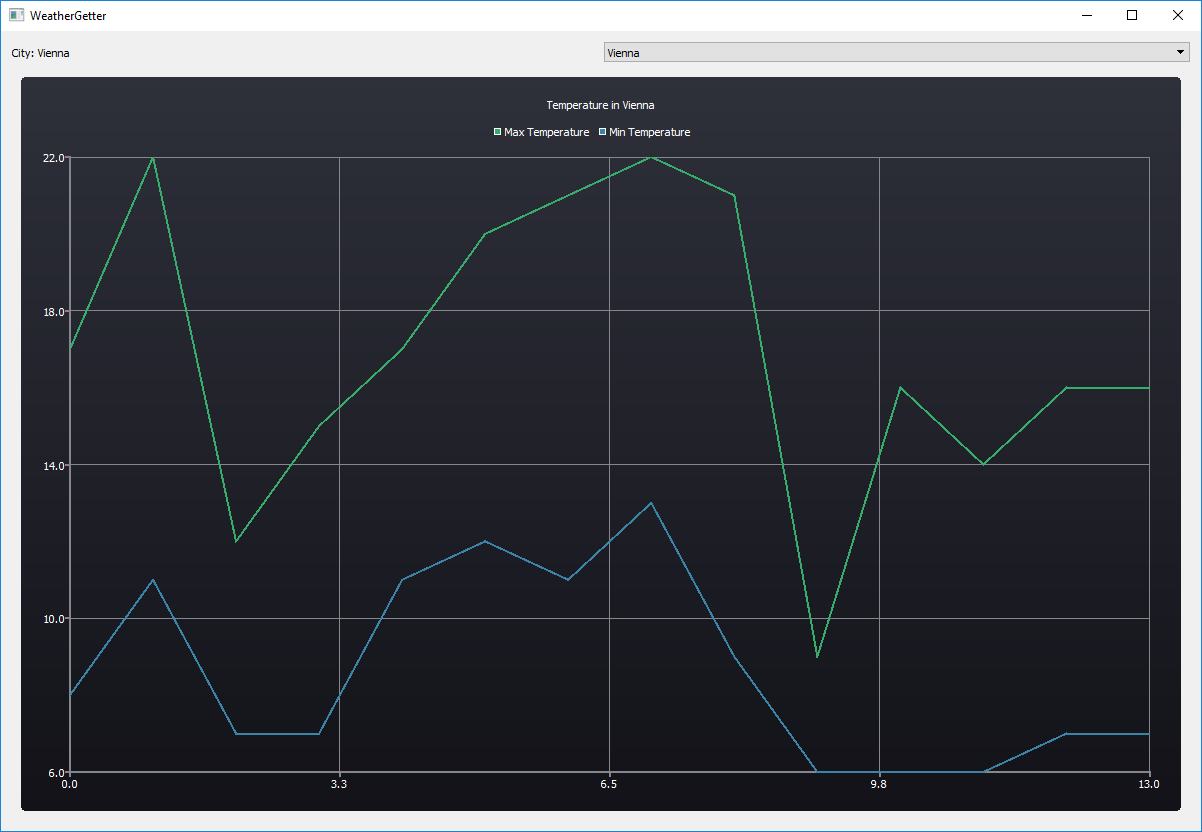

    I have this chart:
    However, I would like to change the increment of the x Axis to one so that it goes like {1,2,3,4,5...,12,13}. I have searched around the documentation of QAbstractAxis but I haven't been able to find anything that does something like that (maybe I'm just overlooking it, though). Is there a way to do this? (Also, it would be good if I could remove the .0 at the y Axis because I'm working with integers anyways).

    J.HilkJ 1 Reply Last reply
    0
    • E El3ctroGh0st

      Hello,
      I have this chart:
      However, I would like to change the increment of the x Axis to one so that it goes like {1,2,3,4,5...,12,13}. I have searched around the documentation of QAbstractAxis but I haven't been able to find anything that does something like that (maybe I'm just overlooking it, though). Is there a way to do this? (Also, it would be good if I could remove the .0 at the y Axis because I'm working with integers anyways).

      J.HilkJ Offline
      J.HilkJ Offline
      J.Hilk
      Moderators
      wrote on last edited by
      #2

      hi @El3ctroGh0st
      you should be able to modify the axes with QValueAxis::setRange(qreal min, qreal max) and QValueAxis::setTickCount(int count)
      Also you might want to take a look at void QValueAxis::applyNiceNumbers() may help on your case as well


      Be aware of the Qt Code of Conduct, when posting : https://forum.qt.io/topic/113070/qt-code-of-conduct


      Q: What's that?
      A: It's blue light.
      Q: What does it do?
      A: It turns blue.

      E 1 Reply Last reply
      4
      • J.HilkJ J.Hilk

        hi @El3ctroGh0st
        you should be able to modify the axes with QValueAxis::setRange(qreal min, qreal max) and QValueAxis::setTickCount(int count)
        Also you might want to take a look at void QValueAxis::applyNiceNumbers() may help on your case as well

        E Offline
        E Offline
        El3ctroGh0st
        wrote on last edited by
        #3

        @J.Hilk That fixed it, thank you!!

        1 Reply Last reply
        0
