QGraphicsView render() execute failed when set QOpenglWidget as viewport

Scheduled Pinned Locked Moved Unsolved General and Desktop
2 Posts 2 Posters 532 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • L Offline
    L Offline
    luzhigang
    wrote on last edited by luzhigang
    #1

    I want to use QOpenglwidget combie with QGraphicsView FrameWork.So I set the QOpenglWidget as the QgraphicsView's viewport.The function of QOpenglWidget is draw background texture.
    Then I add a QGraphicsTextItem to QGraphicsScene. But When I use QGraphicsView's render() function to print the screen contents into a QImage.I found that only QGrahicsTextItem is saved into QImage, the texture is not saved.
    But when I directly draw texture use QPainter in QGraphicsView's drawbackground() instead of use QOpenglwidget, both the QGraphicsTextItem and background texture are save into qimage.
    Why?
    Below is the render related source code.

    	m_pMyOpenglWidget = new MyOpenGLWidget(this);
    	setViewport(m_pMyOpenglWidget);
    	setViewportUpdateMode(QGraphicsView::FullViewportUpdate);

    QImage image(1920, 960, QImage::Format_ARGB32_Premultiplied);
    QPainter painter(&image);
    ui.graphicsView->render(&painter, QRectF(0, 0, showWidth, showHeight), QRect(renderLeft, renderTop, showWidth, showHeight));
    painter.setRenderHints(QPainter::Antialiasing | QPainter::SmoothPixmapTransform);
    image.save("D://test.png");

    void MyGraphicsView::drawBackground(QPainter *painter, const QRectF &rect)
    {
            //Method 1:direct draw use Painter.
    	//painter->drawImage(QPoint(0, 0), QImage("D:\\backup\\picture\\Panorama2D_1920_960.jpg"));

      //method2:OpenglWidget Method
      m_pMyOpenglWidget->drawPicturepaintGL();
    }



    Below is Render()'s result

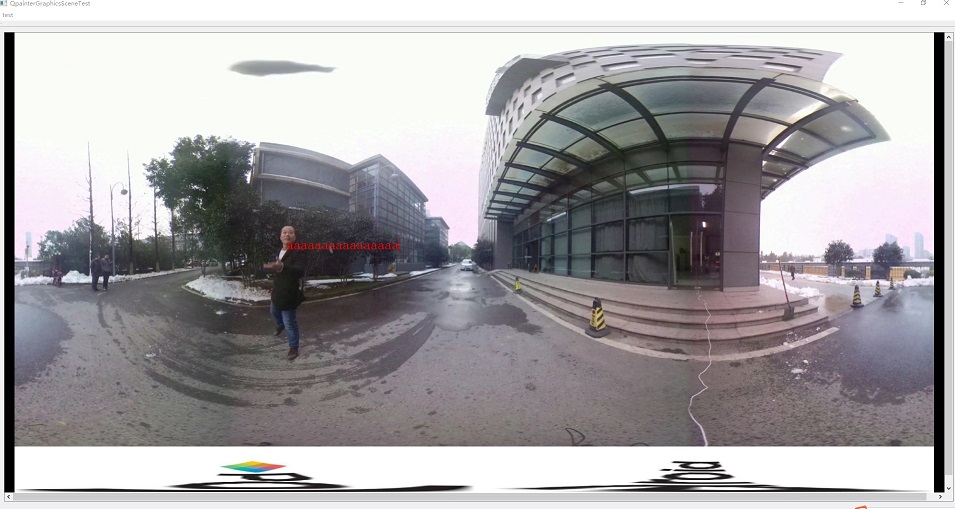

    below is real window contents

    K 1 Reply Last reply
    0
    • L luzhigang

      I want to use QOpenglwidget combie with QGraphicsView FrameWork.So I set the QOpenglWidget as the QgraphicsView's viewport.The function of QOpenglWidget is draw background texture.
      Then I add a QGraphicsTextItem to QGraphicsScene. But When I use QGraphicsView's render() function to print the screen contents into a QImage.I found that only QGrahicsTextItem is saved into QImage, the texture is not saved.
      But when I directly draw texture use QPainter in QGraphicsView's drawbackground() instead of use QOpenglwidget, both the QGraphicsTextItem and background texture are save into qimage.
      Why?
      Below is the render related source code.

      	m_pMyOpenglWidget = new MyOpenGLWidget(this);
      	setViewport(m_pMyOpenglWidget);
      	setViewportUpdateMode(QGraphicsView::FullViewportUpdate);

      QImage image(1920, 960, QImage::Format_ARGB32_Premultiplied);
      QPainter painter(&image);
      ui.graphicsView->render(&painter, QRectF(0, 0, showWidth, showHeight), QRect(renderLeft, renderTop, showWidth, showHeight));
      painter.setRenderHints(QPainter::Antialiasing | QPainter::SmoothPixmapTransform);
      image.save("D://test.png");

      void MyGraphicsView::drawBackground(QPainter *painter, const QRectF &rect)
      {
              //Method 1:direct draw use Painter.
      	//painter->drawImage(QPoint(0, 0), QImage("D:\\backup\\picture\\Panorama2D_1920_960.jpg"));

        //method2:OpenglWidget Method
        m_pMyOpenglWidget->drawPicturepaintGL();
      }



      Below is Render()'s result

      below is real window contents

      K Offline
      K Offline
      kenchan
      wrote on last edited by
      #2

      @luzhigang some code showing what you did would help people figure out what is wrong.
      preferably minimal app so people can try to reproduce it...

      1 Reply Last reply
      0
