    • ivanicy
      ivanicy last edited by

      Hello!!

      I am trying to use an histogram associated to a video streaming so, I want to update the chart frame by frame.
      I have a QPushButton associated to a signal wich shows the histogram with this slot:

      void MainWindow::createHistogram(bool status) {
          if (status) {
              showHist = true;

              chartHist = new QChart();

              int histSize[1] = {256}; // number of bins
              float hranges[2] = {0.0, 255.0}; // min andax pixel value
              const float* ranges[1] = {hranges};
              int channels[1] = {0}; // only 1 channel used

              cv::MatND hist;

              cv::Mat ret;
              imageFunctions::qimage_to_mat(imageViewer->item->pixmap().toImage(), ret);

              cv::calcHist(&ret, 1, channels, cv::Mat(), hist, 1, histSize, ranges);

              series = new QtCharts::QBarSet("");

              for (int h = 0; h < histSize[0]; ++h) {
                  float bin_value = hist.at<float>(h);
                  series->append(bin_value);
                  if (valueHistMax < bin_value) valueHistMax = bin_value;
              }

              QPen pen(0x09418B);
              pen.setWidth(3);
              series->setPen(pen);

              QHorizontalStackedBarSeries *barseries = new QHorizontalStackedBarSeries();
              barseries->append(series);

              chartHist->removeAllSeries();
              chartHist->addSeries(barseries);
              chartHist->setAnimationOptions(QChart::SeriesAnimations);
              chartHist->legend()->setVisible(false);
              chartHist->setMaximumWidth(100);
              chartHist->setMargins(QMargins(0,0,4,0));
              chartHist->setAcceptHoverEvents(true);
              chartHist->layout()->setContentsMargins(0,0,0,0);
              chartHist->setBackgroundRoundness(0);

              ui->histLayout->addWidget(chartViewHist);
          } else {
              delete series;
              delete chartHist;
              delete chartViewHist;
              showHist = false;
          }
      }


      And when I receive the next frame I call this function:

      void MainWindow::updateHistogram(cv::Mat *image) {

          int histSize[1] = {256}; // number of bins
          float hranges[2] = {0.0, 255.0}; // min andax pixel value
          const float* ranges[1] = {hranges};
          int channels[1] = {0}; // only 1 channel used

          cv::MatND hist;
          cv::calcHist(image, 1, channels, cv::Mat(), hist, 1, histSize, ranges);

          //series = new QtCharts::QBarSet("");

          for (int h = 0; h < histSize[0]; ++h) {
              float bin_value = hist.at<float>(h);
              series->replace(h, bin_value);
              //series->append(bin_value);
              if (valueHistMax < bin_value) valueHistMax = bin_value;
          }

          QPen pen(0x09418B);
          pen.setWidth(3);
          series->setPen(pen);

          QHorizontalStackedBarSeries *barseries = new QHorizontalStackedBarSeries();
          barseries->append(series);

          chartHist->removeAllSeries();
          chartHist->addSeries(barseries);

          //clearLayout(ui->histLayout);
          //ui->histLayout->addWidget(chartViewHist);
      }


      But this gives me a memory access error. I don't know how to do it. What could be wrong here?

      Thank you very much!!

      jsulm 1 Reply Last reply Reply Quote 0
      • jsulm
        jsulm Lifetime Qt Champion @ivanicy last edited by

        @ivanicy said in Update QChart in real time (QtWidgets):

        memory access error

        Where exactly? Did you try to debug? Did you check the stack trace when it crashes?

        https://forum.qt.io/topic/113070/qt-code-of-conduct

        ivanicy 1 Reply Last reply Reply Quote 0
        • ivanicy
          ivanicy @jsulm last edited by

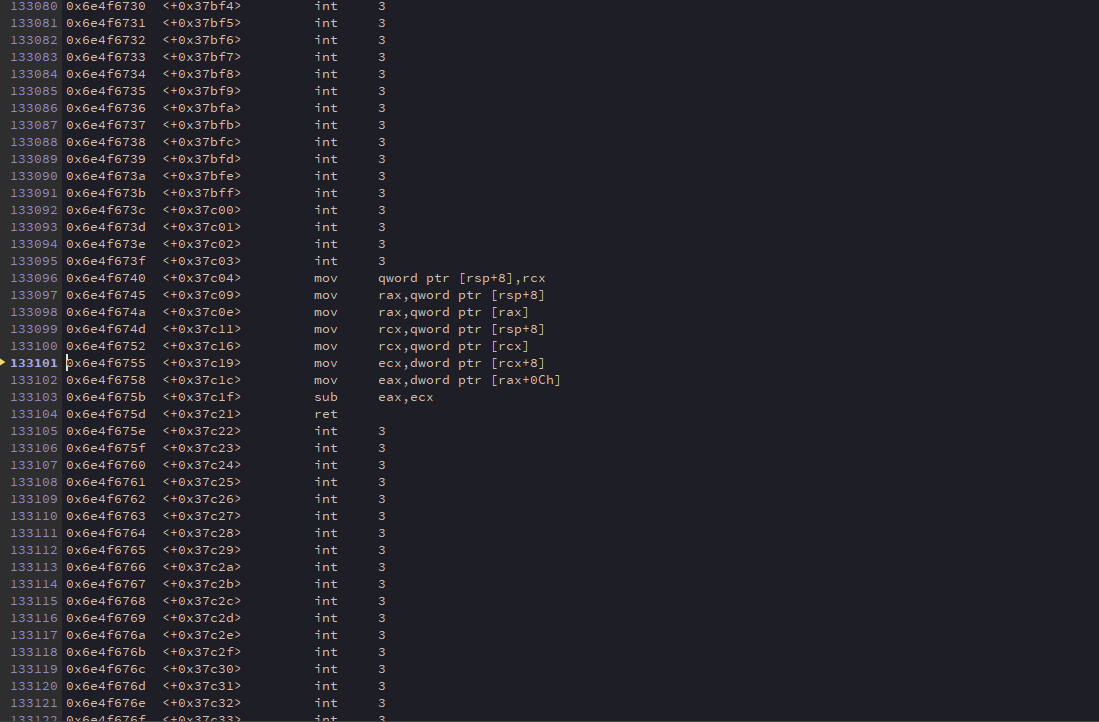

          @jsulm I don't know where. Is one of these times that appears an hexadecimal window, Qt doesn't show where is it crashed:


          I have this lines in the MainWindow constructor:

              chartHist = new QChart();
              chartViewHist = new QChartView(chartHist);
              chartViewHist->setRenderHint(QPainter::Antialiasing);
              chartViewHist->setMaximumWidth(100);


          I am wondering that it is crashing when I do the instantiation of the objects but I don't know.

          jsulm 1 Reply Last reply Reply Quote 0
          • jsulm
            jsulm Lifetime Qt Champion @ivanicy last edited by

            @ivanicy Are you testing with a release build? Build in debug mode and try again.

            https://forum.qt.io/topic/113070/qt-code-of-conduct

            ivanicy 1 Reply Last reply Reply Quote 0
            • ivanicy
              ivanicy @jsulm last edited by

              @jsulm I test in debug mode, and appears that. I was debugging line by line and only works the first time. The next calls of the function don't work.

              1 Reply Last reply Reply Quote 0
