QTabelView with Arabic-Indic numerals for the vertical header



  • I'm working on a project that requires arabic-indic numerals for numbering the vertical header. I've managed to set them manually as follows:

    m_model = new QStandardItemModel(this);
    m_model = new QStandardItemModel(15,3,this);
    m_model->setHorizontalHeaderItem(0, new QStandardItem(QString("الاول")));
    m_model->setHorizontalHeaderItem(1, new QStandardItem(QString("الثاني")));
    m_model->setHorizontalHeaderItem(2, new QStandardItem(QString("الثالث")));
    QStringList vertHeaders;
    vertHeaders << "١" << "٢" << "٣";
    m_model->setVerticalHeaderLabels( vertHeaders );
    ui->tableView->setModel(m_model);
    ui->tableView->setLayoutDirection(Qt::RightToLeft);
    ui->tableView->verticalHeader()->setDefaultAlignment(Qt::AlignCenter);

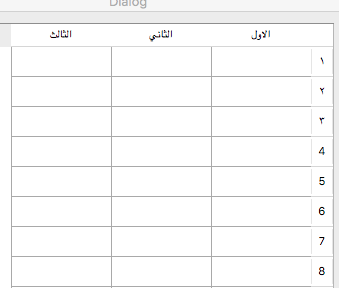

    With the following output:


    How to configure it and use Arabic-Indic as a default numbering system?



  • I would go as far as to say this is a Qt Bug.
    The problem is https://code.woboq.org/qt5/qtbase/src/widgets/itemviews/qheaderview.cpp.html#2765 is using QVariant::toString instead of QLocale::toString

    You'd need to subclass QHeaderView and reimplement void paintSection(QPainter *painter, const QRect &rect, int logicalIndex) const copy paste basically everything, wiggle out of using private stuff and replace opt.text = d->model->headerData(logicalIndex, d->orientation, Qt::DisplayRole).toString(); with:

    const QVaraiant textData = model()->headerData(logicalIndex, orientation(),Qt::DisplayRole);
    switch(textData.type()){
    case QMetaType::Int:
     opt.text = locale().toString(textData.toInt());
    break;
    // other cases for double/float, unsigned int and other signed/unsigned things (short, long long, etc), and dates/times
    default:
     opt.text = textData.toString();
    }




  • @VRonin Thank you for the answer. Would you please elaborate how can I subclass QHeaderView and how to pass the customized class to TableView. Thank you.


  • Lifetime Qt Champion

    Hi,

    QTableView::setVerticalHeader.

    class LocalizedHeaderView : public QHeaderView
    {
    protected:
        void paintSection(QPainter *painter, const QRect &rect, int logicalIndex) const
        {
            // The code
            const QVariant textData = model()->headerData(logicalIndex, orientation(),Qt::DisplayRole);
            switch (textData.type()) {
                case QMetaType::Int:
                opt.text = locale().toString(textData.toInt());
                break;
                // other cases for double/float, unsigned int and other signed/unsigned things (short, long long, etc), and dates/times
            default:
                opt.text = textData.toString();
            }
            // Rest of the code
        }
    };



  • @SGaist
    I got this error

    error: 'd_func' is a private member of 'QHeaderView'
            Q_D(const QHeaderView);



  • @VRonin said in QTabelView with Arabic-Indic numerals for the vertical header:

    wiggle out

    How do I avoid private members?


  • Lifetime Qt Champion

    Just thought of a possibly simpler way: why not subclass the headerData method and fix there the returned value ?



  • @SGaist could you please elaborate a bit?


  • Lifetime Qt Champion

    @CroCo
    Hi
    headerdata is a virtual function in the model
    http://doc.qt.io/qt-5/qabstractitemmodel.html#headerData
    It returns the data used in headers for any HedaderView attached.
