Qt5 - chartView->grab() doesn't capture child elements



  • I'm trying to plot data in a QLabel widget using bar chart format. After the chart is created, I capture it using chartView->grab() for insertion into the QLabel. This approach works with a pie chart, but for a bar chart the child elements (QBarSeries and QBarSet) are not displayed.

    The code is as follows:

    QT_CHARTS_USE_NAMESPACE

    QChartView* chartView = new QChartView();
    chartView->setRenderHint(QPainter::Antialiasing);

    QChart* chart = chartView->chart();

    QBarSeries *series = new QBarSeries();

    QBarCategoryAxis *categories = new QBarCategoryAxis();
    QBarSet *set0 = new QBarSet("test");
    set0->setBrush(Qt::blue);

    for (int i = 0; i < 20; ++i) {
        set0->append(static_cast<double>(10-std::abs(10-i)));
        categories->append(QString::number(i));
    }
    series->append(set0);

    chart->addSeries(series);
    chart->setAnimationOptions(QChart::SeriesAnimations);
    chart->setTitle("Plot Test");

    chart->setAxisX(categories, series);
    chart->createDefaultAxes();

    chart->legend()->setVisible(true);
    chart->legend()->setAlignment(Qt::AlignBottom);


    *m_chart = chartView->grab();

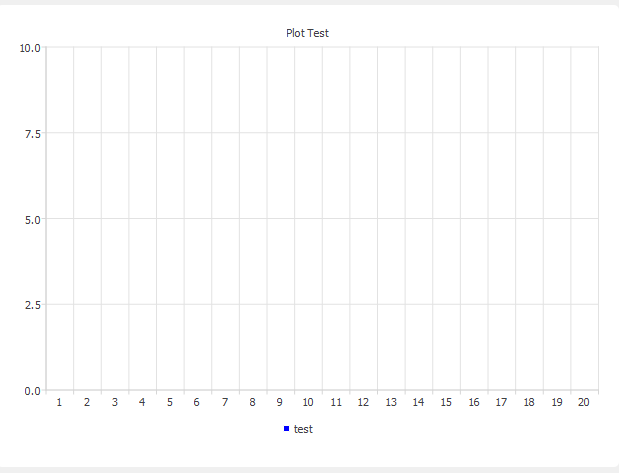

    This is the displayed image:


    If instead, I do:

    chartView->show();

    A window pops up with QBarSeries data included. Any ideas on why the grab() method is not capturing the child elements?



  • chart->setAnimationOptions(QChart::SeriesAnimations); that makes the series grow in an animation. you are probably capturing the first frame of that animation.



  • That was it. Removing the call to:

    chart->setAnimationOptions(QChart::SeriesAnimations);

    resolved the issue.

    Thanks!
