Qt Creator fails to recognize the GDB whose version output contains extra numbers

novum

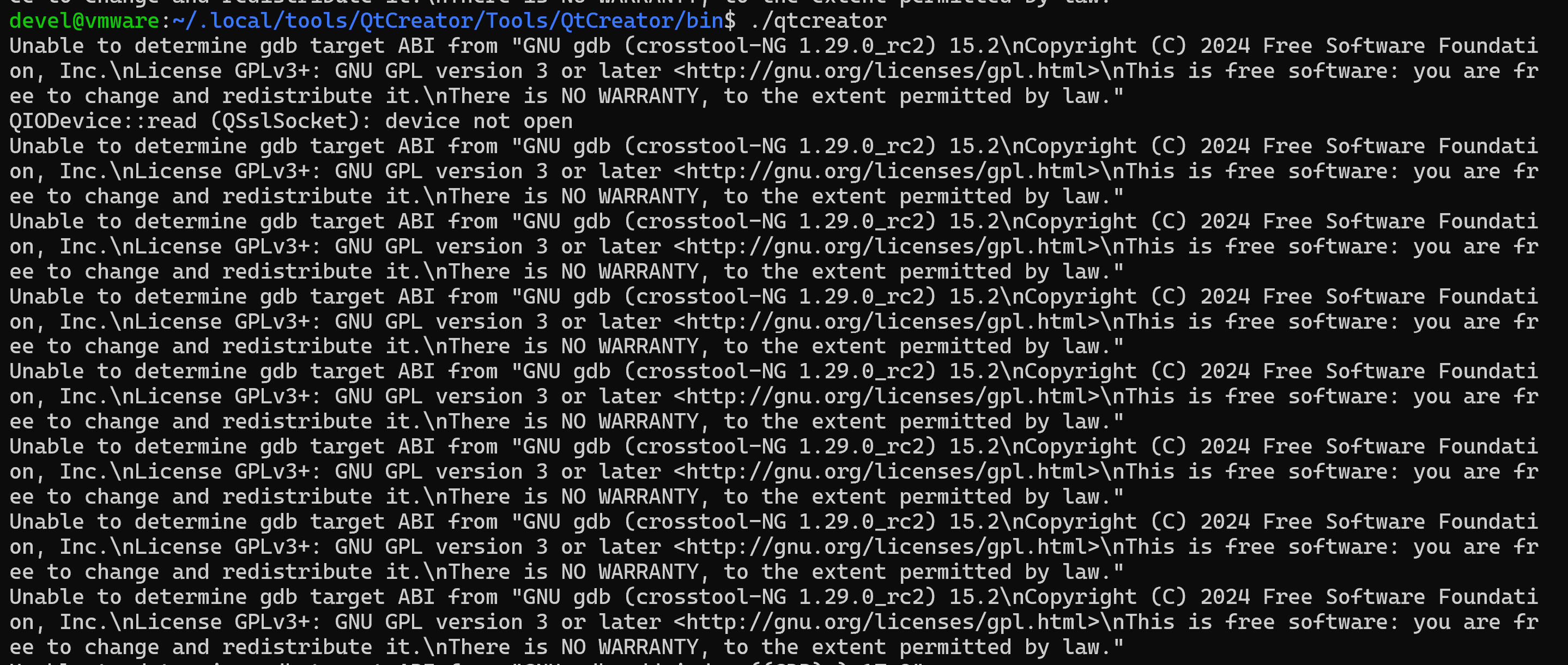

Qt Creator cannot parse the GDB version string because it contains additional version information (from crosstool-NG), causing ABI detection to fail.

SGaist

So it's a Qt Creator issue. The version string contains extra stuff that trips the parser. Hence the wrong version shown in the dialog.

I created QTCREATORBUG-34887 to track it.
Patch in progress.

novum

Both GDBs are built by crosstool-NG. Their version output is as follows:

./aarch64-linux-gnu-gdb --version
GNU gdb (crosstool-NG 1.29.0_rc2) 17.2
Copyright (C) 2025 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.

./aarch64-linux-gnu-gdb --version
GNU gdb (GDB) 17.2
Copyright (C) 2025 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.

The only difference is the text inside the parentheses -- one say 'crosstool-NG 1.29.0_rc2', the another says 'GDB'.

SGaist

Hi,

What output do you get if you call each of them with --configuration ?

novum

The 'crosstool-NG' GDB output is shown as follows:

./aarch64-linux-gnu-gdb --configuration
This GDB was configured as follows:
   configure --host=x86_64-build_pc-linux-gnu --target=aarch64-linux-gnu
             --with-auto-load-dir=$debugdir:$datadir/auto-load
             --with-auto-load-safe-path=$debugdir:$datadir/auto-load
             --with-expat
             --with-gdb-datadir=/home/devel/workspace/staging/aarch64-linux-gnu-ct-ng/share/gdb (relocatable)
             --with-jit-reader-dir=/home/devel/workspace/staging/aarch64-linux-gnu-ct-ng/lib/gdb (relocatable)
             --without-libunwind-ia64
             --with-lzma
             --without-babeltrace
             --without-intel-pt
             --without-xxhash
             --with-python=/usr
             --with-python-libdir=/usr/lib
             --without-debuginfod
             --with-curses
             --without-guile
             --without-amd-dbgapi
             --disable-source-highlight
             --enable-threading
             --enable-tui
             --without-system-readline
             --with-separate-debug-dir=/home/devel/workspace/staging/aarch64-linux-gnu-ct-ng/lib/debug (relocatable)
             --with-sysroot=/home/devel/workspace/staging/aarch64-linux-gnu-ct-ng/aarch64-linux-gnu/sysroot (relocatable)

("Relocatable" means the directory can be moved with the GDB installation
tree, and GDB will still find it.)

GNU Readline library version: 8.2       (internal)

novum

The 'GDB' GDB output is shown as follows:

./aarch64-linux-gnu-gdb --configuration
This GDB was configured as follows:
   configure --host=x86_64-build_pc-linux-gnu --target=aarch64-linux-gnu
             --with-auto-load-dir=$debugdir:$datadir/auto-load
             --with-auto-load-safe-path=$debugdir:$datadir/auto-load
             --with-expat
             --with-gdb-datadir=/home/devel/workspace/staging/aarch64-linux-gnu/share/gdb (relocatable)
             --with-jit-reader-dir=/home/devel/workspace/staging/aarch64-linux-gnu/lib/gdb (relocatable)
             --without-libunwind-ia64
             --with-lzma
             --without-babeltrace
             --without-intel-pt
             --without-xxhash
             --with-python=/usr
             --with-python-libdir=/usr/lib
             --without-debuginfod
             --with-curses
             --without-guile
             --without-amd-dbgapi
             --disable-source-highlight
             --enable-threading
             --enable-tui
             --without-system-readline
             --with-separate-debug-dir=/home/devel/workspace/staging/aarch64-linux-gnu/lib/debug (relocatable)
             --with-sysroot=/home/devel/workspace/staging/aarch64-linux-gnu/aarch64-linux-gnu/sysroot (relocatable)

("Relocatable" means the directory can be moved with the GDB installation
tree, and GDB will still find it.)

GNU Readline library version: 8.2       (internal)

novum

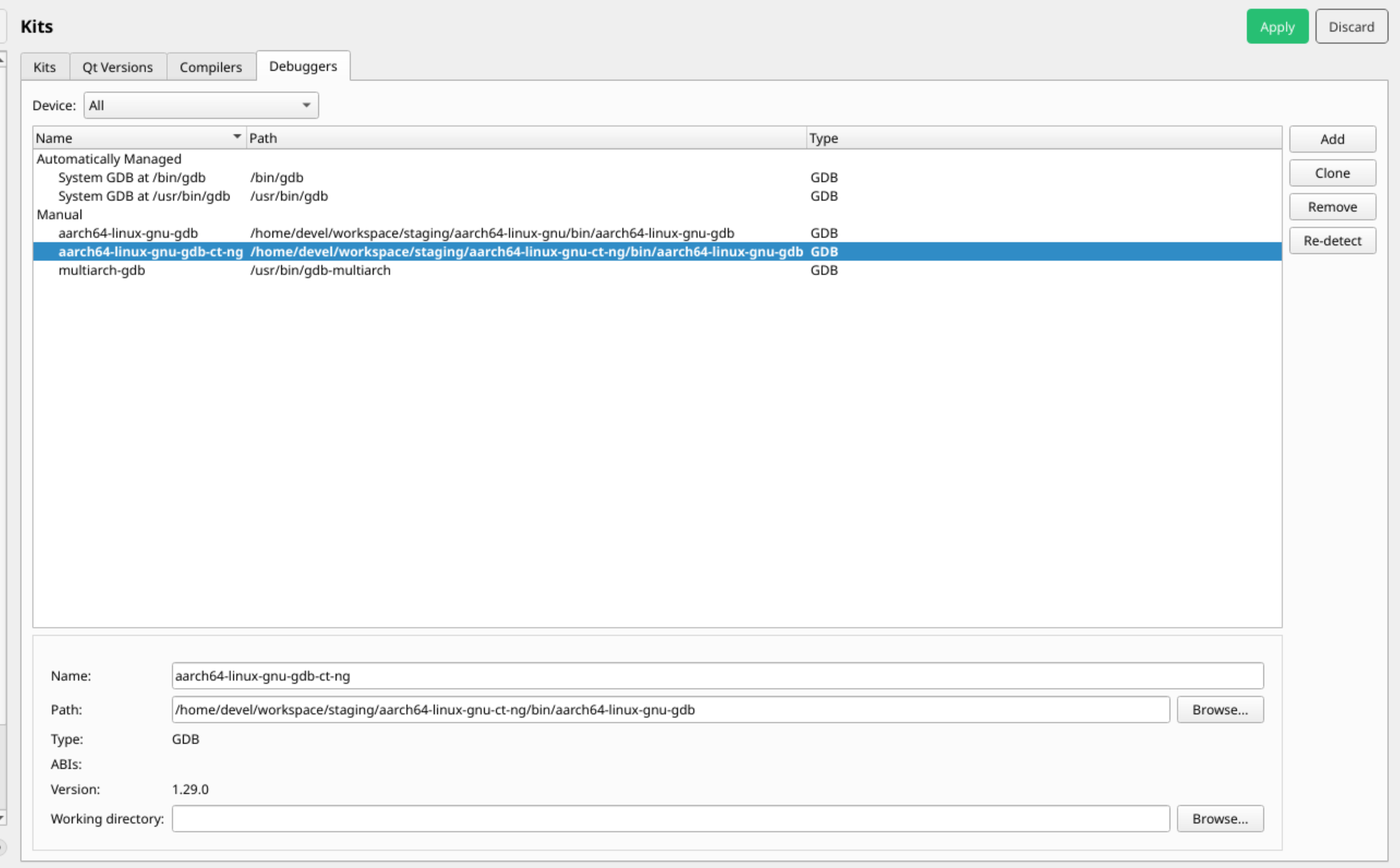

Adding the 'crosstool-NG' GDB in Qt Creator

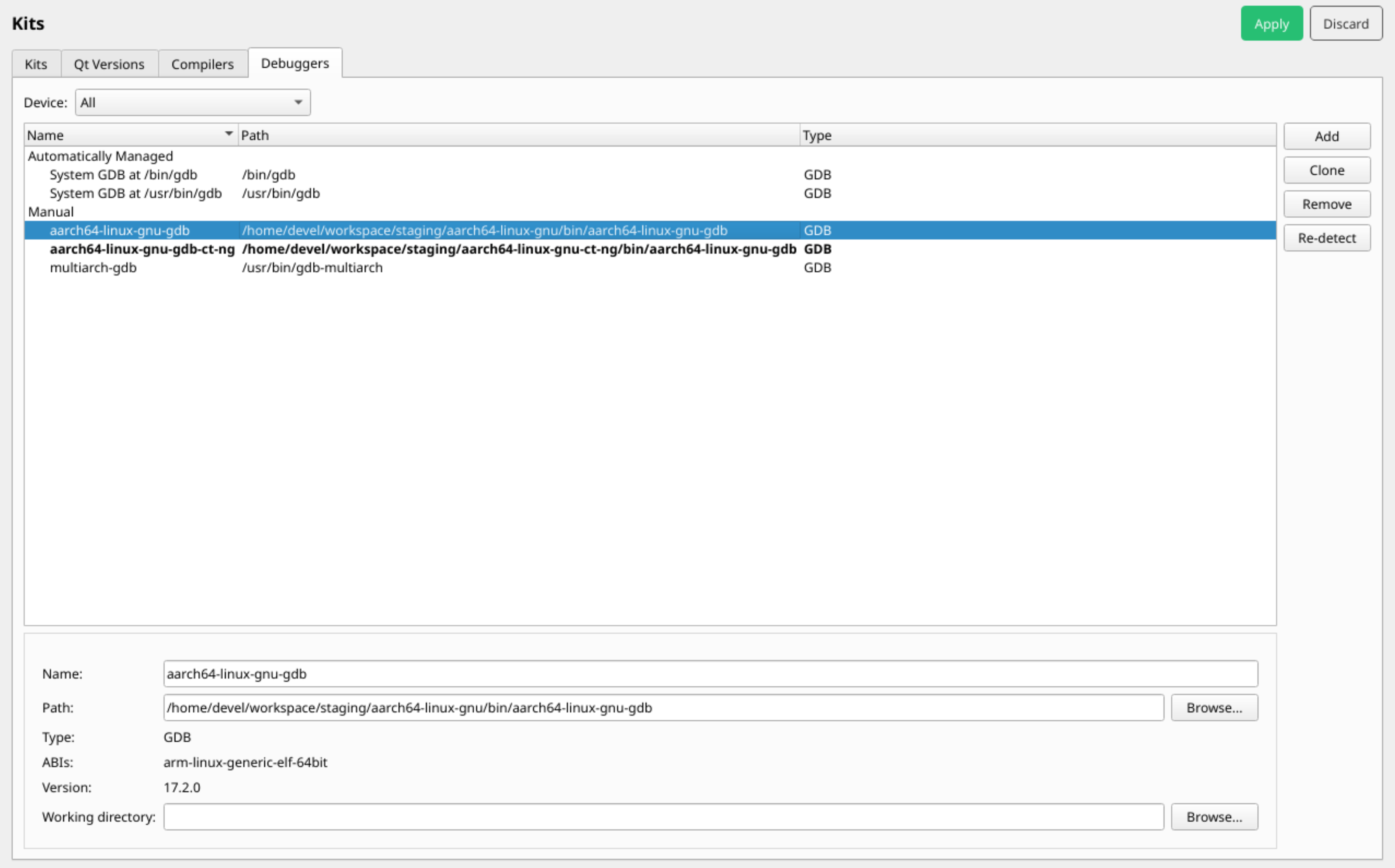

Adding the 'GDB' GDB in Qt Creator

SGaist

So it's a Qt Creator issue. The version string contains extra stuff that trips the parser. Hence the wrong version shown in the dialog.

I created QTCREATORBUG-34887 to track it.
Patch in progress.

SGaist

Patch integrated :-)
If you need it earlier, you might want to consider building the debugger plugin for your version of Qt Creator. If not Qt Creator itself directly.

aha_1980

Or to add to @SGaist: Use one of the next snapshots from: https://download.qt.io/snapshots/qtcreator/21.0/21.0.0-beta1 which will contain the fix.

Regards

SGaist

@aha_1980 good point ! I did not think of the snapshots.
