Border lines around QOpenGLWidgets in Qt6.

[ihmin]

Hello.
I am currently using Qt version 6.7.2 on Windows 10 + Msys2 environment.
I have written a very simple code for QOpenGLWidget.

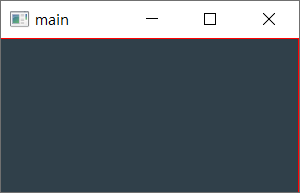

However, in Qt6, when I set the screen DPI to 125%, the RED border lines appear and disappear on the top and right when resizing the window.
Is this a bug in Qt?
However, the same code works fine in Qt5.

Below is the code to reproduce the error.
sample code download

main.cpp

#include <QGuiApplication>

#include "mainwindow.h"
#include "gltest.h"

int main(int argc, char *argv[])
{
	QApplication app(argc, argv);

	QSurfaceFormat format;
	format.setRenderableType(QSurfaceFormat::OpenGL);
	format.setVersion(4, 3);
	format.setProfile(QSurfaceFormat::CompatibilityProfile);
	format.setSwapBehavior(QSurfaceFormat::DoubleBuffer);
	format.setDepthBufferSize(32);
	format.setStencilBufferSize(4);
	format.setSwapInterval(1);
	QSurfaceFormat::setDefaultFormat(format);

 	MainWindow *w;
	w = new MainWindow(0);
	w->show();

	int ret = app.exec();

	return ret;
}

mainwindow.cpp

#include "mainwindow.h"
#include "gltest.h"

MainWindow::MainWindow(QWidget *parent)
{
	setCentralWidget(new GLTest(this));
}

MainWindow::~MainWindow()
{
}

mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QApplication>
#include <QMainWindow>

class MainWindow : public QMainWindow
{
  Q_OBJECT

public:
	explicit MainWindow(QWidget *parent);
	~MainWindow();
};

#endif // MAINWINDOW_H

gltest.h

#pragma once

#include <QOpenGLWidget>
#include <QOpenGLWindow>
#include <QOpenGLFunctions>
#if QT_VERSION <= QT_VERSION_CHECK(6, 0, 0)
#include <QOpenGLExtensions>
#else
#include <QOpenGLVersionFunctionsFactory>
#endif
#include <QOpenGLBuffer>
#include <QOpenGLShaderProgram>
#include <QOpenGLVertexArrayObject>
#include <QOpenGLFramebufferObject>
#include <QSurfaceFormat>
#include <QMatrix4x4>
#include <QOpenGLFunctions_4_3_Compatibility>

#define GLM_ENABLE_EXPERIMENTAL
#include <glm/gtx/string_cast.hpp>
#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtc/type_ptr.hpp>
#include <glm/gtx/transform.hpp>
#include <glm/gtx/quaternion.hpp>
#include <glm/gtx/normal.hpp>
#include <glm/gtx/hash.hpp>
#include <glm/gtx/intersect.hpp>
#include <glm/gtx/closest_point.hpp>
#include <glm/gtc/matrix_access.hpp>
#include <glm/gtc/matrix_inverse.hpp>
#include <glm/gtx/matrix_decompose.hpp>

class GLTest : public QOpenGLWidget, protected QOpenGLFunctions_4_3_Compatibility
{
    Q_OBJECT

public:
	GLTest(QWidget *parent=nullptr);
    virtual ~GLTest();

	void drawBackground(void);

protected:
    void initializeGL() Q_DECL_OVERRIDE;
    void resizeGL(int width, int height) Q_DECL_OVERRIDE;
    void paintGL() Q_DECL_OVERRIDE;

private:
	QOpenGLFunctions_4_3_Compatibility *m_ctx;

	glm::vec3 m_bg_color1;
	glm::vec3 m_bg_color2;
	glm::vec3 m_bg_color3;
	glm::vec3 m_bg_color4;
};

gltest.cpp

#include "gltest.h"

#include <QOpenGLContext>

GLTest::GLTest(QWidget *parent) : QOpenGLWidget(parent)
{
	setObjectName("GLTest");

	m_bg_color1 = glm::vec3(0.19f, 0.25f, 0.29f);
	m_bg_color2 = glm::vec3(0.19f, 0.25f, 0.29f);
	m_bg_color3 = glm::vec3(0.19f, 0.25f, 0.29f);
	m_bg_color4 = glm::vec3(0.19f, 0.25f, 0.29f);
}

GLTest::~GLTest()
{
}

void GLTest::initializeGL()
{
	initializeOpenGLFunctions();

#if QT_VERSION < QT_VERSION_CHECK(6, 0, 0)
	m_ctx = QOpenGLContext::currentContext()->versionFunctions<QOpenGLFunctions_4_3_Compatibility>();
#else
	m_ctx = QOpenGLVersionFunctionsFactory::get<QOpenGLFunctions_4_3_Compatibility>();
#endif
}

void GLTest::paintGL()
{
	m_ctx->glClearColor(1.0f, 0.0f, 0.0f, 1.0f);
	m_ctx->glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);

	drawBackground();
}

void GLTest::resizeGL(int width, int height)
{
	m_ctx->glViewport(0, 0, width*devicePixelRatio(), height*devicePixelRatio());
}

void GLTest::drawBackground(void)
{
	m_ctx->glMatrixMode (GL_MODELVIEW);
	m_ctx->glPushMatrix ();
	m_ctx->glLoadIdentity ();
	m_ctx->glMatrixMode (GL_PROJECTION);
	m_ctx->glPushMatrix ();
	m_ctx->glLoadIdentity ();

	m_ctx->glShadeModel(GL_SMOOTH);
	m_ctx->glDisable(GL_DEPTH_TEST);

	m_ctx->glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);
	m_ctx->glBegin(GL_QUADS);
	m_ctx->glColor3fv(glm::value_ptr(m_bg_color1));
	m_ctx->glVertex2f(-1.0, 1.0);
	m_ctx->glColor3fv(glm::value_ptr(m_bg_color2));
	m_ctx->glVertex2f(-1.0, -1.0);
	m_ctx->glColor3fv(glm::value_ptr(m_bg_color3));
	m_ctx->glVertex2f(1.0, -1.0);
	m_ctx->glColor3fv(glm::value_ptr(m_bg_color4));
	m_ctx->glVertex2f(1.0, 1.0);
	m_ctx->glEnd();

	m_ctx->glShadeModel(GL_FLAT);
	m_ctx->glEnable(GL_DEPTH_TEST);
	m_ctx->glPopMatrix ();
	m_ctx->glMatrixMode (GL_MODELVIEW);
	m_ctx->glPopMatrix ();
}
