Incorrect rendering of frameless window when used in conjunction with Windows Api

Scheduled Pinned Locked Moved Unsolved General and Desktop
1 Posts 1 Posters 235 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • H Offline
    H Offline
    Helge1980
    wrote on last edited by Helge1980
    #1

    Hello!
    I'm trying to draw a frameless window in older Windows versions (WinXp and Win7 with Qt5.2.1 MSVC 2010) with support for the system menu and system resizing, for this I use this approach:

    #include <QApplication>
    #include <QMainWindow>
    #include <Windows.h>

    class MainWindow : public QMainWindow
    {
    public:
        MainWindow(QWidget *parent = nullptr) : QMainWindow(parent)
        {
    //        setWindowFlags(windowFlags() | Qt::FramelessWindowHint);
            setGeometry(600,300,600,400);
            HWND hwnd = (HWND)winId();
            LONG style = ::GetWindowLong(hwnd, GWL_STYLE) | WS_OVERLAPPEDWINDOW;
            ::SetWindowLong(hwnd, GWL_STYLE, style & ~WS_CAPTION);
            SetWindowPos(hwnd, 0, 0, 0, 0, 0, SWP_NOSIZE | SWP_NOMOVE | SWP_NOZORDER | SWP_NOACTIVATE | SWP_FRAMECHANGED);
        };
    };

    int main(int argc, char *argv[])
    {
        QApplication app(argc, argv);
        MainWindow w;
        w.show();
        return app.exec();
    }

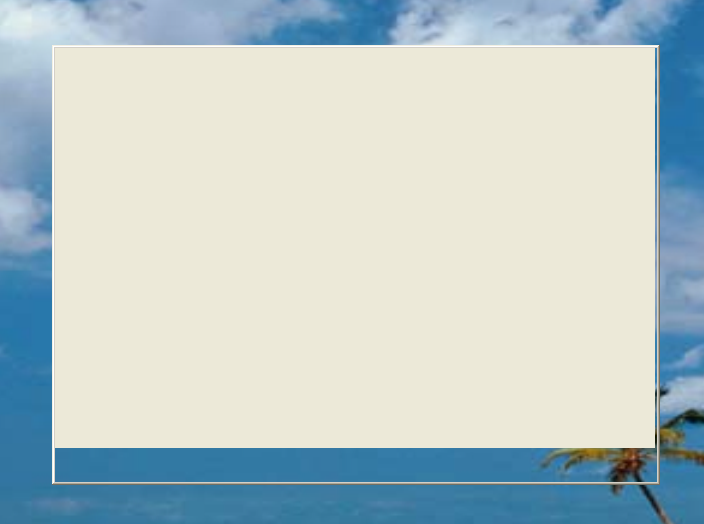

    But as a result, the window content displayed does not fill the entire client area:


    If, for example, you minimize and then restore the window, the content size is displayed correctly.
    If in my example I uncomment the line:

    setWindowFlags(windowFlags() | Qt::FramelessWindowHint);


    then the content, on the contrary, goes down more than necessary.

    Thanks!
