QtCharts and OpenRoad tool

[openroad_pg]

Hello,

I compiled/built qtcharts , so it can be used with OpenRoad tool on Redhat 8. There were no issues performing a make, make install (from source qtcharts-everywhere-src-5.15.0.zip), and it appears to have installed in /usr/include/qt5/QtCharts

But when I launch openroad -gui, it says: QtCharts not installed

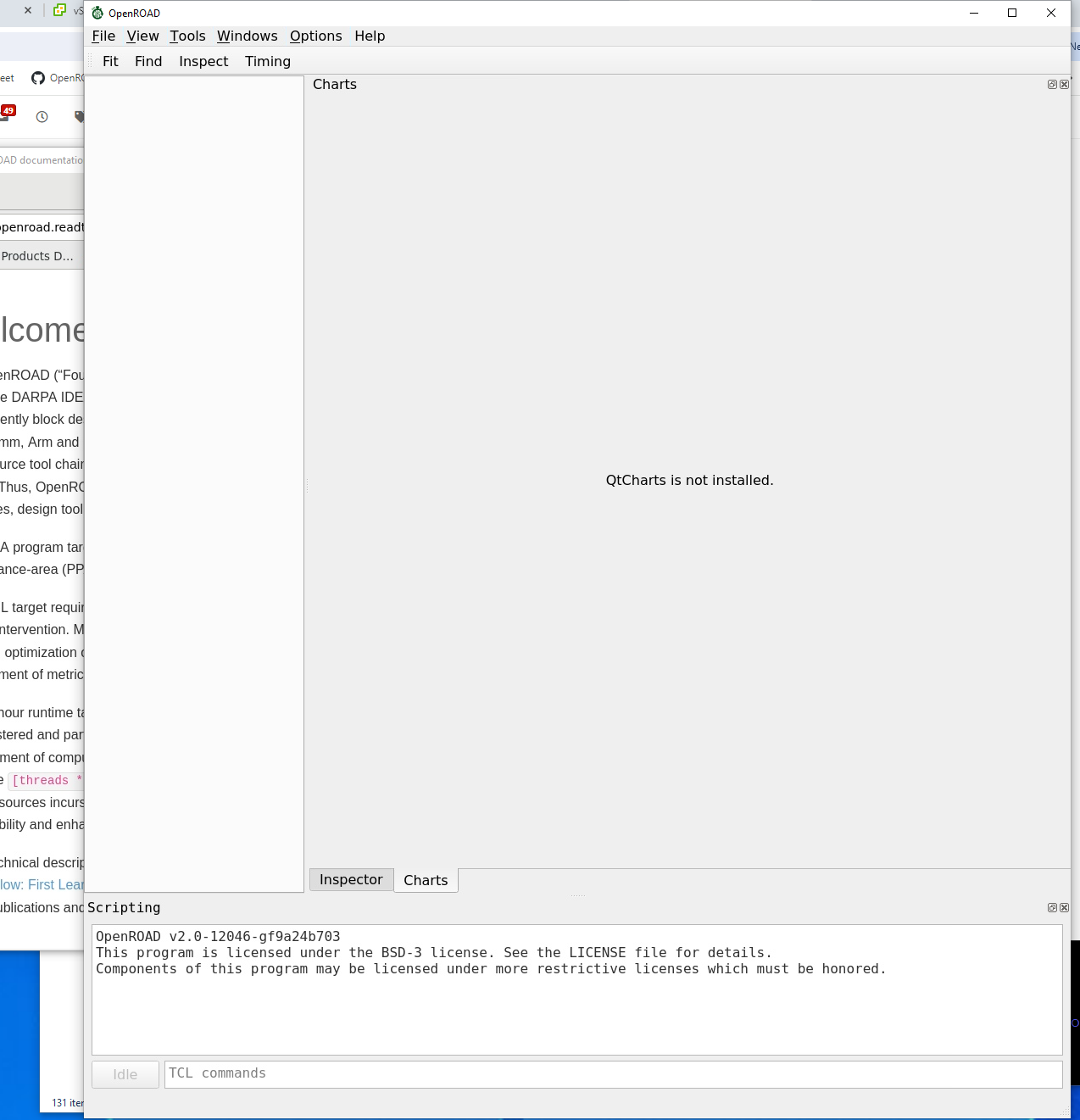

Any ideas why openroad cannot find QtCharts ? (see attached)

[SGaist]

Hi and welcome to devnet,

Which version of Qt did you use to build the module ?
How did you install that version of Qt ?
Are you sure you are using the same when building OpenRoad ?

[openroad_pg]

Version 5.15.3-1 of qt5-charts (installed via rpm qt5-qtcharts-5.15.3-1.el8.x86_64.rpm)
[root] # rpm -ql qt5-qtcharts-5.15.3-1.el8.x86_64
/usr/lib/.build-id
/usr/lib/.build-id/44
/usr/lib/.build-id/44/6e26b7b292c64a6b9e36855514000169307196
/usr/lib/.build-id/ed
/usr/lib/.build-id/ed/de3395b13b3b1779a39f1d8de3fff15b247bd3
/usr/lib64/libQt5Charts.so.5
/usr/lib64/libQt5Charts.so.5.15
/usr/lib64/libQt5Charts.so.5.15.3
/usr/lib64/qt5/qml/QtCharts
/usr/lib64/qt5/qml/QtCharts/designer
/usr/lib64/qt5/qml/QtCharts/designer/ChartViewSpecifics.qml
/usr/lib64/qt5/qml/QtCharts/designer/default
/usr/lib64/qt5/qml/QtCharts/designer/default/AreaSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/BarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/BoxPlotSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/HorizontalBarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/HorizontalPercentBarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/HorizontalStackedBarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/LineSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PercentBarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PieSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PolarAreaSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PolarLineSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PolarScatterSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/PolarSplineSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/ScatterSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/SplineSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/default/StackedBarSeries.qml
/usr/lib64/qt5/qml/QtCharts/designer/images
/usr/lib64/qt5/qml/QtCharts/designer/images/areaseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/areaseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/areaseries-polar-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/areaseries-polar-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/barseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/barseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/boxplotseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/boxplotseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalbarseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalbarseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalpercentbarseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalpercentbarseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalstackedbarseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/horizontalstackedbarseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/lineseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/lineseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/lineseries-polar-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/lineseries-polar-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/percentbarseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/percentbarseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/pieseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/pieseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/scatterseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/scatterseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/scatterseries-polar-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/scatterseries-polar-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/splineseries-chart-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/splineseries-chart-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/splineseries-polar-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/splineseries-polar-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/images/stackedbarseries-icon.png
/usr/lib64/qt5/qml/QtCharts/designer/images/stackedbarseries-icon16.png
/usr/lib64/qt5/qml/QtCharts/designer/qtcharts.metainfo
/usr/lib64/qt5/qml/QtCharts/libqtchartsqml2.so
/usr/lib64/qt5/qml/QtCharts/plugins.qmltypes
/usr/lib64/qt5/qml/QtCharts/qmldir
/usr/share/licenses/qt5-qtcharts
/usr/share/licenses/qt5-qtcharts/LICENSE.GPL3

When building openroad, all I did was pull the version from github as directions mentioned
git clone --recursive https://github.com/The-OpenROAD-Project/OpenROAD-flow-scripts
cd OpenROAD-flow-scripts
sudo ./setup.sh
./build_openroad.sh --local

That's all I did. Not sure how to check the version that openroad is using

[jsulm]

@openroad_pg said in QtCharts and OpenRoad tool:

qt5-qtcharts-5.15.3-1.el8.x86_64.rpm

I guess you also need to install the dev package

[openroad_pg]

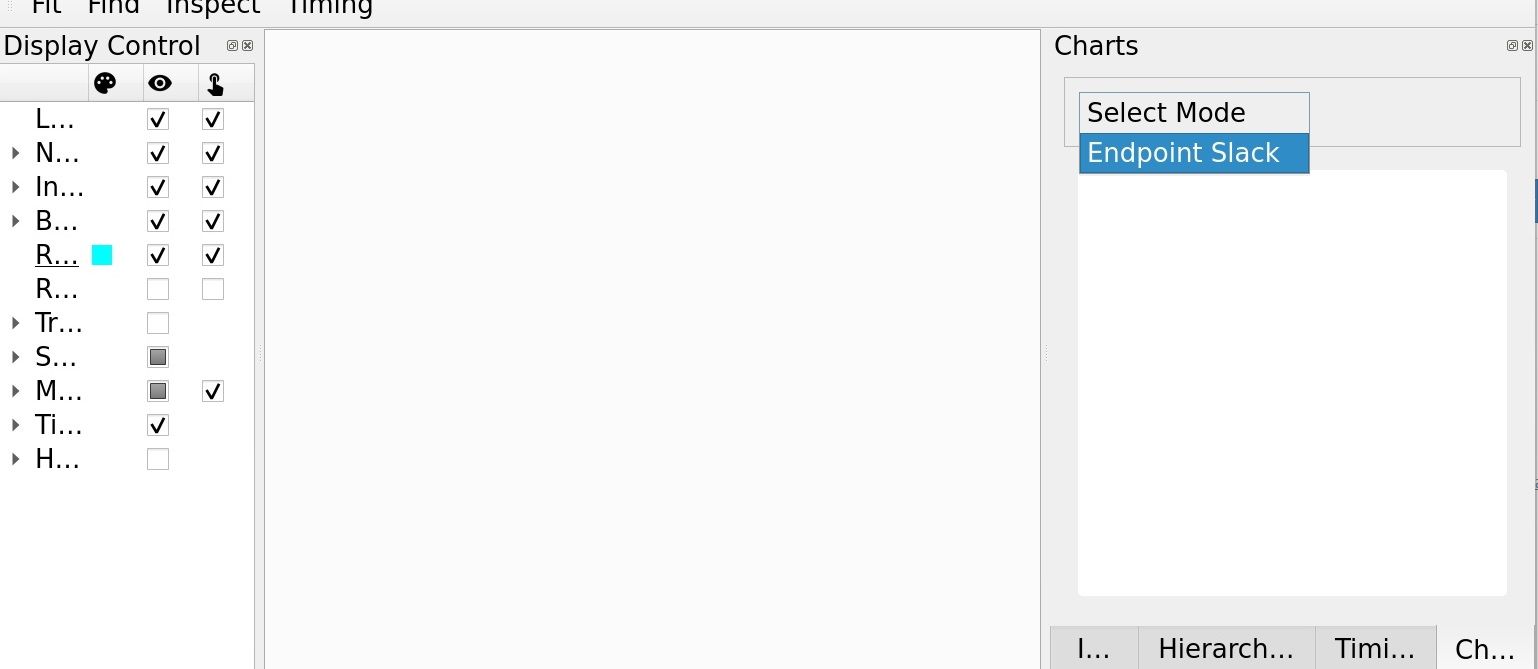

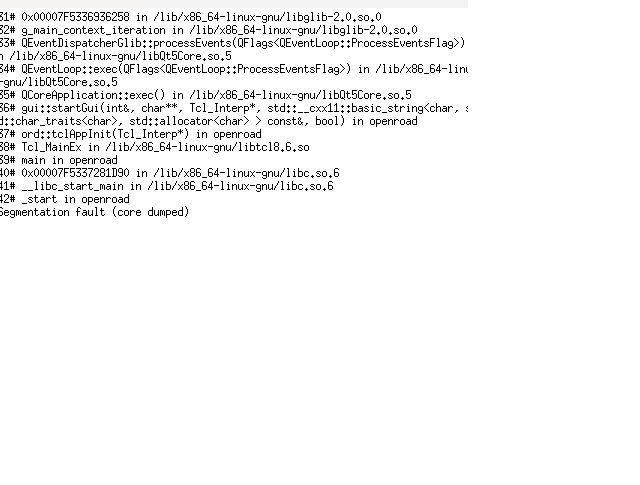

I got it to work, somewhat..
