How to remove this rectangle in Charts

Sajjad Ali

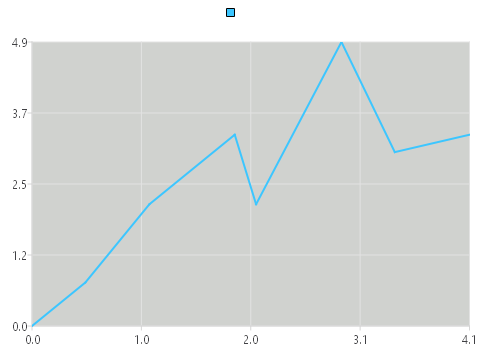

Hello, I have removed title. But this little box is not going. How can I remove that.

The little box on top. Blue one

                    ChartView {
                        //title: "Line Chart"
                        anchors.fill: parent
                        antialiasing: true
                        plotAreaColor: "#D0D2CF"
                        LineSeries {
                            //name: "Line"
                            color: "#3CC6FF"
                            width: 2
                            XYPoint {
                                x: 0
                                y: 0
                            }
                            XYPoint {
                                x: 0.5
                                y: 0.75
                            }
                            XYPoint {
                                x: 1.1
                                y: 2.1
                            }
                            XYPoint {
                                x: 1.9
                                y: 3.3
                            }
                            XYPoint {
                                x: 2.1
                                y: 2.1
                            }
                            XYPoint {
                                x: 2.9
                                y: 4.9
                            }
                            XYPoint {
                                x: 3.4
                                y: 3.0
                            }
                            XYPoint {
                                x: 4.1
                                y: 3.3
                            }
                        }
                    }

jsulm

@Sajjad-Ali My guess is: by setting "visible" to false in https://doc.qt.io/qt-6/qml-qtcharts-legend.html

mzimmers

@jsulm yep.

ChartView {
    legend.visible: false
    ...

It can be a little confusing because the legend property is read-only (according to a run-time error I get), but the visible property of Legend is writable.
