Drag and Drop image doesn't work in qgraphicview

[IvanDesuo]

I'm new to Qt (first post here), and honestly this journey has been exciting and frustrating at the same time, but learning a lot of new stuff. I'm developing an app to view and analyze thermal images and want to add drag and drop feature on viewer, which is based on QGraphicsView. Prior the viewer was based on a Qlabel and it was working perfectly, but as I want to add zoom, pan, ROis I have found in my study that using QGraphicsview was the right choice, so I switched the viewer. Now, the drag and drop image feature is not working, tho the mouse events are being registered when printed. The image does not update (nothing happens), it might be some detail I'm missing, so if anyone can figure it out I would be grateful.

As I depend on some matrix to do all thermal calculations and processing when I subclass some widget I probably will have to use attributes or methods from on class to another. In this case, I had to create a instance on Qgraphicsview to use a method (set_image()) and this is really where I'm struggling (however it looks it working according to the printed events).

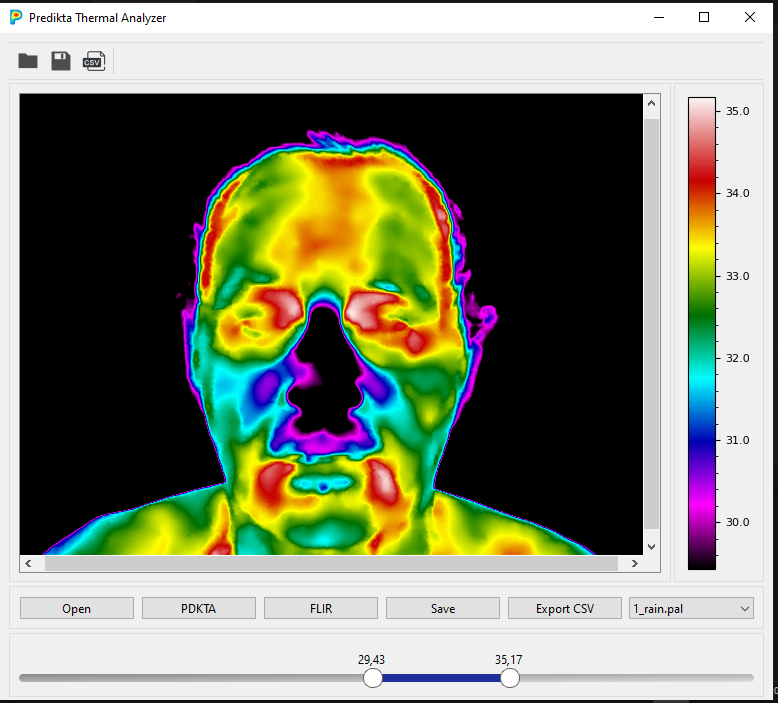

Here is the entire code, I also accept suggestion on design and code management, because I fear this may end up being a monster that will be hard to update and mantain:

import sys
import os
from PyQt6.QtGui import QDragEnterEvent, QDragMoveEvent, QDropEvent, QPixmap, QImage, QMouseEvent, QPainter, QColor, QAction, QIcon
from PyQt6.QtWidgets import (QWidget, QApplication, QComboBox,
                             QVBoxLayout, QHBoxLayout, QLabel,
                             QPushButton, QSlider, QGroupBox, QFileDialog, QLineEdit,
                             QMessageBox, QErrorMessage, QGraphicsScene, QToolBar, QGraphicsView, QGraphicsPixmapItem, QMainWindow)
from PyQt6.QtCore import Qt, QEvent, QSize
from superqt import QLabeledDoubleRangeSlider
from matplotlib.backends.backend_qtagg import FigureCanvasQTAgg as FigureCanvas
import matplotlib.pyplot as plt
import matplotlib as mpl
from matplotlib.pylab import *
import cv2
import numpy as np
from functions import *

os.environ['QT_AUTO_SCREEN_SCALE_FACTOR'] = '1'

class LeftPanel(QWidget):
    def __init__(self):
        super().__init__()

        ##ATRIBUTES----------------------------------------------------------------------------------------------------------------------------------------------
        self.setAcceptDrops(True)
        self.exiftool_path = "exiftool"
        self.filename = None #will hold image address location
        self.tmp = None  #will hold temporary image for display
        self.pixmapitem = QGraphicsPixmapItem()
        self.max_img_width = 640
        self.max_img_height = 480
        self.flir_raw = None
        self.pdkta_raw = None
        self.thermal_matrix = None
        self.thermal_matrix_width = None
        self.thermal_matrix_height = None
        self.processed_frame = None
        self.thermal_frame_resized = None
        self.colorized_frame = None
        self.cliped_img = None
        self.vmax = 35
        self.vmin = 20
        self.max_limit = None
        self.min_limit = None
        self.min_limit_init = 20.0
        self.max_limit_init = 40.0
        self.clipped_min = 0
        self.clipped_max = 0
        self.slider_values = 0
        self.pallete_folder = "palettes"
        self.palette_file = "palettes/1_rain.pal"
        self.cmap_mat = create_colormap_mat(self.palette_file) #set initial palette for colorbar
        self.cmap_cv = None   #set initial palette for img
        self.palette_list = self.populate_pallete()   #populate palette list on combo box

        ##--------------------------------------------------------------------------------------------------------------------------------------------------

        ##LAYOUT-------------------------------------------------------------------------------------------------------------------------------------------------------
        #Set top_bar layout
        #self.top_bar_groupbox = QGroupBox()
        self.top_layout = QHBoxLayout()
        self.toolbar = QToolBar()
        self.toolbar.setStyleSheet("QToolBar { border-bottom: 1px solid #DCDCDC; border-top: 1px solid #DCDCDC; padding: 3px;}")
        self.toolbar.setIconSize(QSize(26, 26))
        self.top_layout.addWidget(self.toolbar)


        #Open
        self.openaction = QAction("Open File", self)
        self.openaction.setIcon(QIcon("assets/file-open.svg"))
        self.openaction.triggered.connect(self.choose_img)
        self.toolbar.addAction(self.openaction)

        #Save
        self.saveaction = QAction("Save File", self)
        self.saveaction.setIcon(QIcon("assets/file-save.svg"))
        self.saveaction.triggered.connect(self.save_image)
        self.toolbar.addAction(self.saveaction)
        #self.top_bar_groupbox.setLayout(self.top_layout)

        #Save CSV
        self.savecsvaction = QAction("Save CSV", self)
        self.savecsvaction.setIcon(QIcon("assets/csv-vector-icon.png"))
        self.savecsvaction.triggered.connect(self.export_csv)
        self.toolbar.addAction(self.savecsvaction)

        self.toolbar.addSeparator()


        #set horizontal layout for viewer/colorbar
        self.h_layout = QHBoxLayout()
        self.h_layout.setSpacing(3)
        self.h_layout.setContentsMargins(0, 0, 0, 0)

        #set Image Container
        self.viewer_groupbox = QGroupBox()
        # self.label_groupbox.setMaximumWidth(self.max_img_width+50)
        # self.label_groupbox.setMaximumHeight(self.max_img_height+50)
        self.viewer_layout = QVBoxLayout()
        self.scene = QGraphicsScene()
        self.viewer = ImageViewer()
        self.pixmapitem.setPixmap(QPixmap("assets/placeholder.jpg"))
        self.scene.addItem(self.pixmapitem)
        self.viewer.setScene(self.scene)



        #Add Label to layout
        self.viewer_layout.addWidget(self.viewer)
        self.viewer_groupbox.setLayout(self.viewer_layout)

        #set ColorBar
        self.cb_groupbox = QGroupBox()
        self.cb_groupbox.setFixedWidth(90)
        self.cb_layout = QVBoxLayout()
        self.colorbar = FigureCanvas(self.create_colorbar())
        self.colorbar.setFixedHeight(self.max_img_height)
        # self.colorbar.setFixedWidth(70)

        #Add CB to layout
        self.cb_layout.addWidget(self.colorbar)
        self.cb_groupbox.setLayout(self.cb_layout)

        #Buttons Container
        self.buttons_groupbox = QGroupBox()
        self.buttons_layout = QHBoxLayout(self.buttons_groupbox)
        self.button1 = QPushButton("Open")
        self.button1.clicked.connect(self.choose_img)
        self.button2 = QPushButton("PDKTA")
        self.button2.clicked.connect(self.pdkta_process)
        self.button3 = QPushButton("FLIR")
        self.button3.clicked.connect(self.flir_process)
        self.button4 = QPushButton("Save")
        self.button4.clicked.connect(self.save_image)
        self.button5 = QPushButton("Export CSV")
        self.button5.clicked.connect(self.export_csv)

        #Set Combo Box
        self.combo1 = QComboBox()
        for i in range (len(self.palette_list)):
            self.combo1.addItem(self.palette_list[i])
        self.combo1.setPlaceholderText("--Set Pallete--")
        self.combo1.setCurrentIndex(-1)
        self.combo1.currentTextChanged.connect(self.handleComboBoxEvent)

        #Add Buttons to Slider Widget
        self.buttons_layout.addWidget(self.button1)
        self.buttons_layout.addWidget(self.button2)
        self.buttons_layout.addWidget(self.button3)
        self.buttons_layout.addWidget(self.button4)
        self.buttons_layout.addWidget(self.button5)
        self.buttons_layout.addWidget(self.combo1)

        #Set Slider Container
        self.slider_groupbox = QGroupBox()
        self.slider_groupbox.setObjectName("slider_container")
        #self.slider_groupbox.setMaximumWidth(self.max_img_width-100)
        self.slider_layout = QVBoxLayout(self.slider_groupbox)
        self.slider1 = QLabeledDoubleRangeSlider(Qt.Orientation.Horizontal, self)
        self.slider1.setEdgeLabelMode(self.slider1.EdgeLabelMode.NoLabel)
        #self.slider1.setHandleLabelPosition(self.slider1.LabelPosition.NoLabel)
        self.slider1.valueChanged.connect(self.update_slider)
        self.slider1.mousePressEvent = lambda event: self.on_double_click_slider()
        self.slider1.setValue((self.min_limit_init, self.max_limit_init))
        self.slider1.setRange(15, 45)
        self.slider1.setSingleStep(0.01)
        self.slider1.setStyleSheet(open("qss/styles.qss", 'r').read())

        self.slider_layout.addWidget(self.slider1)

        #Create Main Layout
        self.main_layout = QVBoxLayout()
        self.main_layout.setSpacing(3)
        self.main_layout.setContentsMargins(0,0,0,0)


        #Add top Bar to main layout
        self.main_layout.addLayout(self.top_layout)

        #Add Horizontal Widgets to HLayout
        self.h_layout.addWidget(self.viewer_groupbox, alignment=Qt.AlignmentFlag.AlignLeft)
        self.h_layout.addWidget(self.cb_groupbox, alignment=Qt.AlignmentFlag.AlignLeft)

        #Add Horizontal Widgets to Main Layout
        self.main_layout.addLayout(self.h_layout)

        #Add Vertical Widgets to Main Layout
        self.main_layout.addWidget(self.buttons_groupbox)
        self.main_layout.addWidget(self.slider_groupbox)

        #Set Main Layout
        self.setLayout(self.main_layout)


    ##METHODS-------------------------------------------------------------------------------------------------------------------------------------------------------
    #this function open dialog and allows to choose Predikta/FLIR .PNG .JPG files
    def choose_img(self):
        self.dialog = QFileDialog(self)
        # self.dialog.setNameFilter("Images (*.png *.jpg)")
        self.dialog.setDirectory(r"C:\Users\desuo\Documents\Codes\Projetos_PDKTA\ImageEditor\examples")
        self.filename = self.dialog.getOpenFileName(filter="Image (*.PNG *.JPG)")[0]
        if not self.filename:
            return

        try:
            self.image_data = cv2.imread(self.filename, -1)
            self.tmp = self.image_data
            image_data_resized = resize_image(self.tmp, self.max_img_width, self.max_img_height)
            self.pixmapitem.setPixmap(set_pixmap_original(image_data_resized))
            self.processed_frame = None
            self.cmap_cv = None
            self.combo1.blockSignals(True)
            self.combo1.setCurrentIndex(-1)
            self.combo1.blockSignals(False)
            self.min_limit = None
            self.max_limit = None
            self.thermal_frame_resized = None
            self.cliped_img = None
            self.processed_frame = None
            self.colorized_frame = None
            self.pdkta_raw = None
            self.flir_raw = None
            self.slider1.setValue((self.min_limit_init, self.max_limit_init))

        except Exception as e:
            QMessageBox.warning(self, 'Error',
            f'O seguinte erro ocorreu:\n{type(e)}: {e}')
            return

    #This function sets the initial value of slider after the image being processed
    def adjust_initial_slider(self):
            self.slider1.setValue((self.min_limit, self.max_limit))
            return

    #This functions processes the selected image using PREDIKTA framework
    def pdkta_process(self):
        if self.tmp is None:
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('Nenhuma imagem selecionada!')
            error_dialog.exec()
        elif self.filename.endswith((".jpg")):
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('Esta não é uma imagem PDKTA, por favor, escolha uma imagem compatível!')
            error_dialog.exec()

        else:
            self.cmap_cv = create_colormap_cv("palettes/1_rain.pal")
            self.pdkta_raw = pdkta_frame2raw(self.tmp)
            self.thermal_matrix = pdkta_raw2temp(self.pdkta_raw)
            self.thermal_matrix_height = self.thermal_matrix.shape[0]
            self.thermal_matrix_width = self.thermal_matrix.shape[1]
            self.thermal_frame_resized = resize_image(self.thermal_matrix, self.max_img_width, self.max_img_height)
            self.processed_frame = frame_processor(self.thermal_frame_resized)
            self.colorized_frame = BGR2RGB(cv2.applyColorMap(self.processed_frame, self.cmap_cv))
            self.pixmapitem.setPixmap(set_pixmap_thermal(self.colorized_frame))
            self.combo1.setCurrentText("1_rain.pal")
            self.max_limit = np.max(self.thermal_matrix)
            self.min_limit = np.min(self.thermal_matrix)
            self.adjust_initial_slider()
        return

    #This functions processes the selected image using FLIR framework
    def flir_process(self):
        if self.tmp is None:
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('Nenhuma imagem selecionada!')
            error_dialog.exec()
        elif self.filename.endswith((".png")):
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('Esta não é uma imagem FLIR, por favor, escolha uma imagem compatível!')
            error_dialog.exec()
        else:
            get_meta(self.filename)
            self.flir_raw = flir2raw(self.filename)
            flir2temp_vec = vectorize_function(flir2temp)
            self.thermal_matrix = flir2temp_vec(self.flir_raw)
            self.thermal_matrix_height = self.thermal_matrix.shape[0]
            self.thermal_matrix_width = self.thermal_matrix.shape[1]
            self.thermal_frame_resized = resize_image(self.thermal_matrix, self.max_img_width, self.max_img_height)
            self.processed_frame = frame_processor(self.thermal_frame_resized)
            self.colorized_frame = BGR2RGB(cv2.applyColorMap(self.processed_frame, self.cmap_cv))
            self.pixmapitem.setPixmap(set_pixmap_thermal(self.colorized_frame))
            self.combo1.setCurrentText("1_rain.pal")
            self.max_limit = np.max(self.thermal_matrix)
            self.min_limit = np.min(self.thermal_matrix)
            self.adjust_initial_slider()
        return

    #This function will populate palettes from folder
    def populate_pallete(self):
        folder_path =  "palettes"
        if folder_path:
            self.file_names = [file for file in os.listdir(folder_path) if os.path.isfile(os.path.join(folder_path, file))]
            return self.file_names

    #this function will create a matplotlib colorbar
    def create_colorbar(self):
        fig, ax = plt.subplots(figsize=(1, 6), layout='constrained')
        fig.set_facecolor('#F0F0F0')
        cmap = self.cmap_mat
        norm = mpl.colors.Normalize(vmin=self.vmin, vmax=self.vmax)
        fig.colorbar(mpl.cm.ScalarMappable(norm=norm, cmap=cmap),
                cax=ax, orientation='vertical', label='', format=lambda x, _: f"{x:.1f}")
        ax.tick_params(labelsize = 8)
        ax.minorticks_on()
        plt.close()
        return fig

    #this function will clear past colorbar and update with a new one with new parameters
    def update_colorbar(self):
       for i in reversed(range(self.cb_layout.count())):
            widgetToRemove = self.cb_layout.itemAt(i).widget()
            if widgetToRemove is not None:
                self.cb_layout.removeWidget(widgetToRemove)
                widgetToRemove.deleteLater()

            self.colorbar = FigureCanvas(self.create_colorbar())
            self.cb_layout.addWidget(self.colorbar)
            self.cb_groupbox.setLayout(self.cb_layout)
            self.colorbar.setFixedHeight(self.max_img_height)
            # self.colorbar.setFixedWidth(70)
            return

    #this function will update palette drop menu
    def handleComboBoxEvent(self):
        if self.processed_frame is None:
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('Por favor, processe a imagem antes de aplicar o palette!')
            error_dialog.exec()

        else:
            self.palette_file = os.path.join(self.pallete_folder, self.combo1.currentText())
            self.cmap_cv = create_colormap_cv(self.palette_file)
            self.cmap_mat = create_colormap_mat(self.palette_file)
            self.colorized_frame = BGR2RGB(cv2.applyColorMap(self.processed_frame, self.cmap_cv))
            self.pixmapitem.setPixmap(set_pixmap_thermal(self.colorized_frame))

            self.update_colorbar()

    #this function updates range slider values
    def update_slider(self, values):
        self.slider_values = values
        self.update_image_threshold()
        return values

    #this funcrion thresholds the image according to slider handle values
    def update_image_threshold(self):
        if self.thermal_frame_resized is not None:
            self.clipped_min = self.slider_values[0]
            self.clipped_max = self.slider_values[1]
            A = self.thermal_frame_resized
            B = np.where(A == np.max(A), np.max(A)+20, (np.where(A == np.min(A), np.min(A)-20, A)))

            self.cliped_img = np.clip(B, self.clipped_min, self.clipped_max)
            self.processed_frame = frame_processor(self.cliped_img)
            self.colorized_frame = BGR2RGB(cv2.applyColorMap(self.processed_frame, self.cmap_cv))
            self.pixmapitem.setPixmap(set_pixmap_thermal(self.colorized_frame))

            self.vmax = self.clipped_max
            self.vmin = self.clipped_min

            self.update_colorbar()
        else:
            pass
        return

    #This function will reset the slider and viewer to initial min/max image values
    def on_double_click_slider(self):
        if self.processed_frame is not None:
            event = QMouseEvent
            self.adjust_initial_slider()
            self.update_image_threshold()
        else:
            pass
        return

    def save_image(self):
        self.filename = QFileDialog.getSaveFileName(filter="JPG(*.jpg);;PNG(*.png)")[0]
        # self.imagevar = QImage(self.colorbar.size(), QImage.Format.Format_ARGB32)
        # self.imagevar = self.pixmap2array(self.imagevar)
        # saved_img = np.concatenate((self.colorized_frame, self.imagevar), axis=1)
        # cv2.imwrite(self.filename, saved_img)

        if not self.filename:
            return

        imagevar = self.colorbar.grab(self.colorbar.rect())
        imagevar.save("examples/colorbar.png")
        img = cv2.imread("examples/colorbar.png")
        width = int(img.shape[1])
        height = self.colorized_frame.shape[0]
        dim = (width, height)
        img = cv2.resize(img, dim, interpolation=None)
        saved_img = np.concatenate((self.colorized_frame, img), axis=1)
        cv2.imwrite(self.filename, saved_img)


    def pixmap2array(self, pixmap):
        channels_count = 4
        size = pixmap.size()
        h = size.width()
        w = size.height()

        image = pixmap.toImage()
        s = image.bits().asstring(w * h * channels_count)
        arr = np.fromstring(s, dtype=np.uint8).reshape((h, w, channels_count))

        return arr

    def export_csv(self):
        if self.thermal_matrix is None:
            error_dialog = QErrorMessage(self)
            error_dialog.showMessage('No há matrix térmica processada!')
            error_dialog.exec()

        else:
            self.filename = QFileDialog.getSaveFileName(self, "Export CSV", "exports", filter="CSV(*.csv)")[0]
            if not self.filename:
                return
            csv_matrix = self.thermal_matrix
            export_csv(csv_matrix, self.filename)
            print(self.filename)

    def set_image(self):
        #load image-----
        self.image_data = cv2.imread(self.filename, -1)
        self.tmp = self.image_data
        image_data_resized = resize_image(self.tmp, self.max_img_width, self.max_img_height)
        self.pixmapitem.setPixmap(set_pixmap_original(image_data_resized))
        self.scene.addItem(self.pixmapitem)
        self.viewer.setScene(self.scene)

        #configurations----
        self.processed_frame = None
        self.cmap_cv = None
        self.combo1.blockSignals(True)
        self.combo1.setCurrentIndex(-1)
        self.combo1.blockSignals(False)
        self.min_limit = None
        self.max_limit = None
        self.thermal_frame_resized = None
        self.cliped_img = None
        self.processed_frame = None
        self.colorized_frame = None
        self.slider1.setValue((self.min_limit_init, self.max_limit_init))

class ImageViewer(QGraphicsView):
    def __init__(self, parent=None):
        super().__init__(parent)


        # self.setHorizontalScrollBarPolicy(Qt.ScrollBarPolicy.ScrollBarAlwaysOff)
        # self.setVerticalScrollBarPolicy(Qt.ScrollBarPolicy.ScrollBarAlwaysOff)
        self.setAcceptDrops(True)

    #This is the drag and drop event --------------------------------------------------------
    def dragEnterEvent(self, event):
        if event.mimeData().hasImage:
            event.accept()
            print("accepted")
        else:
            event.ignore()

    def dragMoveEvent(self, event):
        if event.mimeData().hasImage:
            event.accept()
            print("accepted2")
        else:
            event.ignore()

    def dropEvent(self, event):
        if event.mimeData().hasImage:
            try:
                event.setDropAction(Qt.CopyAction)
                self.main_window_instance = LeftPanel()
                self.main_window_instance.filename = event.mimeData().urls()[0].toLocalFile()
                self.main_window_instance.set_image()
                event.accept()
                print(self.main_window_instance.pixmapitem)

            except Exception as e:
                QMessageBox.warning(self, 'Error',
                f'O seguinte erro ocorreu:\n{type(e)}: {e}')

                return

here is the main:

import sys
import os
from PyQt6.QtCore import Qt
from PyQt6.QtWidgets import QApplication, QWidget, QMainWindow, QVBoxLayout, QHBoxLayout, QScrollArea
from PyQt6.QtGui import QIcon
from testesdesignqview import LeftPanel


class MainWindowGV(QMainWindow):
    def __init__(self):
        super().__init__()

        self.setWindowTitle("Predikta Thermal Analyzer")
        self.setWindowIcon(QIcon("assets/logo.png"))

        layout = QHBoxLayout()

        layout.addWidget(LeftPanel(), alignment=Qt.AlignmentFlag.AlignLeft)
        #layout.addWidget(right_panel(), alignment=Qt.AlignmentFlag.AlignRight)

        widget = QWidget()
        widget.setLayout(layout)
        self.setCentralWidget(widget)


if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = MainWindowGV()
    window.show()
    app.exec()

here the printed event of drag and drop:

accepted
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
accepted2
<PyQt6.QtWidgets.QGraphicsPixmapItem object at 0x00000250EDEF4310>```

and finally how the app looks as of now:

![app.png](https://ddgobkiprc33d.cloudfront.net/f928ed86-0853-4260-975f-1de34633caea.png)

Thanks in advance and sorry for the big post.

[IvanDesuo]

@IvanDesuo Ok, I got it worked. First I suclassed QGraphicSene and added the mouse events:

class Scene(QGraphicsScene):
    def __init__(self, parent=None):
        super().__init__(parent)

    def dragEnterEvent(self, event):
        if event.mimeData().hasUrls():
            event.accept()
        else:
            event.ignore()

    def dropEvent(self, event):
        event.accept()

    def dragMoveEvent(self, e):
        e.acceptProposedAction()

then added self.show() after the function I was calling:

def set_image(self):
        #load image-----
        self.image_data = cv2.imread(self.filename, -1)
        self.tmp = self.image_data
        image_data_resized = resize_image(self.tmp, self.max_img_width, self.max_img_height)
        self.pixmapitem.setPixmap(set_pixmap_original(image_data_resized))
        self.show()

Finally changed the class instance I was using once it was calling left panel everytime I and dropped the image to:

def dropEvent(self, event):
        if event.mimeData().hasImage:
            try:
                event.setDropAction(Qt.CopyAction)
                self.main_window_instance = self.parent().parent()
                self.main_window_instance.filename = event.mimeData().urls()[0].toLocalFile()
                self.main_window_instance.set_image()
                event.accept()
                print(self.main_window_instance.pixmapitem)

            except Exception as e:
                QMessageBox.warning(self, 'Error',
                f'O seguinte erro ocorreu:\n{type(e)}: {e}')

                return

In the end of the day it is working, but still confused about class inheritance and why it worked.
