animation (time) isn't working

[mzimmers]

Hi all -

I'm implementing a rectangle that will collapse and expand on a button click. I'd like the size change to be animated, but despite my efforts, it occurs immediately. I'm probably doing something wrong with the animation code. Here's what I've got:

// Main.qml
ApplicationWindow {
    id: mainWindow
    visible: true
    width: 800
    height:  480

    CollapsibleBar {
        contents: Rectangle {
            height: 200; width: 200; color: 'lightgreen'
        }
    }
}

// CollapsibleBar.qml
Rectangle {
    id: bar

    default property alias contents: contentItem.children
    property bool collapsed: true

    height: contentsArea.height
    width: mainWindow.width

    Column {
        id: contentsArea
        RowLayout {
            id: barHeader

            width: mainWindow.width
            height: 32
            RoundButton {
                onClicked: {
                    bar.collapsed = !bar.collapsed;
                }
            }
        }
        Column {
            id: contentItem
            visible: !bar.collapsed

            Behavior on height {
                NumberAnimation {
                    duration: 500
                }
            }
        }
    }
}

The collapsing and expanding works, but it doesn't take 500 ms. Can someone explain to me why this is?

Thanks...

[mzimmers]

I love it when I come back to something after a couple weeks, and the problem goes away.

I still had some layout issues to deal with, and this solution isn't perfect; the caller has to manually reposition anything below the collapsible bar using y coordinates, but it does work nicely, and it's fairly easy to understand.

For anyone who wants it, here's the complete code (with a few extras thrown in for the example);

main.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

ApplicationWindow {
    id: mainWindow

    visible: true
    width: 800
    height: 480
    color: 'ivory'

    ColumnLayout {
        anchors.fill: parent
        spacing: 0

        Rectangle {
            Layout.preferredHeight: 100
            Layout.fillWidth: true
            color: 'lightblue'
            Text {
                anchors.centerIn: parent
                text: "this bar should appear above everything else."
            }
        }

        CollapsibleBar {
            id: collapsibleBar
            Layout.alignment: Qt.AlignVCenter | Qt.AlignTop
            contents: Rectangle {
                implicitHeight: 200 // this is causing the problem.
                width: mainWindow.width
                color: 'transparent'
                Text {
                    anchors.centerIn: parent
                    text: 'this rectangle should appear between the blue and green bars.'
                }
            }
        }

        Rectangle {
            y: collapsibleBar.height + collapsibleBar.y // THIS IS IMPORTANT
            Layout.preferredHeight: 100
            Layout.fillWidth: true
            color: 'lightgreen'
            Text {
                anchors.centerIn: parent
                text: "this bar should appear below everything else."
            }
        }
        Item {
            Layout.fillHeight: true
            Layout.fillWidth: true
        }
    }
}

CollapsibleBar.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

Rectangle {
    id: bar

    default property alias contents: contentItem.children
    property bool collapsed: true

    height: contentsArea.height
    width: mainWindow.width

    gradient: Gradient {
        GradientStop { position: 0.0; color: 'white' }
        GradientStop { position: 1.0; color: '#ded7f6' }
    }

    Column {
        id: contentsArea

        RowLayout {
            id: barHeader

            width: mainWindow.width
            height: 32

            Label {
                Layout.alignment: Qt.AlignLeft | Qt.AlignVCenter
                Layout.leftMargin: 32
                text: "IQ RECOMMENDED"
                color: 'white'
                font.family: "Barlow"
                font.pixelSize: 12
                font.weight: Font.DemiBold
                background: Rectangle {
                    anchors.centerIn: parent
                    width: parent.width + (8 * 2)
                    height: parent.height + (2 * 2)
                    radius: height / 2
                    color: '#29292A'
                }
            }

            RoundButton {
                id: expanderButton
                Layout.alignment: Qt.AlignRight | Qt.AlignVCenter
                Layout.rightMargin: 32
                Layout.maximumHeight: 24 // note: must use maximumHeight/Weight when within Layout.
                Layout.maximumWidth: 24
                icon {
                    source: "qrc:/Collapse.svg"
                }

                Behavior on rotation {
                    NumberAnimation {
                        duration: 500
                        easing.type: Easing.InOutQuad
                    }
                }
                onClicked: {
                    bar.collapsed = !bar.collapsed;
                    expanderButton.rotation = (expanderButton.rotation + 180) % 360
                }
            }
        }

        Column {
            id: contentItem
            clip: true
            height: bar.collapsed ? 0 : implicitHeight

            Behavior on height {
                NumberAnimation {
                    duration: 500
                }
            }
        }
    }
}

As always, comments and questions are welcome.

[fcarney]

@mzimmers the only height that is changing is on contentsArea. The height of that Item changes because contentItem is no longer visible. So contentItem is not included in the height calculation. It cannot animate an invisible Item. You will probably need a different approach for this if you want this animated. Perhaps you will need a sequence of changes to make this work properly. I have a similar side drawer and I slide the drawer offscreen (embedded system). So you might have to make and Item of a certain size slides the contentItem underneath, then turns it invisible.

[mzimmers]

@fcarney interesting. I suppose I could try using a drawer instead of my collapsing rectangle. I'll do some experimenting and report back. Thanks.

[fcarney]

@mzimmers
I tried using height of contentItem:

Rectangle {
        id: bar

        height: areaLayout.height
        width: 300

        default property alias contents: contentItem.children
        property bool collapsed: true

        MouseArea {
            anchors.fill: parent
            onClicked: {
                bar.collapsed = !bar.collapsed
            }
        }

        // columns expand contract based upon content
        Column {
            id: areaLayout

            Text {
                text: "normal bar content"
            }

            Column {
                id: contentItem

                clip: true

                height: bar.collapsed ? 0 : children.height

                Behavior on height {
                    NumberAnimation {
                        duration: 500
                    }
                }

                // simulate content used in "contents"
                Text {
                    text: "some text"
                }
            }
        }
    }

But it only animates the contraction.

[fcarney]

@mzimmers there is a calculated rectangle as the children move around. I used clipping (not sure what this does to performance) to hide things inside the rect if the items exceed the height of the default content:

Rectangle {
        id: bar

        height: childrenRect.height
        width: 300

        clip: true

        default property alias contents: contentItem.children
        property bool collapsed: true

        color: "lightblue"

        Rectangle {
            anchors.fill: contentItem

            color: "salmon"
        }

        Column {
            id: contentItem

            clip: true

            y: bar.collapsed ? -(contentItem.height - areaLayout.height) : areaLayout.height

            Behavior on y {
                NumberAnimation {
                    duration: 500
                }
            }

            // simulate content used in "contents"
            Text {
                text: "some text"
            }
        }

        Rectangle {
            anchors.fill: areaLayout

            color: "pink"
        }

        MouseArea {
            anchors.fill: areaLayout
            onClicked: {
                bar.collapsed = !bar.collapsed
            }
        }

        // columns expand contract based upon content
        Column {
            id: areaLayout

            width: bar.width

            Text {
                text: "normal bar content"
            }
        }
    }

[fcarney]

@mzimmers Okay, this is flawed if the content you add is bigger than the default:

Rectangle {
        id: bar

        height: childrenRect.height
        width: 300

        y: 200

        clip: true

        default property alias contents: contentItem.children
        property bool collapsed: true

        color: "lightblue"

        Rectangle {
            anchors.fill: contentItem

            color: "salmon"
        }

        Column {
            id: contentItem

            clip: true

            y: bar.collapsed ? -(contentItem.height - areaLayout.height) : areaLayout.height

            Behavior on y {
                NumberAnimation {
                    duration: 500
                }
            }

            // simulate content used in "contents"
            Text {
                text: "some text"
            }

            Text {
                text: "more text"
            }

            Text {
                text: "even more"
            }
        }

        Rectangle {
            anchors.fill: areaLayout

            color: "pink"
        }

        MouseArea {
            anchors.fill: areaLayout
            onClicked: {
                bar.collapsed = !bar.collapsed
            }
        }

        // columns expand contract based upon content
        Column {
            id: areaLayout

            width: bar.width

            Text {
                text: "normal bar content"
            }
        }
    }

Still doesn't work.

[mzimmers]

@fcarney I like it. Let me play with it a bit; I'll report my findings.

[fcarney]

@mzimmers
This has gotten kind of messy, but it works:

    Rectangle {
        id: bar

        //height: areaLayout.height
        property real distancePastBar: {
            contentItem.y // creates dependency on value change, forces update whenever value changes
            contentItem.mapToItem(bar, 0, 0).y + contentItem.height
        }
        onDistancePastBarChanged: {
            console.log("distancePastBar:", distancePastBar)
        }
        Component.onCompleted: {
            console.log("distancePastBar:", distancePastBar)
        }

        height: distancePastBar
        width: 300

        y: 100

        clip: true

        default property alias contents: contentItem.children
        property bool collapsed: true

        color: "lightblue"

        Rectangle {
            anchors.fill: contentItem

            color: "salmon"
        }

        Column {
            id: contentItem

            clip: true

            y: bar.collapsed ? -(contentItem.height - areaLayout.height) : areaLayout.height

            Behavior on y {
                NumberAnimation {
                    duration: 500
                }
            }

            // simulate content used in "contents"
            Text {
                text: "some text"
            }

            Text {
                text: "more text"
            }

            Text {
                text: "even more"
            }
        }

        Rectangle {
            anchors.fill: areaLayout

            color: "pink"
        }

        MouseArea {
            anchors.fill: areaLayout
            onClicked: {
                bar.collapsed = !bar.collapsed
            }
        }

        // columns expand contract based upon content
        Column {
            id: areaLayout

            width: bar.width

            Text {
                text: "normal bar content"
            }
            Text {
                text: "normal bar content"
            }
        }
    }

[GrecKo]

Doesn't just binding the content colum height on its implicit height when non collapsed works?

[fcarney]

@GrecKo
Yes, this does work animate the height:

    Rectangle {
        id: bar2

        y: 250

        color: "red"

        default property alias contents: contentItem2.children
        property bool collapsed: true

        height: contentsArea2.height
        width: 300

        Column {
            id: contentsArea2

            RowLayout {
                id: barHeader

                width: 300
                height: 32

                RoundButton {
                    implicitWidth: 30
                    implicitHeight: 30

                    onClicked: {
                        bar2.collapsed = !bar2.collapsed;
                    }
                }
            }


            Column {
                id: contentItem2

                clip: true

                height: bar2.collapsed ? 0 : implicitHeight

                Behavior on height {
                    NumberAnimation {
                        duration: 500
                    }
                }

                Text {
                    text: "some text"
                }
            }

        }
    }

[mzimmers]

@fcarney this is very close to working as desired. I've added a couple things to Main.qml to represent the desired usage. It almost works perfectly; the only problem is the initial height of the collapsing area -- it's taking the value from the contents setting in Main.qml.

Any ideas on what could be done about this?

Here's the complete code. Thanks...

// Main.qml
import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

ApplicationWindow {
    id: mainWindow

    visible: true
    width: 800
    height: 480

    ColumnLayout {
        anchors.fill: parent
        spacing: 0

        CollapsibleBar {
            id: collapsibleBar
            Layout.alignment: Qt.AlignVCenter | Qt.AlignTop
            contents: Rectangle {
                implicitHeight: 300 // this is causing the problem.
                width: mainWindow.width
                color: 'lightgray'
                Text {
                    anchors.centerIn: parent
                    text: 'this light gray bar should appear below the light blue bar.'
                }
            }
        }
        Rectangle {
            y: collapsibleBar.height
            Layout.preferredHeight: 100
            Layout.fillWidth: true
            color: 'lightgreen'
            Text {
                anchors.centerIn: parent
                text: "this light green bar should appear below everything else."
            }
        }
    }
}

// CollapsibleBar.qml
import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

Rectangle {
    id: bar
    color: "lightblue"

    default property alias contents: contentItem.children
    property bool collapsed: true

    height: contentsArea.height
    width: mainWindow.width

    Column {
        id: contentsArea

        RowLayout {
            id: barHeader

            width: mainWindow.width
            height: 32

            RoundButton {
                implicitWidth: 24
                implicitHeight: 24

                onClicked: {
                    bar.collapsed = !bar.collapsed;
                }
            }

            Text {
//                Layout.Alignment: Qt.AlignHCenter // BTW: this line doesn't compile.
                text: "this light blue bar should appear above everything."
            }
        }

        Column {
            id: contentItem
            clip: true
            height: bar.collapsed ? 0 : implicitHeight

            Behavior on height {
                NumberAnimation {
                    duration: 500
                }
            }
        }
    }
}

[mzimmers]

BTT...anyone have a suggestion?

Thanks...

EDIT:

bug report filed

[mzimmers]

I love it when I come back to something after a couple weeks, and the problem goes away.

I still had some layout issues to deal with, and this solution isn't perfect; the caller has to manually reposition anything below the collapsible bar using y coordinates, but it does work nicely, and it's fairly easy to understand.

For anyone who wants it, here's the complete code (with a few extras thrown in for the example);

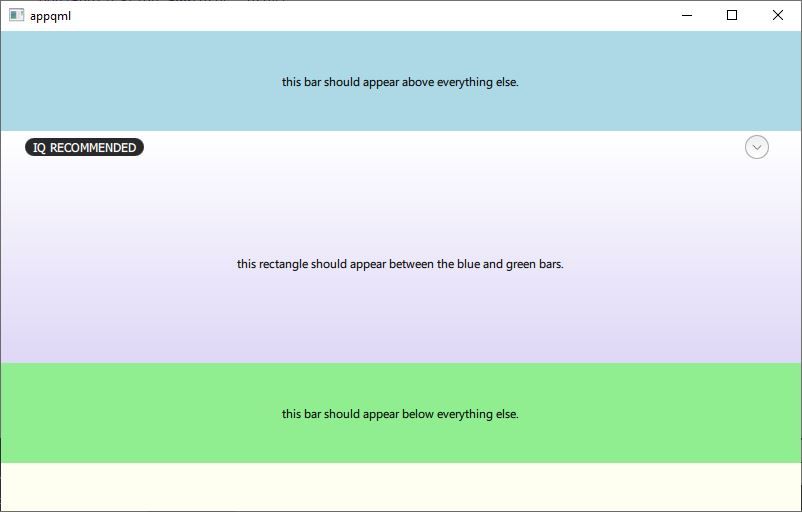

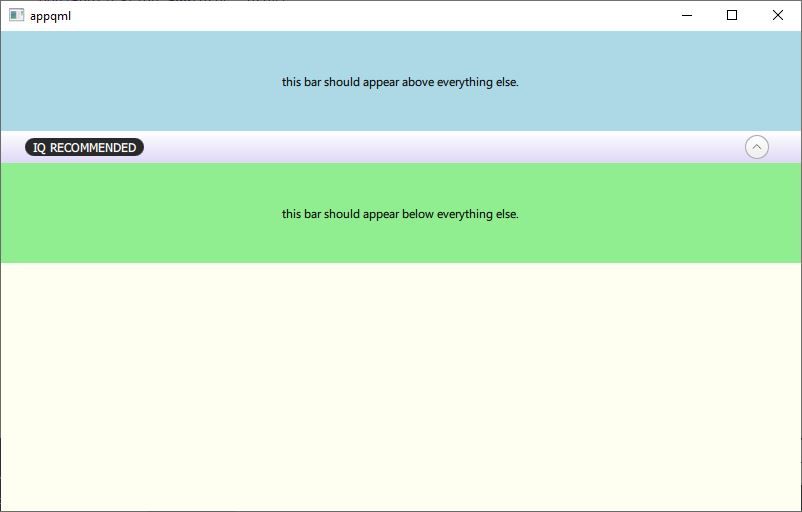

main.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

ApplicationWindow {
    id: mainWindow

    visible: true
    width: 800
    height: 480
    color: 'ivory'

    ColumnLayout {
        anchors.fill: parent
        spacing: 0

        Rectangle {
            Layout.preferredHeight: 100
            Layout.fillWidth: true
            color: 'lightblue'
            Text {
                anchors.centerIn: parent
                text: "this bar should appear above everything else."
            }
        }

        CollapsibleBar {
            id: collapsibleBar
            Layout.alignment: Qt.AlignVCenter | Qt.AlignTop
            contents: Rectangle {
                implicitHeight: 200 // this is causing the problem.
                width: mainWindow.width
                color: 'transparent'
                Text {
                    anchors.centerIn: parent
                    text: 'this rectangle should appear between the blue and green bars.'
                }
            }
        }

        Rectangle {
            y: collapsibleBar.height + collapsibleBar.y // THIS IS IMPORTANT
            Layout.preferredHeight: 100
            Layout.fillWidth: true
            color: 'lightgreen'
            Text {
                anchors.centerIn: parent
                text: "this bar should appear below everything else."
            }
        }
        Item {
            Layout.fillHeight: true
            Layout.fillWidth: true
        }
    }
}

CollapsibleBar.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

Rectangle {
    id: bar

    default property alias contents: contentItem.children
    property bool collapsed: true

    height: contentsArea.height
    width: mainWindow.width

    gradient: Gradient {
        GradientStop { position: 0.0; color: 'white' }
        GradientStop { position: 1.0; color: '#ded7f6' }
    }

    Column {
        id: contentsArea

        RowLayout {
            id: barHeader

            width: mainWindow.width
            height: 32

            Label {
                Layout.alignment: Qt.AlignLeft | Qt.AlignVCenter
                Layout.leftMargin: 32
                text: "IQ RECOMMENDED"
                color: 'white'
                font.family: "Barlow"
                font.pixelSize: 12
                font.weight: Font.DemiBold
                background: Rectangle {
                    anchors.centerIn: parent
                    width: parent.width + (8 * 2)
                    height: parent.height + (2 * 2)
                    radius: height / 2
                    color: '#29292A'
                }
            }

            RoundButton {
                id: expanderButton
                Layout.alignment: Qt.AlignRight | Qt.AlignVCenter
                Layout.rightMargin: 32
                Layout.maximumHeight: 24 // note: must use maximumHeight/Weight when within Layout.
                Layout.maximumWidth: 24
                icon {
                    source: "qrc:/Collapse.svg"
                }

                Behavior on rotation {
                    NumberAnimation {
                        duration: 500
                        easing.type: Easing.InOutQuad
                    }
                }
                onClicked: {
                    bar.collapsed = !bar.collapsed;
                    expanderButton.rotation = (expanderButton.rotation + 180) % 360
                }
            }
        }

        Column {
            id: contentItem
            clip: true
            height: bar.collapsed ? 0 : implicitHeight

            Behavior on height {
                NumberAnimation {
                    duration: 500
                }
            }
        }
    }
}

As always, comments and questions are welcome.

[Markkyboy]

hey mr.zimmers, I often read your questions but can rarely help out, but I still like to run your code sometimes to see what I get.

In this case, I get a white screen with a lightblue bar containing text at the top and nothing else. I assume there should be text in the centre of the lightblue bar and a lightgreen bar, but the lightgreen bar does not show at all. How does your app look and function when running?

The only thing I cannot use is RoundButton and 'background' for Label/Text, these are missing in SailfishSDK for some reason, licensing I guess.

I'm building this on Sailfish SDK with/for my Sony Xperia 10II device.

[mzimmers]

@Markkyboy :

Qt 6.5.1, running on Windows 10, Fusion style.

I know nothing about Sailfish, so I can't speak to that. I would recommend, though, that you experiment with changing styles, to see if that does anything for you.
