How to promote the ui file to the QtGraphviews window?

Scheduled Pinned Locked Moved Unsolved General and Desktop
1 Posts 1 Posters 459 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • E Offline
    E Offline
    EClassBox
    wrote on last edited by
    #1

    I already made a ui file used 2 classess.
    Chart.py

    import sys, time, datetime, pyupbit
    import pandas as pd
    import finplot as fplt
    from PyQt5 import QtWidgets, uic
    from PyQt5.QtWidgets import *
    from PyQt5.QtCore import *

    # candle chart setting
    fplt.display_timezone = datetime.timezone.utc
    fplt.candle_bull_color = "#FF0000"
    fplt.candle_bull_body_color = "#FF0000"
    fplt.candle_bear_color = "#0000FF"

    chart = uic.loadUiType("chart.ui")[0]
    class Worker(QThread):
        timeout = pyqtSignal(pd.DataFrame)
        def __init__(self):
            super().__init__()

        def get_ohlcv(self):
            self.df = pyupbit.get_ohlcv(ticker="KRW-XRP", interval="minute1")
            self.df = self.df[['open', 'high', 'low', 'close']]
            self.df.columns = ['Open', 'High', 'Low', 'Close']

        def run(self):
            self.get_ohlcv()

            while True:
                data3 = pyupbit.get_current_price("KRW-XRP", verbose=True)
                price3 = data3['trade_price']
                time_stamp = data3['trade_timestamp'] / 1000
                cur_min_time_stamp = time_stamp - time_stamp % (60)
                cur_min_dt = datetime.datetime.fromtimestamp(cur_min_time_stamp)

                if cur_min_dt > self.df.index[-1]:
                    self.get_ohlcv()
                else:
                    self.df.iloc[-1]['Close'] = price3
                    if price3 > self.df.iloc[-1]['High']:
                        self.df.iloc[-1]['High'] = price3
                    if price3 < self.df.iloc[-1]['High']:
                        self.df.iloc[-1]['Low'] = price3

                CurrentPrice3 = pyupbit.get_current_price("KRW-XRP")
                print("Current Price of KRW-XRP :", CurrentPrice3)

                self.timeout.emit(self.df)
                time.sleep(1)

    class MyWindow(QWidget, chart):
        def __init__(self):
            super().__init__()
            self.setupUi(self)
            self.df = None
            self.plot = None

            self.w = Worker()
            self.w.timeout.connect(self.update_data)
            self.w.start()

            self.timer = QTimer(self)
            self.timer.start(1000)
            self.timer.timeout.connect(self.update)

            self.ax = fplt.create_plot(init_zoom_periods=100)
            self.axs = [self.ax]

            self.gridLayout_2.addWidget(self.ax.vb.win, 0, 0)

        def update(self):
            if self.df is not None:
                if self.plot is None:
                    self.plot = fplt.candlestick_ochl(self.df[['Open', 'Close', 'High', 'Low']])
                    fplt.show(qt_exec=False)
                else:
                    self.plot.update_data(self.df[['Open', 'Close', 'High', 'Low']])

        @pyqtSlot(pd.DataFrame)
        def update_data(self, df):
            self.df = df

    if __name__ == "__main__":
        app = QApplication(sys.argv)
        window = MyWindow()
        window.show()
        app.exec_()

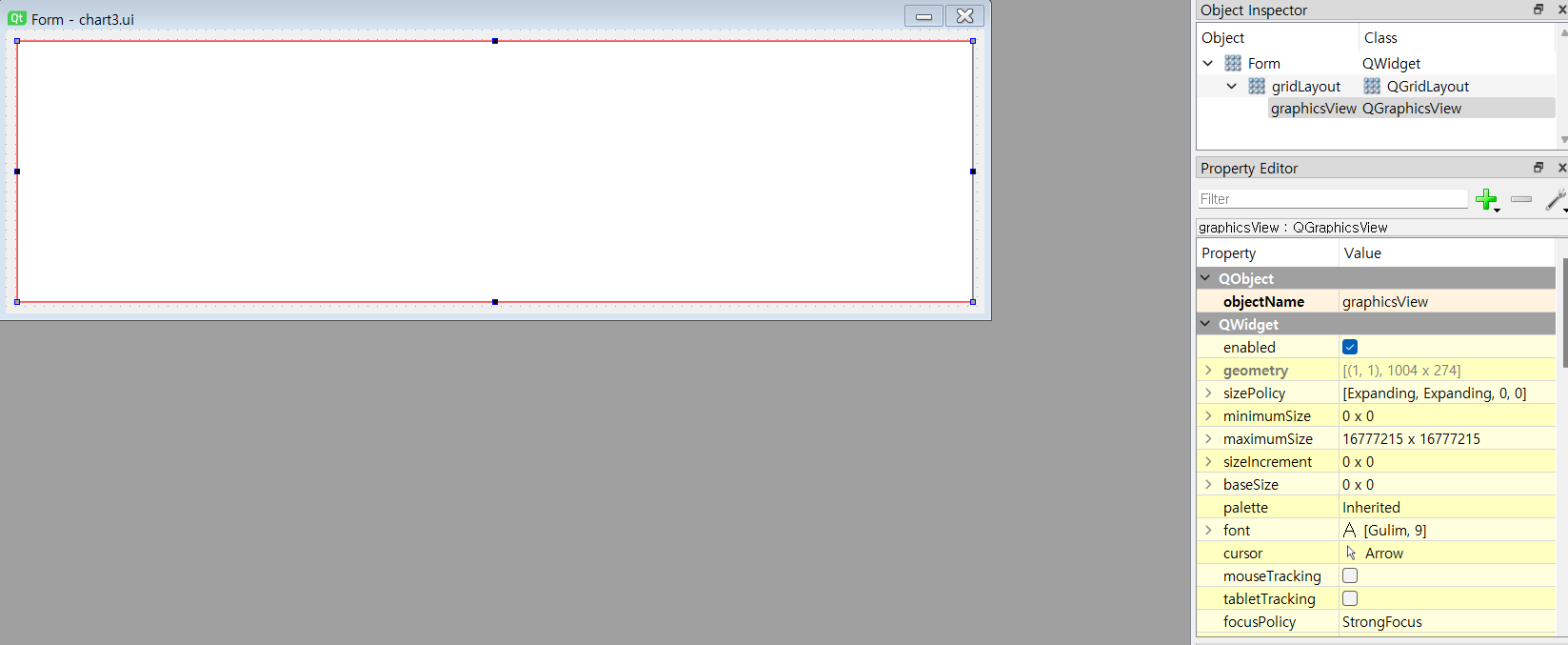

    and chart.ui has 1 gridLayout in 1 graphicsView

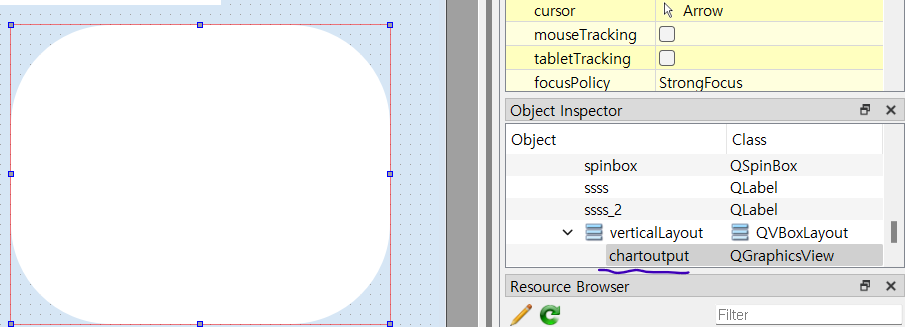

    then I' want to print out the chart.ui on the QGraphicsview screen in the main.ui.
    But I don't know about how to promote QGrphicsview widget and write the Python code.
    Could you please tell me what I should do?
