QGraphicsItem class itemChange function returns old value

[Sridharan]

I created QGraphicsRectItem and added to QGraphicsScene. This QGraphicsRectItem has child 'SizeGripItem' which helps to resize it's parent. 'SizeGripItem' has eight child 'HandleItem' (resize handle) and on mouse-press-drag helps to resize QGraphicsRectItem.

I am able to resize based on itemChange() received by 'HandleItem'. But, my problem is when i do resize operation 2nd time (without deselecting QGraphicsRectItem after 1st resize operation), resize operation begins from older position (i,e) itemChange() function receives old position of 'HandleItem', not new one. Am i missing anything during mouserelease operation

// sizegripitem.h

class SizeGripItem : public QGraphicsItem
{
private:
enum
{
Top = 0x1,
Bottom = 0x2,
Left = 0x4,
TopLeft = Top | Left,
BottomLeft = Bottom | Left,
Right = 0x8,
TopRight = Top | Right,
BottomRight = Bottom | Right
};

class HandleItem : public QGraphicsEllipseItem
{
    public:
        HandleItem(int positionFlags, SizeGripItem* parent);
        int positionFlags() const;

        void mousePressEvent(QGraphicsSceneMouseEvent *event);
        void mouseReleaseEvent(QGraphicsSceneMouseEvent *event);

    protected:
        virtual QVariant itemChange(GraphicsItemChange change,
                                    const QVariant &value);

    private:
        QPointF restrictPosition(const QPointF& newPos);

        void setCursorShape();

        int positionFlags_;
        SizeGripItem* parent_;
};

public:
class Resizer
{
public:
virtual void operator()(QGraphicsItem* item,
const QRectF& rect) = 0;
};

SizeGripItem(Resizer* resizer = 0, QGraphicsItem* parent = 0);
virtual ~SizeGripItem();
virtual QRectF boundingRect() const;
virtual void paint(QPainter* painter,
                   const QStyleOptionGraphicsItem* option,
                   QWidget* widget = 0);
void setTopLeft(const QPointF& pos);
void setTop(qreal y);
void setTopRight(const QPointF& pos);
void setRight(qreal x);
void setBottomRight(const QPointF& pos);
void setBottom(qreal y);
void setBottomLeft(const QPointF& pos);
void setLeft(qreal x);

QRectF rect_;
void doResize();

private:
//void doResize();
void updateHandleItemPositions();

QList<HandleItem*> handleItems_;
// QRectF rect_;
Resizer* resizer_;

};

//sizegriptem.cpp

SizeGripItem::HandleItem::HandleItem(int positionFlags, SizeGripItem* parent)
: QGraphicsEllipseItem(-4, -4, 8, 8, parent),
positionFlags_(positionFlags),
parent_(parent)
{
setBrush(QBrush(Qt::white));
setFlag(ItemIsMovable);
setFlag(ItemSendsGeometryChanges);
setCursorShape();
setAcceptHoverEvents(true);
}

int SizeGripItem::HandleItem::positionFlags() const
{
return positionFlags_;
}

QVariant SizeGripItem::HandleItem::itemChange(GraphicsItemChange change,
const QVariant &value)
{
QVariant retVal = value;

if (change == ItemPositionChange)
{
    retVal = restrictPosition(value.toPointF());
}
else if (change == ItemPositionHasChanged)
{
    QPointF pos = value.toPointF();

    switch (positionFlags_)
    {
        case TopLeft:
            parent_->setTopLeft(pos);
            break;
        case Top:
            parent_->setTop(pos.y());
            break;
        case TopRight:
            parent_->setTopRight(pos);
            break;
        case Right:
            parent_->setRight(pos.x());
            break;
        case BottomRight:
            parent_->setBottomRight(pos);
            break;
        case Bottom:
            parent_->setBottom(pos.y());
            break;
        case BottomLeft:
            parent_->setBottomLeft(pos);
            break;
        case Left:
            parent_->setLeft(pos.x());
            break;
    }
}

return retVal;

}

QPointF SizeGripItem::HandleItem::restrictPosition(const QPointF& newPos)
{
QPointF retVal = pos();

if (positionFlags_ & Top || positionFlags_ & Bottom)
    retVal.setY(newPos.y());

if (positionFlags_ & Left || positionFlags_ & Right)
    retVal.setX(newPos.x());

if (positionFlags_ & Top && retVal.y() > parent_->rect_.bottom())
    retVal.setY(parent_->rect_.bottom());
else if (positionFlags_ & Bottom && retVal.y() < parent_->rect_.top())
    retVal.setY(parent_->rect_.top());

if (positionFlags_ & Left && retVal.x() > parent_->rect_.right())
    retVal.setX(parent_->rect_.right());
else if (positionFlags_ & Right && retVal.x() < parent_->rect_.left())
    retVal.setX(parent_->rect_.left());

return retVal;

}

void SizeGripItem::HandleItem::setCursorShape()
{
switch (positionFlags_)
{
case TopLeft:
setCursor(Qt::SizeFDiagCursor);
break;
case Top:
setCursor(Qt::SizeVerCursor);
break;
case TopRight:
setCursor(Qt::SizeBDiagCursor);
break;
case Right:
setCursor(Qt::SizeHorCursor);
break;
case BottomRight:
setCursor(Qt::SizeFDiagCursor);
break;
case Bottom:
setCursor(Qt::SizeVerCursor);
break;
case BottomLeft:
setCursor(Qt::SizeBDiagCursor);
break;
case Left:
setCursor(Qt::SizeHorCursor);
break;
}
}

SizeGripItem::SizeGripItem(Resizer* resizer, QGraphicsItem* parent)
: QGraphicsItem(parent),
resizer_(resizer)
{
if (parentItem())
rect_ = parentItem()->boundingRect();

handleItems_.append(new HandleItem(TopLeft, this));
handleItems_.append(new HandleItem(Top, this));
handleItems_.append(new HandleItem(TopRight, this));
handleItems_.append(new HandleItem(Right, this));
handleItems_.append(new HandleItem(BottomRight, this));
handleItems_.append(new HandleItem(Bottom, this));
handleItems_.append(new HandleItem(BottomLeft, this));
handleItems_.append(new HandleItem(Left, this));
updateHandleItemPositions();

}

SizeGripItem::~SizeGripItem()
{
if (resizer_)
delete resizer_;
}

QRectF SizeGripItem::boundingRect() const
{
return rect_;
}

void SizeGripItem::paint(QPainter* painter,
const QStyleOptionGraphicsItem* option,
QWidget* widget)
{
}

#define IMPL_SET_FN(TYPE, POS)
void SizeGripItem::set ## POS (TYPE v)
{
rect_.set ## POS (v);
doResize();
}

IMPL_SET_FN(qreal, Top)
IMPL_SET_FN(qreal, Right)
IMPL_SET_FN(qreal, Bottom)
IMPL_SET_FN(qreal, Left)
IMPL_SET_FN(const QPointF&, TopLeft)
IMPL_SET_FN(const QPointF&, TopRight)
IMPL_SET_FN(const QPointF&, BottomRight)
IMPL_SET_FN(const QPointF&, BottomLeft)

void SizeGripItem::doResize()
{
if (resizer_)
{
(*resizer_)(parentItem(), rect_);
updateHandleItemPositions();
}
}

void SizeGripItem::updateHandleItemPositions()
{
foreach (HandleItem* item, handleItems_)
{
item->setFlag(ItemSendsGeometryChanges, false);

    switch (item->positionFlags())
    {
        case TopLeft:
            item->setPos(rect_.topLeft());
            break;
        case Top:
            item->setPos(rect_.left() + rect_.width() / 2 - 1,
                         rect_.top());
            break;
        case TopRight:
            item->setPos(rect_.topRight());
            break;
        case Right:
            item->setPos(rect_.right(),
                         rect_.top() + rect_.height() / 2 - 1);
            break;
        case BottomRight:
            item->setPos(rect_.bottomRight());
            break;
        case Bottom:
            item->setPos(rect_.left() + rect_.width() / 2 - 1,
                         rect_.bottom());
            break;
        case BottomLeft:
            item->setPos(rect_.bottomLeft());
            break;
        case Left:
            item->setPos(rect_.left(),
                         rect_.top() + rect_.height() / 2 - 1);
            break;
    }

    item->setFlag(ItemSendsGeometryChanges, true);
}

}

void SizeGripItem::HandleItem::mousePressEvent(QGraphicsSceneMouseEvent *event)
{
parent_->parentItem()->setFlag(QGraphicsItem::ItemIsMovable, false);
}

void SizeGripItem::HandleItem::mouseReleaseEvent(QGraphicsSceneMouseEvent *event)
{
parent_->parentItem()->setFlag(QGraphicsItem::ItemIsMovable, true);
}

// MainWindow.cpp

namespace
{
class RectResizer : public SizeGripItem::Resizer
{
public:
virtual void operator()(QGraphicsItem* item, const QRectF& rect)
{
QGraphicsRectItem* rectItem =
dynamic_cast<QGraphicsRectItem*>(item);

            if (rectItem)
            {
                rectItem->setRect(rect);
            }
        }
};

class EllipseResizer : public SizeGripItem::Resizer
{
    public:
        virtual void operator()(QGraphicsItem* item, const QRectF& rect)
        {
            QGraphicsEllipseItem* ellipseItem =
                dynamic_cast<QGraphicsEllipseItem*>(item);

            if (ellipseItem)
            {
                ellipseItem->setRect(rect);
            }
        }
};

}

MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
, ui(new Ui::MainWindow)
{
ui->setupUi(this);

QGraphicsView* view = new QGraphicsView(ui->centralwidget);
view->setGeometry(100, 100, 500, 500);
view->setFrameStyle(0);

QGraphicsScene* scene = new QGraphicsScene(0, 0, 500, 500, view);
scene->setBackgroundBrush(Qt::white);
view->setScene(scene);
m_scene = scene;

QGraphicsRectItem* rectItem = new QGraphicsRectItem(QRectF(0, 0, 100, 100));
rectItem->setBrush(Qt::white);
rectItem->setFlag(QGraphicsItem::ItemIsMovable);
rectItem->setFlag(QGraphicsItem::ItemIsSelectable);
rectItem->setCursor(Qt::SizeAllCursor);
scene->addItem(rectItem);
rectItem->setPos(100, 10);

connect(m_scene, SIGNAL(selectionChanged()), this, SLOT(selectionChanged()));

m_currentSelectedItem = nullptr;

}

MainWindow::~MainWindow()
{
delete ui;
}

void MainWindow::selectionChanged()
{
qDebug() << "Main window selection change";
QList<QGraphicsItem *> selectedItems = m_scene->selectedItems();

if (m_currentSelectedItem != nullptr)
{
    delete m_currentSelectedItem;
    m_currentSelectedItem = nullptr;
}

foreach (QGraphicsItem* item, selectedItems)
{
    QGraphicsRectItem* r = dynamic_cast<QGraphicsRectItem*> (item);
    QGraphicsEllipseItem* e = dynamic_cast<QGraphicsEllipseItem*> (item);

    if (r)
    {
        qDebug() << "rect item selected";
        m_currentSelectedItem = new SizeGripItem(new RectResizer, r);

    }
    else if (e)
    {
        qDebug() << "ellipse item selected";
        m_currentSelectedItem = new SizeGripItem(new EllipseResizer, e);
    }
}

}

[Sridharan]

[Solved]

In mousePressEvent and mouseReleaseEvent function of 'HandleItem' class, forward the call to base class.\

Add, QGraphicsRectItem::mousePressEvent(event) in mousePressEvent() function and QGraphicsRectItem::mouseReleaseEvent (event) in mouseReleaseEvent() function of 'HandleItem' class

[JonB]

@Sridharan
Hello and welcome.

Could you post some kind of minimal reproducible example of your problem?

[Asperamanca]

@Sridharan said in QGraphicsItem class itemChange function returns old value:

switch (positionFlags_)
{
case TopLeft:
parent_->setTopLeft(pos);
break;

Does setting position on parent inside ItemChange maybe trigger a recursive call? When you hit a breakpoint where you have the "old" position, check the call stack for recursive itemChange calls.

[Sridharan]

@JonB

I have added QGraphicsRectItem to scene.

On selecting QGraphicsRectItem, I add few childs to QGraphicsRectItem which helps to achieve resize operation. On deselect, i delete the childs. I have shown below the parent-child relationship

                     QGraphicsRectItem
                        |
                        |- SizeGripItem
                            |
                            |- HandleItem1 (Top)
                            |- HandleItem 2 (Top left)
                            |- HandleItem 3 (top right)
                            |- HandleItem 4 (bottom)
                            |- HandleItem 5 (bottom left)
                            |- HandleItem 6 (bottom right)
                            |- HandleItem 7 (left)
                            |- HandleItem 8 (right)

SizeGripItem - inherits QGraphicsItem. It's bounding box same as its parent
HandleItem - This is resizer. On select and drag this item, i resize the boundingbox of QGraphicsRectItem.

Steps to reproduce problem :

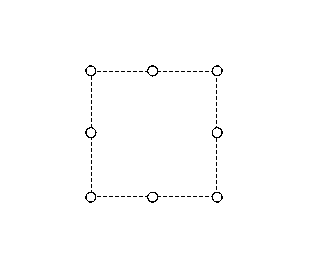

1. Select QGraphicsRectItem, 8 HandleItem appears for resize operation.
2. Assume, perform left-button mousepress and drag HandleItem1 for 10px. itemChange() function gets called and provides distance moved (value parameter of function). In this function, based on distance movement, logic is added QGraphicsRectItem to expand. Mouse left-button released. Now rectangle size gets increased. Until here, it works as expected.
3. Again perform left-button mousepress and drag HandleItem1 for 5px. itemChange() function gets called and provides distance moved from older size. 10px movement performed in step 2) is not considered

Work around

After every resize operation, perform left-button mouse press. It works fine.

Resize--> Left mouse button press on QGraphics rect Item --> Resize --> Left mouse button press on QGraphics rect Item --> Resize

[Asperamanca]

@Sridharan
I recommend making the handles toplevel items, instead of children of the item you want to resize.
This prevents recursion in the logic. Your only extra job is to ensure the handles are initially at the correct position. Then let the user drag them around, and calculate the new size of the parent.
Resizing the parent now won't affect the handles in any way. Much simpler.

[Sridharan]

@Asperamanca

If parent item moves, child also moves along with parent. So, if I make handle as parent and move the handle for resize, actual shape also moves.

And here, I have 8 handles for resize operation. We can't make actual shape to child of all 8 handles

[Sridharan]

[Solved]

In mousePressEvent and mouseReleaseEvent function of 'HandleItem' class, forward the call to base class.\

Add, QGraphicsRectItem::mousePressEvent(event) in mousePressEvent() function and QGraphicsRectItem::mouseReleaseEvent (event) in mouseReleaseEvent() function of 'HandleItem' class
